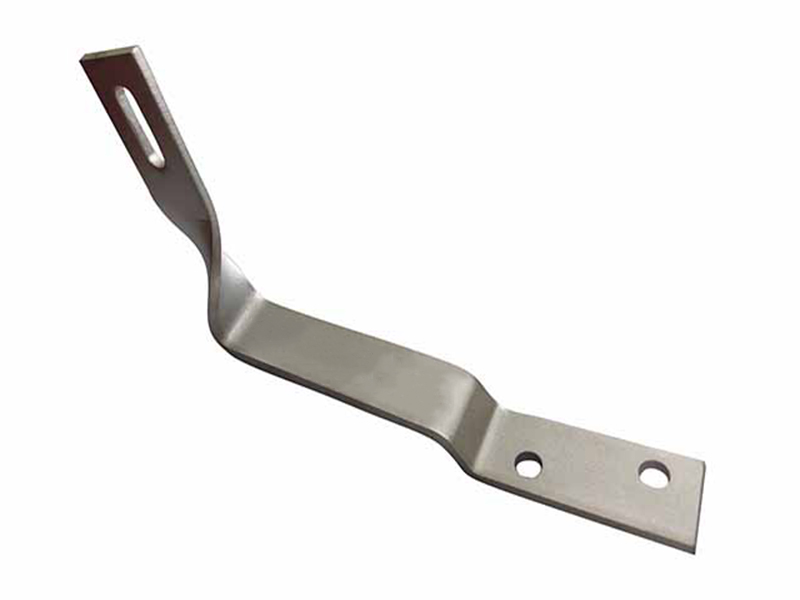

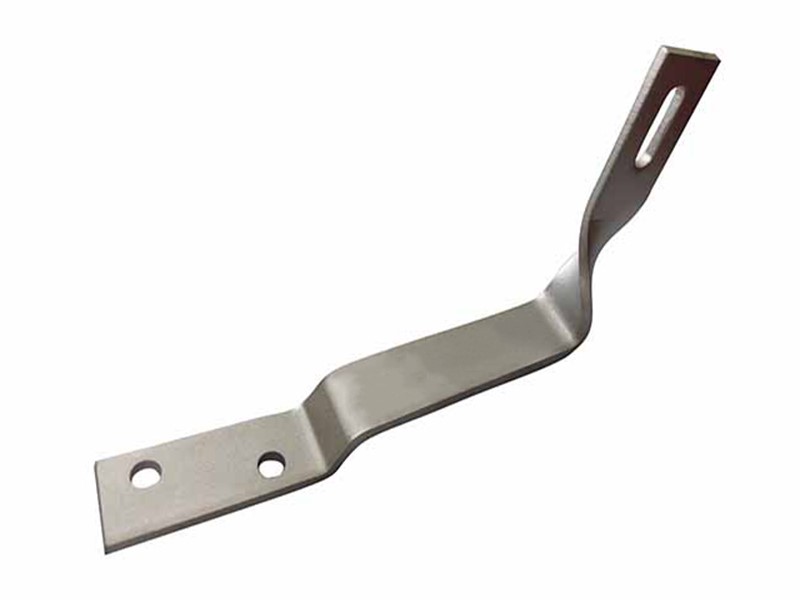

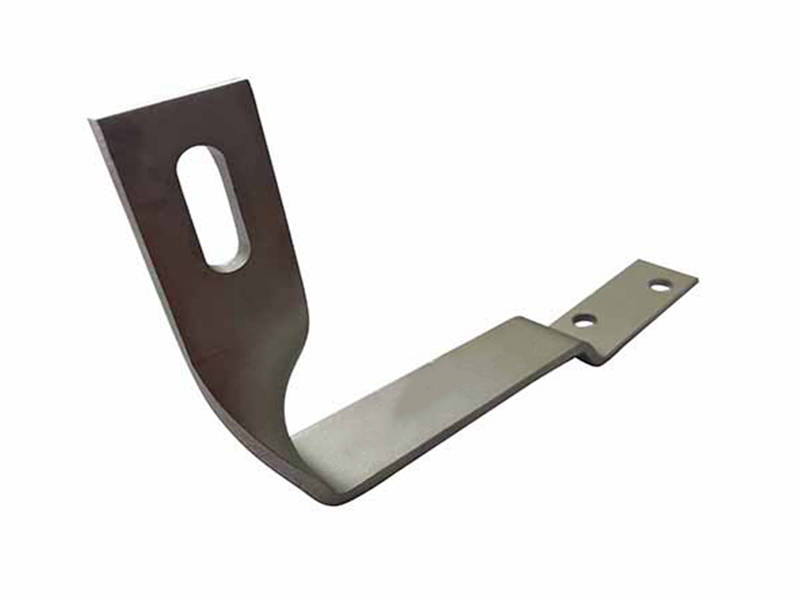

Flat Concrete Tiles Twist Solar Roof Hook

Click here to learn more hooks

1️⃣ Position the rafters – Mark the rafter locations on the flat concrete tile underneath.

2️⃣ Carefully lift the tile – Lift the tile at the mounting point without damaging it.

3️⃣ Insert the twist hook – Position the hook onto the rafter and twist it to ensure a secure fit.

4️⃣ Secure the hook with screws – Use stainless steel bolts to secure the hook to the rafter.

5️⃣ Adjust the hook alignment – Use the twist hook design to align with the mounting rail.

6️⃣ Replace the tile – Place the tile back onto the hook, ensuring it is waterproof.

7️⃣ Install the rail and panel – Secure the rail to the hook, then use the clamps to mount the PV panel.

Standard package is cartons with plywood pallet as below. Wooden case could be offered if needed.

Advantages as follow:
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ High Pre-assembly – Save labor cost at the installation site

Related Certificate

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGS Certificate for bolt material-- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

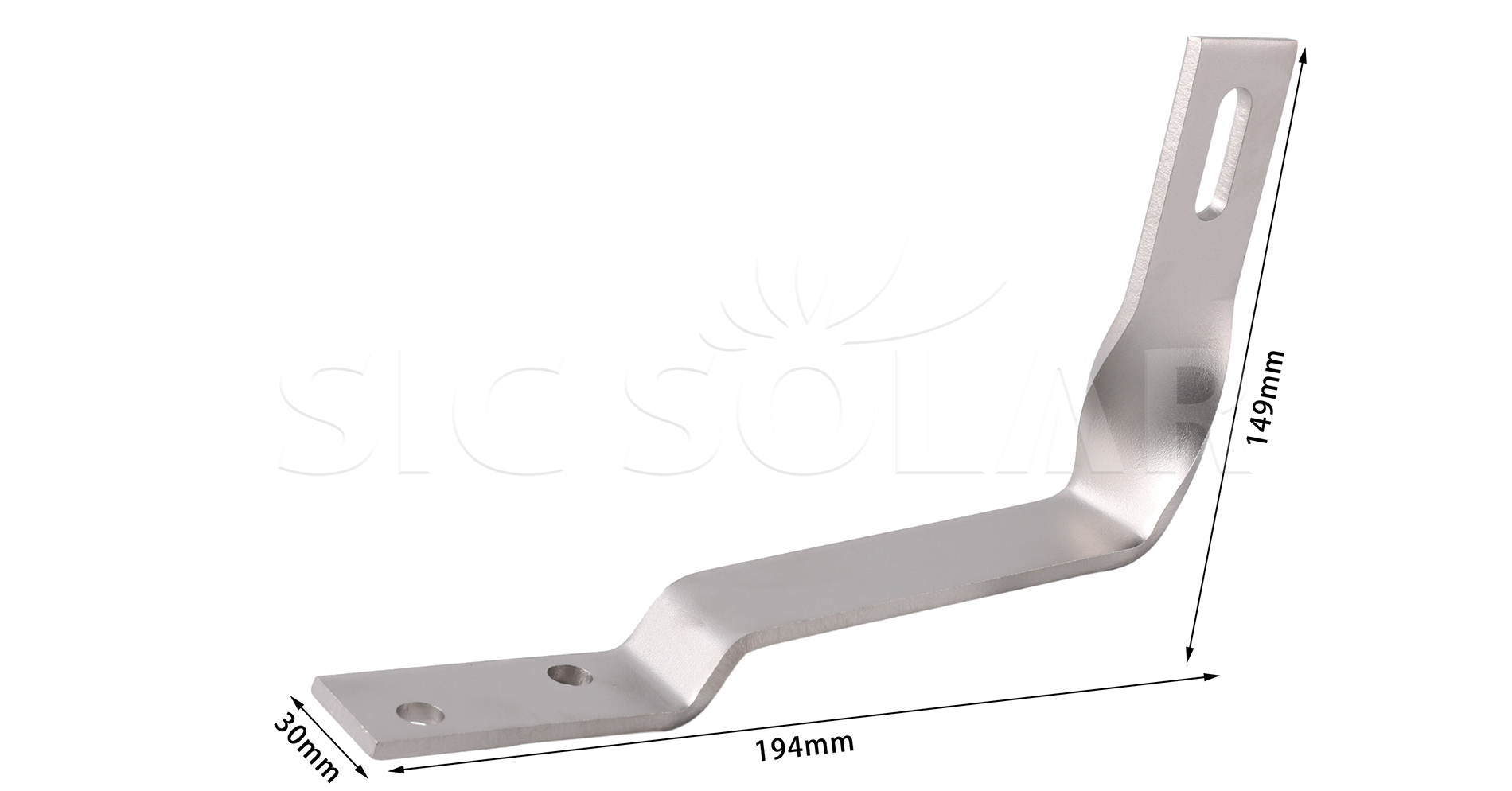

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

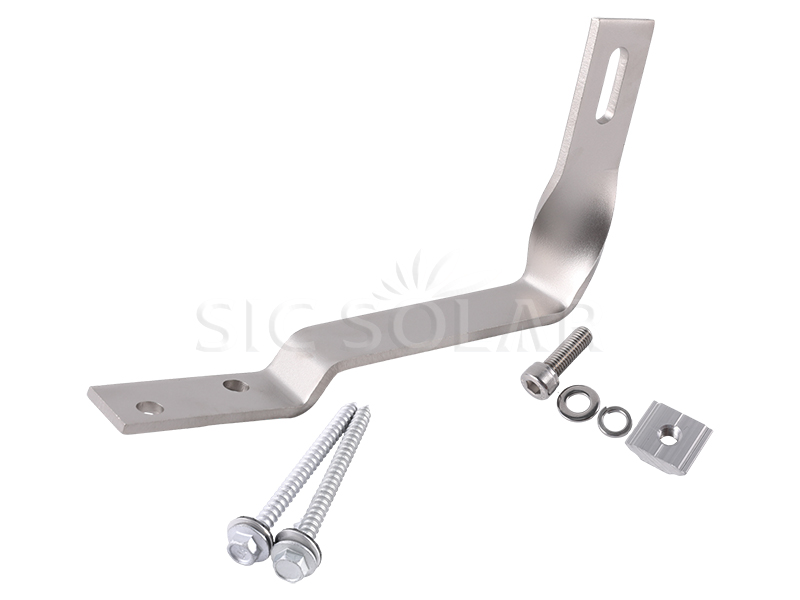

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
