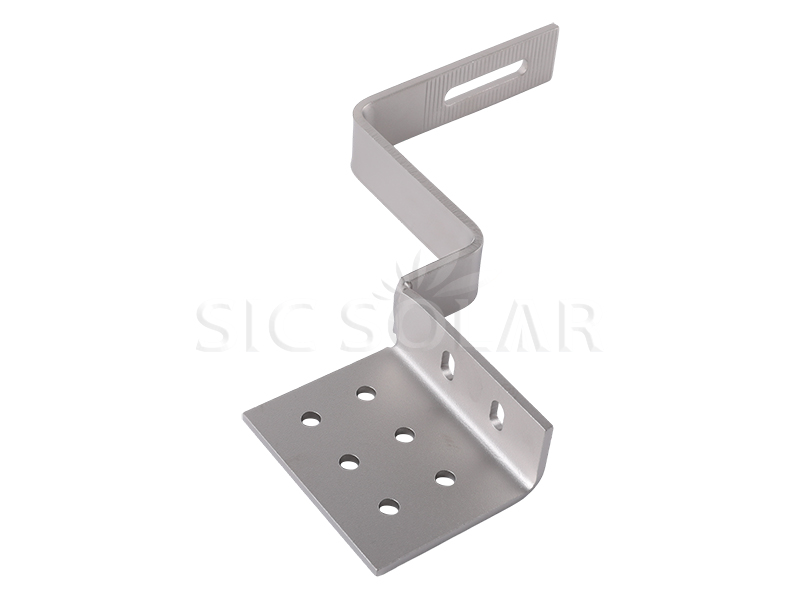

SUS304 solar mounting bracket tile roof hook

Click here to lean more hooks

1️⃣ Position the rafters – Determine the location of the rafters below the roof tiles for secure attachment.

2️⃣ Lift the roof tiles – Carefully lift the tiles from their mounting points to avoid damaging them.

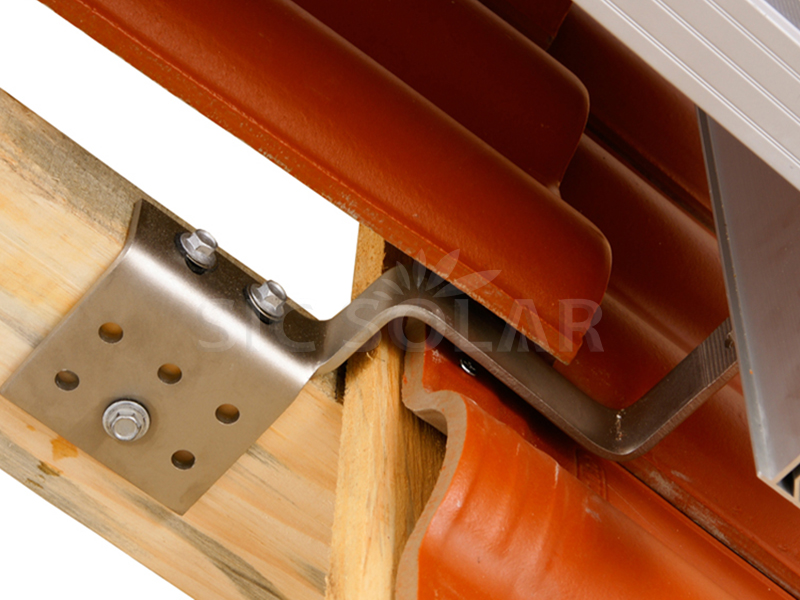

3️⃣ Install the roof hooks – Place the hooks directly on the rafters.

4️⃣ Secure the hooks – Secure the hooks using stainless steel screws or bolts.

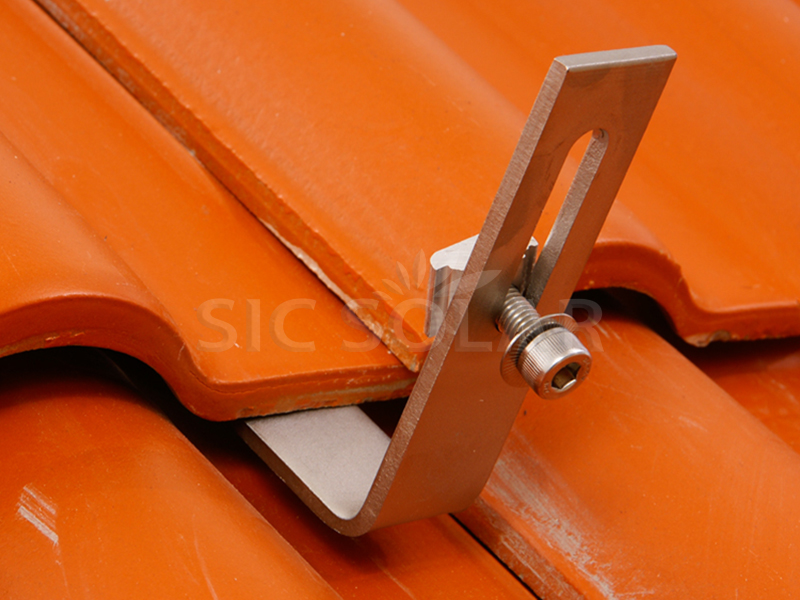

5️⃣ Adjust the hook position – Use the slotted holes to align with the mounting rail.

6️⃣ Replace the tiles – Place the tiles back over the hooks.

7️⃣ Install the rails and panels – Attach the aluminum mounting rails to the hooks, then secure the PV panels using clamps.

Advantages as follow:
☆ High Quality – Best stainless steel 304 ensure, corrosion resistant and anti-oxidation.

☆ 10 years warranty and 25 years service time.

☆ High Pre-assembly – Save labor cost at the installation site

Related Certificate:

Our CE Certificate for solar tile hook roof mount system

Our ISO Certificate for solar tile roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGS Certificate for screw material-- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

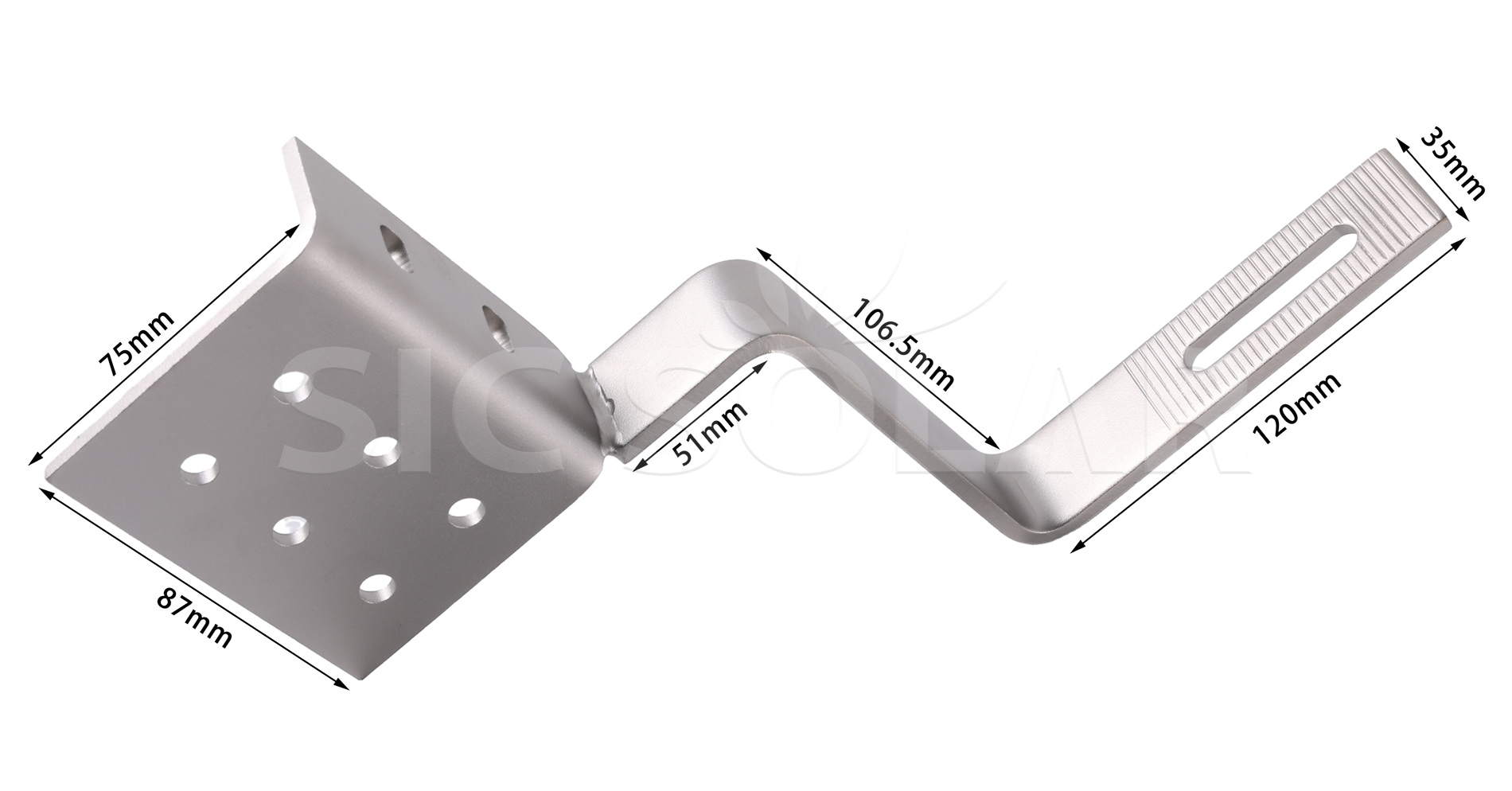

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

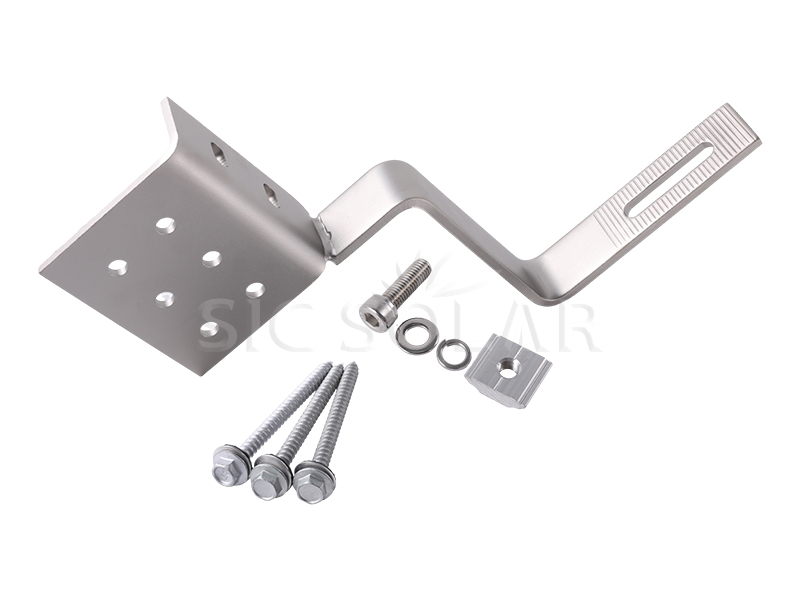

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
