Plain Tile Roof Hook For Solar Panel

Plain Tile Roof Hook For Solar Panel is a special mounting accessory designed for solar photovoltaic systems. It is mainly used to securely mount solar panels onto flat tile roofs.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-TH-17

  • Shipping Port:

    Xiamen port

  • Installation Site:

    Flat Tile roof

  • Material:

    Stainless Steel A2 (1.4301)

  • Thickness:

    2mm

  • Wind Load:

    <60M/S

  • Snow Load:

    <1.4KN/M2
Inquire Now

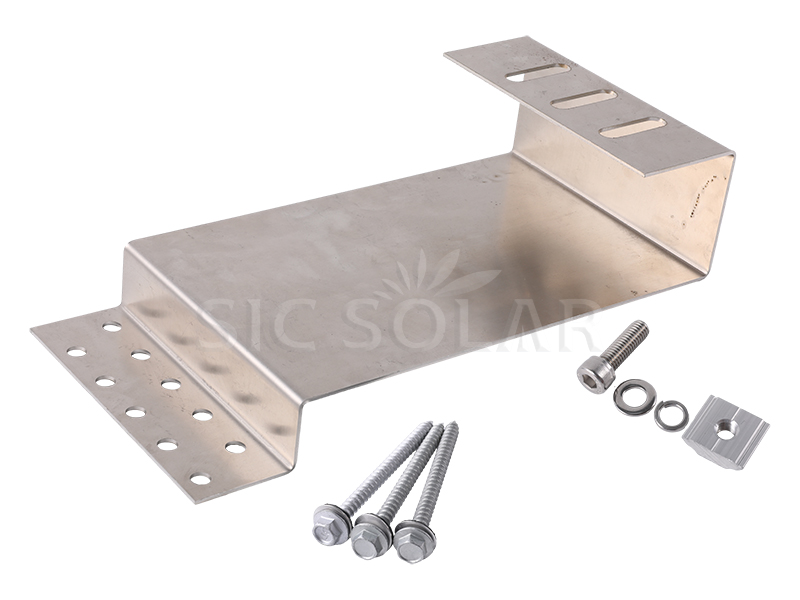

Plain Tile Solar Roof Hook

Plain Tile Roof Hook For Solar Panel are designed for mounting solar panels on flat or slightly sloped tile roofs without damaging the roofing material. These hooks have a larger contact area with the roof and mounting rails, suitable for regular or flat tile roofs.

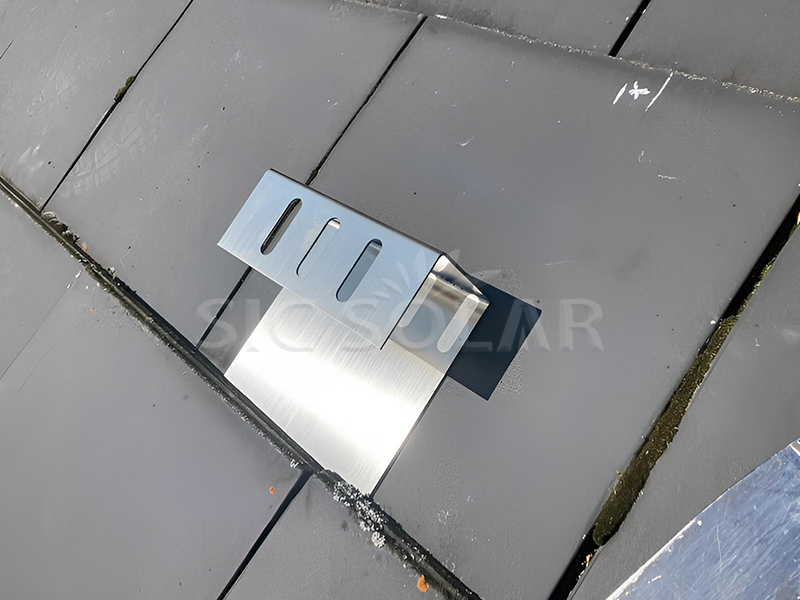

Pv Plain Tile Roof Hook

When selecting plain tile roof hook for solar panel installation, consider the specific type of tile roof, the weight and dimensions of the solar panels, and the environmental conditions the installation will face, such as wind and snow loads.

Components Technical Details Installation Guide Package Advantage

Click here to learn more

Roof Tile Hook

Plain Roof Tile

Name Plain Tile Roof Hook For Solar Panel
Installation Site Flat Tile roof
Hook Thickness 2mm
Hook Width 150mm
Hook Height 103mm
Height under bracket 33mm
Material Stainless Steel A2 (1.4301)
Application For 24mm + 30 mm timber batten

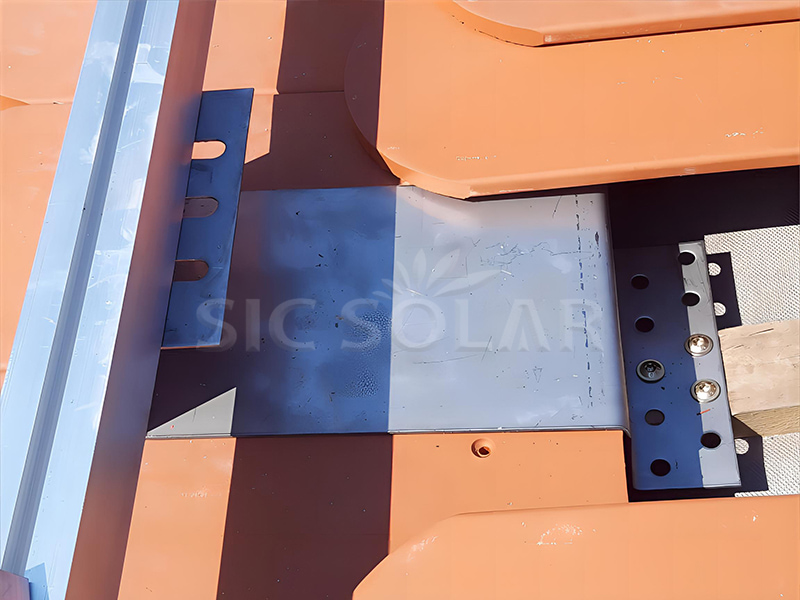

1️⃣ Lift the plain tile - Carefully remove or adjust the tile to contact the wooden rafter.

2️⃣ Position the roof hook - Align it firmly with the rafter for maximum support.

3️⃣ Secure the hook - Tighten it using stainless steel screws.

4️⃣ Replace the tile - Make sure the tile is properly installed on the hook.

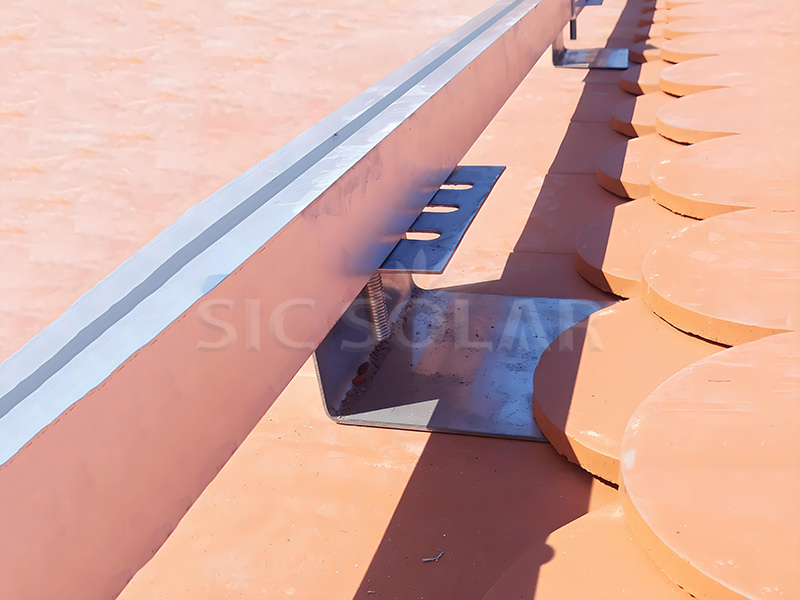

5️⃣ Install the solar mounting rail - Attach the rail using bolts.

6️⃣ Install the solar panel - Secure the panel using the mid and end clamps.

Solar bracket package

Advantages as follow:
☆ Strong strength - 150mm width enhance the hook intensity.
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ Easy installation - Rails could be fixed to the hook by T-bolt M10 directly.

Hot Tags : Roof fastener for flat tile K2 Roof Hook single 150mm Solar tile hook for double roofing Roof hook VH2N Roof hook for plain tile roofing Hook for 30mm timber batten solar panel roof system mounting solar panels on roof
Leave A Message
With 10 years solar experience professional team,SIC SOLAR insist in a management theory of
Send Message
Related products
Single adjustable solar kit mount

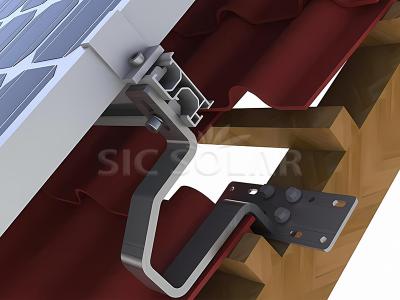

Adjustable PV Mounting Structure Roof Tile Hook

Adjustable PV Mounting Structure Roof Tile Hook is designed to securely mount solar panels on tile r...

Read More
L-Mount and aluminum flashing

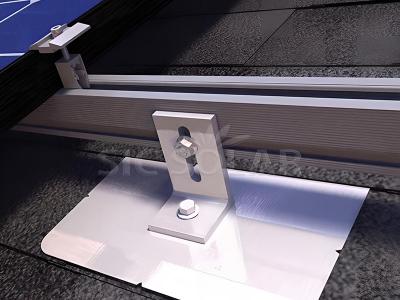

Asphalt Tile Roof Flashing L Feet

Asphalt Tile Roof Flashing L Feet is designed for safe and cost-effective installation over existing...

Read More
Fixed roof hook for solar panel mount
Stainless Steel Standard Roof Hook

Stainless Steel Standard Roof Hook are designed to securely fix solar panels on various types of slo...

Read More
Solar Metal Roofing Clamp
Pv Solar Mounting Clamp For Metal Roofs

The PV Solar Mounting Clamp for Metal Roofs is a versatile mounting accessory designed to securely a...

Read More
Stainless Steel Hanger Bolt

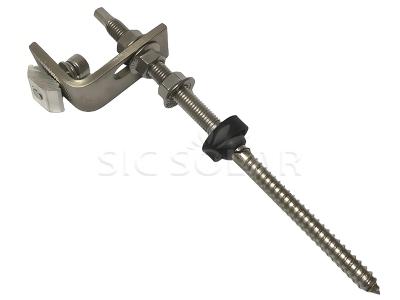

Solar Hanger bolt for wood beam With stainless steel L feet
