L-Mount and aluminum flashing
L-Mount and aluminum flashing

Asphalt Tile Roof Flashing L Feet

Asphalt Tile Roof Flashing L Feet is designed for safe and cost-effective installation over existing composite roofs or asphalt shingle roofs. The flashing features raised tapered holes that mate with the rubber pad to work perfectly with the L-Foot to provide excellent flashing.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-L-FP
  • Shipping Port:

    10 years and 25 years
  • Installation Site:

    Roof
  • Color:

    Natural or Customized
  • Material:

    Aluminum 6005-T5 or SUS304
  • Warranty:

    Anodized aluminum & stainless steel
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2

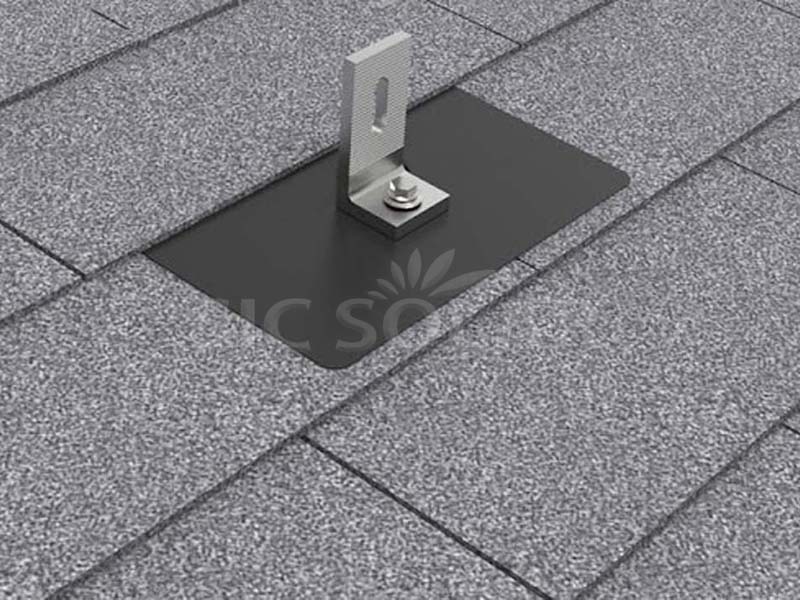

L Roof Flashing

Asphalt Tile Roof Flashing L Feet of flashing prevent water from seeping into the roof from the mounting point, protecting the roof from leaks and water damage. L-shaped feet provide a strong and stable connection between the solar panel and the roof, ensuring the panel is firmly fixed in place.

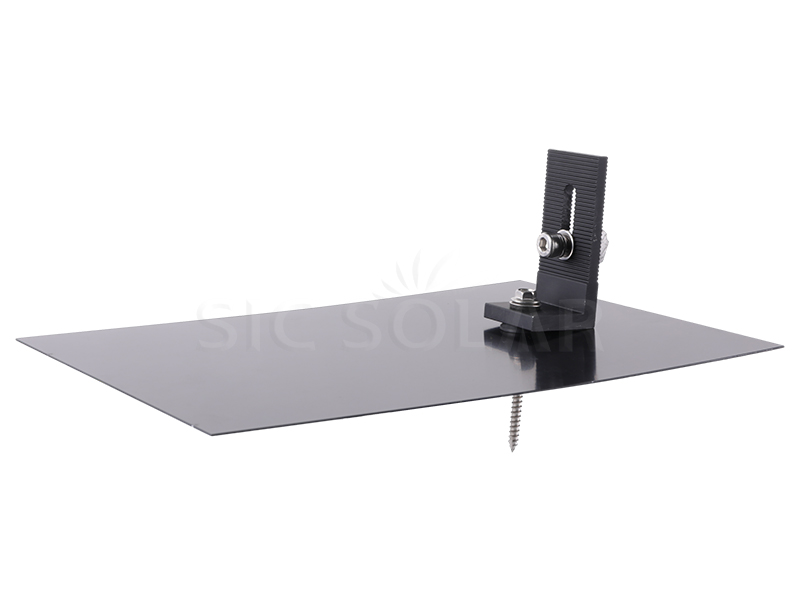

Roof Tile Flashing

Asphalt Tile Roof Flashing L Feet feature a wood screw connection option for maximum versatility and can be used with all common aluminum rails. Corrosion resistant and durable material suitable for outdoor exposure. Proper installation of L-Foot Flashing is essential to maintaining the integrity of the roof and preventing water damage to the substructure.

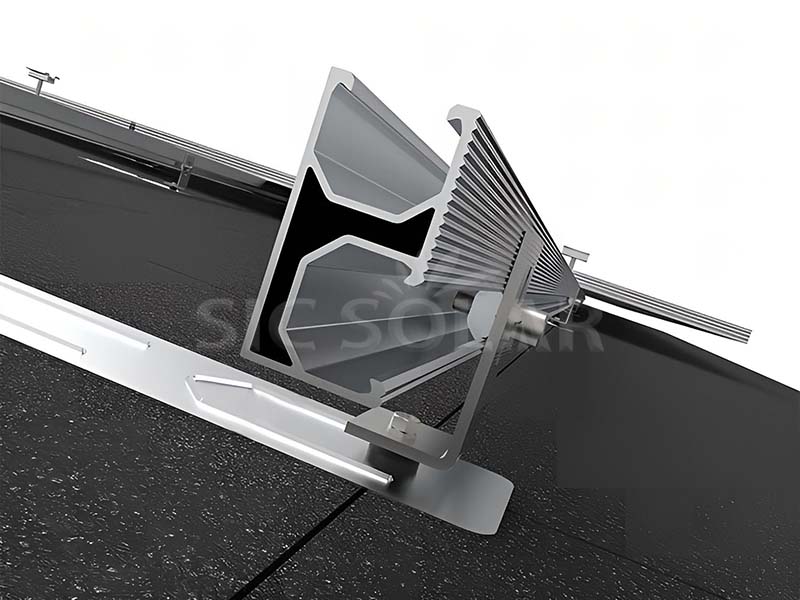

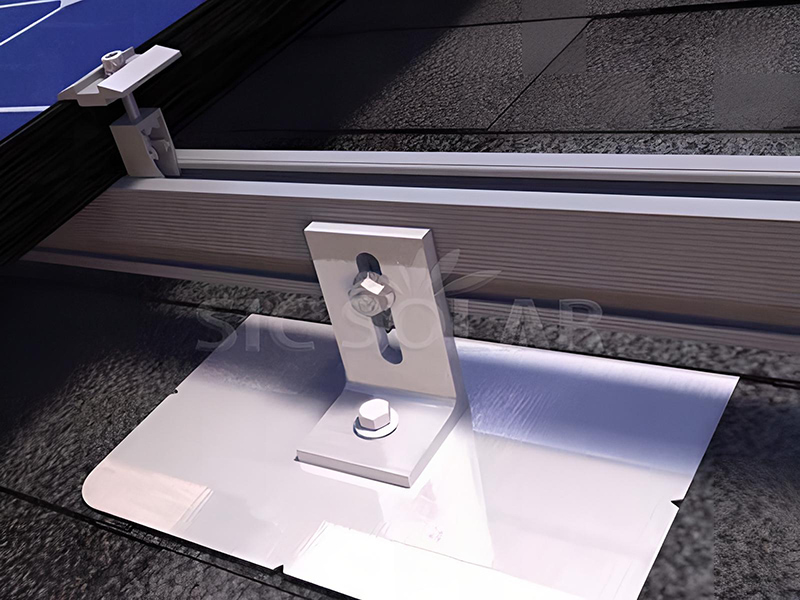

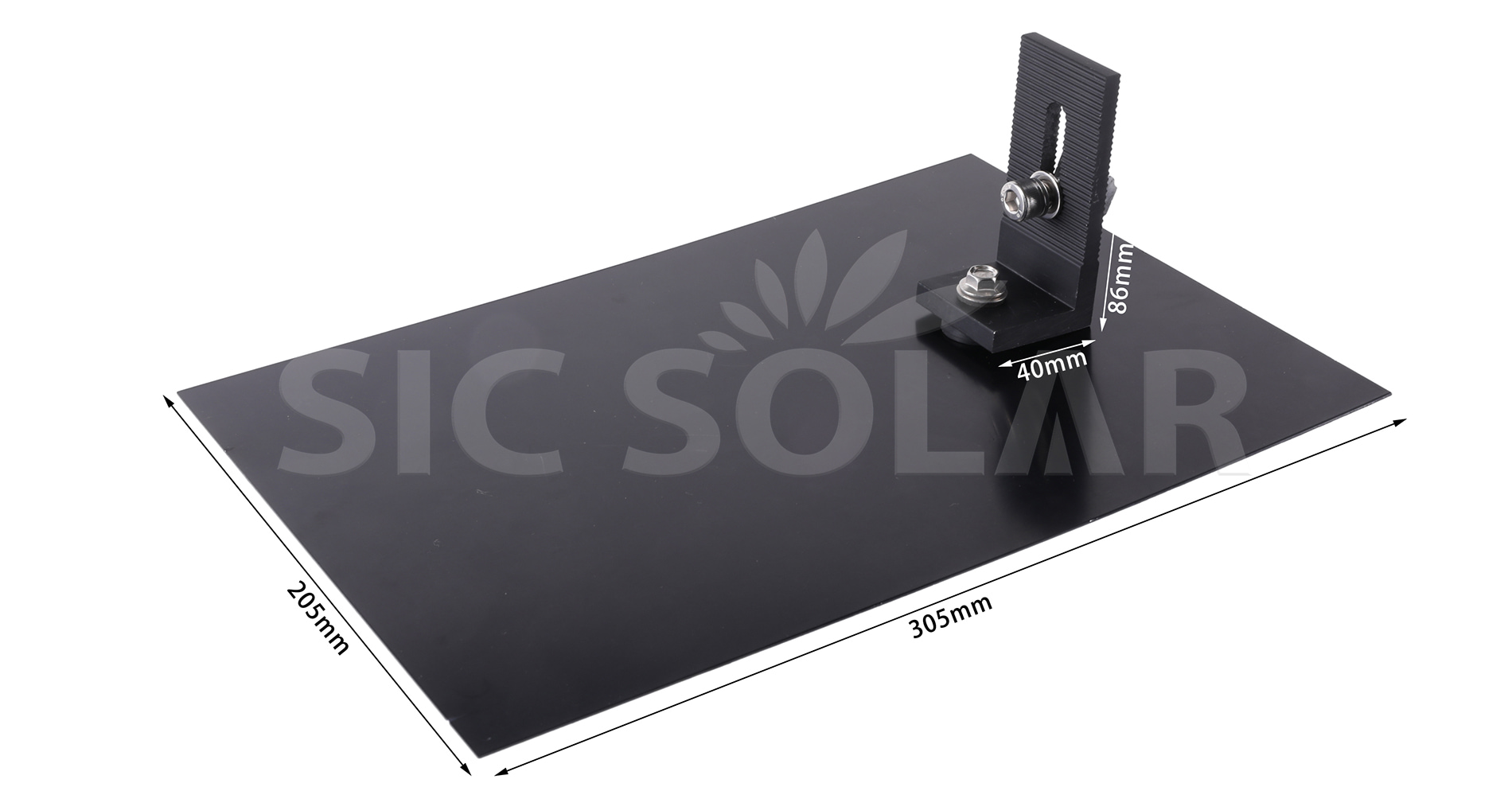

L Flashing Roof

Installation Site Roof
Wind Load <60M/S
Snow Load <1.4KN/M2
Material AL6005-T5 or SUS304
Color Natural or Customized
Anticorrosive Anodized aluminum & stainless steel
Warranty 10 years and 25 years

1️⃣ Locate the rafters – Locate the roof rafters as a sturdy mounting base.

2️⃣ Position the flashing – Slide the flashing under the asphalt shingles.

3️⃣ Attach the L-feet – Attach them to the rafters using lag screws.

4️⃣ Install the solar rail – Attach the mounting rail to the L-feet using bolts.

5️⃣ Install the solar panel – Attach the panel using the mid and end clamps.

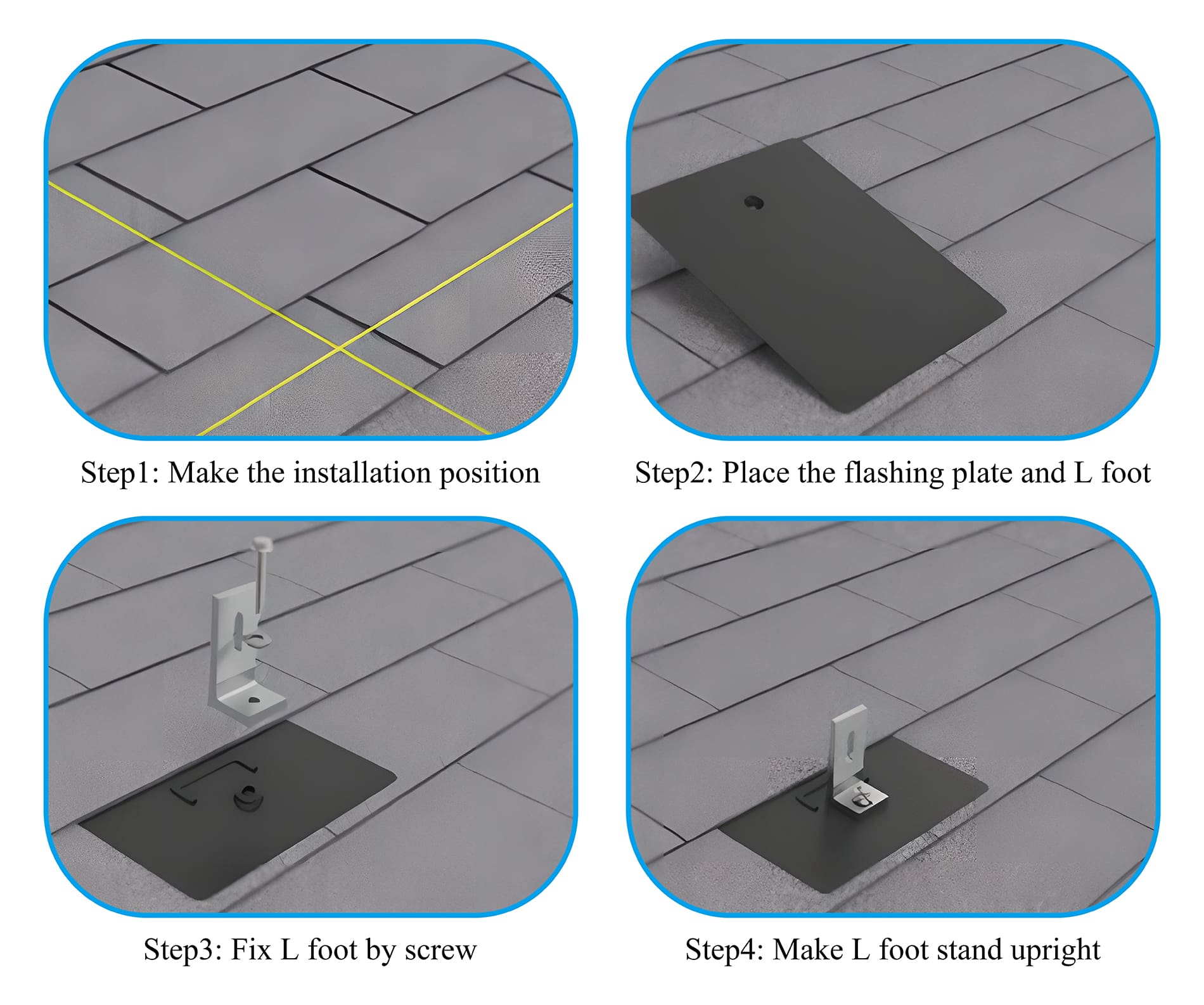

L Flashing Installation

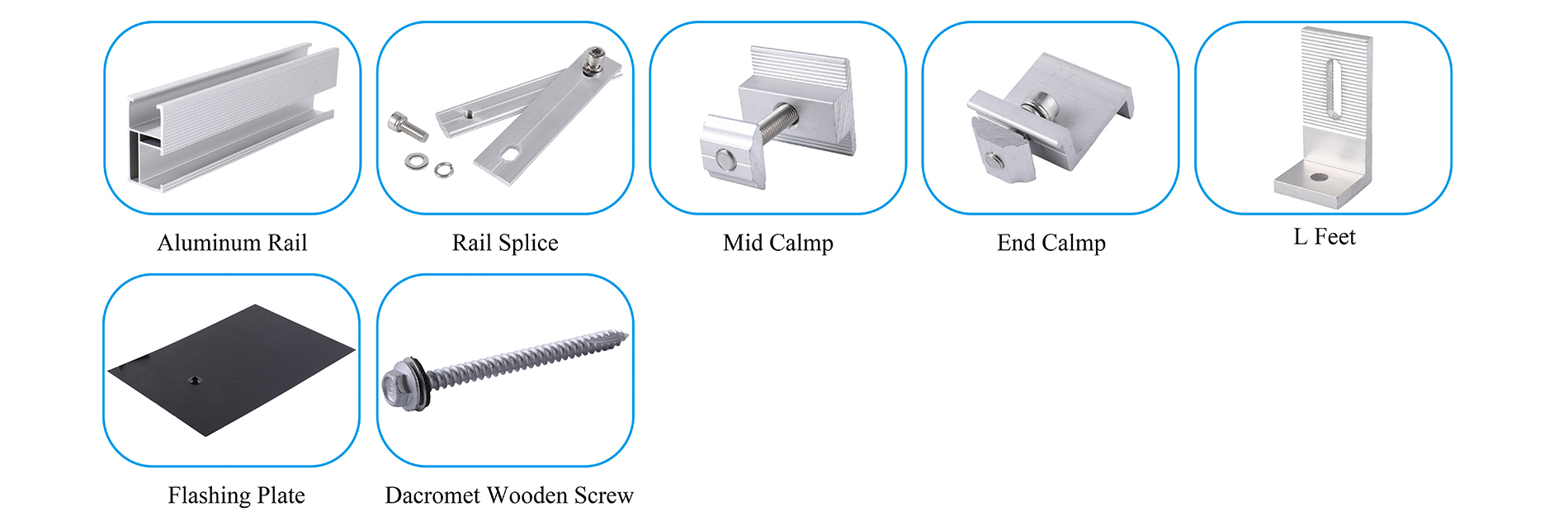

Solar bracket package

Advantages as follow:

☆ Easy Installation--L feet will be fixed on steel or wooden purlin directly.

☆ Great Flexibility--The flashing direction can be adjusted according to the single roof.

☆ Waterproofing--The flashing and rubber pad can perfectly prevent water.

☆ Pre-assembled components  – highly save the labor cost at your installation site.
