Adjustable PV Mounting Structure Roof Tile Hook

Click here to lean more tile roof

1️⃣ Determine the mounting location – Locate the roof rafters to ensure strong structural support.

2️⃣ Lift the roof tiles – Carefully remove or slightly lift the tiles to access the wooden rafters below.

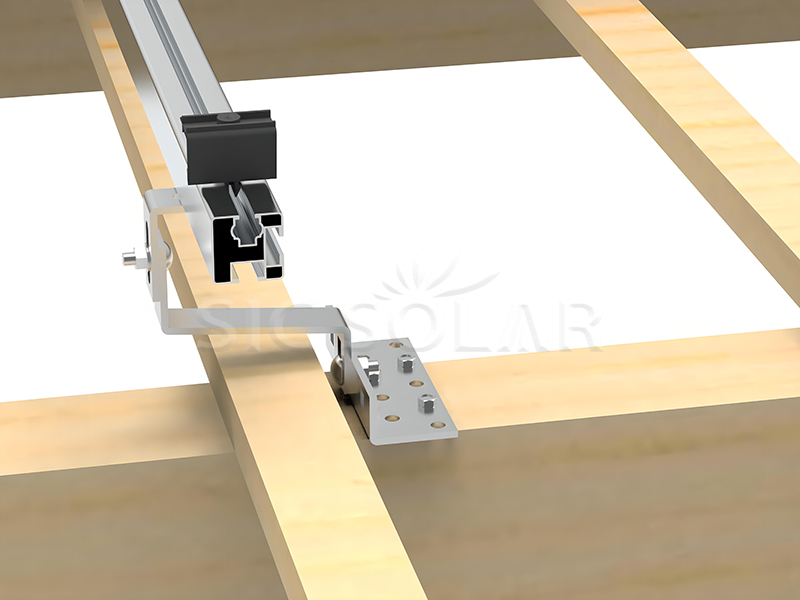

3️⃣ Install the hooks to the rafters – Secure the hooks to the rafters using stainless steel screws.

4️⃣ Reposition the tiles – Place the tiles back in place, ensuring a flush and secure fit.

5️⃣ Install the mounting rails – Secure the solar mounting rails to the hooks using T-bolts or hex bolts.

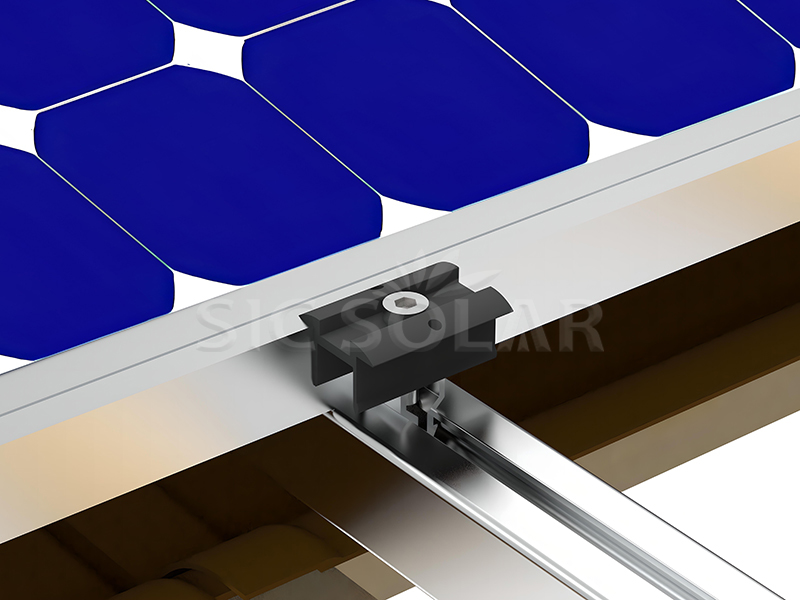

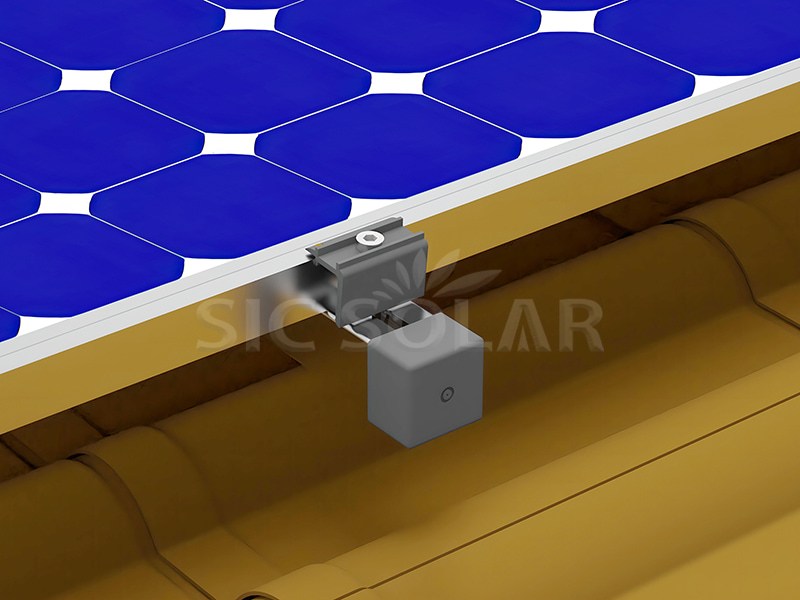

6️⃣ Secure the solar panel – Secure the solar panel to the rails using the mid- and end-clamps.

7️⃣ Final check and tightening – Double-check all connections and alignment to ensure a stable installation.

Advantages as follow:
☆ Height adjustment.
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ High Strength - The thickness of arm is 5mm, can withstand a certain weight.

Related Certificate

CE Certificate, SGS Certificate and IOS Certificate.

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.

Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.

Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.

Q5. Is it include wooden screw and nut?

Yes.

Q6. Can the solar hooks be customized?

Yes.
