Stainless Steel Standard Roof Hook

Stainless Steel Standard Roof Hook is used to mount and fix solar panels on any type of sloped roof. The material used in the production of these hooks is stainless steel, strong and resistant to corrosion; thus, it assures a long lifespan together with good quality performance under bad weather conditions.

Brand:

SIC SOLAR

Item NO.:

SIC-TH-06

Installation Site:

Tile roof

Color:

Silver

Material:

SUS304

Warranty:

10 years

Wind Load:

60m/s

Snow Load:

1.4KN/m2

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more hooks

Tile roof hook

Roof Tile Hook

Name	Solar Stainless Steel Standard Roof Hook
Material	SUS304
Metal sheet thickness	≧4mm
Warranty	10 Years warranty and 25 Years lifetime
Applicable site	Tile Roof
Range of bolt torque	25-28N*m
Value of pullout resistance	5KN
Value of pressure resistance	5KN

1️⃣ Lift the shingles – Gently lift or remove the shingles to expose the rafters.

2️⃣ Position the hooks – Align the roof hooks directly over the rafters for secure support.

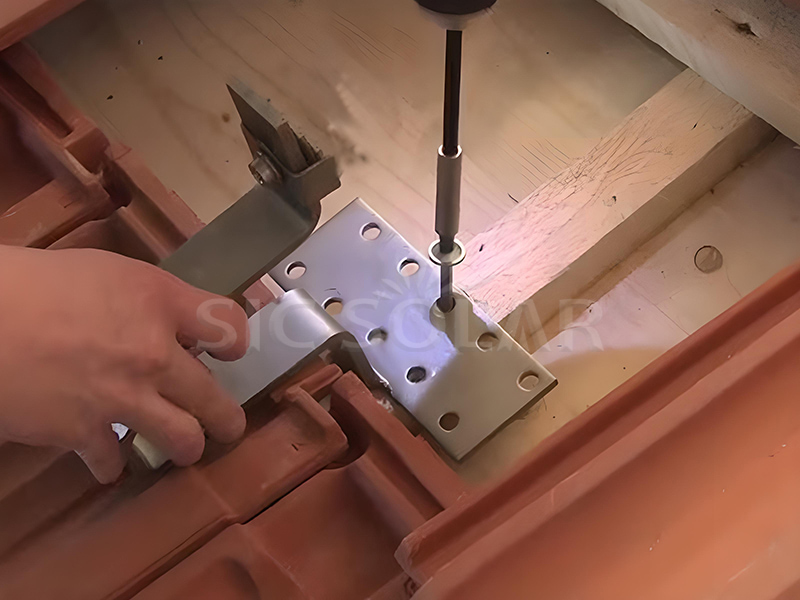

3️⃣ Secure the hooks – Secure securely with stainless steel screws.

4️⃣ Replace the shingles – Carefully reinstall them, ensuring there are no gaps or damage.

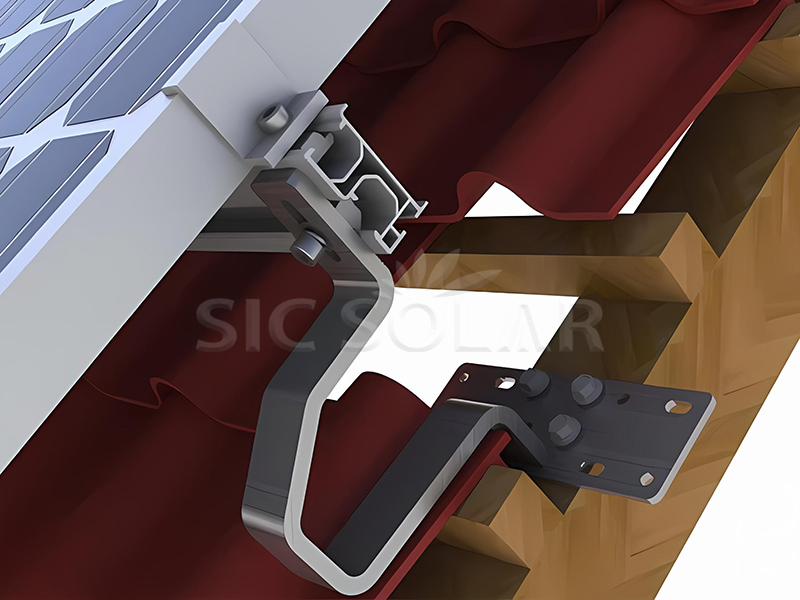

5️⃣ Install the rails – Secure the mounting rails to the hooks using bolts.

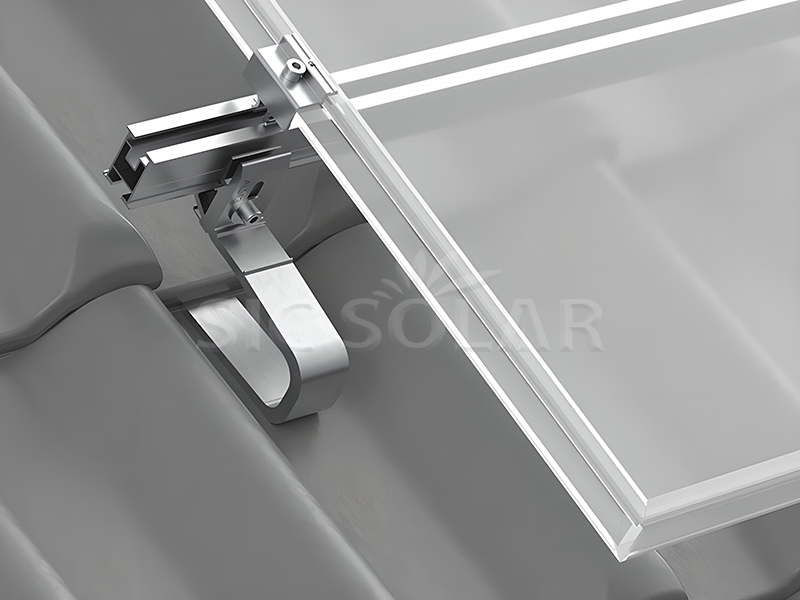

6️⃣ Install the solar panels – Secure the solar panels using the mid- and end clamps.

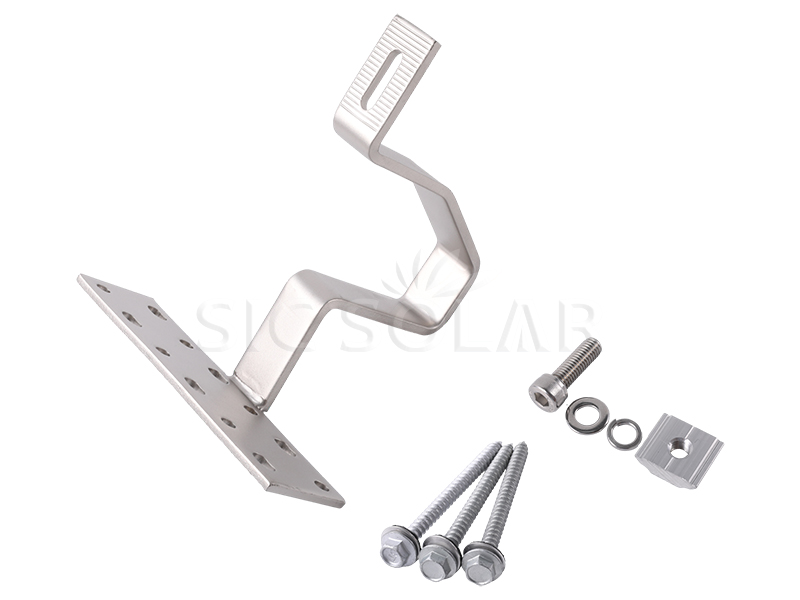

Solar bracket package

☆ High Strength: Provides a sturdy and reliable panel support for tile roofs.

☆ High Durability: Made of high-quality 304 stainless steel, it guarantees a 10-year service life.

☆ Easy Installation: Simple construction allows for quick and efficient installation.

☆ Adjustable Design: Accommodates a variety of tile types and installation requirements.

☆ Weatherproof: Remains stable even in windy, rainy, and snowy weather.

Related Certifications

☆ Our solar tile hook roof mounting system is CE certified.

☆ Our hooks, made of SUS304, are SGS certified.

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.

Q2. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available
