Product
|

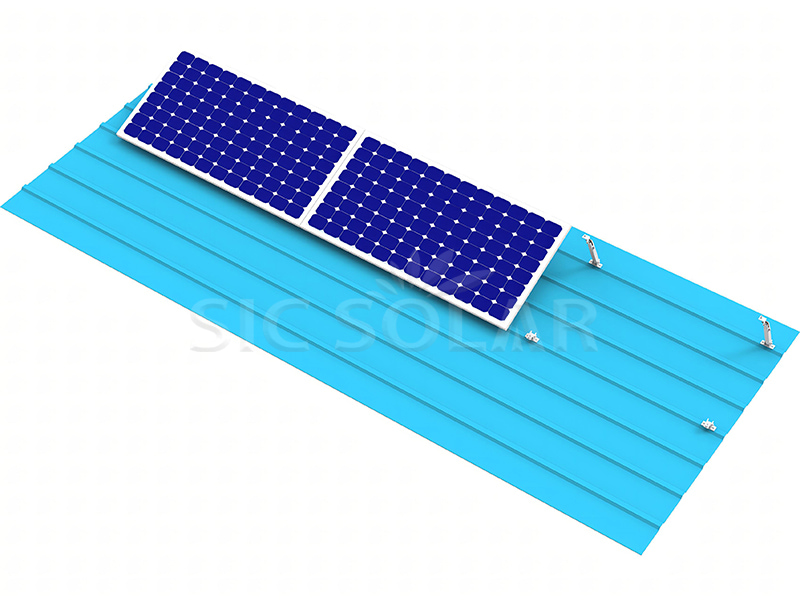

Adjustable Legs Solar Tilt Roof Mount
|
|
Installation Site
|
Roof or Ground
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M²
|
|
Material
|
Aluminum 6005-T5
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Anodized aluminum
|
|
Warranty
|
10 years and 25 years service time
|

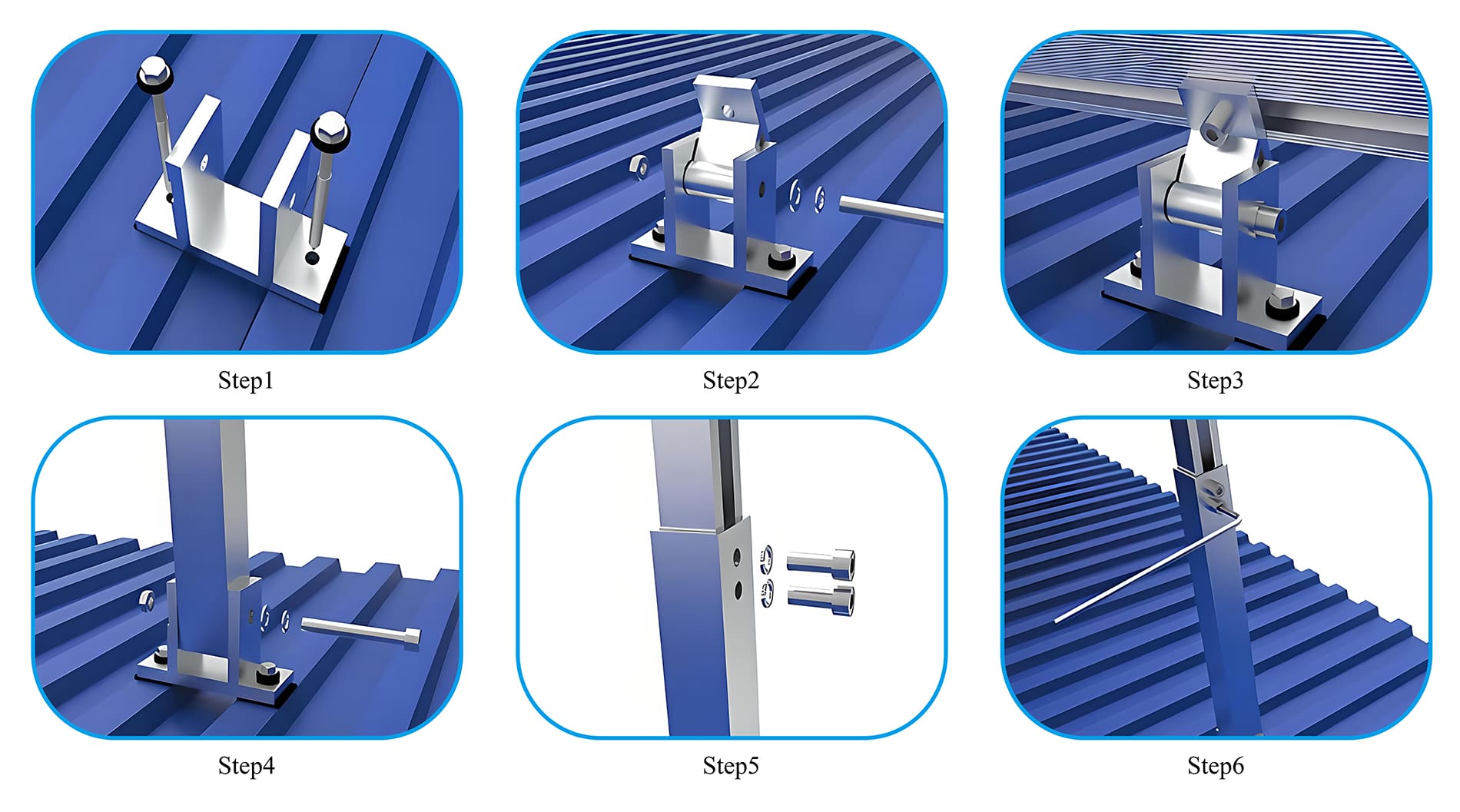

1️⃣ Prepare the Installation Area: Confirm the roof type, required tilt angle, and panel layout, then mark the mounting positions.

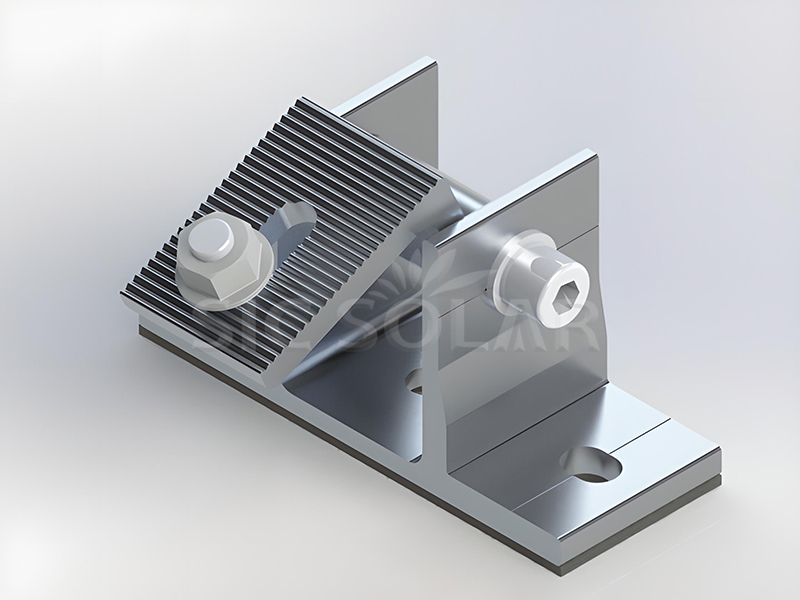

2️⃣ Fix the Base Brackets: Secure the L-shaped base brackets using suitable fasteners. For flat roofs, consider approved non-penetrating methods, such as ballast, where appropriate for the roof and project design.

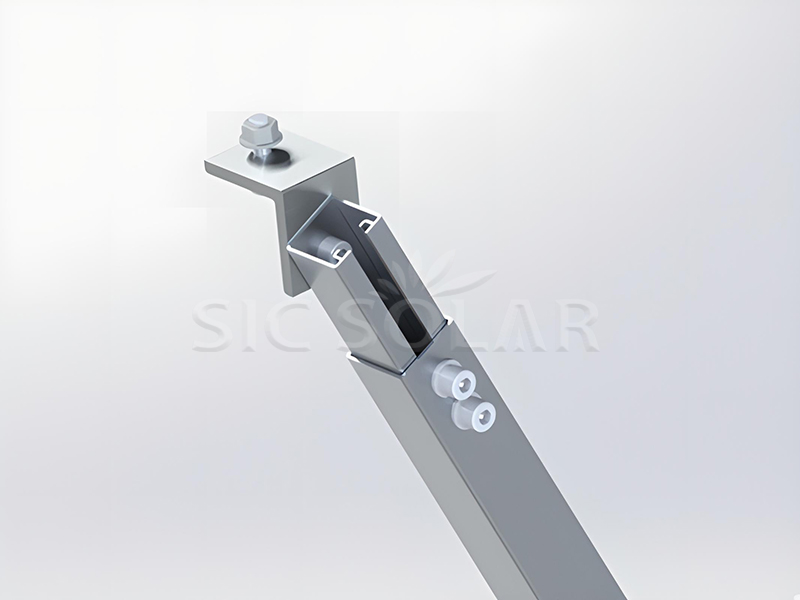

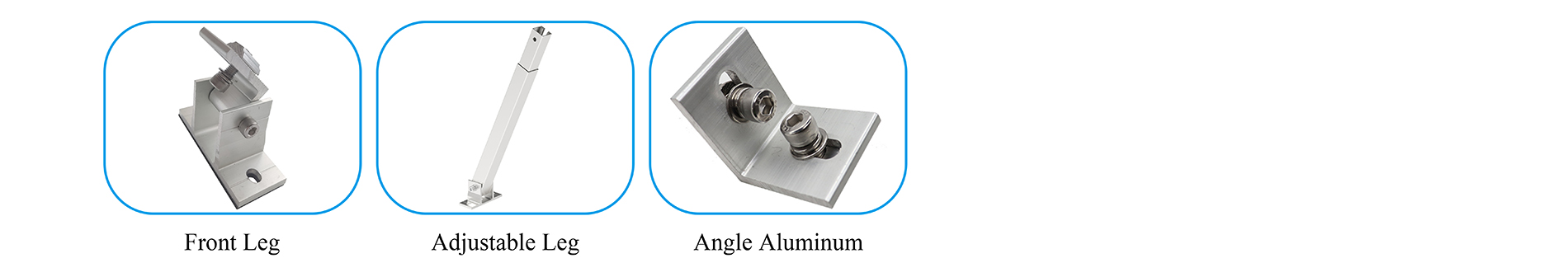

3️⃣ Attach the Front and Rear Legs: Connect the legs to the base brackets and adjust them to achieve the specified tilt angle.
4️⃣ Install the Rails: Attach the aluminum mounting rails to the legs, ensuring correct spacing and alignment for the solar panels.

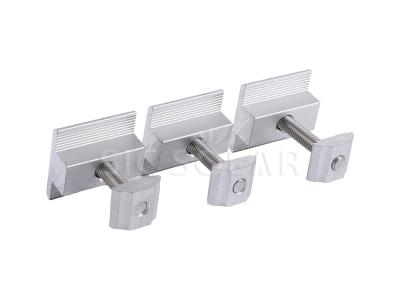

5️⃣ Mount the Solar Panels: Position the panels on the rails and secure them with compatible mid and end clamps.
6️⃣ Complete the Final Inspection: Check all fasteners, panel alignment, and structural stability. Ensure the grounding and wiring are completed according to the system requirements.
Standard package is cartons with plywood pallet as below. Wooden case could be offered if needed.

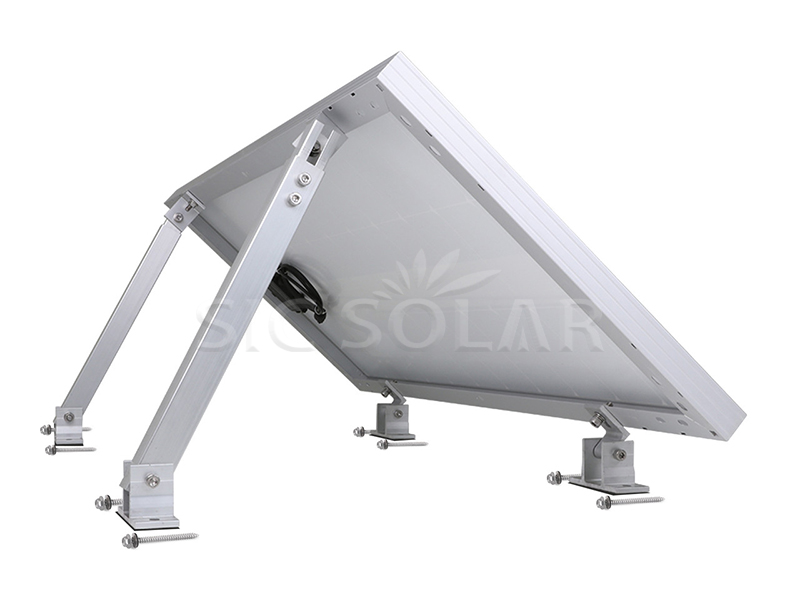

☆ Adjustable Tilt Angle: Supports angles from 10° to 60°, with options such as 10°–15°, 15°–30°, 30°–60°, or customized ranges, depending on the model.
☆ Improved Solar Exposure: Allows the panel angle to be adjusted according to site conditions to help optimize energy production.
☆ Easy Installation: Pre-assembled components help reduce on-site assembly time and labor.
☆ Structural Reliability: The system can be designed and assessed to meet project-specific wind and snow load requirements.
☆ Durable Construction: Made with quality materials and backed by a stated 10-year warranty and 25-year expected service life, subject to the manufacturer's terms and installation conditions.
Related Certificates
☆ Strength Analysis Report: Supports the assessment of mounting system performance under specified wind and snow loads.
☆ Aluminum Quality Certificate: Provides the material composition details for AL6005-T5 aluminum alloy.
Q1: What is the main benefit of adjustable legs?
Adjustable legs allow installers to change the panel tilt angle to suit the site, roof conditions, and project layout.
Q2: Is this mounting system suitable for high-wind or snowy areas?
It may be suitable when the complete system is engineered for local wind and snow loads. Leg spacing, fixing strength, roof capacity, and panel layout should all be considered.
Q3: Can it be used with different solar panels?
Yes, provided the panel dimensions, clamp type, rail arrangement, and load requirements are compatible with the mounting system.
Q4: Can the adjustable legs be customized?
Depending on the manufacturer, leg height, tilt range, dimensions, materials, and fixing configuration may be customized to meet project requirements.
