Flat roof solar panel fixing brackets
Flat roof solar panel fixing brackets

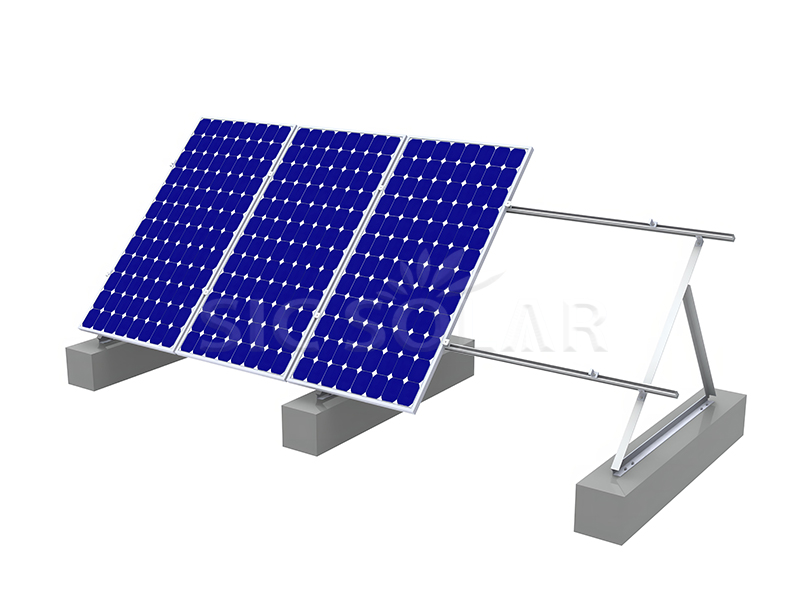

Aluminum Tripod Solar Flat Roof Mounting Systems

Aluminum Tripod Solar Flat Roof Mounting Systems uses a tripod-style structure to provide a stable and elevated platform for solar panels, ensuring optimal sunlight exposure.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-FFT1

  • Shipping Port:

    Xiamen port

  • Installation Site:

    Roof or Ground

  • Tilt Angle:

    <60 degree

  • Color:

    Natural or Customized

  • Material:

    AL6005-T5

  • Warranty:

    10 years and 25 years service time

  • Wind Load:

    <60M/S

  • Snow Load:

    <1.4KN/M2
Inquire Now



solar panel fixing brackets

Aluminum Tripod Solar Flat Roof Mounting Systems is ideal for those who wish to install solar panels on a flat roof. Combining lightweight construction, durability and versatility, it is the first choice for a variety of solar projects.

solar panel roof mounting kits
Aluminum Tripod Solar Flat Roof Mounting Systems is suitable for a variety of installation sites, including residential and commercial flat roofs. It is easily expandable to meet growing energy needs. The aluminum tripod also has the flexibility to be mounted on a variety of surfaces, including sloped or uneven surfaces.

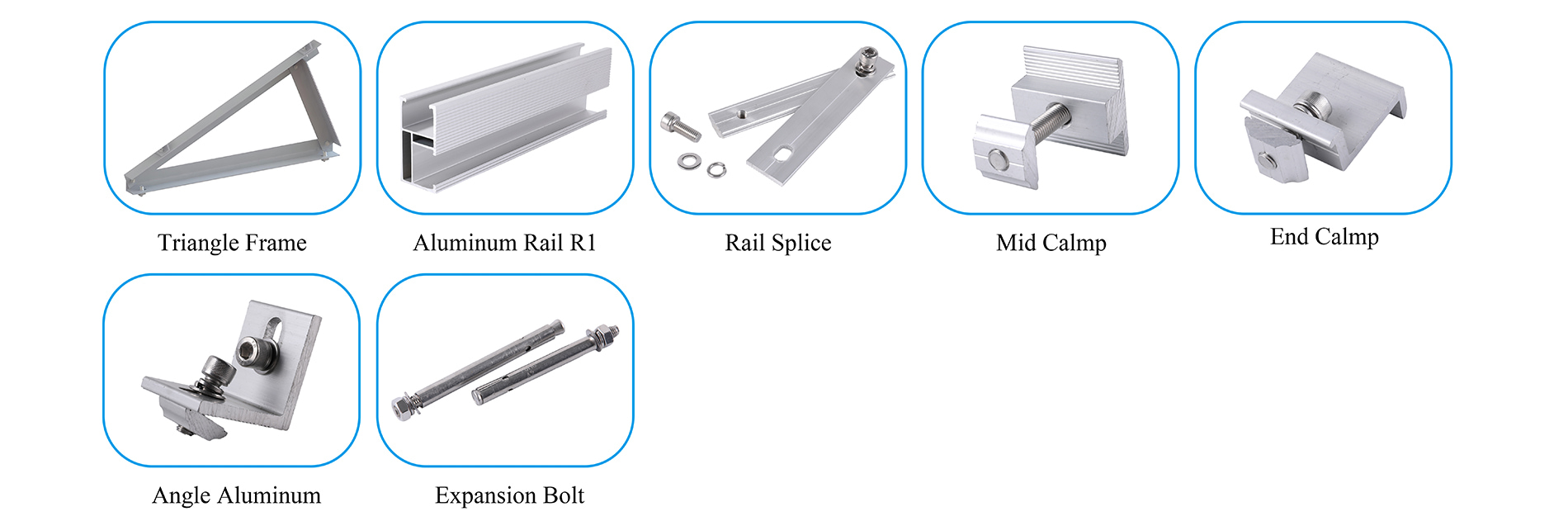

Components Technical Details Installation Guide Package Advantage

Click here to learn more triangle frame mount

solar panel roof mounting kits

Installation Site Roof or Ground
Wind Load <60M/S
Snow Load <1.4KN/M2
Material Aluminum 6005-T5
Color Natural or Customized
Anticorrosive Anodized aluminum
Warranty 10 years and 25 years service time

1️⃣ Site Preparation

Determine array layout and desired tilt angle based on sun path and roof space.

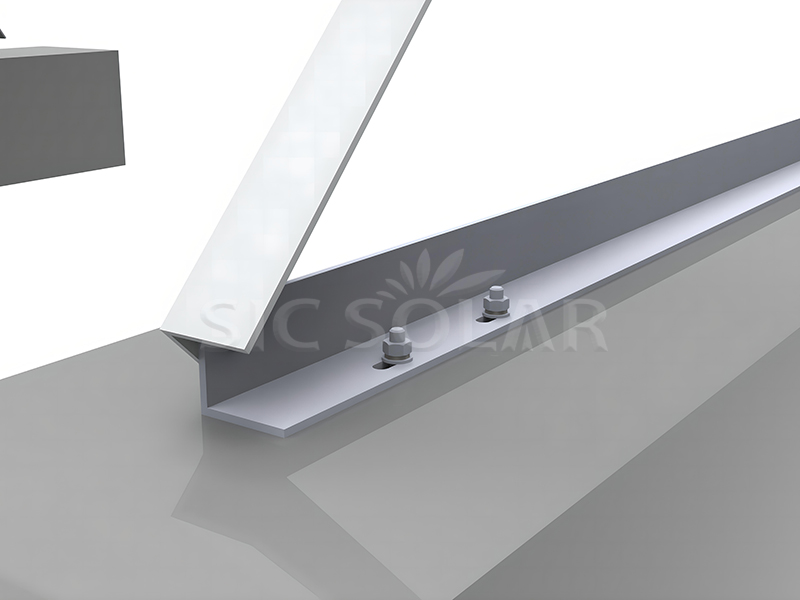

2️⃣ Tripod Placement

Position aluminum tripods based on panel row spacing. Use ballast blocks or mechanical anchors depending on roof type.

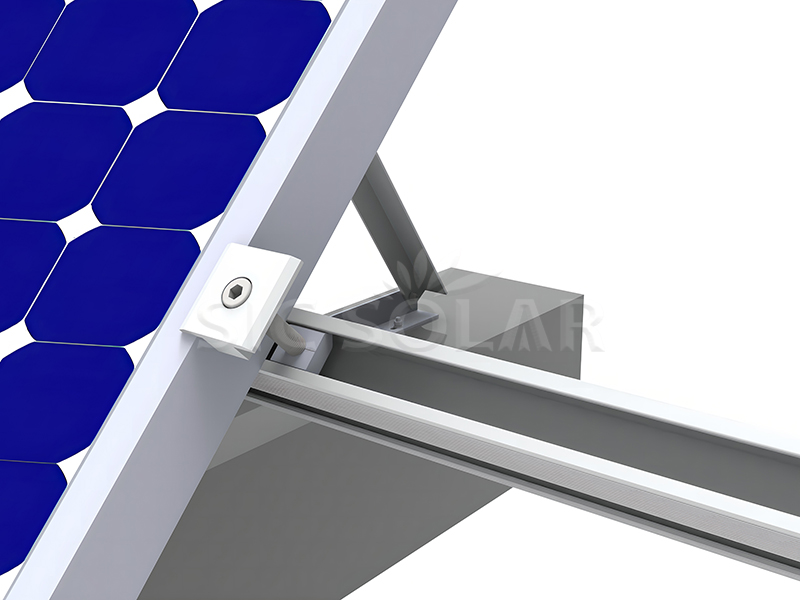

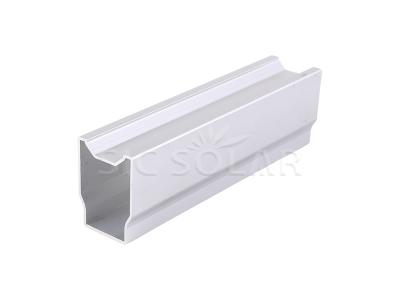

3️⃣ Rail Mounting

Attach horizontal mounting rails to top of tripod brackets using bolts or clamps.

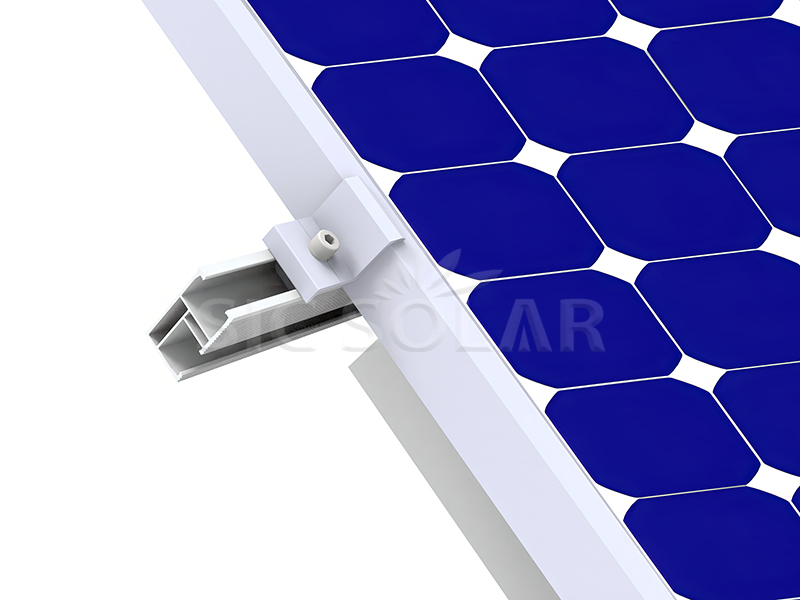

4️⃣ Panel Mounting

Secure solar modules to rails using mid and end clamps. Make sure to include grounding components.

5️⃣ Adjustments and Final Checks

Fine-tune tilt angle (if adjustable), check structural alignment, and verify all connections and fasteners.

Solar bracket package

☆ Easy to use - Highly pre-assembled components make the installation more quickly and easily.

☆  Safety - The whole structure have been strictly tested to stand up to the extreme weather

☆ High Quality - Structure have been strictly controlled to ensure 10 years warranty & 25 Years lifetime.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list
