Adjustable solar panel brackets
Adjustable solar panel brackets

Adjustable Triangle Solar Panel Roof Mounts

Designed for flat roofs or low-slope roofs, Adjustable Triangle Solar Panel Roof Mounts allow the solar panels to be tilted at the optimal angle to maximize sunlight utilization.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-FAT1

  • Shipping Port:

    Xiamen port

  • Installation Site:

    Roof or Ground

  • Tilt Angle:

    <60 degree

  • Color:

    Natural or Customized

  • Material:

    AL6005-T5

  • Warranty:

    10 years and 25 years

  • Wind Load:

    <60M/S

  • Snow Load:

    <1.4KN/M2
Inquire Now

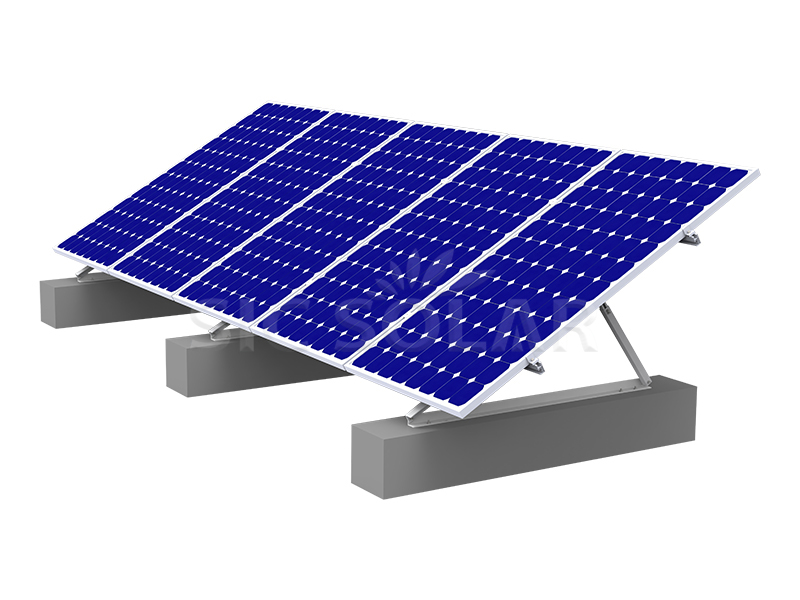

Adjustable Triangle Solar Brackets

Adjustable Triangle Solar Panel Roof Mounts can be tilted to allow solar panels to be installed at the best angle to maximize sunlight utilization. Common adjustable angles range from 10 degrees to 45 degrees, depending on specific design and installation requirements.

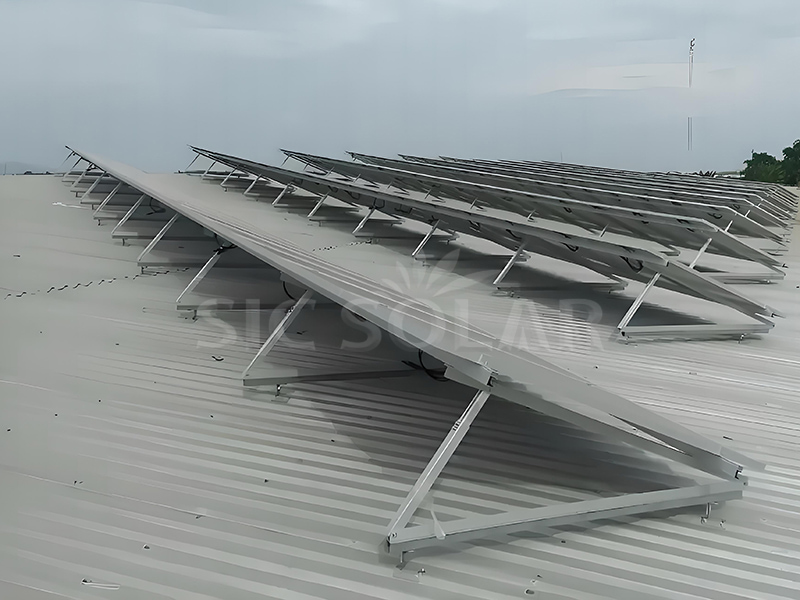

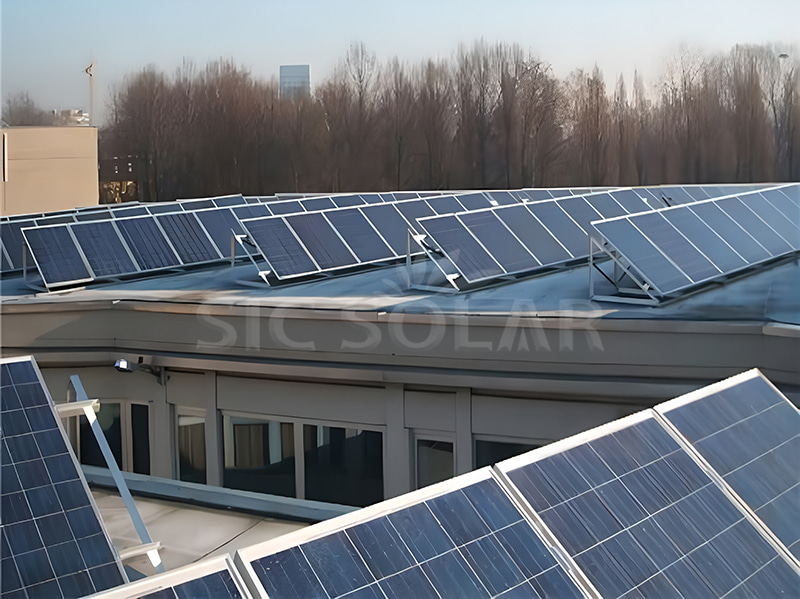

Flat Roof Solar Mount System

Adjustable Triangle Solar Panel Roof Mounts is suitable for all types of roofs, including flat roofs, pitched roofs and curved roofs. It is compatible with all types of solar panels, including monocrystalline silicon, polycrystalline silicon and thin-film panels, so it can be applied to different solar projects.

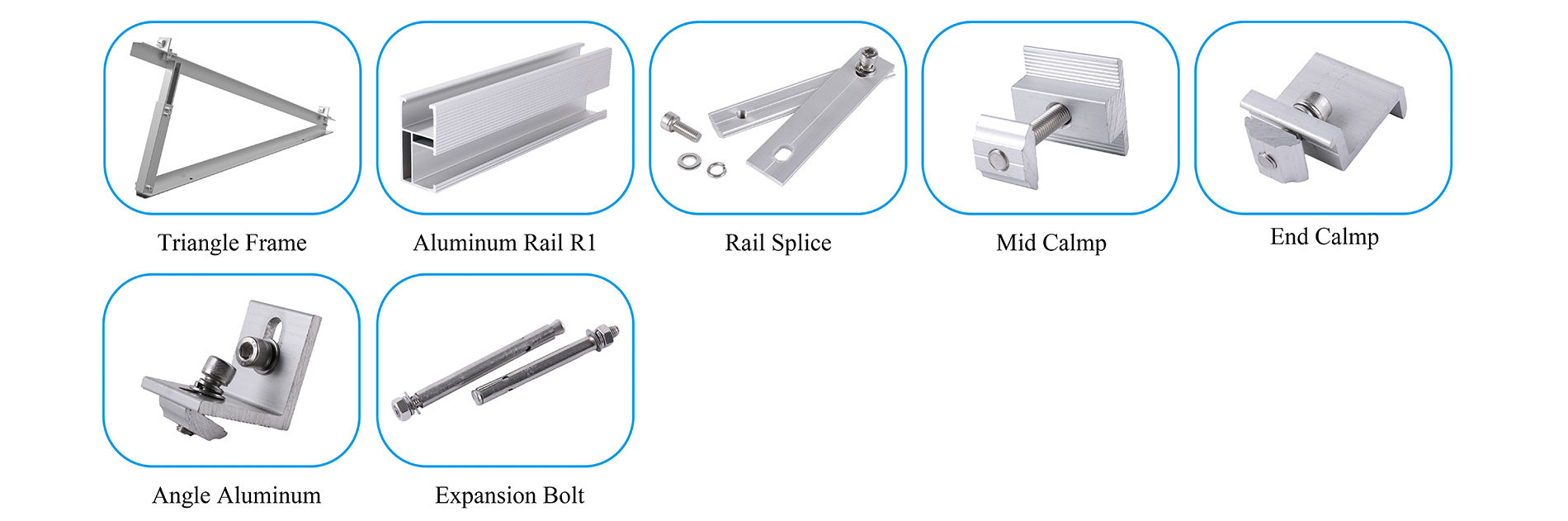

Components Video Technical Details Installation Guide Package Advantage

Click here to learn more

Solar Flat Roof Mount

Installation Site Roof or Ground
Wind Load <60M/S
Snow Load <1.4KN/M2
Material AL6005-T5
Color Natural or Customized
Anticorrosive Anodized aluminum
Warranty 10 years and 25 years service time

1️⃣ Layout planning

Measure and mark the installation location on the flat roof according to the solar layout.

2️⃣ Bracket assembly

Pre-install the triangular bracket and set the desired tilt angle with the adjustable arm.

3️⃣ Fix the bracket to the roof

Fix the bracket with expansion bolts to enhance wind resistance.

4️⃣ Rail installation

Install the horizontal aluminum rail to the triangular bracket.

5️⃣ Module installation

Fix the PV module to the rail using the middle and end clamps.

6️⃣ Cable routing and grounding

Route the wiring neatly and ensure good electrical grounding.

Solar bracket package

☆  10 - 60 degree adjustable angle- 10-15 degree, 15-30 degree, 30-60 degree or customized.

☆  Max. Solar Power Efficiency - Adjustable angle achieve highest solar power.

☆ Easy to use - Highly pre-assembled components make the installation more quickly and easily.

☆  Safety - The whole structure have been strictly tested to stand up to the extreme weather

☆ High Quality - Structure have been strictly controlled to ensure 10 years warranty & 25 Years lifetime.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list

Hot Tags : Flat roof solar mount Flat roof solar mounting Solar panels on flat roof Adjustable solar panel mount Flat roof solar racking Solar panels on flat roof uk flat roof solar pv mounting system solar panel flat roof mounting system
Leave A Message
With 10 years solar experience professional team,SIC SOLAR insist in a management theory of
Send Message
Related products
flat roof tilt leg
Adjustable Solar Panel Tilt Mount

Adjustable Solar Panel Tilt Mount allows the solar panel to be tilted at different angles to optimiz...

Read More
Adjustable Solar Panel Mount Bracket
foldable Adjustable solar panel tilt Mount

Foldable Adjustable Solar Panel Tilt Mount is a versatile and portable mounting solution that allows...

Read More
Fixed solar panel tilt mount kit
Fixed Triangle Solar Panel Roof Mounts

Fixed triangle solar panel roof mounts are a type of mounting system designed to securely hold solar...

Read More
Flat roof solar panel fixing brackets
Aluminum Tripod Solar Flat Roof Mounting Systems

Aluminum Tripod Solar Flat Roof Mounting Systems uses a tripod-style structure to provide a stable a...

Read More
Solar panel adjustable tilt mount
Solar triangle flat roof mounting system

Solar triangle flat roof mounting system is an innovative solution designed to efficiently install o...

Read More
Aluminium Adjustable Legs Solar Panel Tilt Mount
Adjustable Legs Solar Tilt Roof Mount

Adjustable Legs Solar Tilt Roof Mount is a versatile mounting solution that allows for the optimal p...

Read More

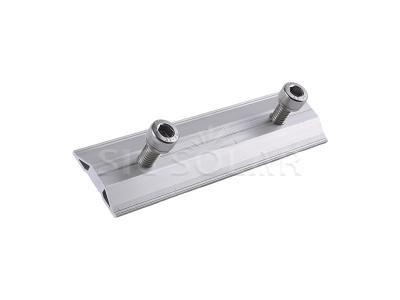

Solar Rail Splice for Solar System
