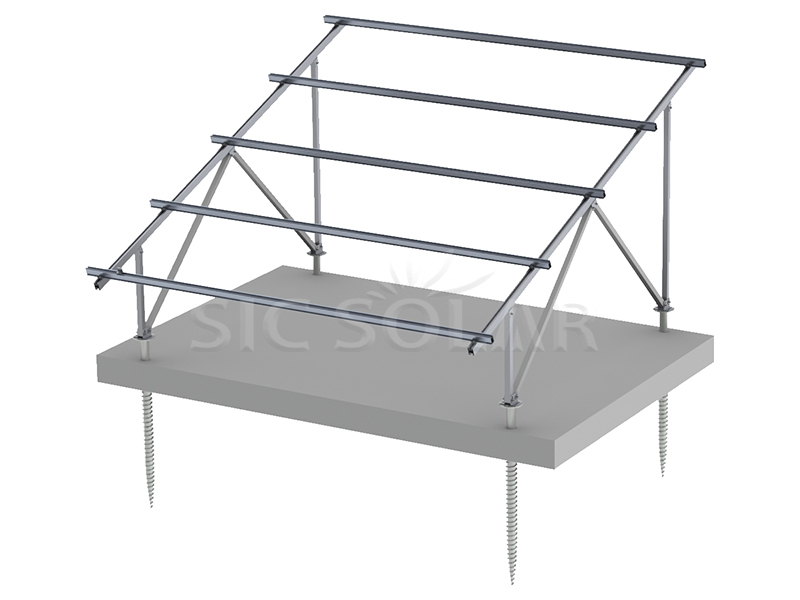

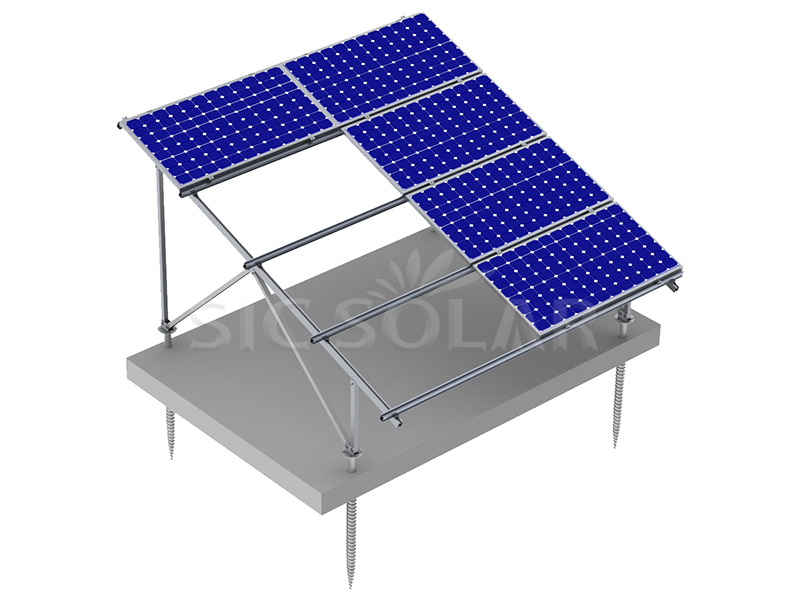

Aluminum Ground Solar Mount Structure

The Aluminum Ground Solar Mount Structure are a lightweight, durable and corrosion resistant solution designed for ground mounted solar panels. Aluminum offers excellent structural strength while resisting rust and environmental wear, making it a long-lasting choice for outdoor solar arrays.

Brand:

SIC SOLAR

Item NO.:

SIC-SA1-H

Shipping Port:

Xiamen port

Installation Site:

Ground

Tilt Angle:

<60 degree

Color:

Natural or Customized

Material:

AL6005-T5

Warranty:

10 years warranty and 25 years

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

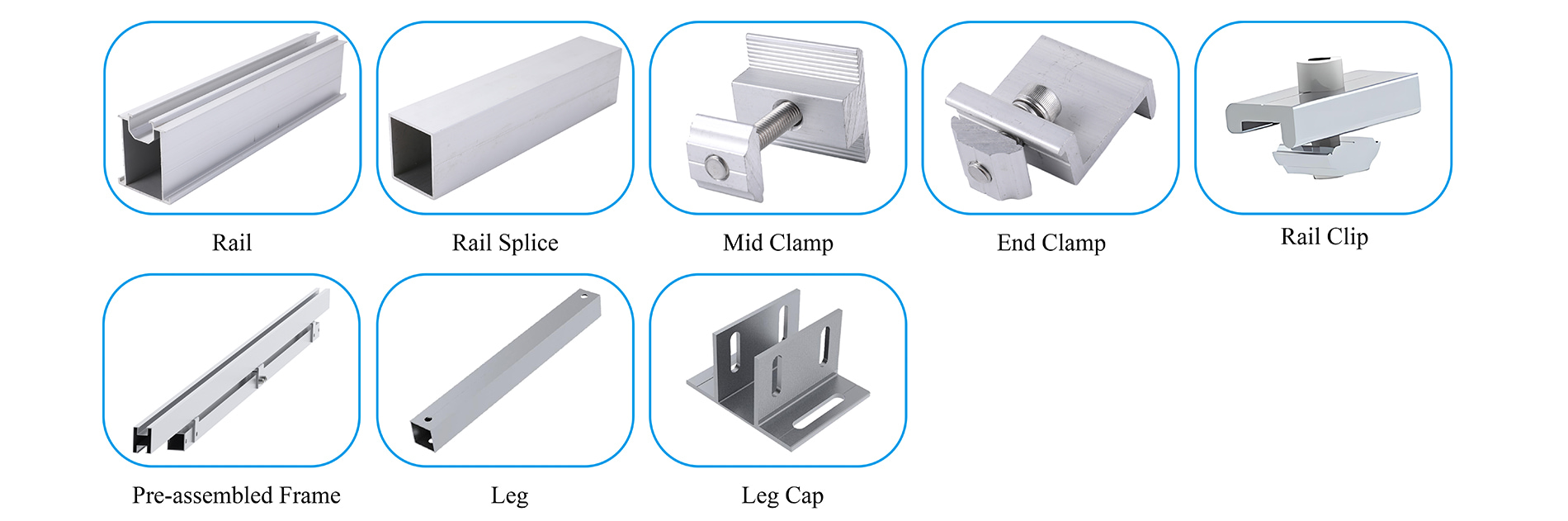

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more

Installation Site	Roof or Ground
Foundation	Concrete or Ground Screw Foundation
Material	Aluminum 6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Tilt Angle	0°~60°
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Standards	AS/NZS 1170.2, JIS C 8955:2011
Warranty	10 years warranty and 25 years service time

1️⃣ Site Investigation and Planning

A comprehensive site analysis, including soil testing and topographic mapping, is performed to design the best layout for the installation system.

2️⃣ Foundation Preparation

Depending on the site conditions, foundations such as anchor bolts, concrete pedestals, or driven piles are selected and installed to secure the aluminum frame.

3️⃣ Support Structure Assembly

The pre-assembled aluminum components are connected according to the design specifications. The beams, rails, and support legs are securely fixed to the foundation.

4️⃣ Solar Panel Installation

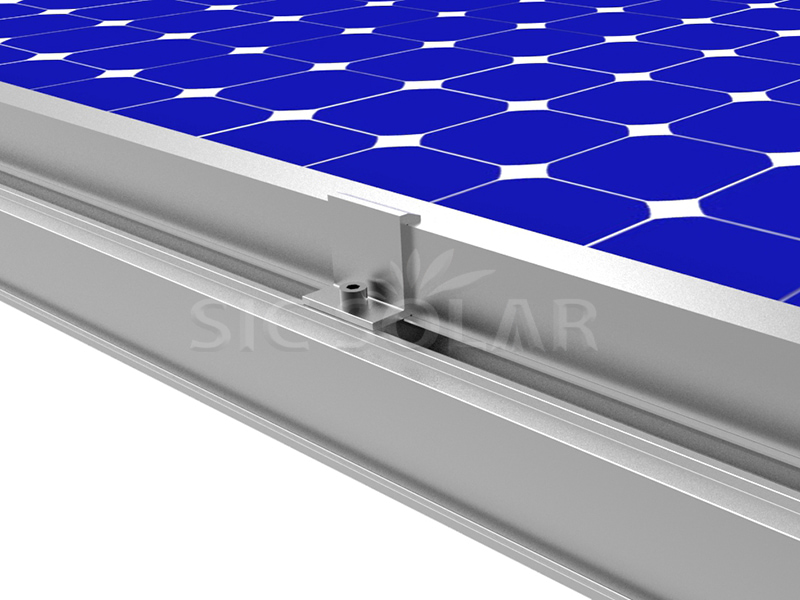

The solar panels are mounted to the aluminum rails using intermediate and end clamps, ensuring they are securely fixed while maintaining the correct tilt angle for maximum sunlight.

5️⃣ Electrical Integration and Inspection

After the panels are installed, electrical connections are made, grounding is ensured, and the system is fully inspected and tested before commissioning.

Solar bracket package

Advantages as follow:

☆ Ground mounting array could be customized according to your ground size.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Aluminum profile is very light and easy for installation. It is also anti-corrosion.

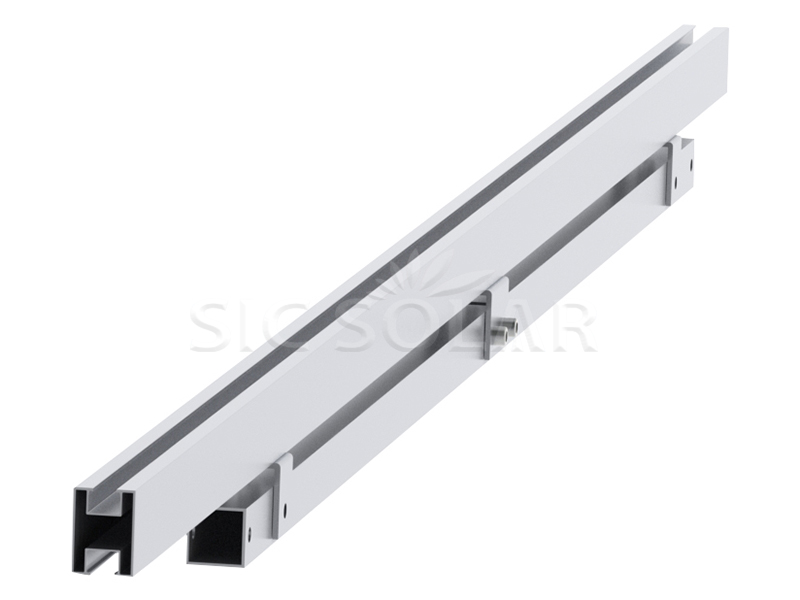

☆ Pre-assembled main frame – highly save the labor cost at your installation site.

Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. What’s the MOQ request?

MOQ=50KW.

Q2. What’s the material of carport?

Al 6005-T5 and Carbon steel.
