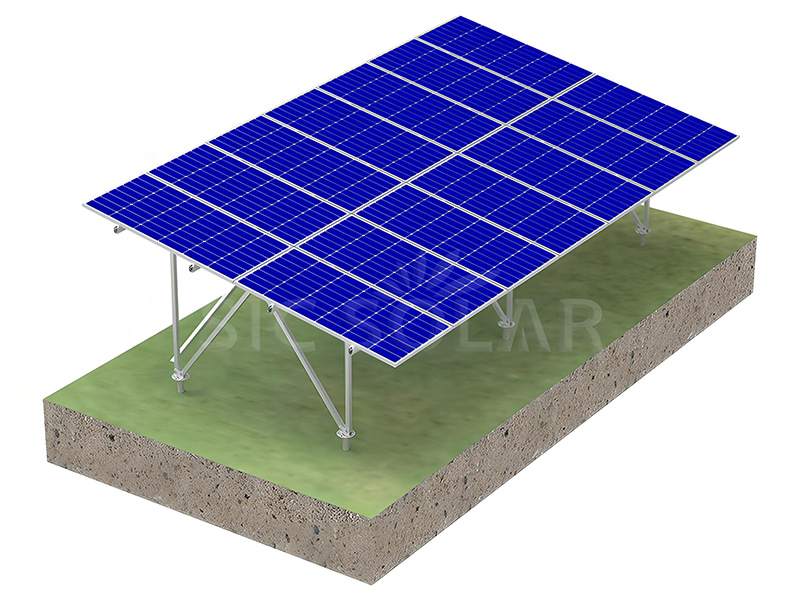

W Type Ground Solar Panel Mounts Bracket

The W Type Ground Solar Panel Mount Bracket is a practical solution for ground-mounted PV systems. Its W-shaped structure provides stable support for solar panels while creating a neat, organized layout for larger arrays.

Brand:

SIC SOLAR

Item NO.:

SIC-AGM-W

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Ground

Tilt Angle:

<60 degree

Color:

Natural or Customized

Material:

AL 6005-T5 & SUS304

Warranty:

10 years and 25 years service time

Length:

Can be customized

Thickness:

Can be customized

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

Components Project Video Technical Details Installation Guide Package Advantage FAQ

Click here to learn more Ground Mounting

Grounding Mounting Systems

Ground Mounted Solar Panel

Name	W Type Ground Solar Panel Mounts Bracket
Installation Site	Ground
Foundation	Ground Screw or Cement Foundation
Material	Aluminum 6005-T5 & Stainless Steel 304
Color	Natural or Customized
Tilt Angle	0°~60°
Wind Load	<60M/S
Snow Load	<1.4KN/M²
Standards	AS/NZS 1170.2, JIS C 8955:2011
Warranty	10 years warranty and 25 years service time

1️⃣ Check the Site

Assess the ground conditions, available sunlight, drainage, and any obstacles that may affect the installation.

2️⃣ Prepare the Foundation

Install the concrete foundation, ground screws, or other specified base. Check the level, position, and alignment before installation.

3️⃣ Assemble the Bracket

Assemble the components according to the system design to form the W-shaped support structure.

4️⃣ Install the Bracket

Secure the bracket to the foundation and check that the structure is stable and properly aligned.

5️⃣ Install the Solar Panels

Place the panels on the mounting structure and set the required tilt angle, typically within the designed range of 0°–60°.

6️⃣ Complete the Wiring

Connect the panels to the inverter and other electrical equipment according to the manufacturer's instructions and applicable standards.

7️⃣ Final Inspection

Check the structure, fasteners, panel alignment, wiring, and overall system before commissioning.

PV ground mounting system

☆ Pre-Assembled Option: Pre-assembled components can reduce installation work and save time on site.

☆ Flexible Design: Dimensions, materials, tilt angles, and configurations can be adapted to project requirements.

☆ Durable Construction: AL6005-T5 aluminum alloy offers a good balance of strength, low weight, and corrosion resistance.

☆ Lightweight: Aluminum construction makes the system easier to transport and install than many heavier alternatives.

☆ Modular Structure: Suitable for building multiple-panel rows and larger ground-mounted PV arrays.

Q1. What is the MOQ?

The minimum order quantity is 50 kW.

Q2. Where can W Type ground brackets be used?

They can be used for suitable ground-mounted PV projects on open land, agricultural sites, commercial properties, industrial sites, and other locations with appropriate ground conditions.

Q3. What type of foundation can be used with the W Type bracket?

Depending on the project, the bracket can be installed on concrete foundations, ground screws, or other engineered foundation systems.

Q4. Can the mounting angle be customized?

Yes. The tilt angle can be designed according to the project's location, solar generation requirements, wind conditions, and structural requirements.
