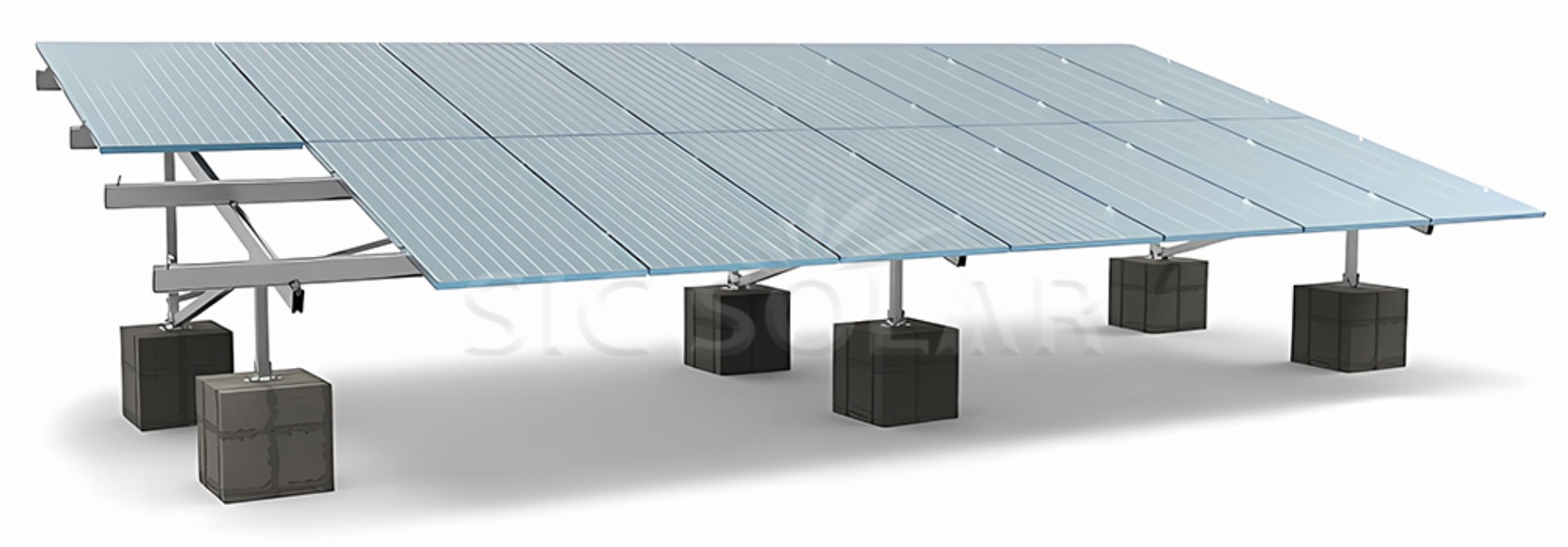

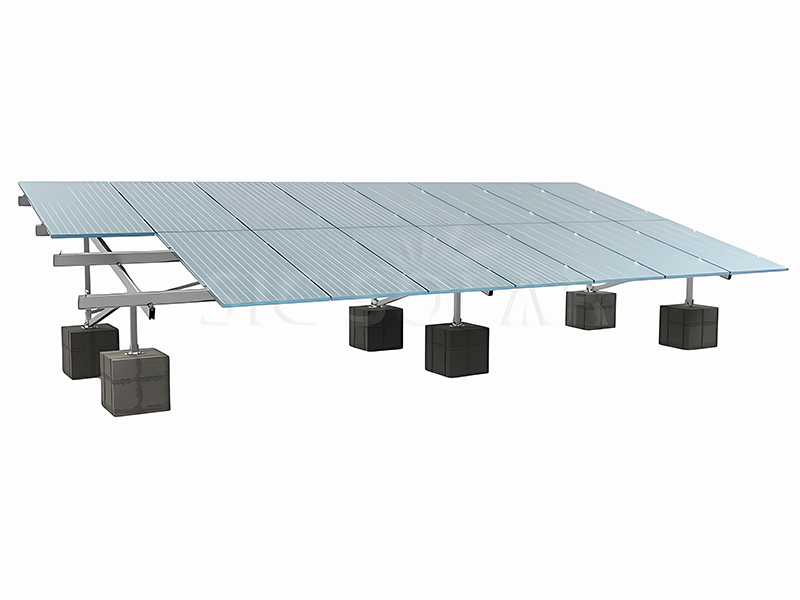

Concrete Based Ground Aluminum PV Mounting Bracket

Concrete Based Ground Aluminum PV Mounting Bracket are solar mounting systems made to be stable and last a while when installed on the ground. These brackets attach to concrete bases, which makes a solid base for solar panels.

Brand:

SIC SOLAR

Item NO.:

SIC-CGM-AL

Installation Site:

Open field

Tilt Angle:

0-60 degrees

Material:

AL6005-T5 & SUS304

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

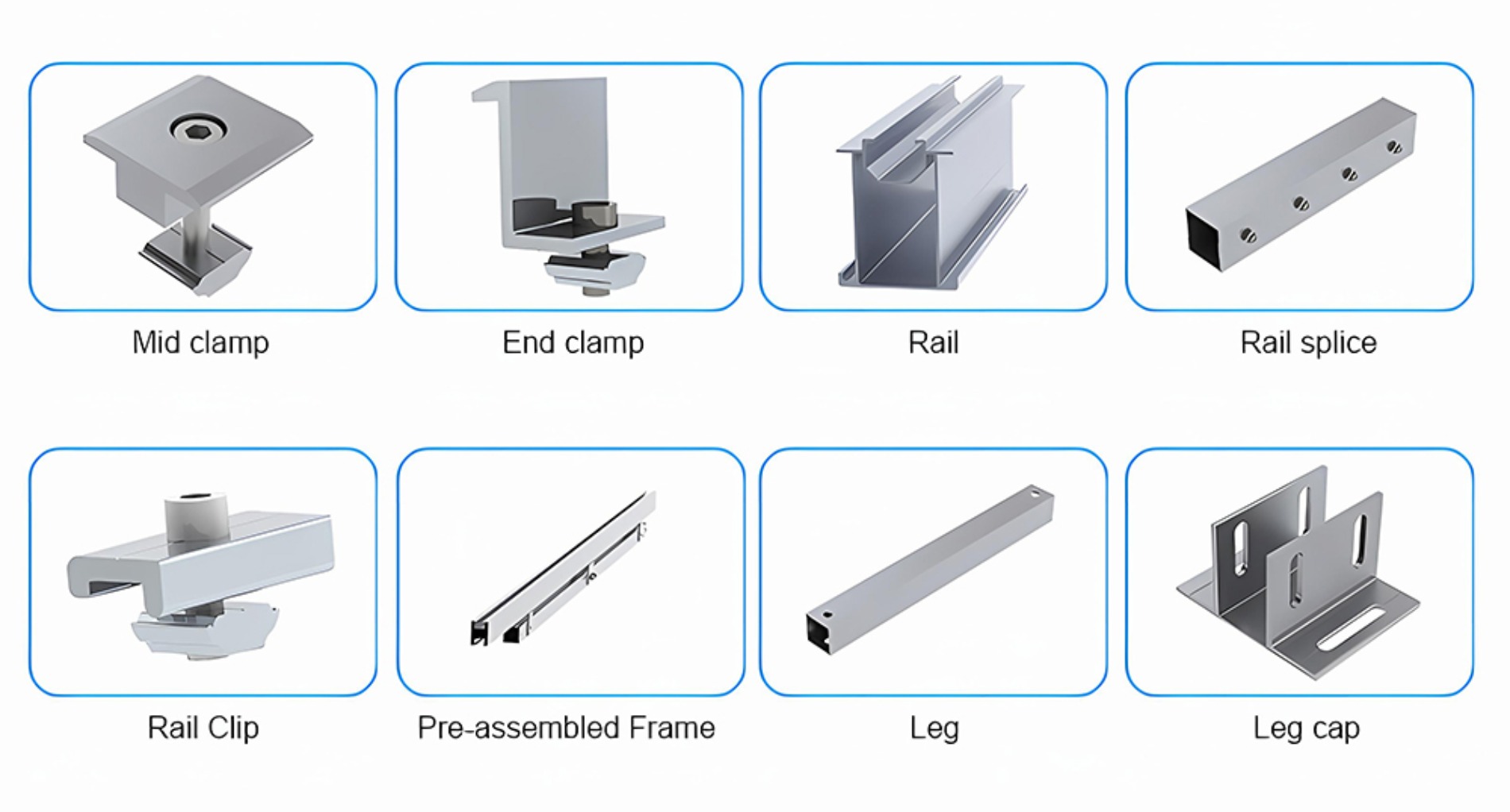

Components Project Technical Details Installation Guide Package Advantage FAQ

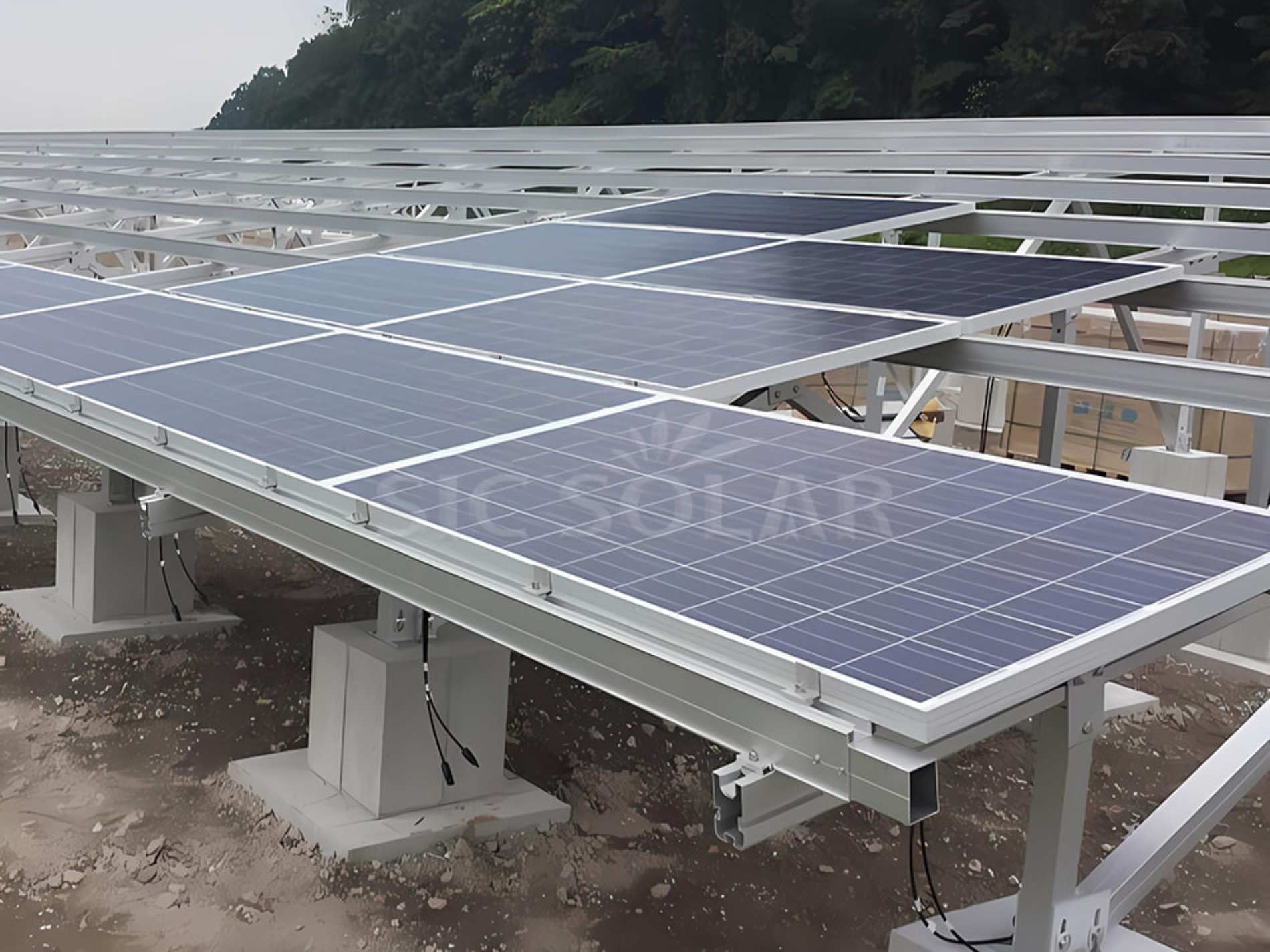

Solar ground mounting structure

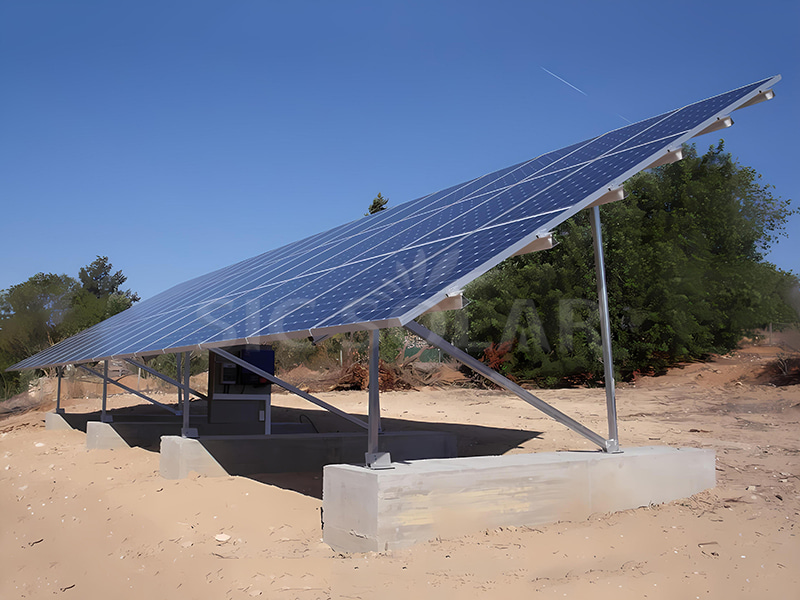

Concrete base solar mounting system

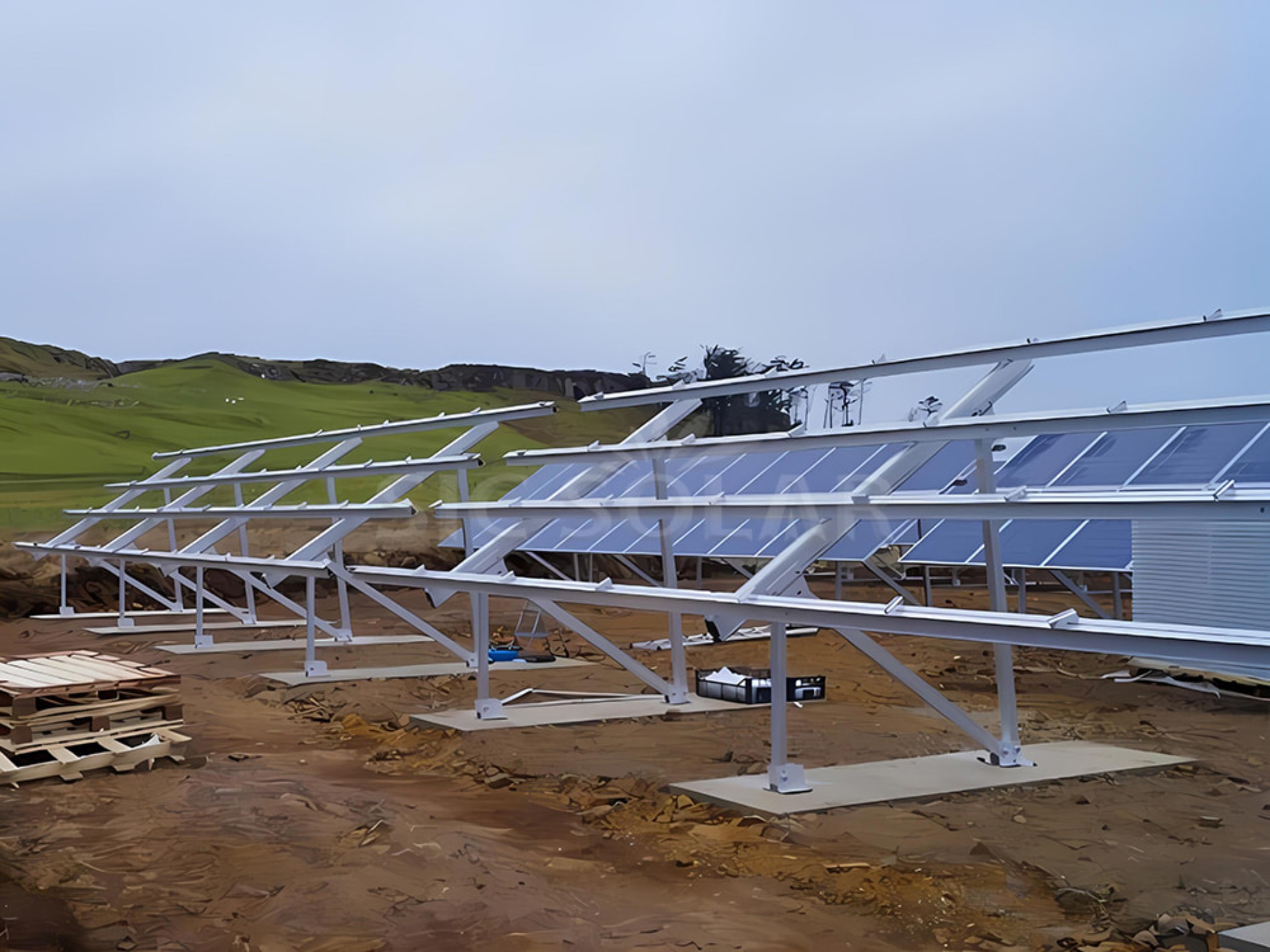

Solar pv ground mount

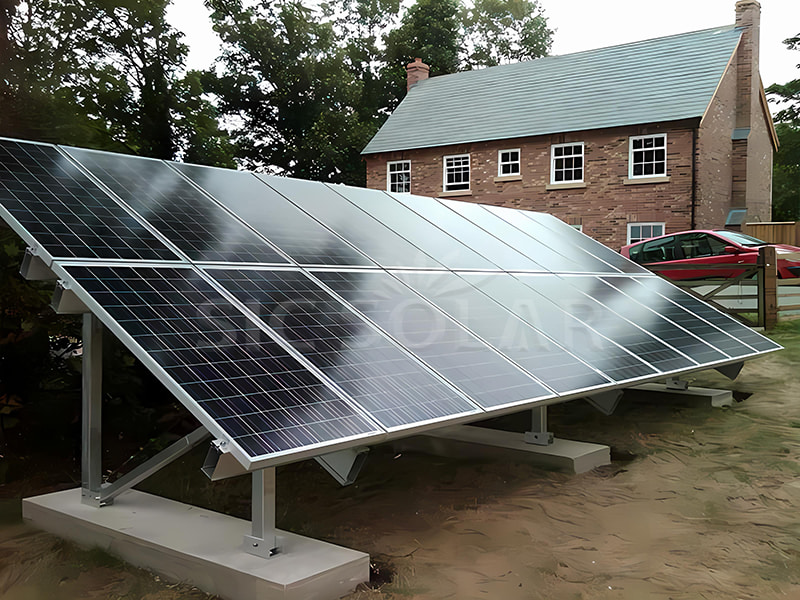

Pv ground mounting system

Product Name	Concrete Based Ground Aluminum PV Mounting Bracket

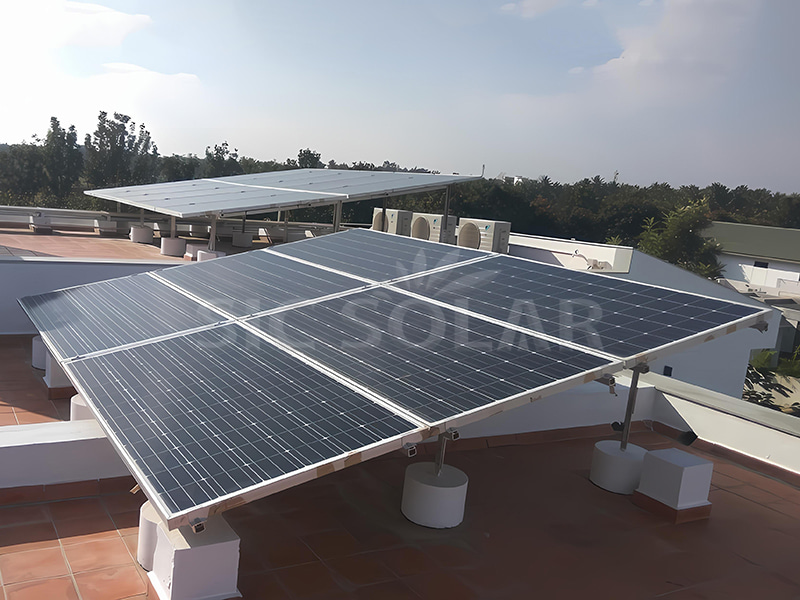

Installation Site	Flat Roof or Ground
Foundation	Concrete Foundation
Material	AL6005-T5 & SUS304
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Tilt Angle	0°~60°
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Standards	AS/NZS 1170.2, JIS C 8955:2011
Warranty	10 years warranty and 25 years service time

1️⃣ Look at the Site: See how much sun there is, what the soil is like, and if anything is in the way. Make sure the ground is even for the concrete base.

2️⃣ Get the Base Ready: Dig, pour concrete, put in anchors, and wait for the concrete to fully dry.

3️⃣ Put the Frame Together: Build the aluminum mounting system and bolt it to the concrete anchors that are now dry.

4️⃣ Attach the Panels: Fasten the panels to the frame with clamps and change the tilt to get the most sunlight.

5️⃣ Connect the Wires: Wire the panels to the inverter and other parts based on the plan and local rules.

6️⃣ Check the System: Make sure everything is working right after it's installed.

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.

Solar bracket package

☆ Cheapest option – saves on parts and money for ground solar projects.

☆ Really Flexible – can be tweaked to fit different building situations.

☆ Aluminum is super light and easy to install. It also doesn’t rust.

☆ Simple to put together with the pre-built frame.

Related certificate:

☆ Strength Report – mountings are tested to make sure they can handle wind and snow.

Q1. What’s the MOQ request?

MOQ=50KW.

Q2. What’s the material of carport?

Al 6005-T5 and Carbon steel.
