Ground mount solar racking systems N type

Ground mount solar racking systems N type is a super strong and efficient way to hold up big solar panels on the ground. It's made to handle a lot of weight and bad weather, so it's great for getting as much solar power as possible.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-SA1-V
  • Installation Site:

    Open field
  • Tilt Angle:

    Can be customized
  • Material:

    AL 6005-T5
  • Wind Load:

    <60M/S
  • Snow Load:

    1.4KN/M2

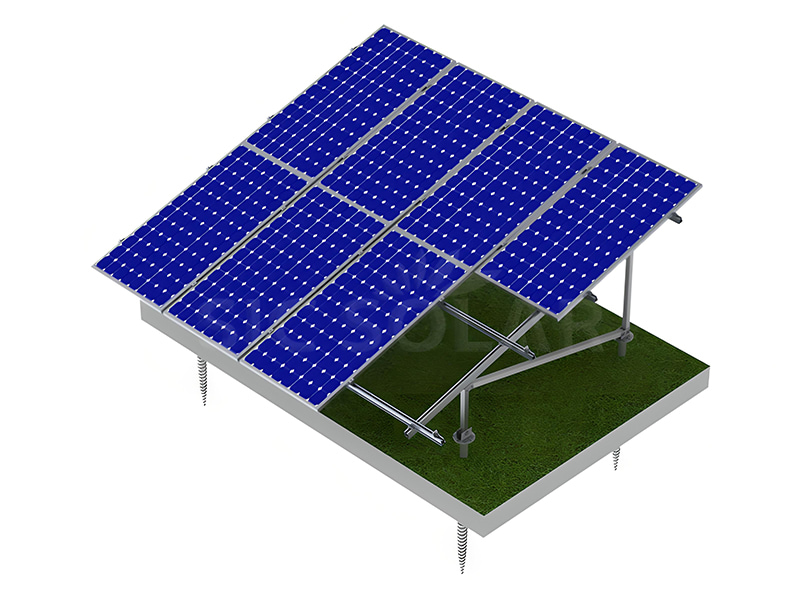

PV ground mounting system

Ground Mount Solar Racking Systems N Type are good for homes and businesses. They're made to be adjusted easily, so you can set them up much faster than other systems – like, half the time!

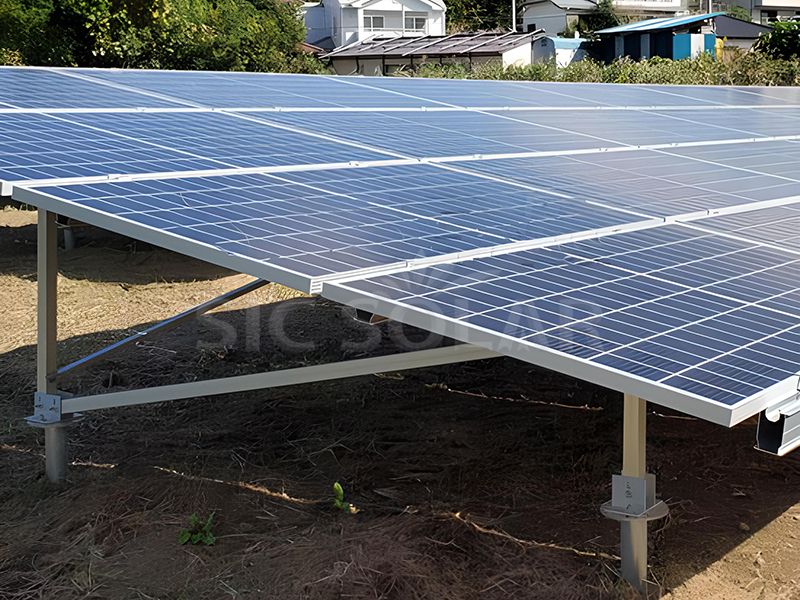

Solar aluminum ground mount

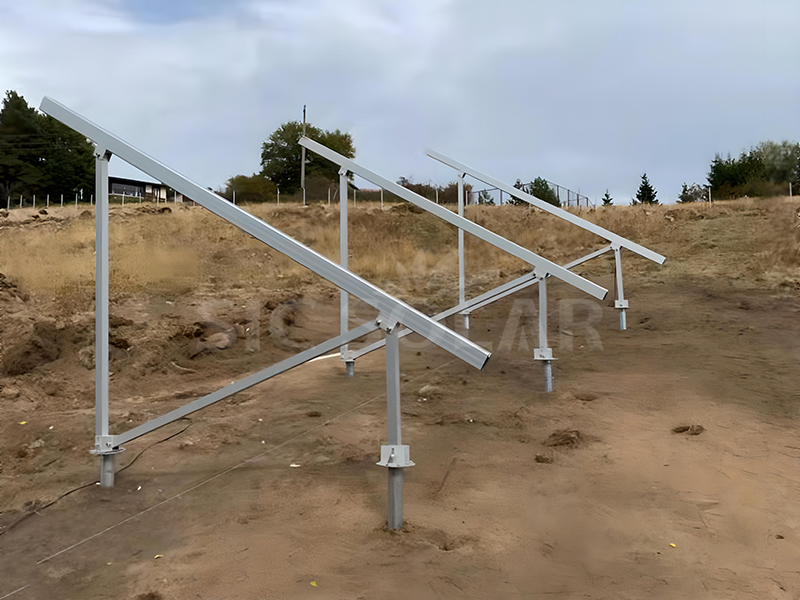

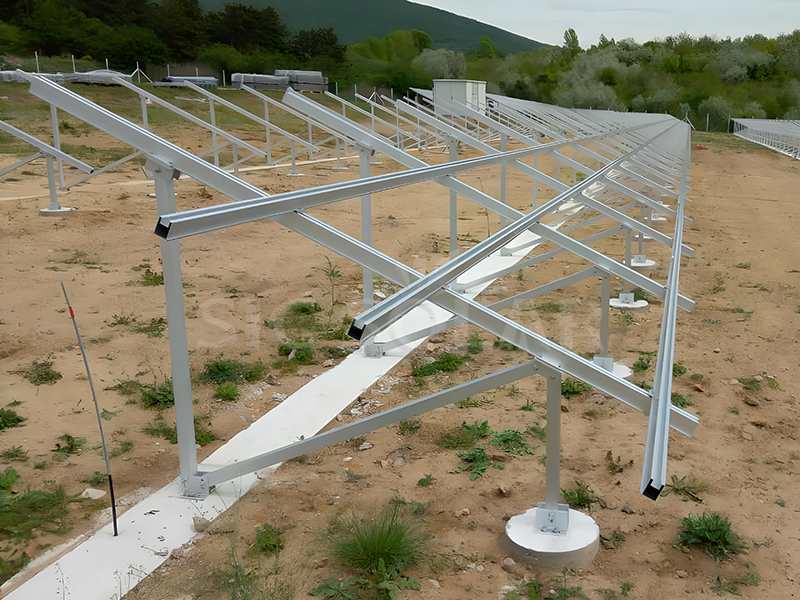

Ground Mount Solar Racking Systems N Type design has a special N shape that makes it extra stable. This is perfect for big solar farms, business projects, and even farms.

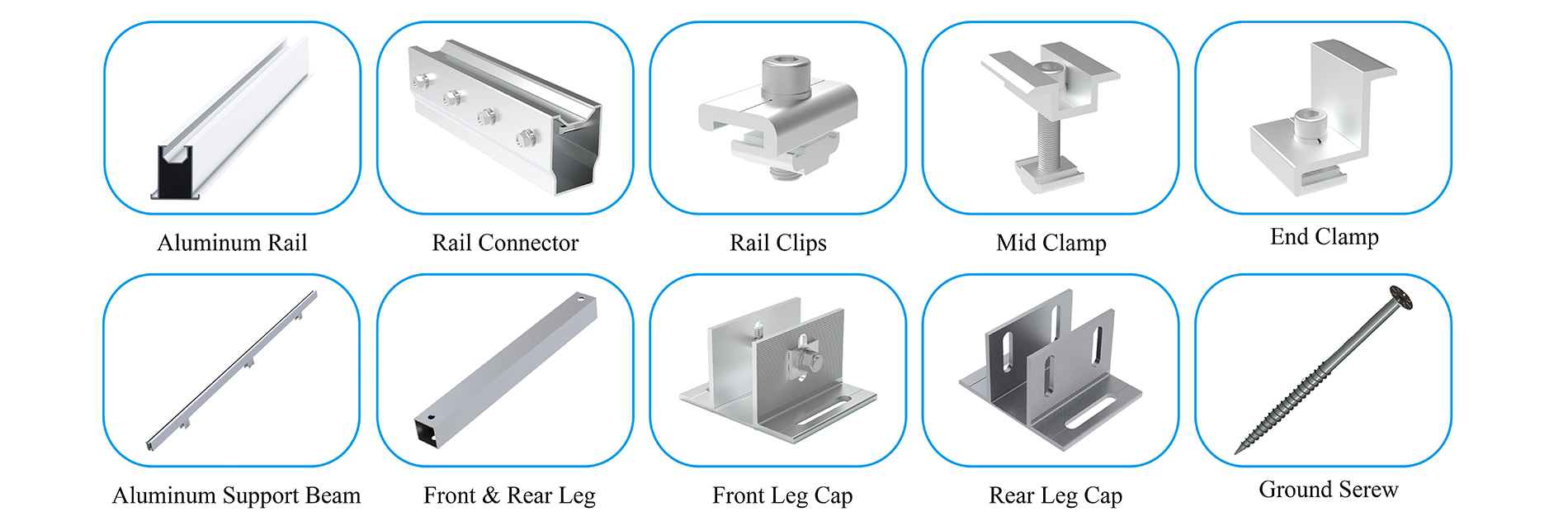

Pv ground mounting components

Installation Site

Flat Roof or Ground

Foundation Concrete Foundation
Material Al 6005-T5
Color Natural or Customized
Anticorrosive Anodized aluminum & stainless steel
Tilt Angle 0°~60°

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Standards

AS/NZS 1170.2, JIS C 8955:2011

Warranty

10 years warranty and 25 years service time

1️⃣ Check the Site: Look at the area where the panels will go, check the ground, and pick the right type of base (piles).

2️⃣ Put in the Bases: Install the concrete piles or screw in the helical piles to the right depth. Make sure they're straight up.

3️⃣ Put Together the Frame: Put up the front and back posts, add supports that make an N shape, and tighten the bolts a little.

4️⃣ Add Rails and Brackets: Install the main rails. Slide in the angled supports to set the right angle, then tighten everything.

5️⃣ Clamp the Panels: Put the clamps into the slots, put the panels in place, line them up, and tighten the clamps as shown in the instructions.

6️⃣ Ground It: Use wires to the frame and rails to the grounding system.

7️⃣ Check It: Check that all the bolts are tight, fix any damage to the coating, write down how the panels are arranged, and plan to check it every year.

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.

Solar bracket package

☆ Cheapest Way: Saves money because you don't need as many parts.

☆ Easy to Change: You can adjust it to fit different building situations.

☆ Light and Easy: The aluminum is easy to install. And it won't rust.

☆ Quick Setup: Easy install with the frame already put together.



Related certificate:

☆ Strength Test -- The mounts will be tested for strength based on your targets, like handling wind and snow.

Q1. What’s the MOQ request?

MOQ=50KW.



Q2. What’s the material of carport?

Al 6005-T5 and Carbon steel.
