Flat Roof Solar Mounting Bracket System

Click here to learn more produce

1️⃣ Site Assessment

Measure and analyze the roof area, check for load-bearing capacity and obstructions (vents, HVAC, etc.).

2️⃣ System Layout

Design the solar panel array layout and determine the proper spacing and orientation to minimize shading.

3️⃣ Positioning Brackets

Attach mounting brackets or triangular structures to the roof based on the layout. If using ballast, install trays or feet.

4️⃣ Securing Brackets

Use expansion bolts or anchors through the roof membrane or cement blocks and secure with waterproof flashing or sealant.

5️⃣ Mounting Rails

Attach horizontal rails to the brackets to support the solar panels.

6️⃣ Panel Mounting

Secure the solar panels using mid- and end-clamps.

7️⃣ Cable Management and Grounding

Route the cables through the clamps or cable drums and connect the grounding assembly for safety.

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.

Advantage as follow:

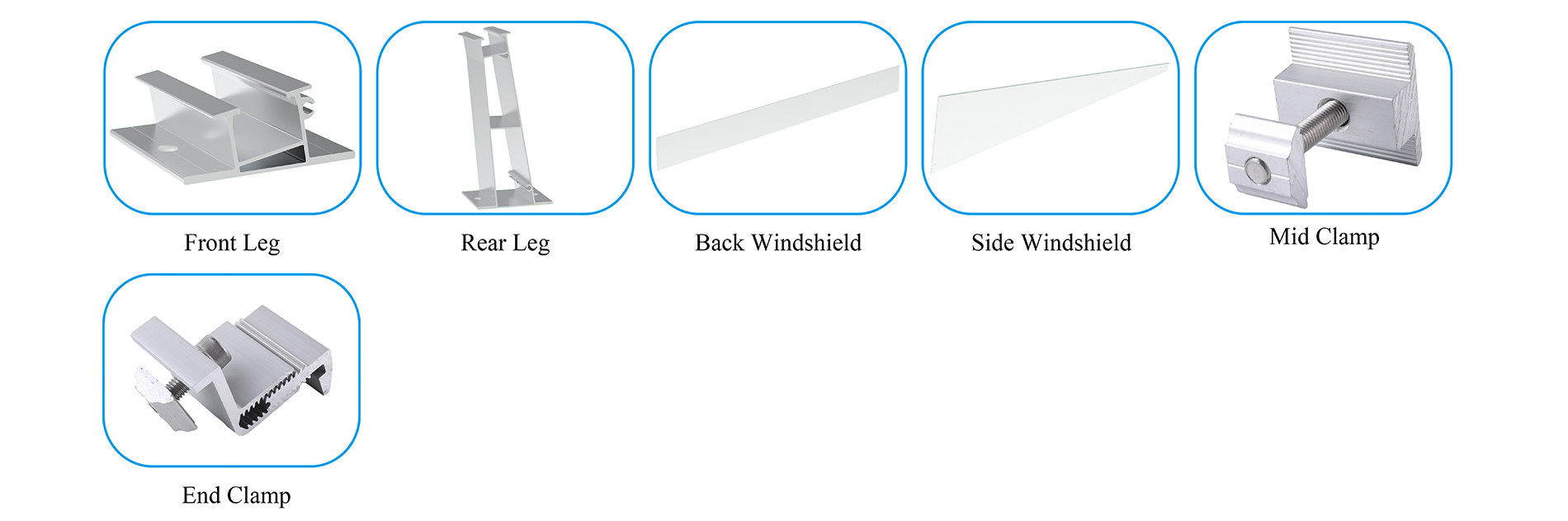

☆ Easy to use- only 4 components

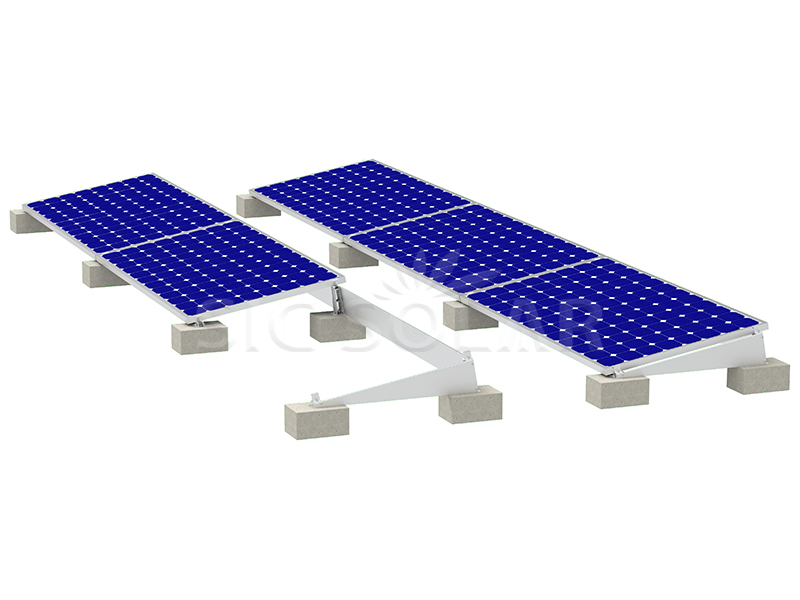

☆ Minimize the installation space - East-West design reduce the space between panels.

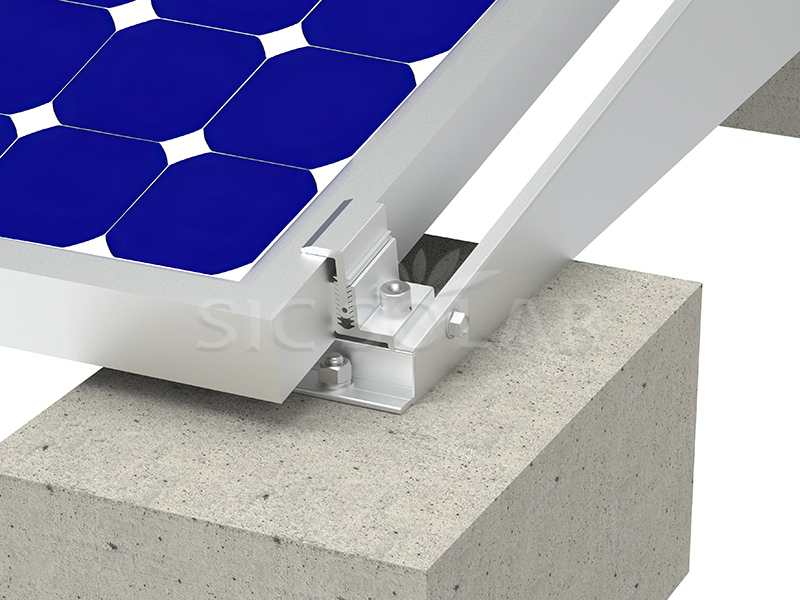

☆ Ballast design -Non-Penetrating to concrete roof.

☆ Pre-assembled ballast frame  – highly save the labor cost at your installation site.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

Related certificate:

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.Aluminum quality certificate -- AL6005-T5 composition list

Q1. Can you provide East-West Ballasted Mount?

Yes.

Q2. What’s the weight of Ballasted Object?

This will need customers local wind speed and snow load.
