PV Grounding Clip Washer
PV Grounding Clip Washer

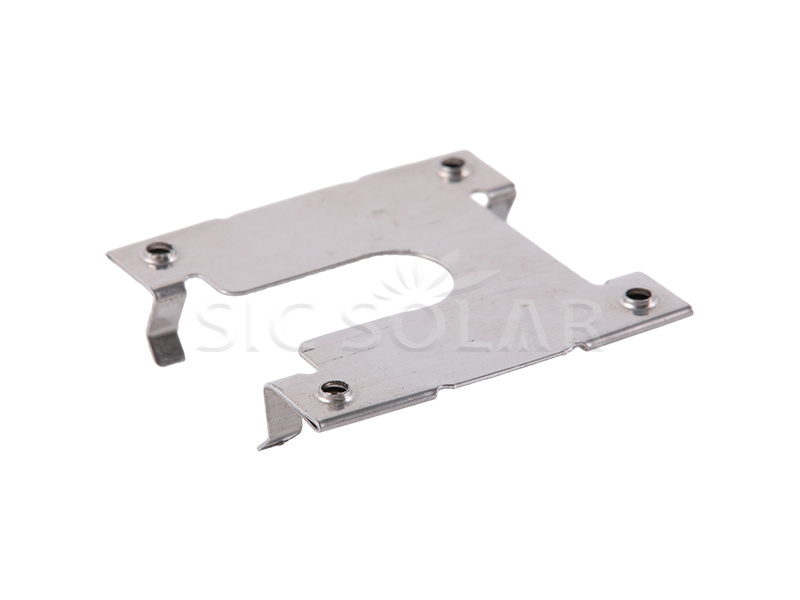

Solar Panel Grounding Washer

Solar Panel Grounding Washer is a crucial component in solar mounting systems, designed to provide a reliable electrical connection between solar panels and their mounting structures. This ensures that the entire system is properly grounded, enhancing safety and protecting against electrical faults.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-GW-04
  • Shipping Port:

    Xiamen
  • Color:

    Silver or customized
  • Warranty:

    10 years warranty



Grounding Lug Solar

The primary function of the Solar Panel Grounding Washer is to establish a secure electrical bond, directing any stray currents or surges safely to the ground. This is essential for preventing electrical hazards, such as shock or fire.

Solar panel mount component

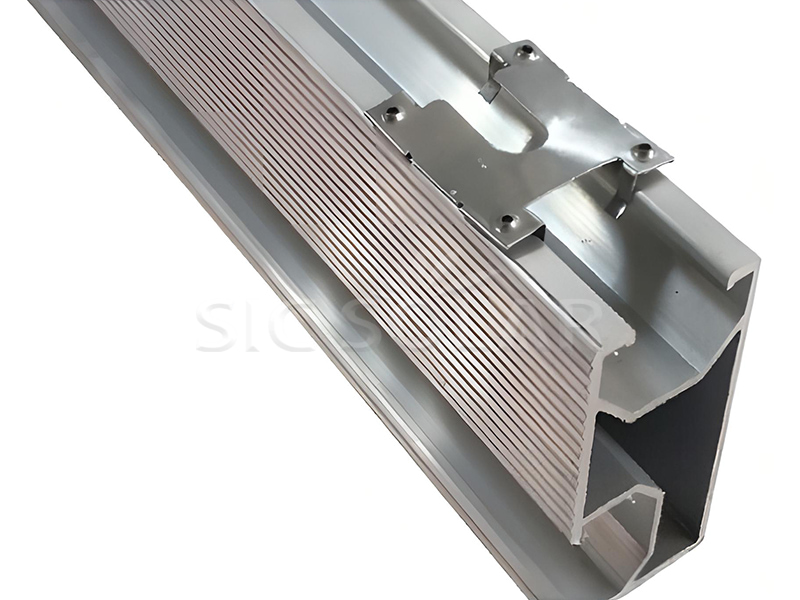

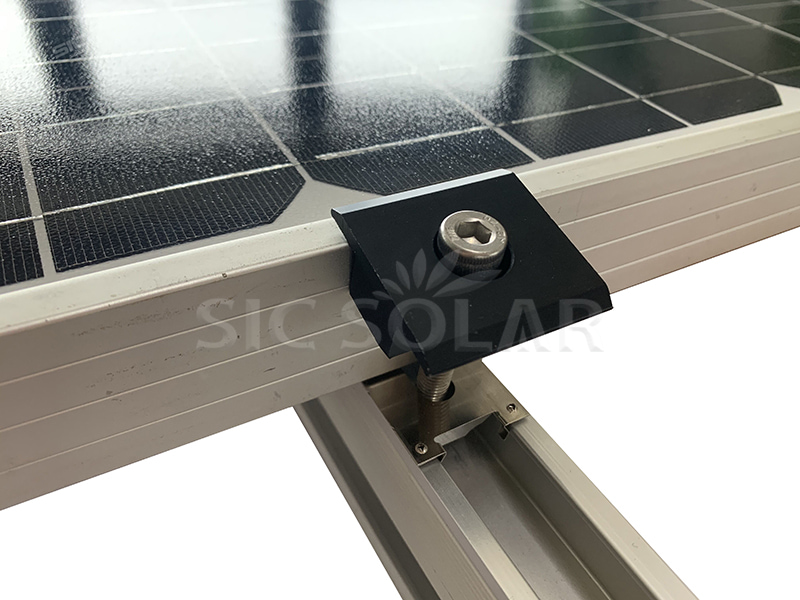

Solar panel grounding washer are designed for straightforward installation. They are usually placed between the solar panel and the mounting rail, or under a grounding lug, allowing for quick integration into the mounting system.

Ground Wire Clips

Name Solar panel grounding washer

Installation Site

Ground or roof

Shape

Rectangle/ Square/ Round

OEM Service

Available

Material

Stainless steel 304

Color

Silver or Customized

Surface

Clean

Warranty

10 years and 25 years service time

1️⃣ Place Washer: Place grounding washers between the grounding lug or clamp and the mounting rail or frame.

2️⃣ Insert Fasteners: Insert bolts or screws through washers and assembly.

3️⃣ Tighten securely: Apply torque until the serrations penetrate both surfaces, ensuring a secure electrical connection.

4️⃣ Verify Grounding: Use a multimeter as needed to confirm a low resistance connection.

Solar bracket packing

☆ Various grounding earth plate could meet different rails.

☆ High Durability – Best SUS304 ensure 10 years warranty and 25 years service time.
☆ Connecting solar panel frame and alu rails, creat an electrical path the ground.
☆ Smart grounding washer design make the installation quick and easy.
