Pantile adjustable roof hook
Pantile adjustable roof hook
Pantile adjustable roof hook

Solar Tile Roof Hook Tile Roof

Solar Tile Roof Hook Tile Roof is a critical component for mounting solar panels on tile roofs. Designed for stability, durability and compatibility, it allows for a secure installation without compromising the integrity of the roof structure.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-TH-09

  • Shipping Port:

    Xiamen port

  • Installation Site:

    Tile roof

  • Color:

    Natural or Customized

  • Material:

    Stainless Steel 304

  • Warranty:

    10 years and 25 years

  • Wind Load:

    <60M/S

  • Snow Load:

    <1.4KN/M2
Inquire Now
Download



Roof Solar Tile Roof Hook

Solar Tile Roof Hook Tile Roof is a traditional roofing material commonly used in many parts of the world. Hook tiles are typically made from clay or concrete and have a distinctive curved shape with a hooked edge.

Solar Tile Roof Hook

Solar Tile Roof Hook Tile Roof are designed to work with different types of roof tiles, including clay, concrete, and slate. Some hooks offer adjustable height or positioning to align with the roof structure, ensuring the solar panel is mounted securely and level.

Components Video Technical Details Installation Guide Package Advantage

Click here to learn more

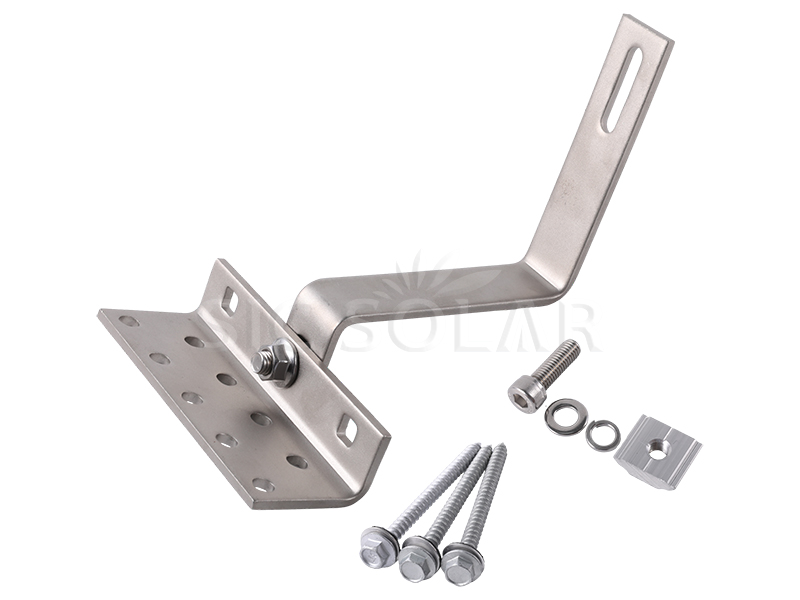

Solar Mount Tile Roof Hook

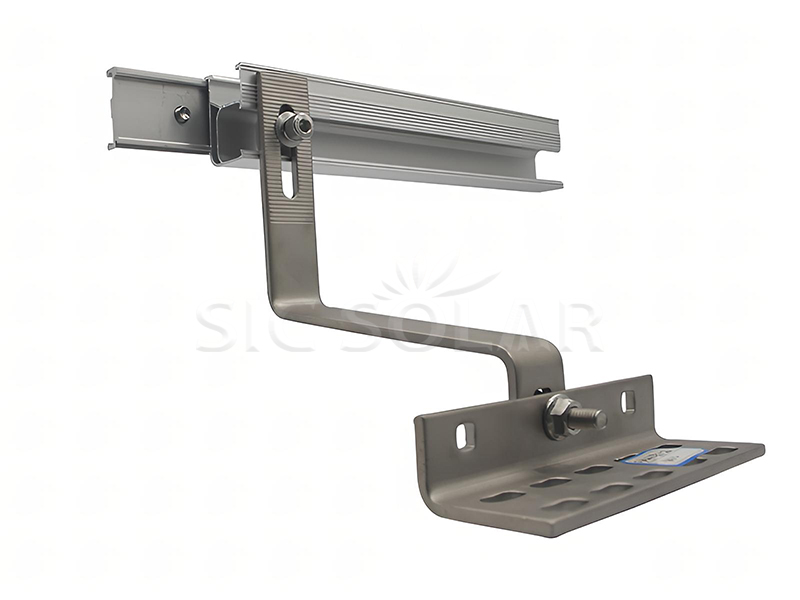

Tile Roof Hook Solar Racking

Name Adjustable roof hook
Material SUS304
Sheet metal thickness ≧4mm
Warranty 10 Years warranty and 25 Years lifetime
Applicable roof Tile Roof
Range of bolt torque 25-28N*m
Value of pullout resistance 5KN
Value of pressure resistance
 5KN

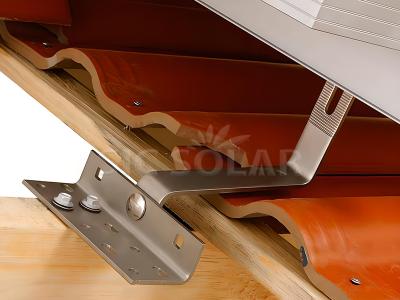

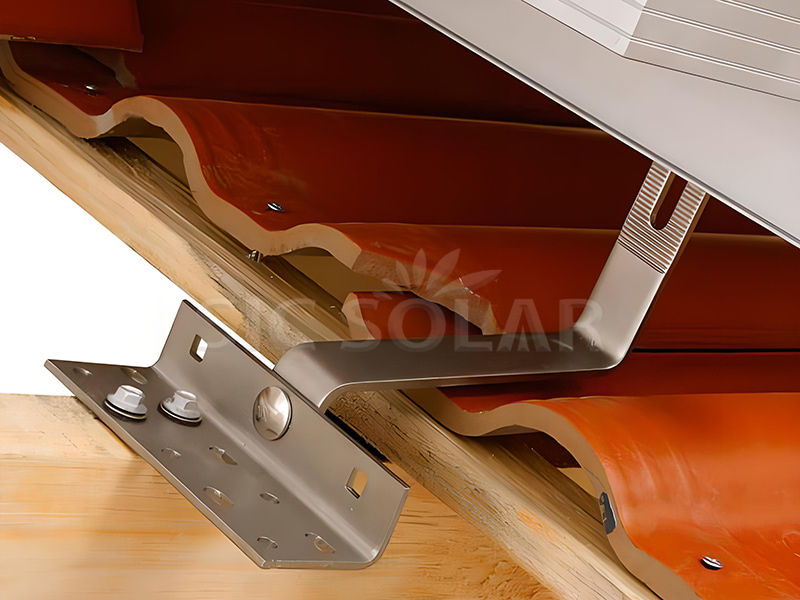

1️⃣ Lift roof tiles - Carefully remove or lift tiles to expose rafters.

2️⃣ Position roof hooks - Align hooks to wooden rafters for maximum support.

3️⃣ Secure hooks - Secure hooks to roof structure using stainless steel screws.

4️⃣ Replace tiles - Ensure tiles are properly positioned with no gaps or damage.

5️⃣ Install solar rails - Secure mounting rails to hooks using bolts.

6️⃣ Install solar panels - Secure panels using mid and end clamps.

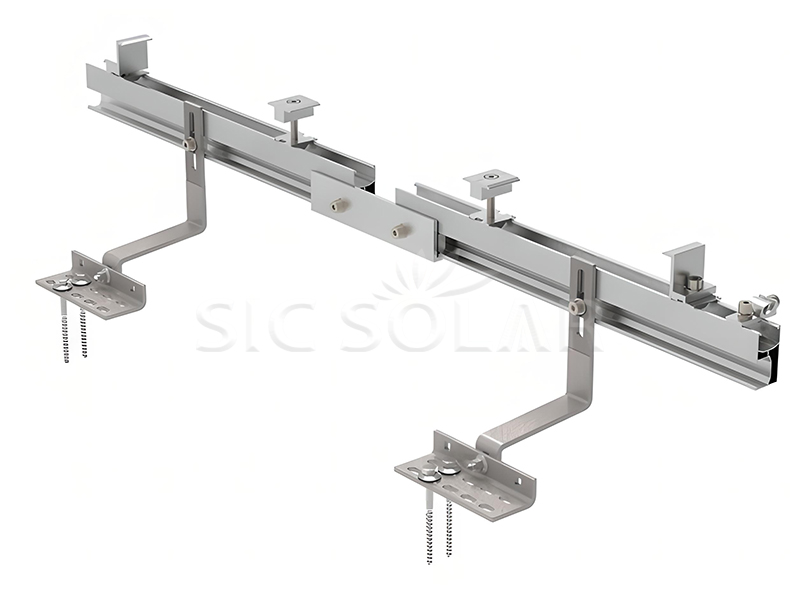

Solar bracket package

Advantages as follow:
☆ Height adjustment (39mm, From 130mm to 169mm)
☆ High Durability – Best Stainless steel 304 Ensure 10 years warranty and 25 years service time.
☆ High Pre-assembly – Save labor cost at the installation site



Related Certificate

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Our SGSCertificate for screw material-- SUS304
