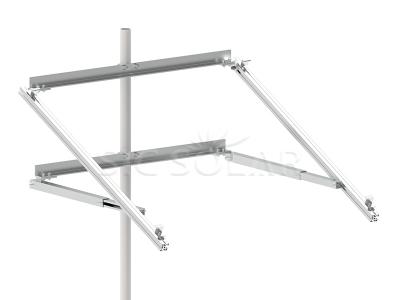

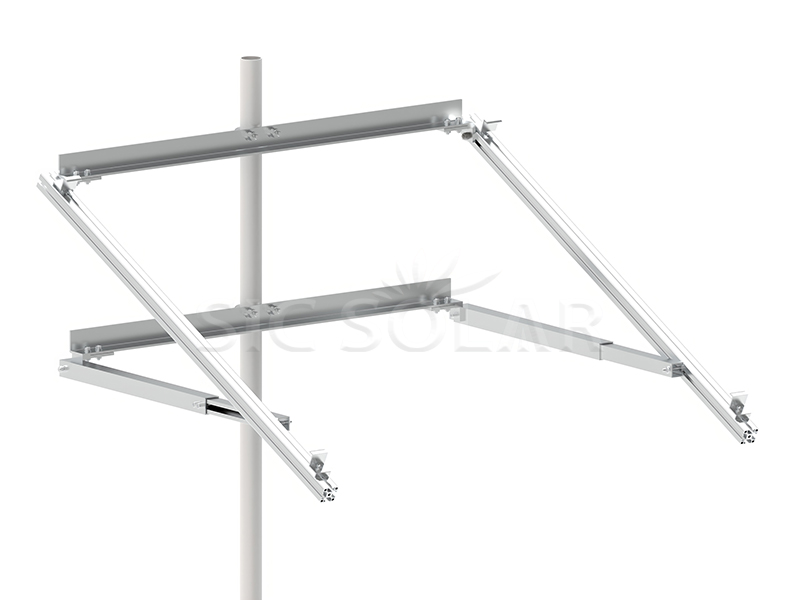

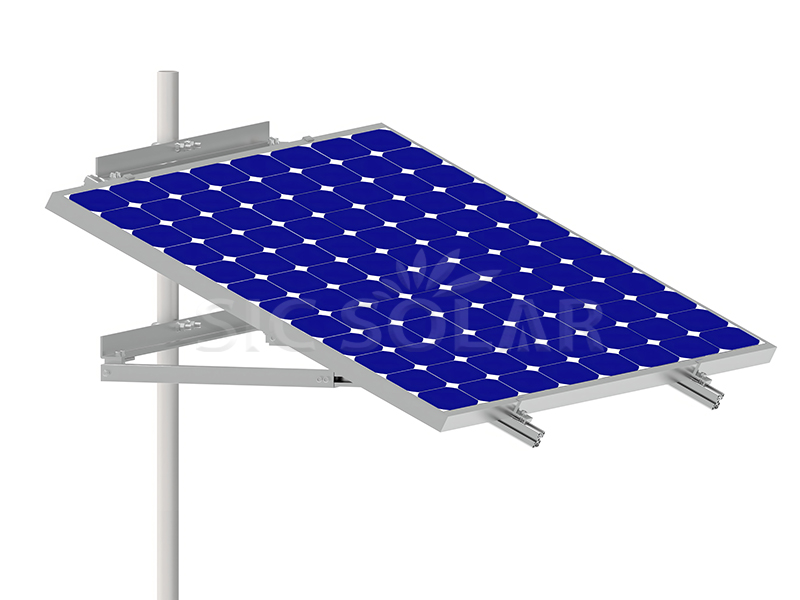

Pole Mount Support For Solar Panel

Click here to learn more Ground Mounting Systems

1️⃣ Site Selection and Foundation

Choose an open, unobstructed area. Dig and lay a concrete foundation, or bury the steel poles directly.

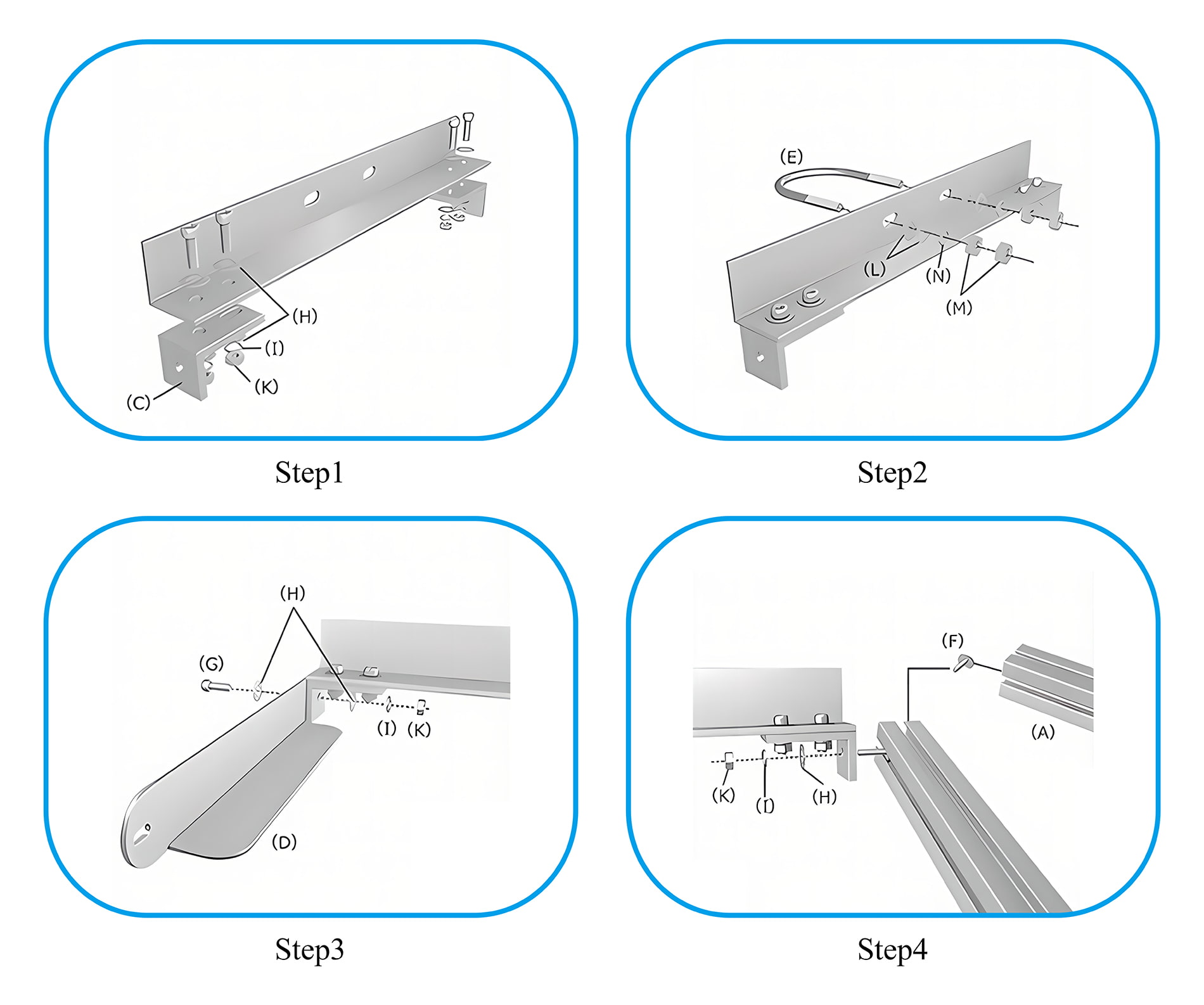

2️⃣ Mounting Frame Assembly

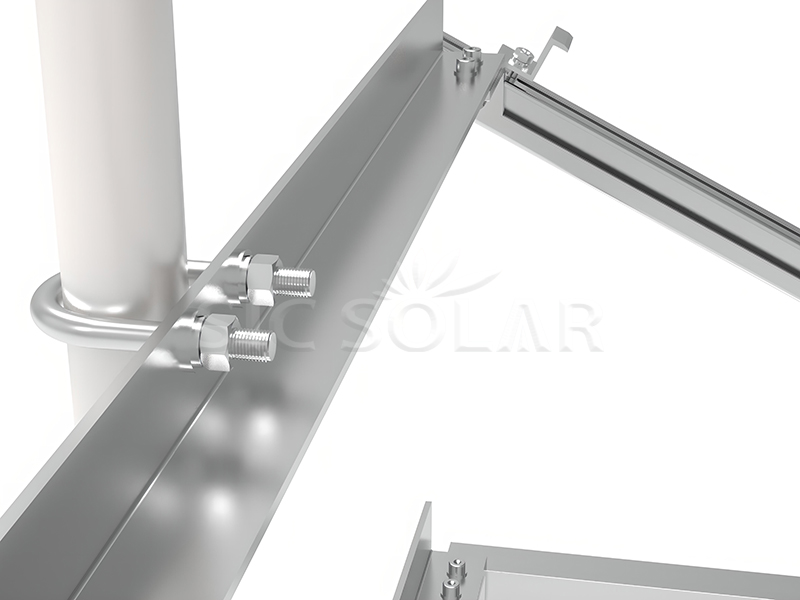

Secure the prefabricated aluminum or steel frame to the poles using bolts and brackets.

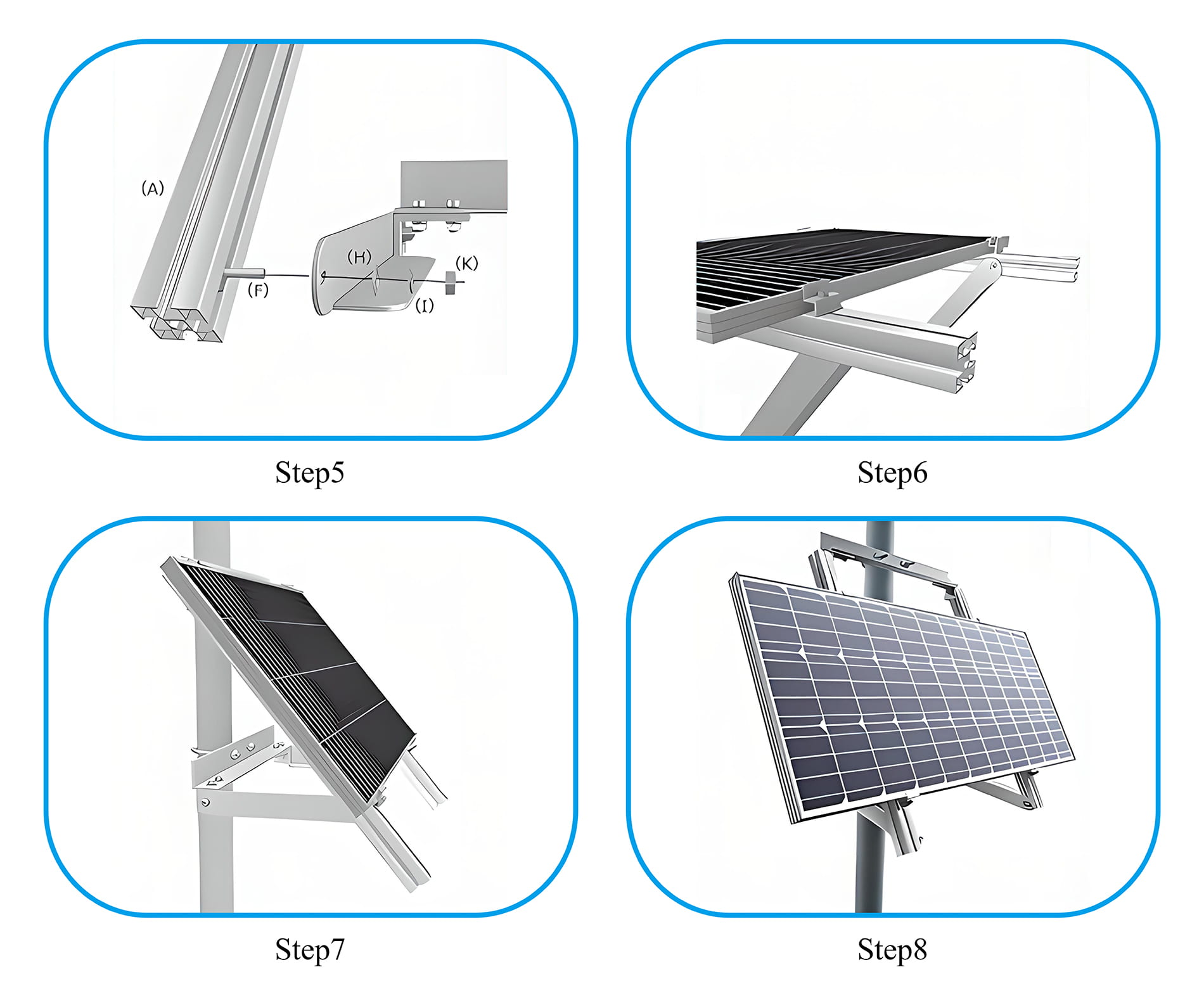

3️⃣ Solar Panel Installation

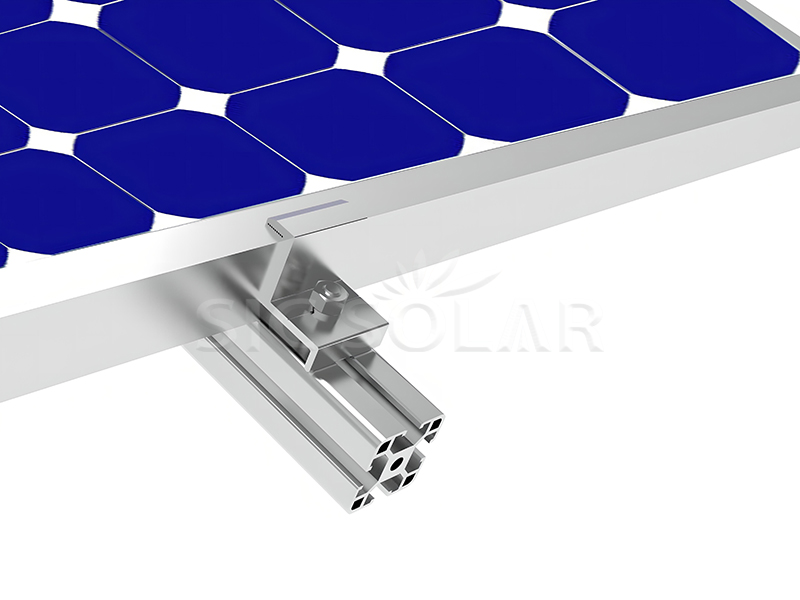

Securely secure the PV modules to the rails/frame using intermediate and end clamps.

4️⃣ Angle Adjustment

Adjust the tilt angle (e.g., 15°–45°) according to local latitude or seasonal requirements.

5️⃣ Cabling and Grounding

Route the DC cables through a weatherproof conduit and ground them properly.

☆ Installation site - Good choose when mounting to a roof is not ideal.

☆ Easy installation - Light and small that makes the installation of small solar systems easy, affordable and quick.

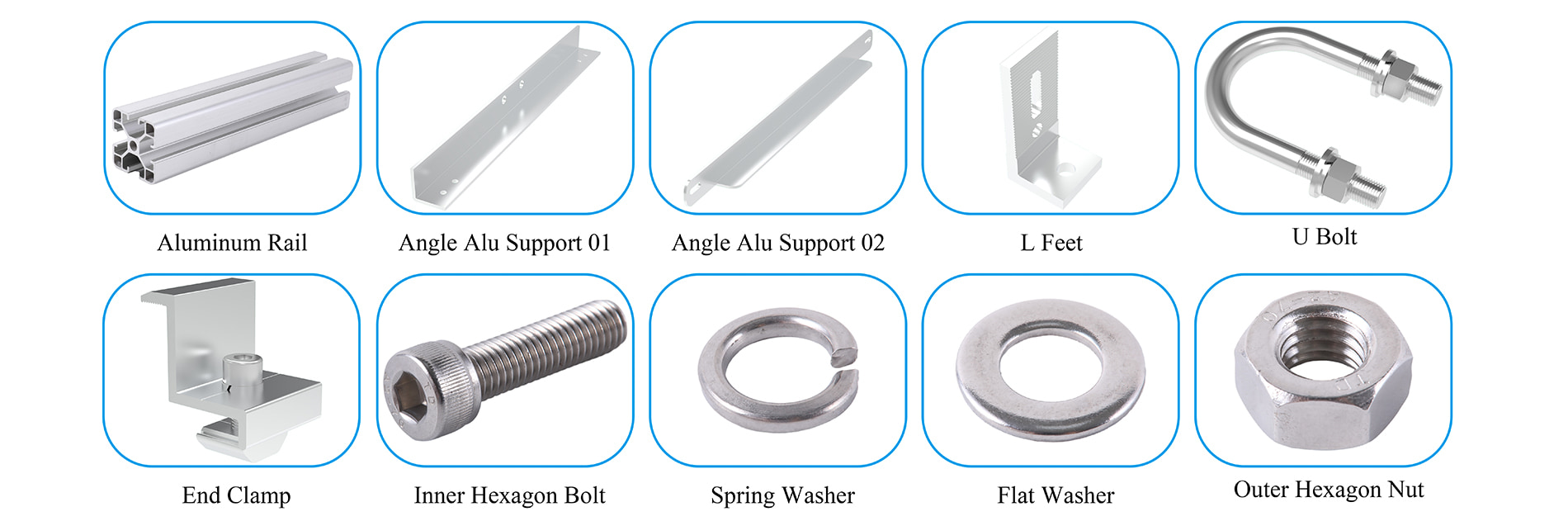

☆ Good design - The system comes complete with all fasteners to secure the system to the installation surface.

Q1: What is the adjustable angle range?

It's between 15-65 degrees

Q2: Is there any request for solar panel size?

Yes, this system is only suitable for small size panel, such as 100w panel.

Q3: What Incoterms offered?

SIC can offer EXW, FOB, CIF and DDU, any special requirement terms can be negotiated.
