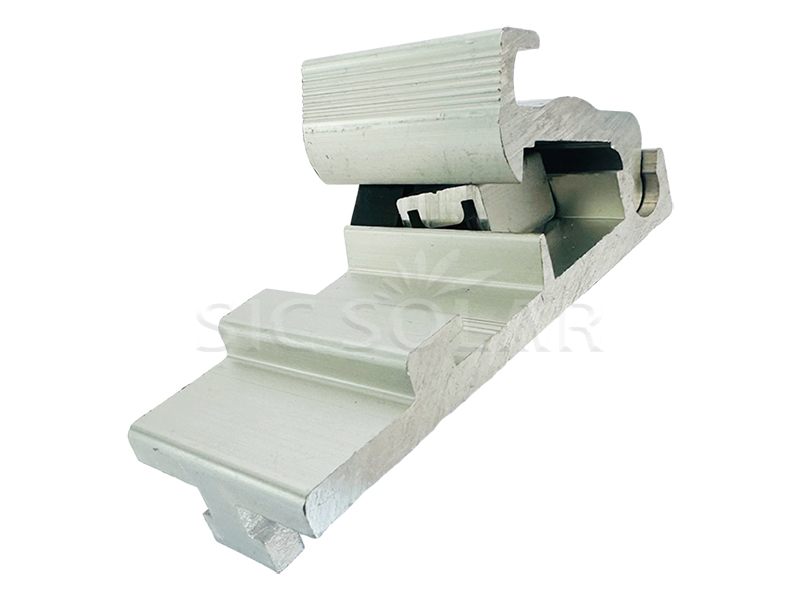

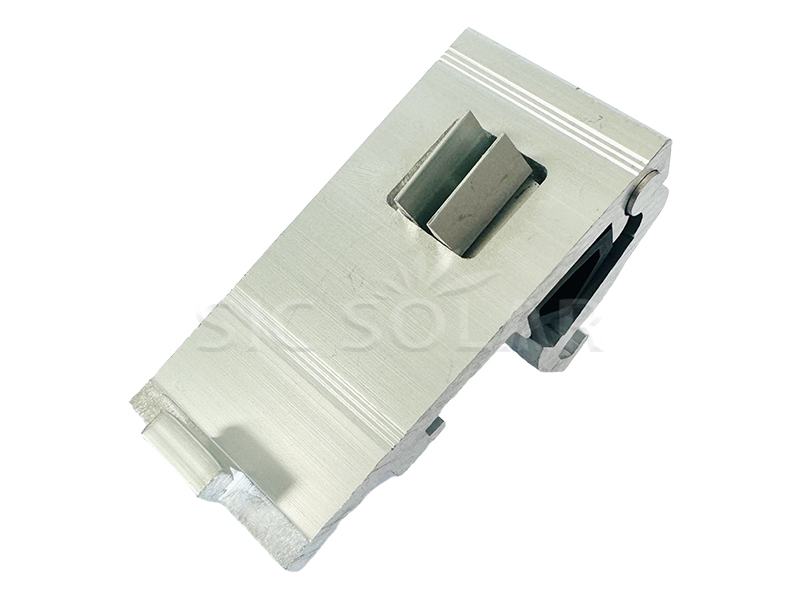

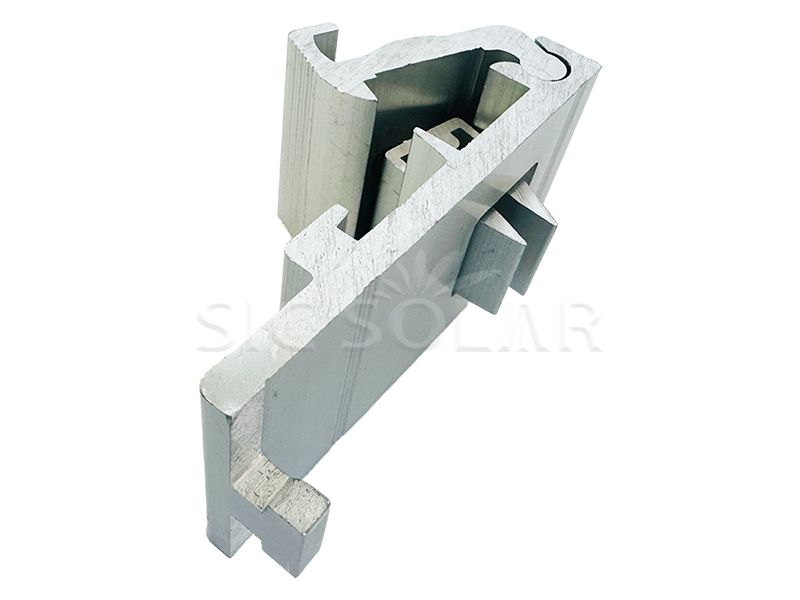

Solar Rail Splice R Type Cross connector

Solar Rail Splice R Type Cross Connector is important for joining and stretching out solar mounting rails in solar power setups. It smoothly links two rail parts, keeping the solar panel setup strong and connected.

Brand:

SIC SOLAR

Item NO.:

SIC-RS-R

Color:

NATURE

Installation Site:

Solar Rail

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

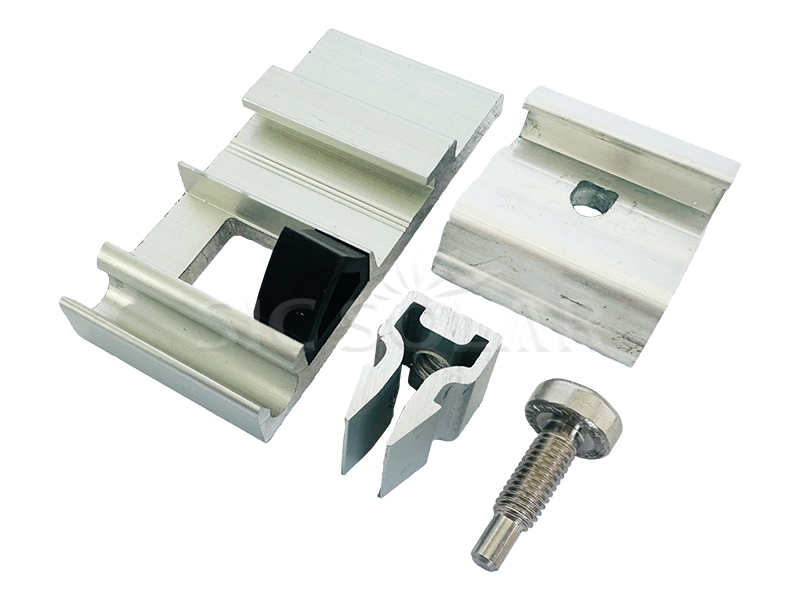

Components Technical Details Installation Guide Package Advantage

Click here to learn more splices.

Photovoltaic rail splice bracket

Installation Site	Solar Rail
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum & stainless steel
Warranty	10 years and 25 years service time

1️⃣ Put the connector in place: Set the R-type cross connector where the rails cross.

2️⃣ Put in the bolts: Line up the holes and bolt it down with stainless steel bolts and nuts.

3️⃣ Fasten: Tighten everything to make sure it's hooked up tight.

4️⃣ Check it: Be sure the rails are straight, even, and the connector isn't wobbly.

Aluminium profile connector

☆ Different rail connectors are available to extend the rail's length.

☆ Really Durable – Top-notch AL6005-T5 means it’s guaranteed for 10 years and should last 25.

☆ Rail connectors come ready to use – saves a ton on worker costs where you're installing them.

Related certificate

☆ Aluminum quality certificate -- AL6005-T5 ingredients list.
