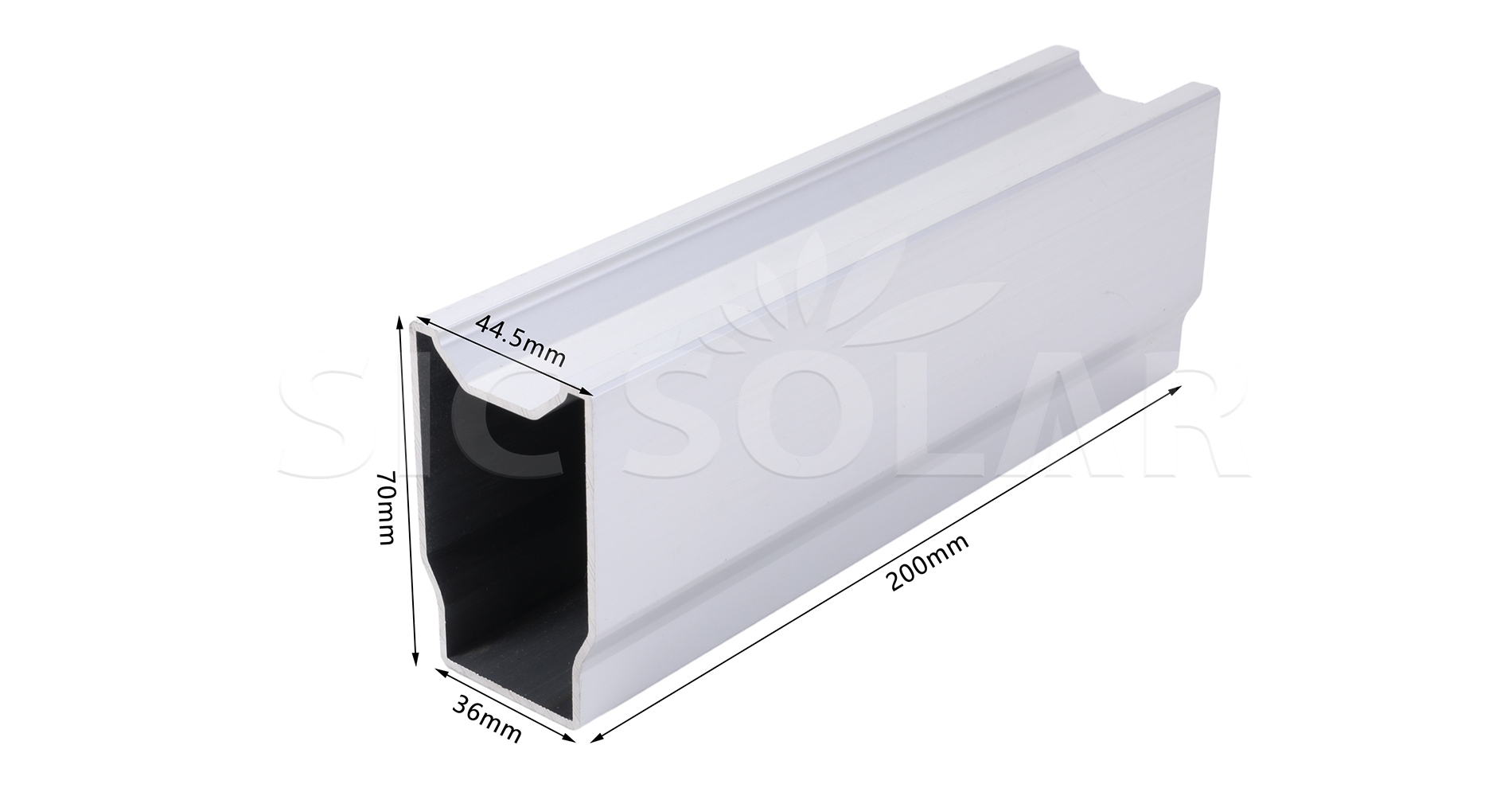

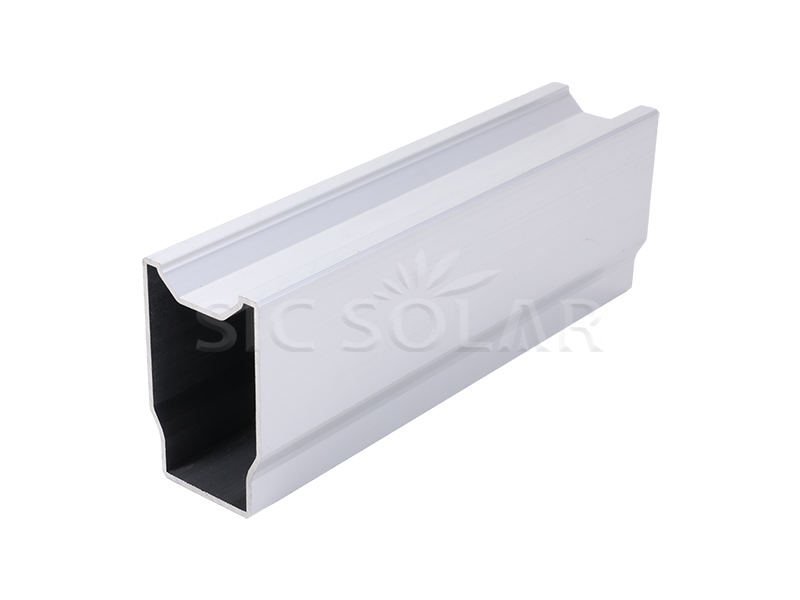

Solar Aluminum Mounting Splice for Ground Rail RV2

Solar Aluminum Mounting Splice for Ground Rail RV2 is a special connector for joining two RV2 ground rails in a solar setup. Made from aluminum, it's strong, lasts long, and is simple to install, which makes it great for securing solar panels on the ground.

Brand:
SIC SOLAR
Item NO.:
SIC-RS-RV2
Color:
NATURE
Installation Site:
Solar Rail
Material:
AL6005-T5
Warranty:
10 years and 25 years service time
Wind Load:
<60M/S
Snow Load:
<1.4KN/M2

Inquire Now

Download

Solar Aluminum Mounting Splice for Ground Rail RV2 provides good strength and stability and can handle weather like wind, rain, and snow. With its design and materials, it can support the weight of the solar system and stay in good shape.

Installing Solar Aluminum Mounting Splice for Ground Rail RV2 is very easy. Just line up the splice with the ends of the two rails, making sure they're aligned. Then, bolt the splice tightly to the rail to make sure the that remain in place.

Components Technical Details Installation Guide Package Advantage

Click here to learn more splices.

Photovoltaic rail splice bracket

Aluminum Rail Connector

Installation Site	Solar Rail
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Get the rails ready: Make sure the RV2 rails are clean and have square ends.

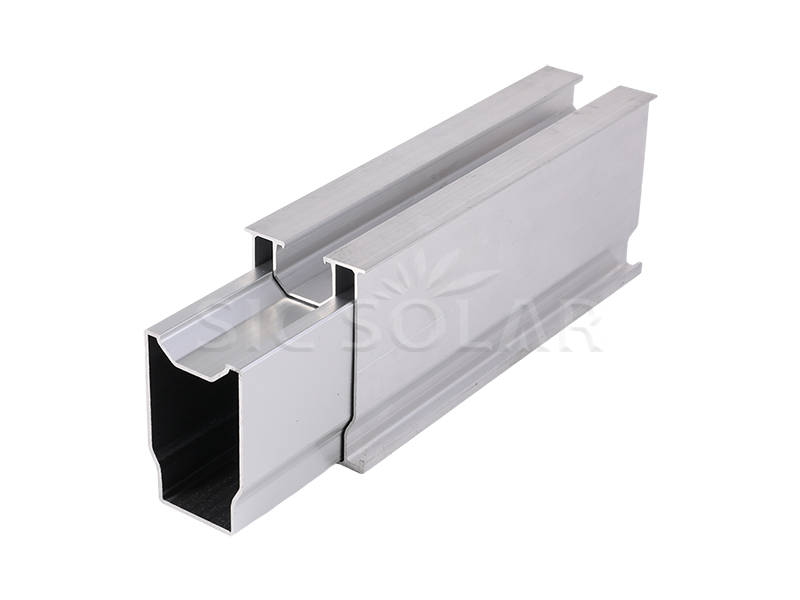

2️⃣ Add the connector: Slide the connector halfway into one rail, then line it up and slide it into the other rail.

3️⃣ Fasten it: Bolt it through the holes using stainless steel stuff. Tighten it evenly to keep the rails flat and secure.

Aluminium profile connector

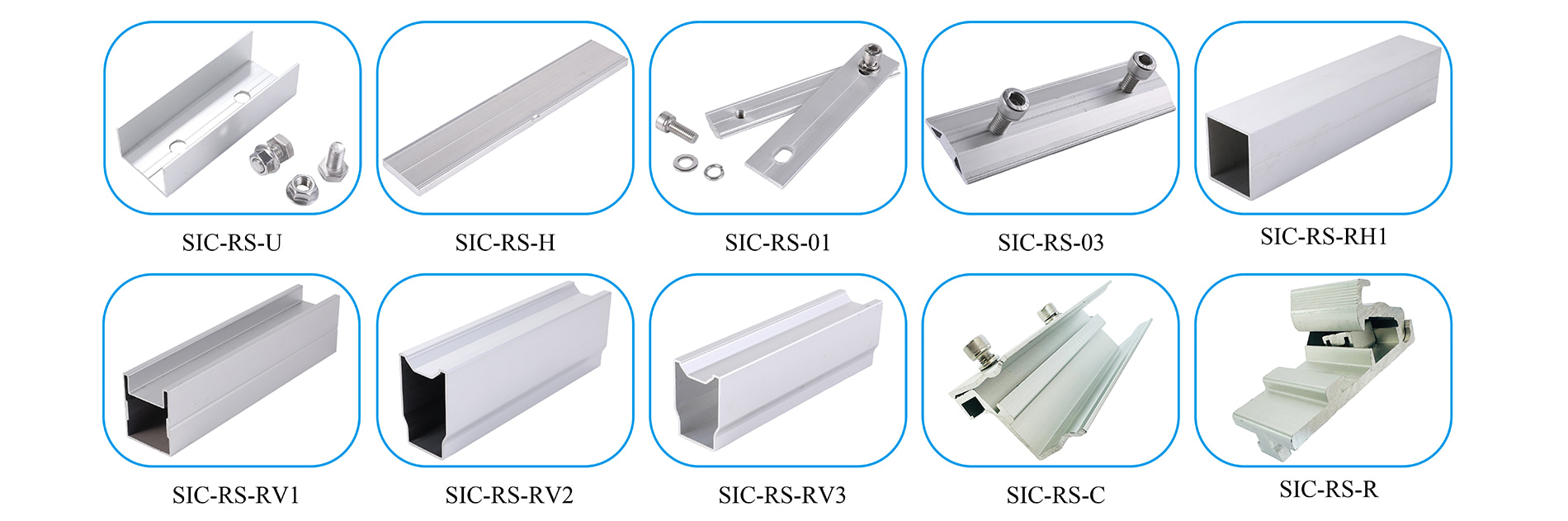

☆ Different rail splices can be supplied for different rail to extend the length.

☆ Very Durable – AL6005-T5 Ensures a 10-year warranty and 25-year service.

☆ Pre-assembled rail splices save on labor costs at the installation site.

Related certificate

☆ Aluminum quality certificate -- AL6005-T5 composition list.
