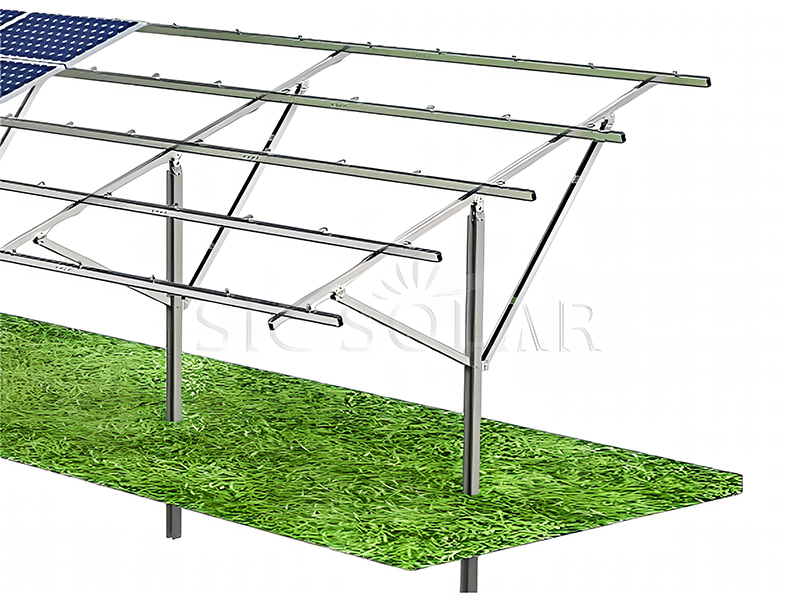

Y Type Solar Ground Mounting System

Y Type Solar Ground Mounting System unique Y-shaped design provides stability and optimal angle adjustment for maximum sunlight exposure, enhancing the energy generation efficiency of the solar panels. This system is engineered to withstand various weather conditions and terrain types, making it a versatile solution for large-scale solar installations.

Brand:

SIC SOLAR

Item NO.:

SIC-Y-GM

Installation Site:

Open field

Tilt Angle:

0-45 degrees

Material:

Carbon Steel & AL6005-T5

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Project Technical Details Installation Guide Package Advantage FAQ

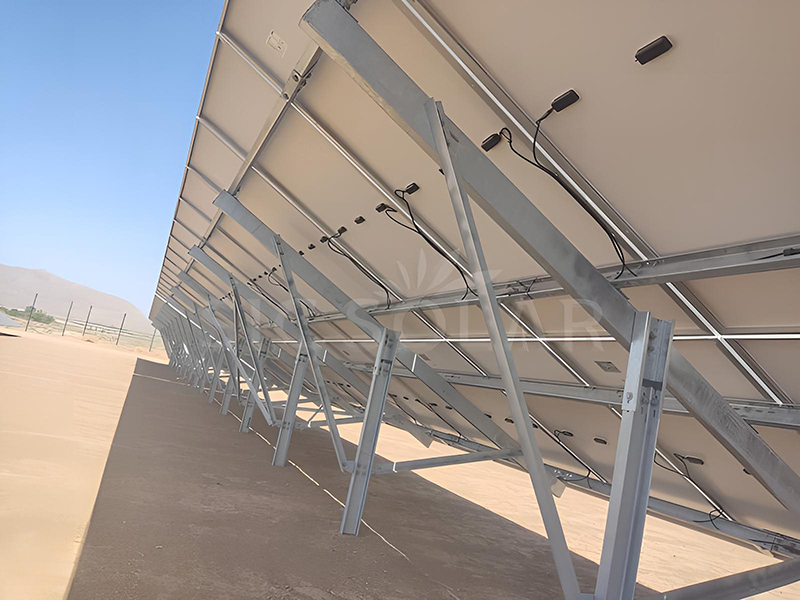

Solar Y pile ground system

Name	Y Type Solar Ground Mounting System
Installation Site	Open Field Ground
Material	Carbon Steel & AL6005-T5
Wind Speed	<60M/S
Snow Load	<1.4KN/M2
Color	Natural
Warranty	10 years warranty and 25 years service time

1️⃣ Site Assessment: Assess the installation site for sunlight, soil conditions, and potential obstructions. Make sure the ground is flat and suitable for the selected foundation type.

2️⃣ Foundation Preparation: Select anchor bolts or concrete piles based on soil conditions and project requirements. Install the foundation according to the manufacturer's specifications, making sure it is flat and properly aligned.

3️⃣ Mounting Structure Assembly: Assemble the Y-shaped support structure using high-strength materials. Attach the horizontal rails to the vertical posts, making sure all connections are secure and aligned.

4️⃣ Module Installation: Mount the solar modules to the assembled support system using appropriate clamps or brackets. Adjust the tilt angle as needed to optimize sunlight.

5️⃣ Electrical Connection: Connect the solar panels to the inverter and other electrical components according to the system design. Make sure all electrical connections meet local codes and standards.

6️⃣ System Testing: After installation, test the system to ensure it is functioning properly.

Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.

Solar bracket package

Advantages as follow:

☆ Widely application--can work under any ground and soil conditions.

☆ 0-45 degree optional before project design - Win more solar energy during solar tilt angle change.

☆ High pre-assembly--save time and labor cost, require less tools.

☆ Y-type pile has strong load bearing, high corrosion resistance, salt tolerance.

☆ Fast installation--use piledriver ramming C-type piles directly into the earth.

Related certificate:

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.

Q1. What’s the MOQ request?

MOQ=50KW.

Q2. What’s the material of ground mounting system??

AL6005-T5 and Carbon steel.
