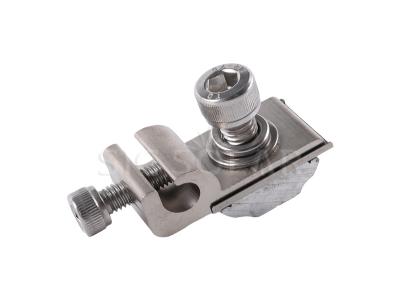

Solar grounding lugs

Solar grounding lugs are made to create a safe electrical link between solar panels, their support structures, and the wires that lead to the ground. This protects the system and its parts from things like electrical issues, lightning, or other dangers that might come up.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-GL-01
  • Color:

    Nature
  • Material:

    AL6005-T5 & Copper
  • Warranty:

    10 years and 25 years service time
  • Function:

    Fixing cables on the rail



Solar Mounting Grounding Lugs

Solar grounding lugs collect any static electricity that builds up on your solar panels and their frames, then send it safely into the ground through copper grounding wires.

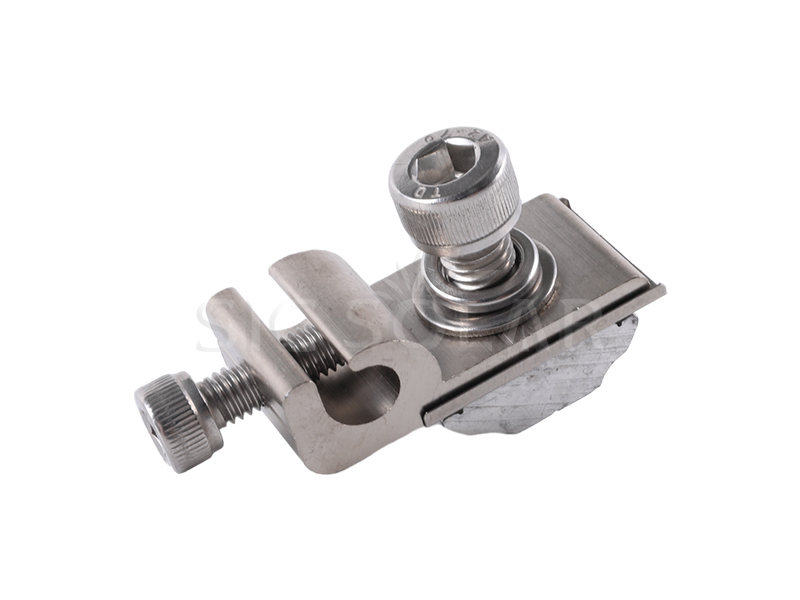

Grounding Lugs

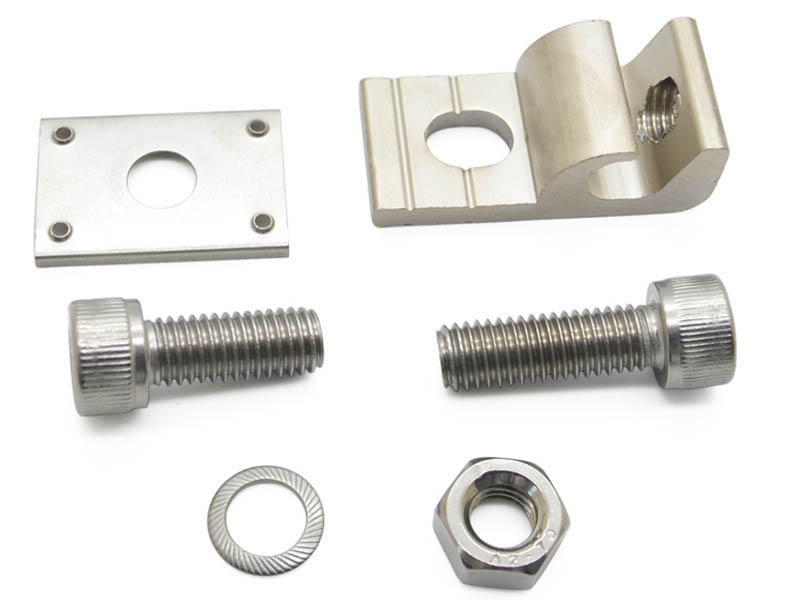

Solar grounding lugs are made from aluminum that's been nickel-plated, and they're put together with stainless steel washers, screws, bolts, and nuts. Since they're really durable and won't corrode, they're a good fit for many types of aluminum solar rails – whether they're on roofs, the ground, or carports – and also for C-shaped, U-shaped, and H-shaped steel beams.

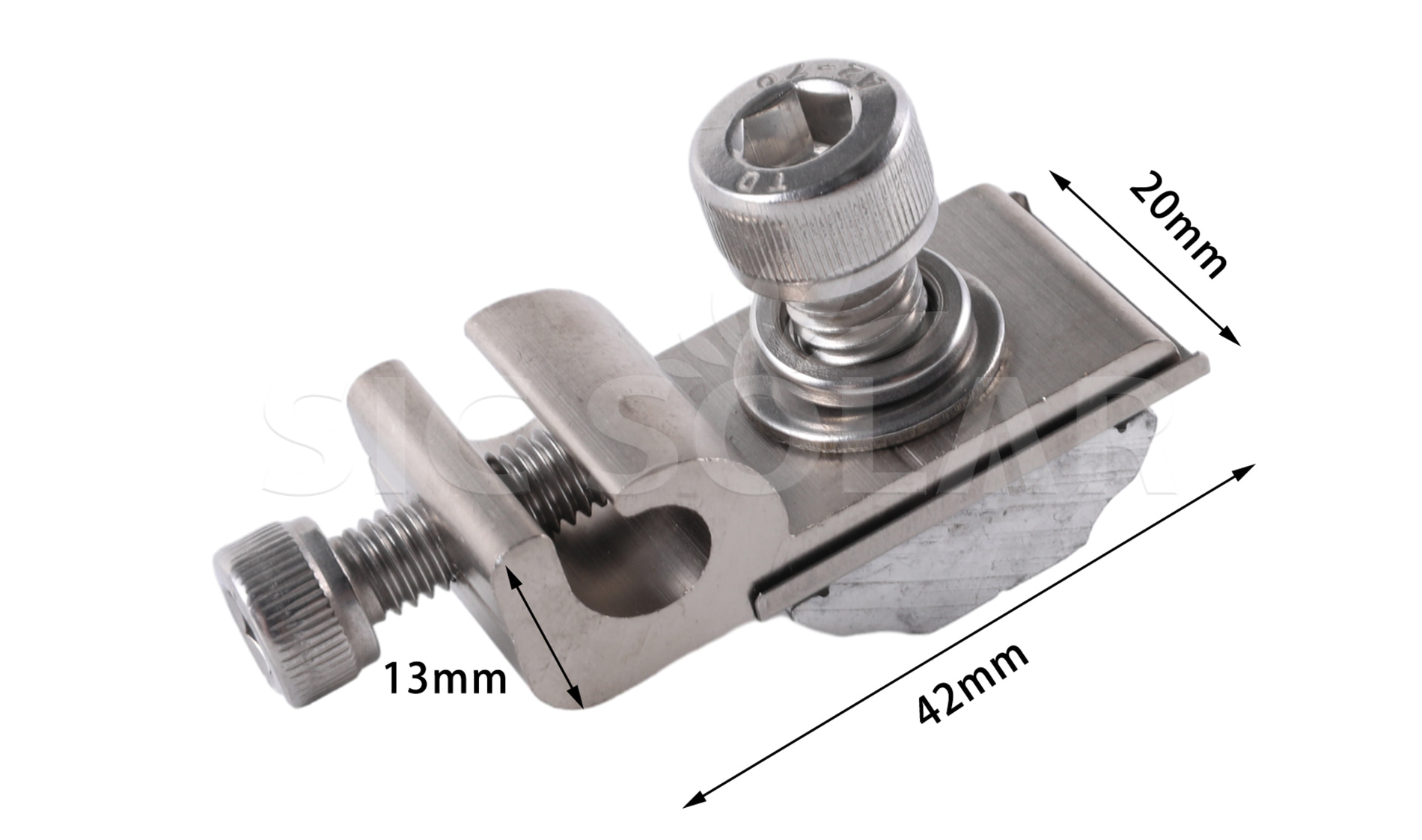

Solar Ground Lug

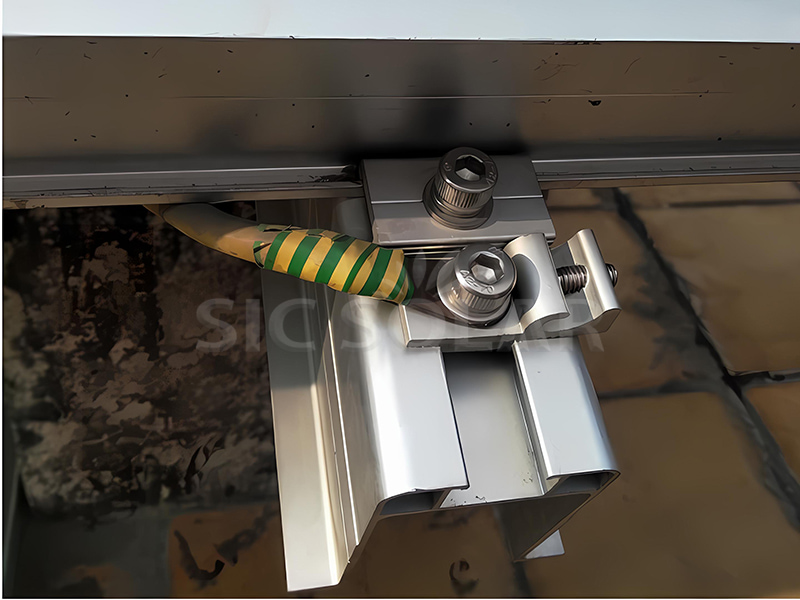

Installation Site

Roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

AL6005-T5 & Copper

Color

Natural or Customized

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

1️⃣ First, fasten the grounding connector to the aluminum rail with stainless steel bolts.

2️⃣ Next, slide the copper wire into the connector's opening.

3️⃣ After that, double-check that both the connector and the wire are really secure.

4️⃣ Finally, hook up the grounding wire to your main grounding system.

5️⃣ Their simple design makes them easy to use, which helps protect your solar system.

Solar bracket package

☆ Simple design make it easy to use, protect the solar system.
☆ High Durability – Best Aluminum profile AL6005-T5 ensure 10 years warranty and 25 years service time.
☆ Connecting solar system and ground, which can transfer the leakage of electricity to ground.

Q1: Can I get a sample order?

Yes, there is no MOQ limited, one sample order is ok.



Q2: Do you have storage on EU warehouse?

Sorry, we currently do not have EU warehouse, our goods are shipped directly from China.
