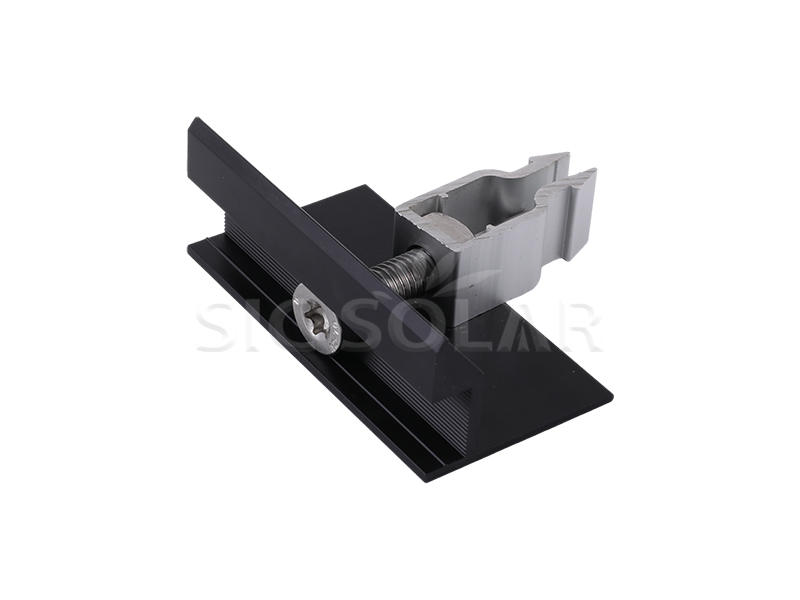

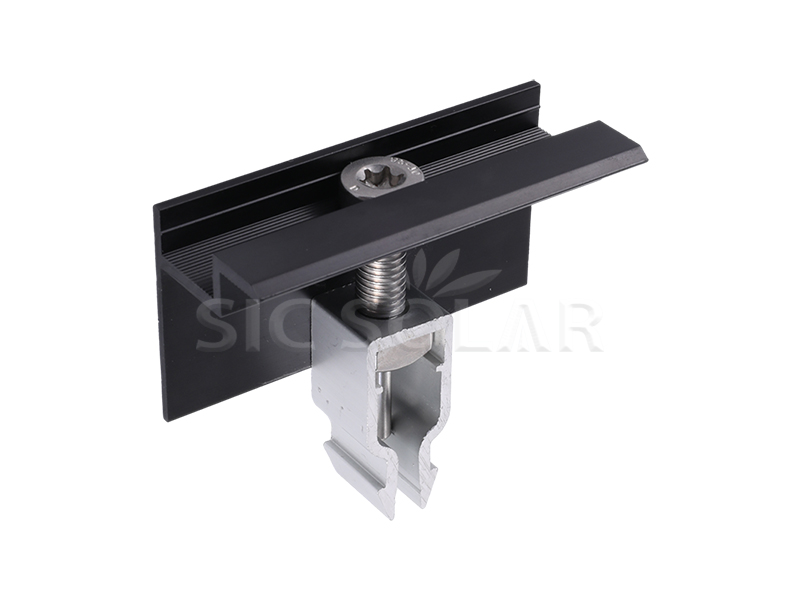

Solar Rail Rapid End Clamp
Solar Rail Rapid End Clamp

Solar Rail End Clamp Quick Mounting

This Solar Rail End Clamp Quick Mounting makes installing solar panels a piece of cake! It's made to hold the edges of solar panels onto the mounting rails super tight. Because it's so fast to install and holds panels firmly, it’s great for homes, businesses, and factories – making solar panel setup quick and secure.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-EC-UT

  • Shipping Port:

    Xiamen, China

  • Installation Site:

    Rail

  • Color:

    Customized

  • Material:

    AL 6005-T5

  • Warranty:

    10 years and 25 years service times

  • Function:

    Fixing solar panel
Inquire Now
Download



Solar Rapid End Clamp

Solar Rail End Clamp Quick Mounting attaches to the rail with hardly any tools. This really cuts down on installation time and worker costs, which is great if you're working on a big project or need to get things done fast.



Solar Mounting End Clamp

Solar Rail End Clamp Quick Mounting gives a strong, dependable grip, keeping the edges of your solar panels firmly attached to the rail. This keeps the panels from moving, even when it's windy or the weather is bad.

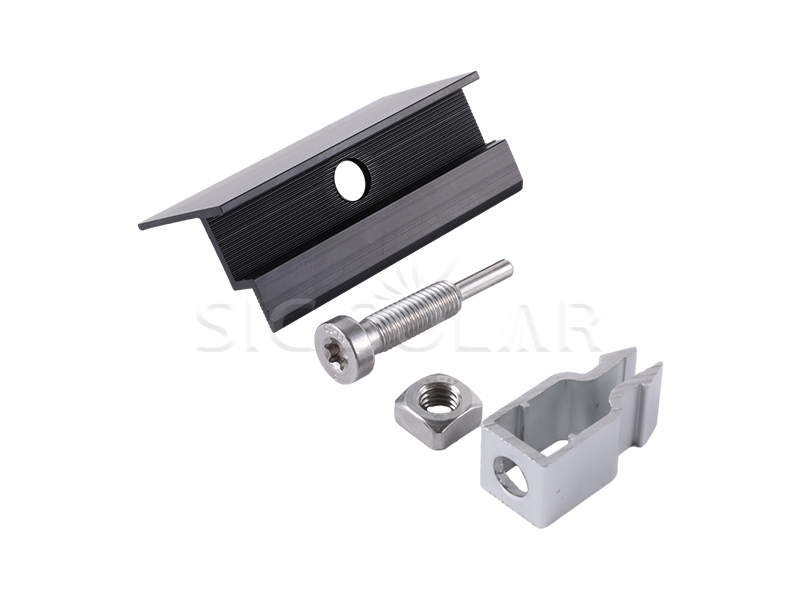

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more mid clamps

PV panels end clamp

Name Solar Rail End Clamp Quick Mounting

Material

AL 6005-T5

Oxide film

≧10um

Warranty

25YRS

Applicable panel height

30-40mm

Range of Bolt Torque

10-12N*m

Value of Pullout resistance

5KN

1️⃣ Put the clamp in place: Slide the end clamp onto the rail at the edge of the panel.

2️⃣ Line it up: Check that the clamp fits snugly against the edge of the panel.

3️⃣ Tighten the screws: Use a wrench to tighten the clamp to the rail and panel.

4️⃣ Do it again: Repeat for each panel in the setup.

Solar bracket package

☆ Fast install — Just press it onto the rail.

☆ Tough build – Made with AL6005-T5 for a 10-year warranty and 25 years of use.

☆ Resists rust



Related certificate

☆ Aluminum quality certificate -- AL6005-T5 ingredients list

☆ SGS Certificate for screw material -- SUS304

Q1. Can the bolts also be made black ?

Yes.



Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.



Q3. Can the clamps be customized ?

Yes.
