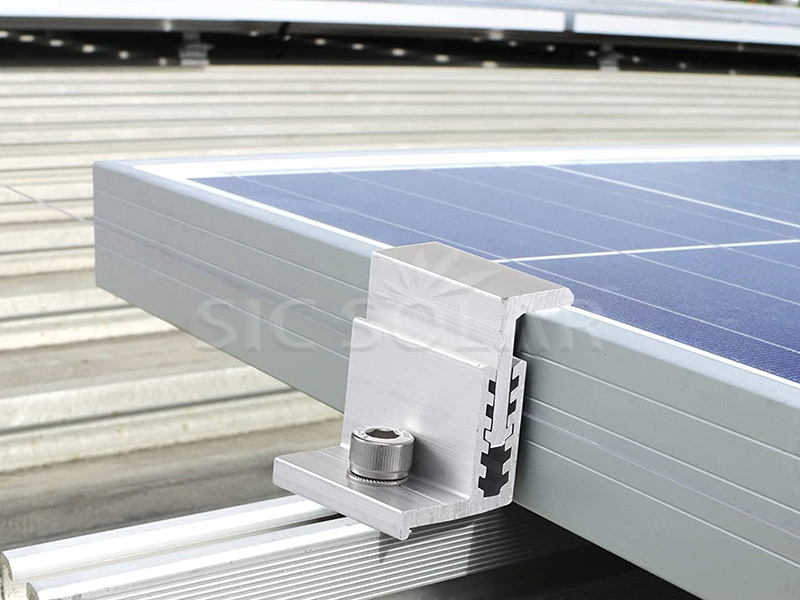

Solar Aluminum Adjustable End Clamp is a versatile, well-made part that holds the ends of solar panels in place when you're setting up a solar system. You can adjust it, which means it works for different panel setups, especially when you need to line up or position your solar panels just right.
Brand:
SIC SOLARItem NO.:
SIC-EC-ADShipping Port:
Xiamen portColor:
NaturalMaterial:
AL6005-T5 & SUS304Warranty:
10 years and 25 years service timeWind Load:
<60M/SSnow Load:
<1.4KN/M2

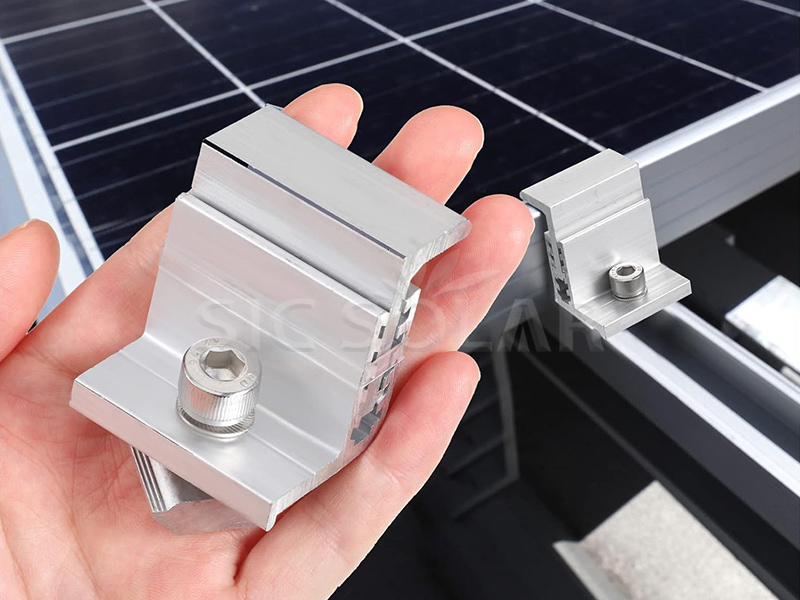

Solar Aluminum Adjustable End Clamp made specifically to clamp solar panels onto the edge of their frame or mounting setup. This clamp holds them firmly and can handle solar panels that are different thicknesses.
Solar Aluminum Adjustable End Clamp has a pretty wide range of adjustments, it's super practical and easy to use. You can quickly get it ready for putting up solar panels.

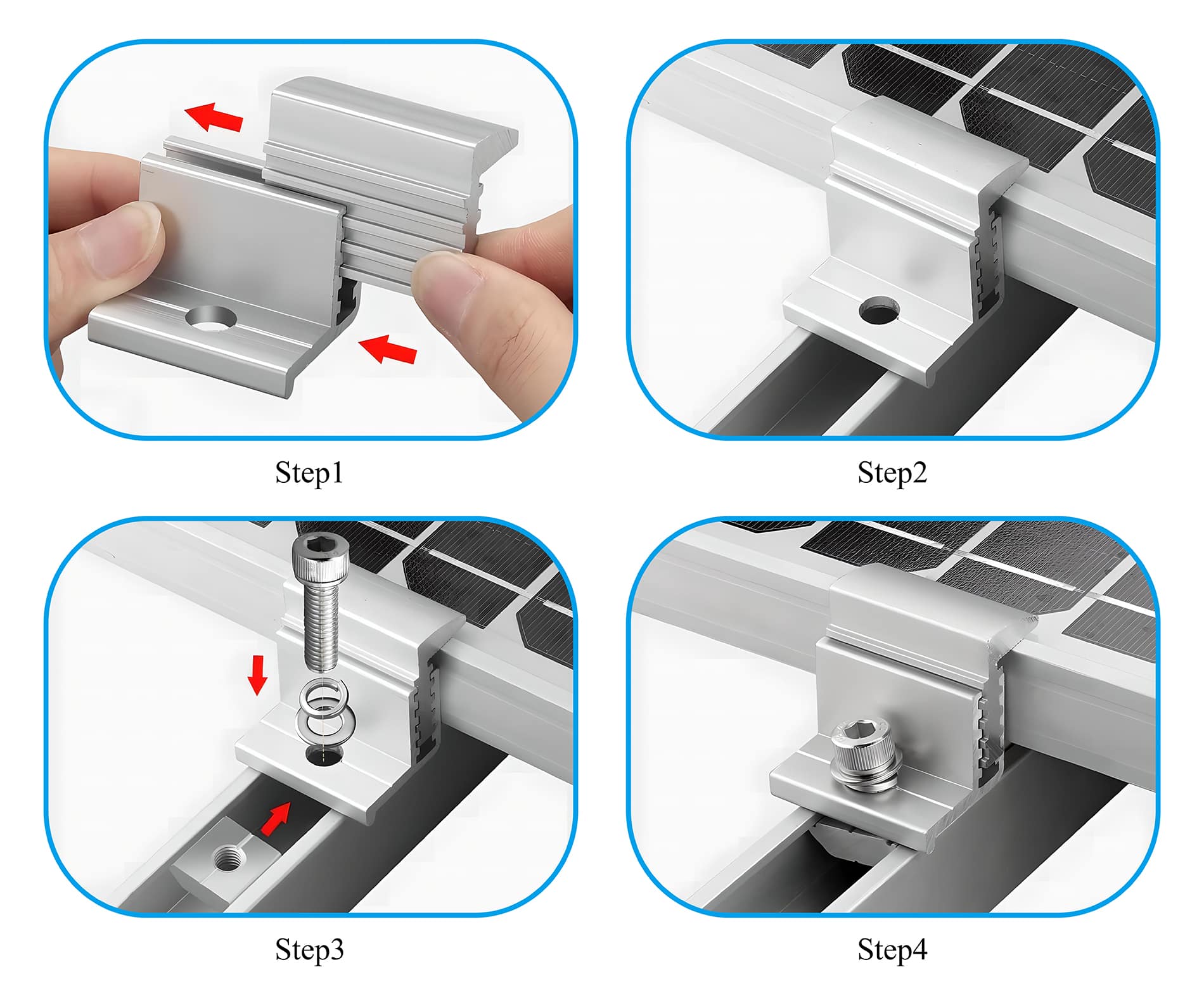

1️⃣ First, you put the solar panel onto the mounting rail.
2️⃣ Next, slide the end clips into place at the edge of the panel.
3️⃣ Then, adjust the clips so they fit snugly around the thickness of the panel's frame.
4️⃣ After that, tighten them down with the stainless steel bolts.
5️⃣ Do this for all the corners of the panel.
6️⃣ Finally, double-check that everything is tightened evenly and lined up correctly.

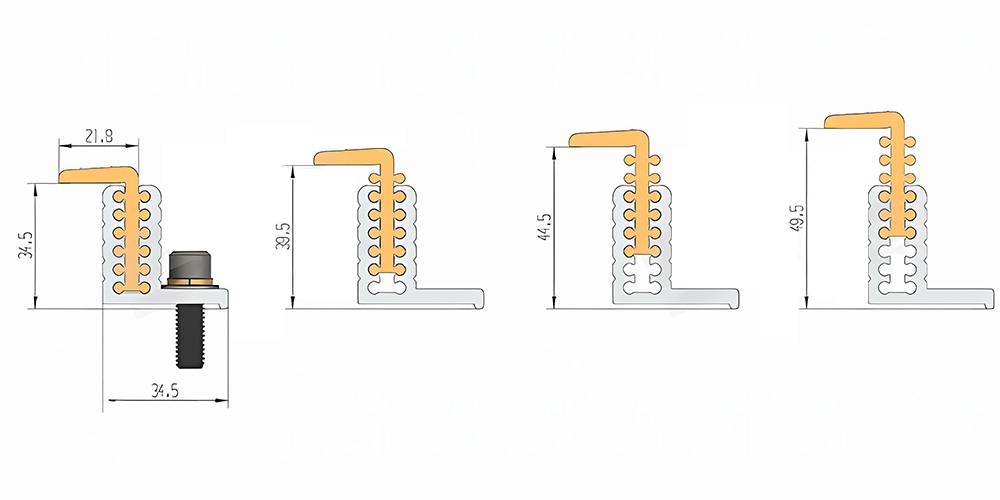

☆ Adjustable – Suitable for different thickness solar panels
☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

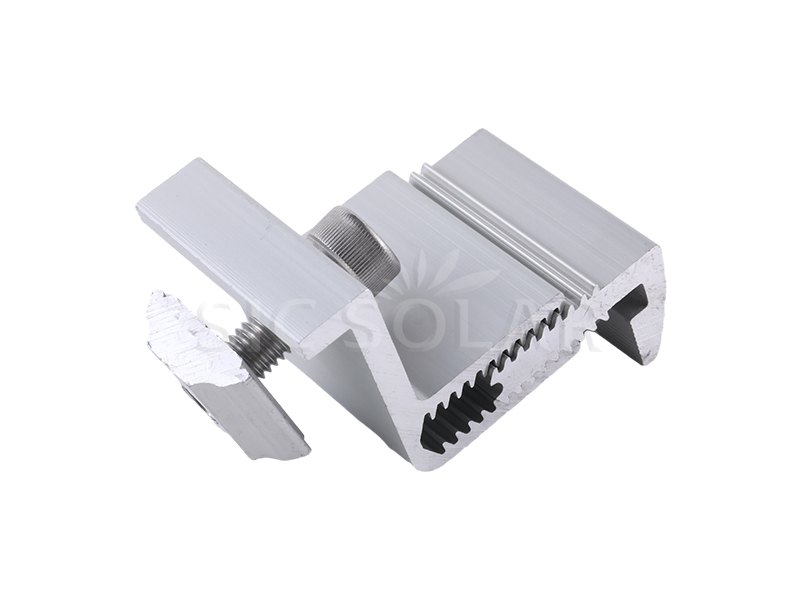

☆ Smart patented nut design – "Tilt-in-module" could be slide in at any position of rail.
Related certificate
☆ Aluminum quality certificate -- AL6005-T5 composition list.
Q1. What's the material of adjustable end clamp ?
It is Aluminum 6005-T5 with stainless steel screw.
Q2. Is it pre-assembled before shipment?

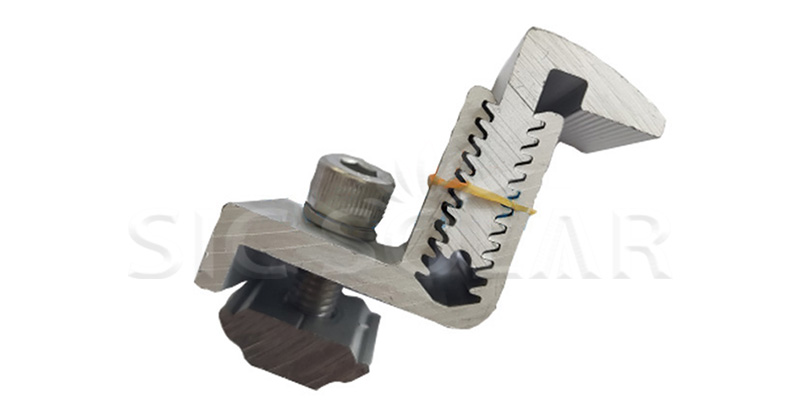

Yes, pls see pic below, it is use rubber band to tie clamps.
