MC4 Solar Cable

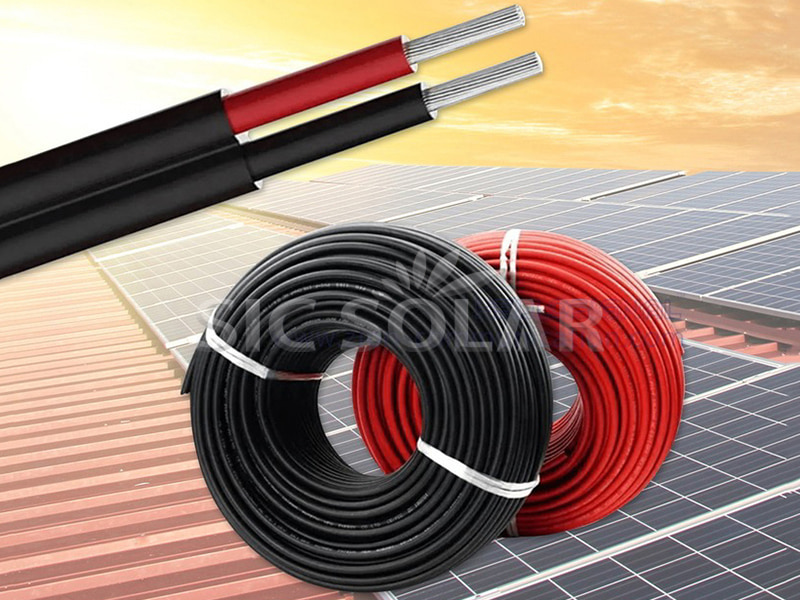

MC4 Solar Cable combine high-quality solar cables with pre-assembled MC4 connectors to provide a fast, reliable and weatherproof connection for photovoltaic systems.

Brand:

SIC SOLAR

Item NO.:

SIC-SCM

Installation Site:

Solar Panel

Color:

Black or Red

Material:

Tinned Copper

Warranty:

<5 Years

Project Technical Details Installation Guide Package

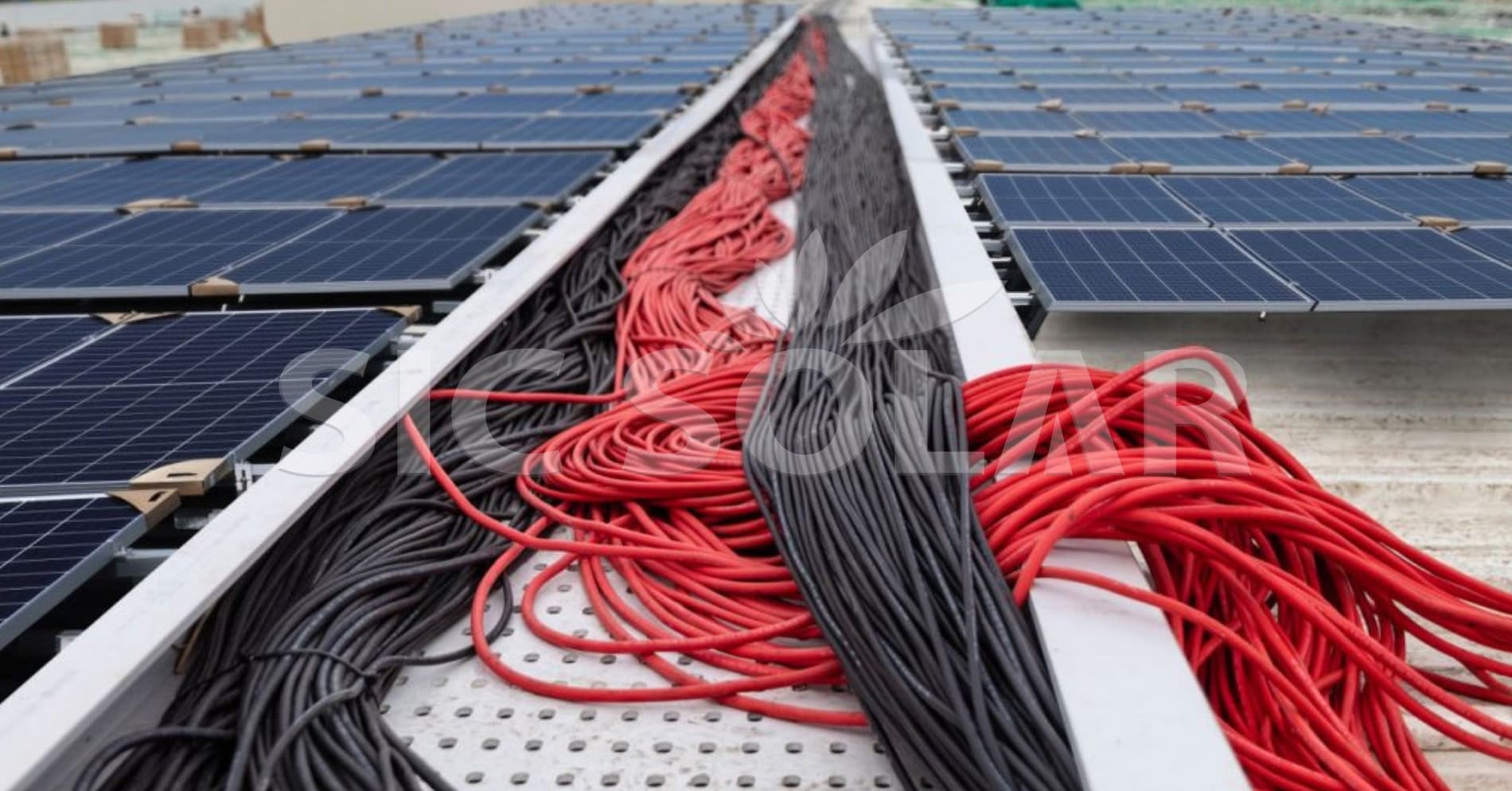

solar cable mc4

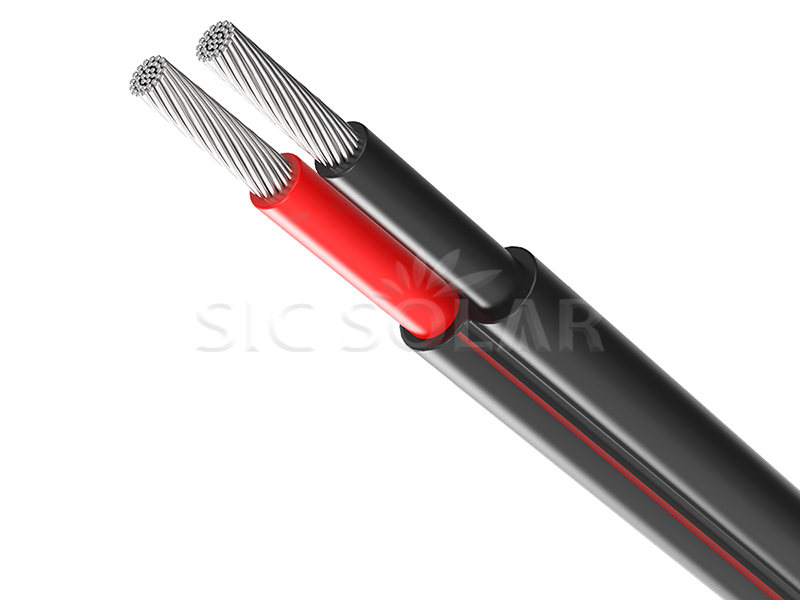

Installation Site	Solar Panel
Core	Single Core, Twins Core
Insulation	XLPE,2PFG 1169, Dual wall insulation,electron beam cross-linked
Resist	UV Resist,abrasion Resist, water,ozone,fluids,salt,general weathering
Cross section	1.5mm2, 2.5mm2, 4mm2, 6mm2,10mm2,16mm²

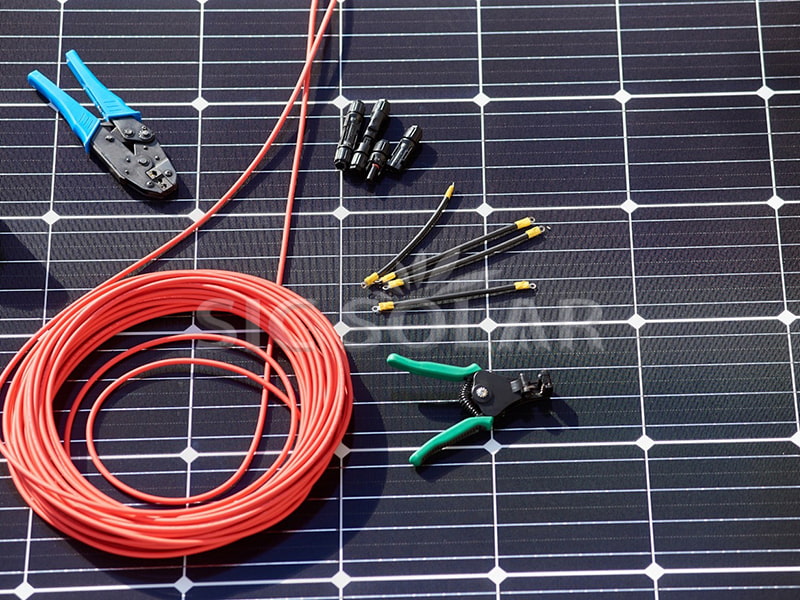

1️⃣ Strip the wires

Use wire strippers to strip approximately 6-7 mm of insulation from the end of the cable.

2️⃣ Crimping the terminals

Insert the stripped wires into the metal contact pins.

Use the crimping tool to firmly crimp the terminals onto the wires, ensuring a secure connection.

3️⃣ Assembling the connectors

Insert the crimp terminal into the connector housing until it clicks into place.

Ensure the terminal is fully seated and locked into the housing.

4️⃣ Seal the connectors

Place the sealing nut over the cable and tighten it onto the connector housing.

Tighten the nut to ensure a weatherproof seal, maintaining the connector's IP67 rating.

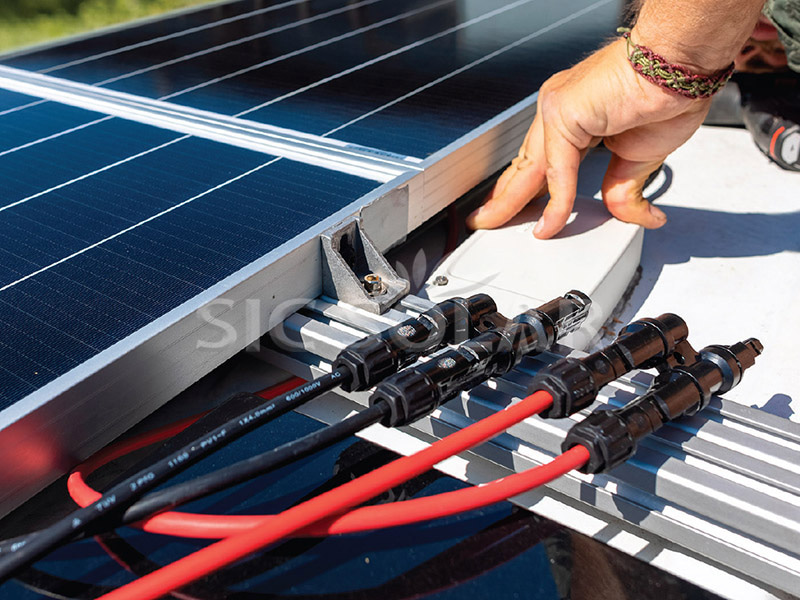

5️⃣ Connecting the panel

Align the male and female connectors and push them together until they click, indicating a secure connection.

To disconnect the connectors, use the MC4 unlocking tool to safely release the locking mechanism.

Solar bracket package
