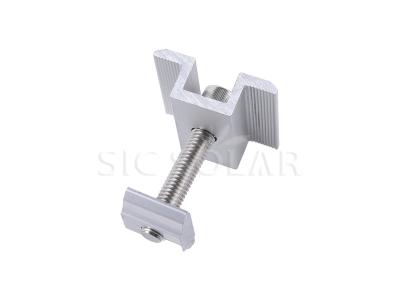

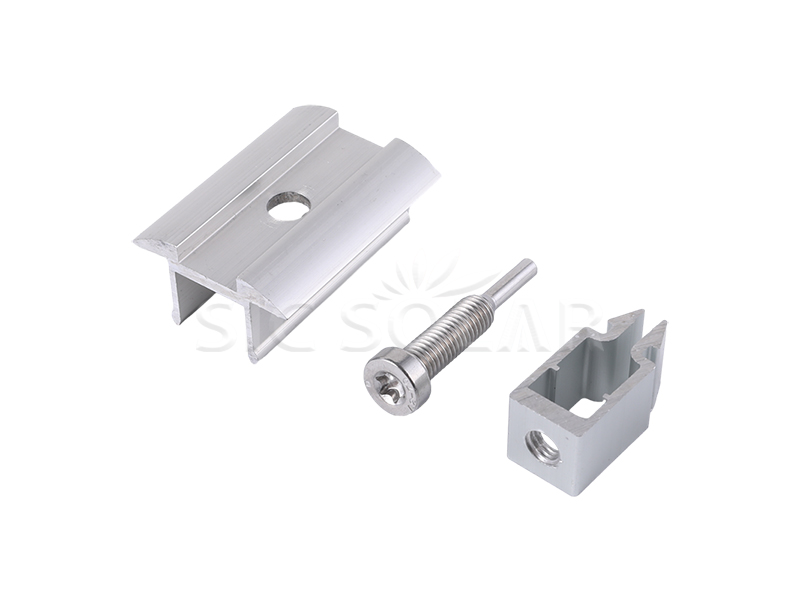

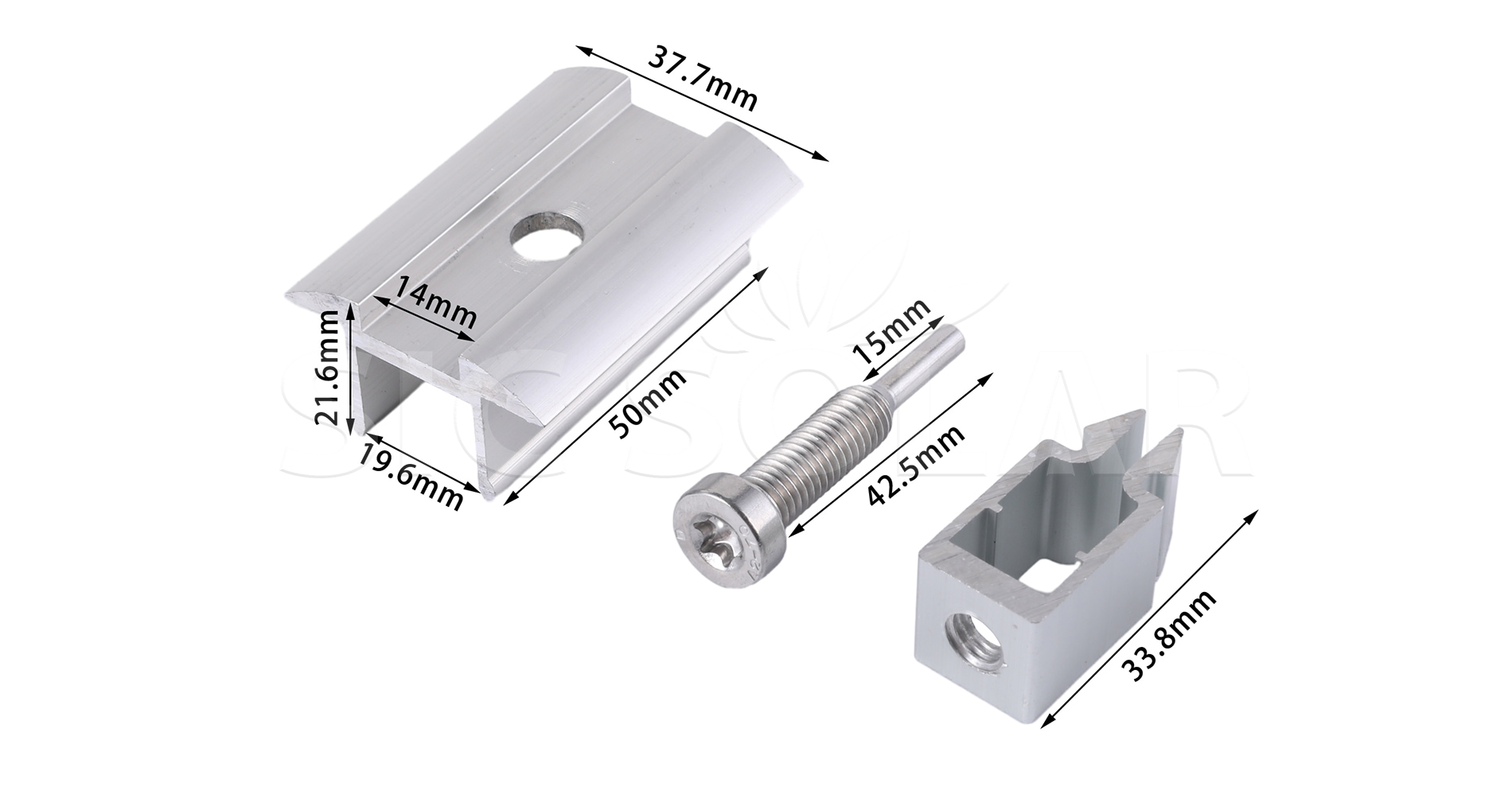

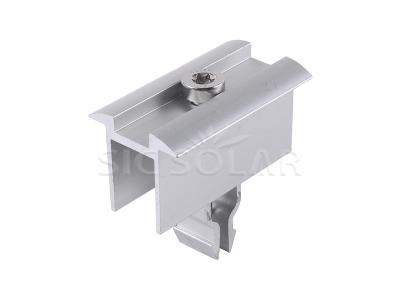

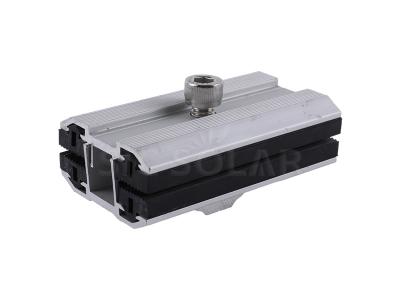

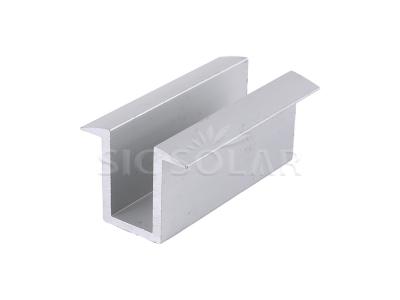

Solar Panel Quick Fastening Clip Middle Clamp

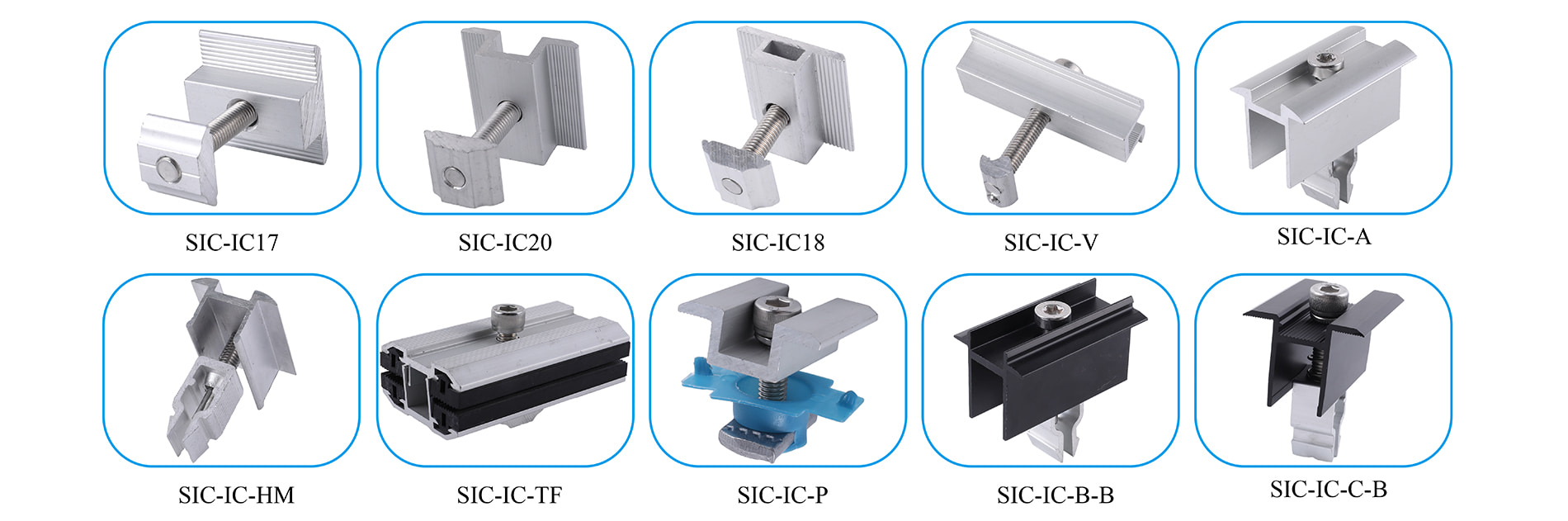

Click here to learn more mid clamps

1️⃣ Position the first solar panel

Place the first solar panel at the designated starting point of the mounting rail.

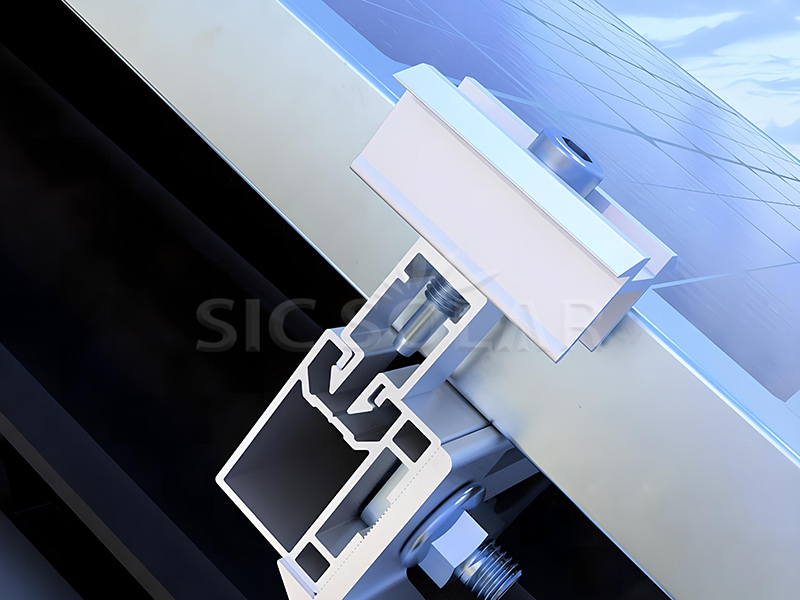

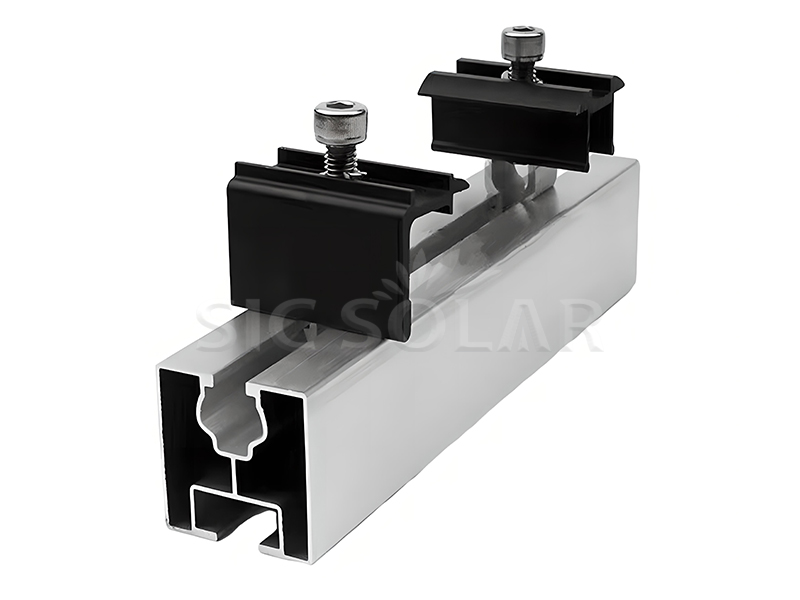

2️⃣ Install the intermediate clamp

Insert the intermediate clamp into the rail slot where the edge of the first solar panel meets the edge of the next solar panel. Make sure the clamp is flush with the solar panel frame.

3️⃣ Add adjacent solar panels

Place the second solar panel next to the first solar panel, making sure it is properly aligned and the intermediate clamp fits snugly between the two solar panels.

4️⃣ Secure the clamps

Use a torque wrench to tighten the clamp bolts to the manufacturer's recommended torque specification (usually around 14 Nm). Avoid over-tightening to avoid damaging the solar panel frame or rail.

5️⃣ Repeat the process

Repeat this process for each subsequent solar panel installed, using the intermediate clamps between the solar panels and the end clamps at the ends of the array.

Advantages as follow:

☆ Quick installation — Only need to be pressed hard into the rail.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Anticorrossion

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list

SGS Certificate for screw material -- SUS304

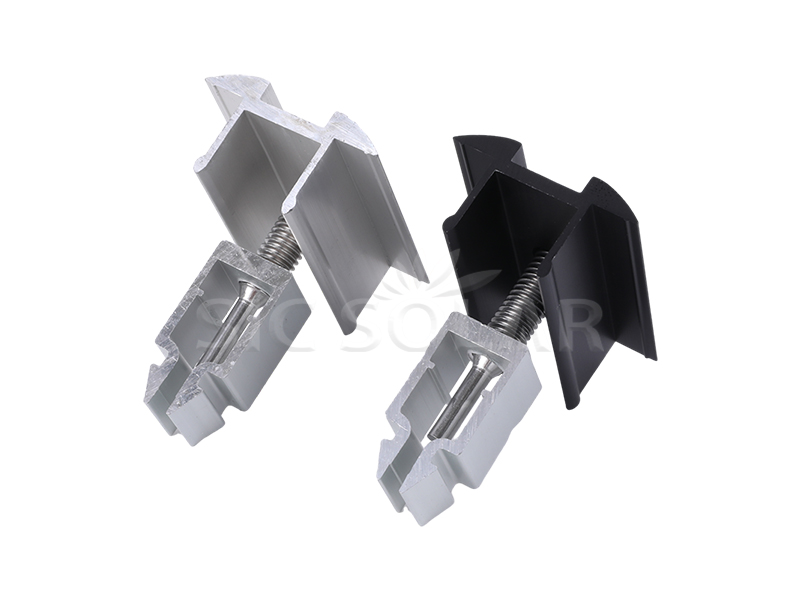

Q1. Can the bolts also be made black ?

Yes.

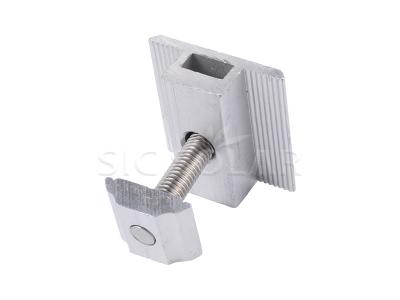

Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.

Q3. Can the clamps be customized ?

Yes.
