Solar Mid Clamp for Fixed Solar Panel

Solar Mid Clamp For Fixed Solar Panel is an important part of a solar installation system. It helps securely attach neighboring solar panels to the mounting rails.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-IC-V
  • Shipping Port:

    Xiamen port
  • Installation Site:

    Roof or ground
  • Color:

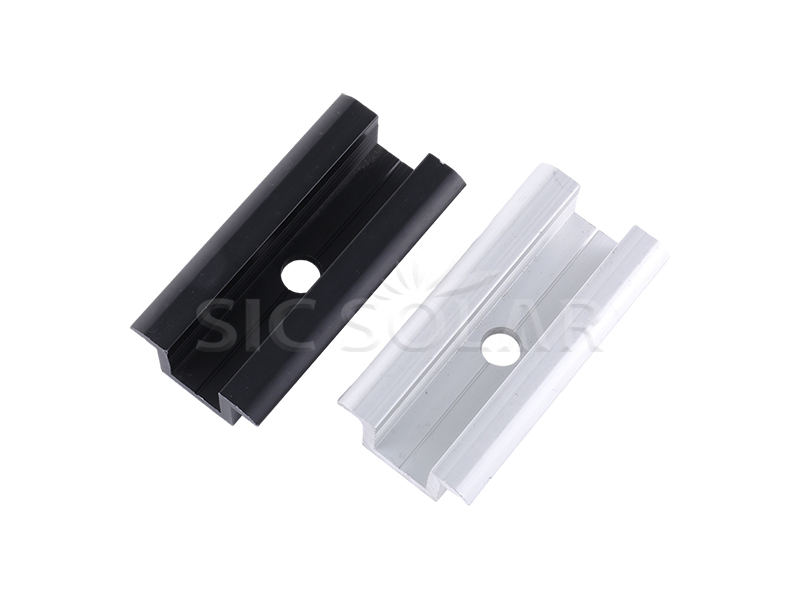

    Silver and Black
  • Material:

    AL6005-T5
  • Warranty:

    10 years and 25 years
  • Surface:

    Anodized aluminum
  • Length:

    Customized
  • Thickness:

    Customized
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2

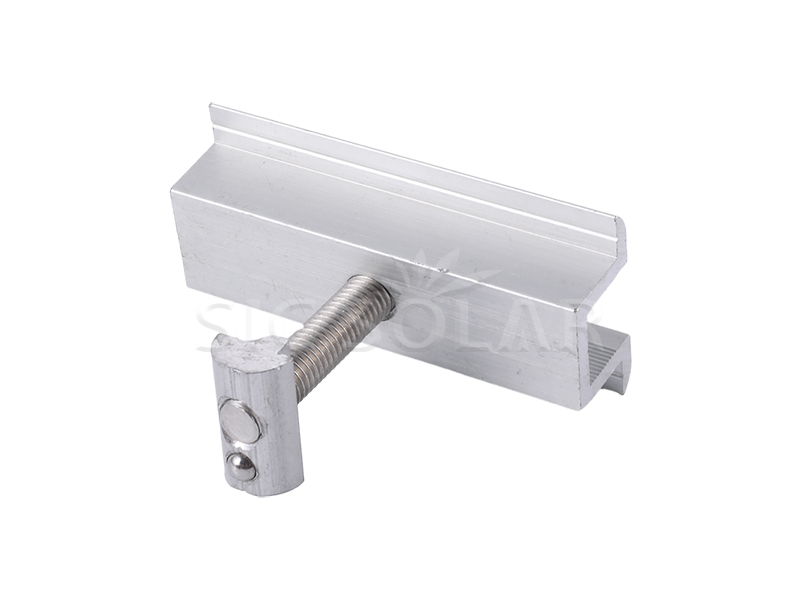

Solar Mid Clamp

Designed with precision, this Solar Mid Clamp For Fixed Solar Panel holds the panels tightly together. It works with aluminum-framed panels and keeps them fixed on the rails.

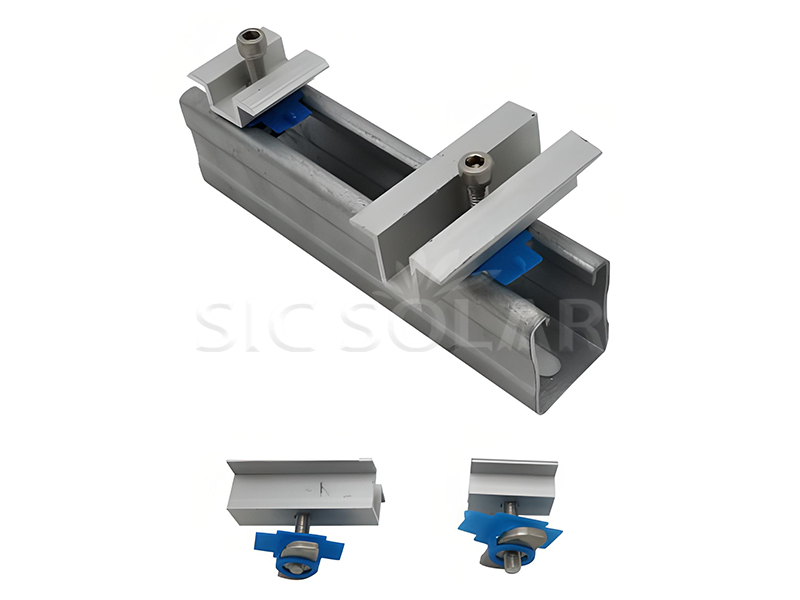

Easy Install Solar Mid Clamp

Installation is simple—nuts can be fastened from the top. Made from extruded anodized aluminum, the Solar Mid Clamp For Fixed Solar Panel ensures a solid connection between the solar panels.

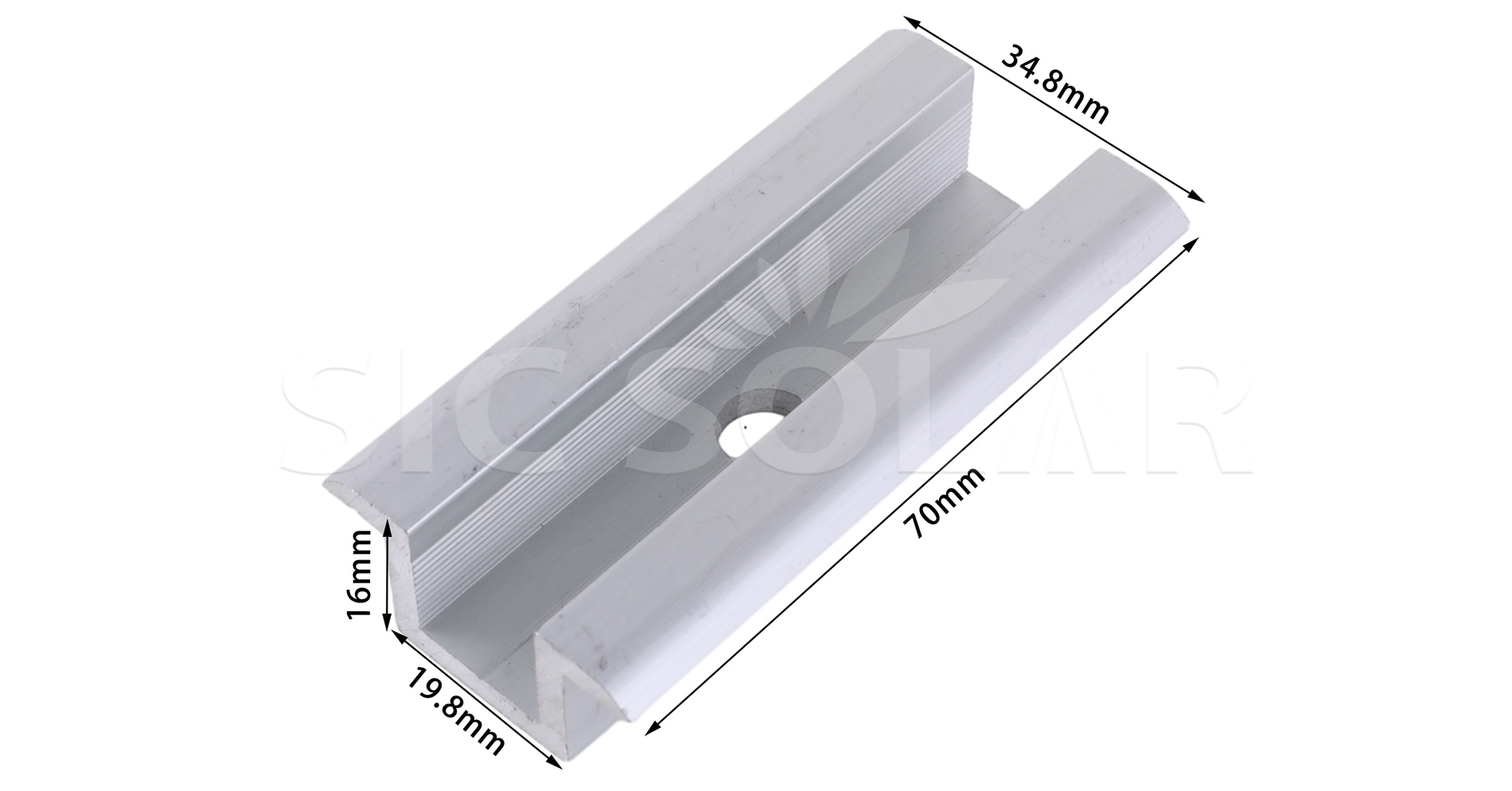

Mid Clamp For Solar Panels

Name Solar Mid Clamp For Fixed Solar Panel
Installation Site Pitched roof or ground
Wind Load <60M/S
Snow Load <1.4KN/M2
Material AL6005-T5
Color Silver and Black
Anticorrosive Anodized aluminum
Warranty 10 years and 25 years service time

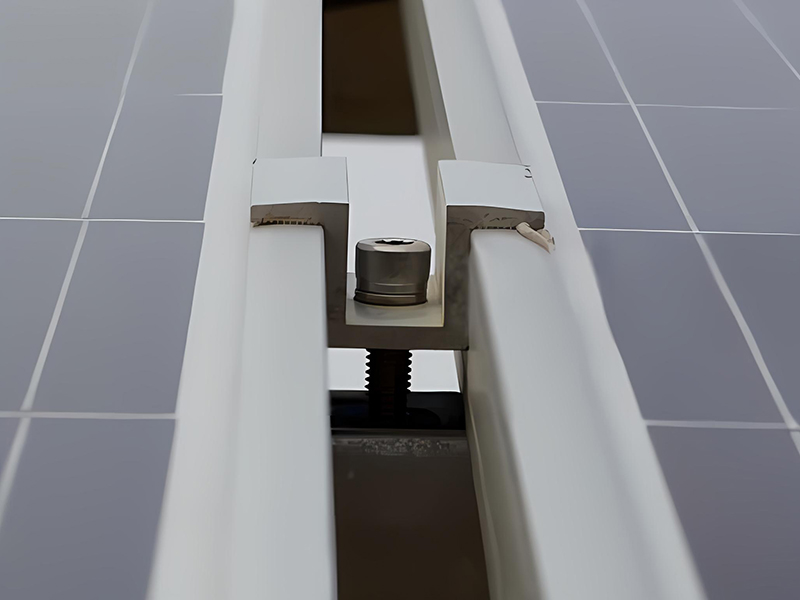

1️⃣ Place two solar panels side by side on the mounting rail.

2️⃣ Put the center clamp between the panels, making sure it sits flush against the rail edge.

3️⃣ Insert the bolts through the center clamp into the rail slots.

4️⃣ Tighten the bolts firmly using a torque wrench or hand tool.

5️⃣ Keep repeating these steps along the row and finish by installing center clamps at both ends.

Solar bracket package

☆ High anodized -- Effectively prevent corrosion and prolong service life.

☆ High-quality and light weight aluminum -- Quick and easy to mount.

☆ Strong intensity -- It can be used in extremely bad installation condition.

Q1. Can the bolts also be made black ?

Yes.



Q2. Can the clamps be customized ?

Yes.
