Snow Guard Brackets

Snow guard brackets are essential components designed to prevent snow and ice from sliding off rooftops in large sheets. When integrated into solar panel mounting systems, they enhance safety and protect the panels, surrounding property, and individuals from potential damage or injury caused by sliding snow.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-DX
  • Shipping Port:

    Metal Roof
  • Color:

    Natural or Customized
  • Material:

    AL6005-T5 & SUS304
  • Warranty:

    10 years and 25 years service time

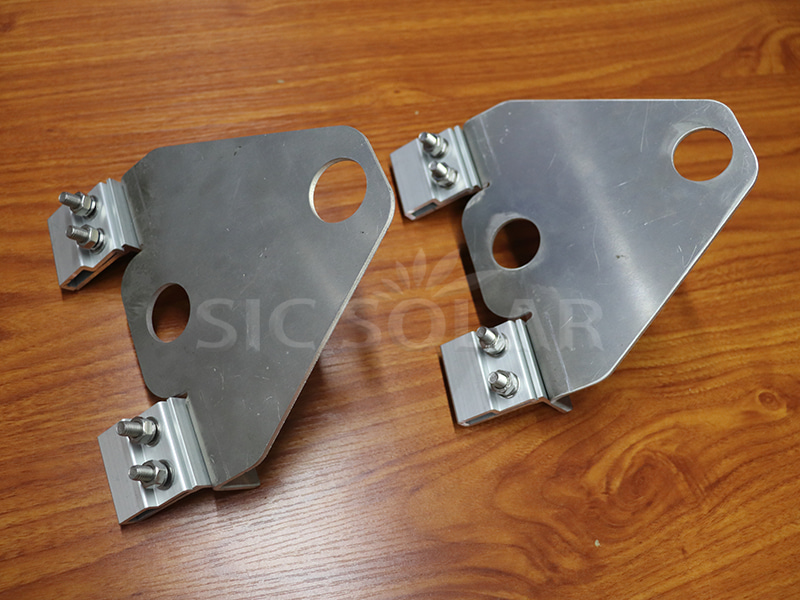

metal roof snow

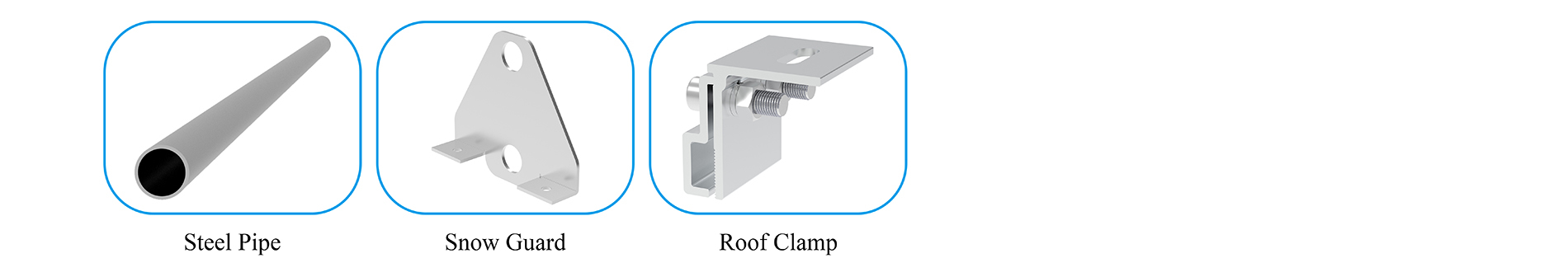

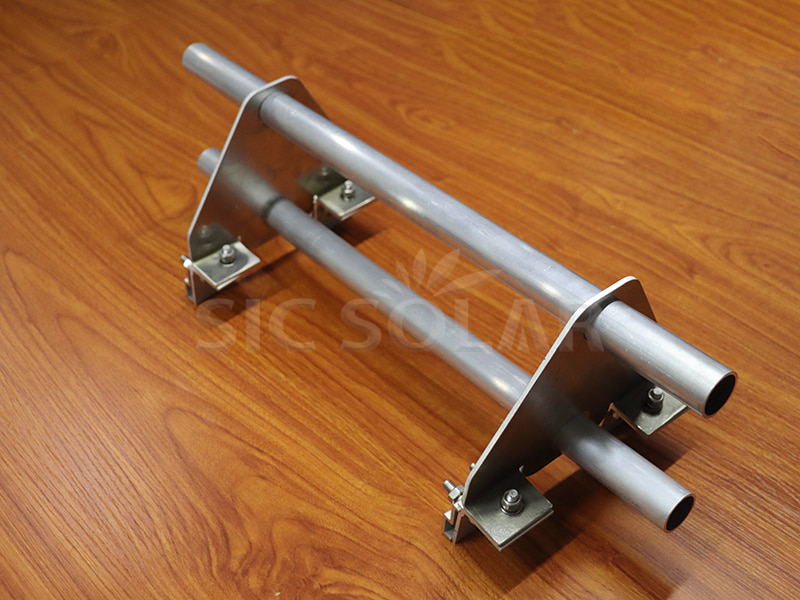

Snow Guard Brackets available in different shapes such as bar systems, pipe-style guards, or individual blocks, tailored for specific snow retention needs.

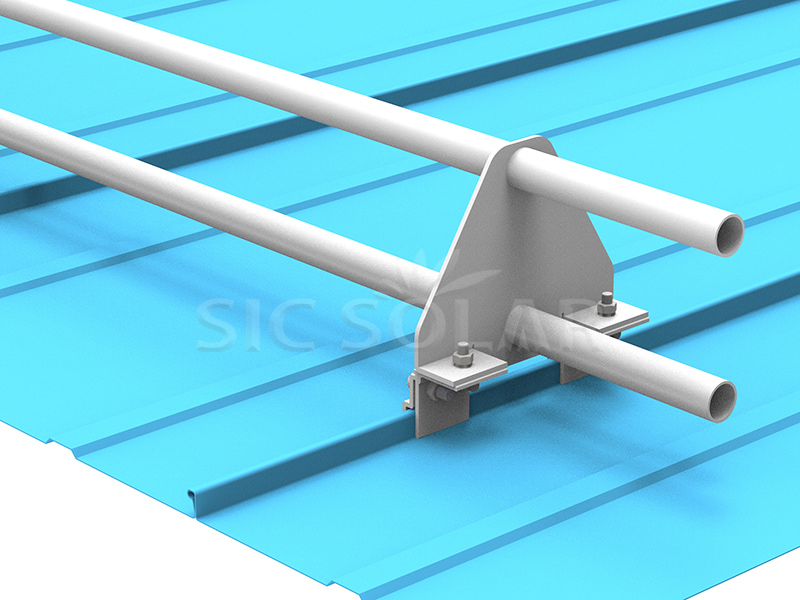

roof snow fence

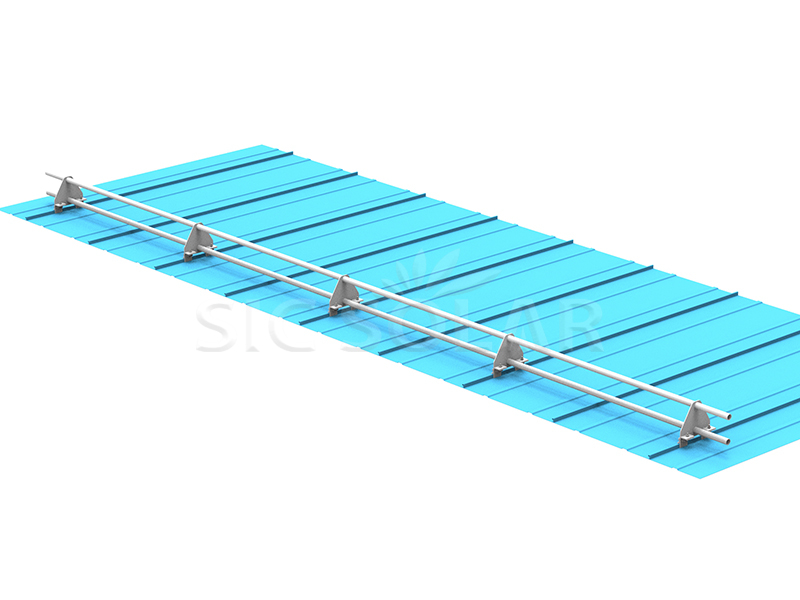

Snow Guard Brackets can be attached to various solar mounting systems and roof types, including standing seam, metal trapezoidal roofs, and flat or tiled roofs.

Installation Site

Metal Roof

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

AL6005-T5 & SUS304

Color

Natural or Customized

Anticorrosive

Anodized aluminum

Warranty

10 years and 25 years service time

1️⃣ Choose the right bracket type

Choose a bracket that fits your roof type and snow load requirements.

2️⃣ Mark the placement area

Stagger or line the brackets above the eave line or at the edge of the PV system.

3️⃣ Mount the brackets

For metal roofs, secure with set screws or self-tapping fasteners.

For tile roofs, secure to the rafters below the tiles.

Always use rubber pads or EPDM seals for waterproofing.

Solar bracket package

  • Prevent Large Snow Slides:The primary function of snow guard brackets is to prevent heavy, accumulated snow from sliding off the roof in large, potentially dangerous sheets.
  • Prevent Damage to Solar Panels:Without snow guards, the sudden movement of snow can damage solar panels, causing cracks, dislodging, or even breaking them.
  • Reduce Snow Load Strain:Snow guard brackets distribute the weight of accumulated snow more evenly across the roof, reducing the risk of roof structural damage from snow buildup.
  • Quick and Simple to Install:Snow guard brackets can be easily integrated into existing solar panel mounting systems or installed separately on most roofs.
