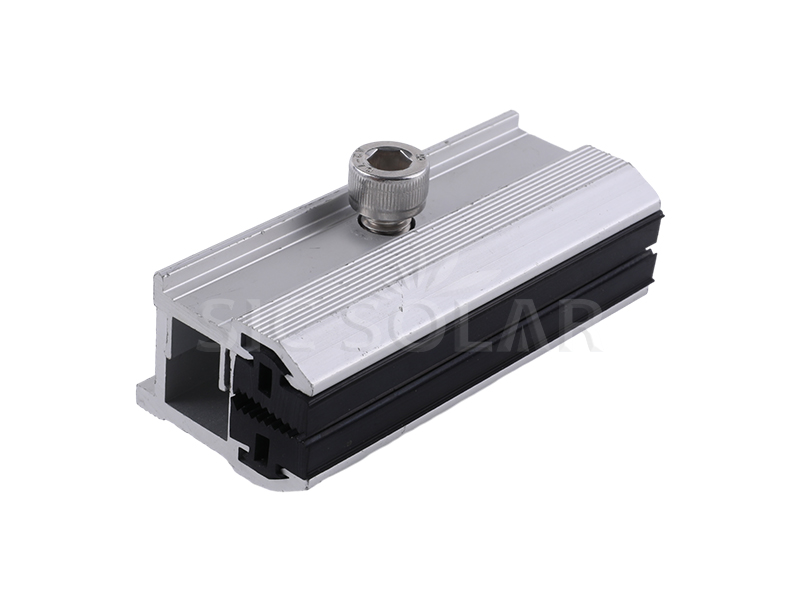

Thin film solar panel end clamp

Thin film solar panel end clamp are becoming increasingly popular due to their lightweight design, flexibility, and efficiency in certain applications. However, installing these panels requires specialized components to ensure correct installation and stability. Thin film solar panel end clamps are specifically designed to fix these panels to the installation rails, ensuring they are firmly in place throughout their lifespan.

Brand:
SIC SOLAR
Item NO.:
SIC-EC-TF
Installation Site:
Roof or Ground
Material:
AL6005-T5 & SUS304 & EPDM
Warranty:
10 years and 25 years service time
Wind Load:
<60M/S
Snow Load:
<1.4KN/M2

Inquire Now

Thin film solar panel end clamp could be usedfor thin film solar panel and frameless solar module. Unframed solar modules will be protected by the inside rubber. Thin film PV module will be fixed tightly by proper force.

Thin film solar panel end clamp can be used for kinds of specification of thin-fim solar module or glass unframed solar modules. Rubber in middle will protect thin-film solar panels well.The material is anodized extruded aluminum 6005-T5, Bolt, EPDM rubber and stainless steel fastener. High quality material and accurate design can fix the thin film stable.

Components Technical Details Package Advantage FAQ

Click here to learn more metal roof clamp

End Clamp Solar Panel

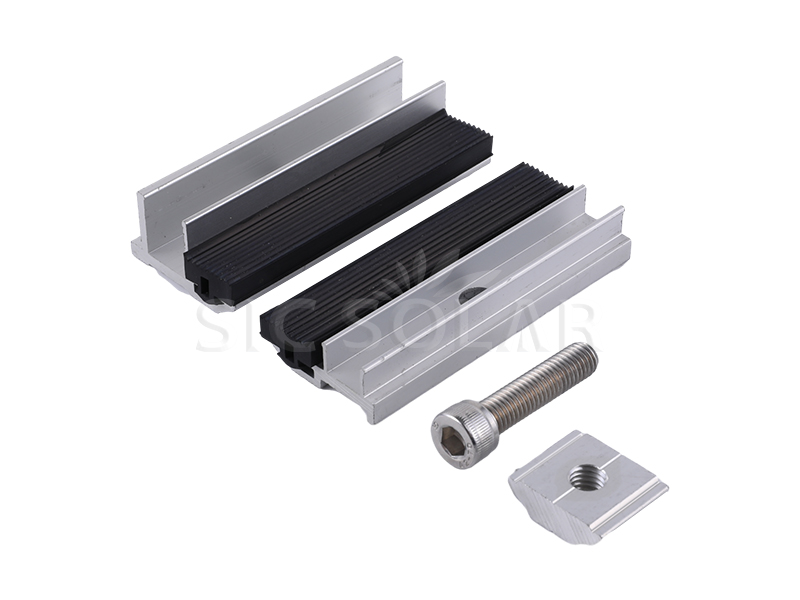

Components	Aluminium body,A2-70 Bolt, EPDM Rubber
Applicable Module	6-9mm frameless thin film solar module
Length	80mm, 120mm, 150mm, 200mm or customized length
Color	Siliver or black anodized
Standard	AS/NZS 1170.2, JIS C 8955:2011

Solar bracket package

Advantage as follow:

☆ Good inside rubber - Thin film solar panel will be well protected.

☆ Flexible application - suitable for thin film solar panel thickness from 6mm-9mm.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list

Q1. Can the bolts also be made black ?

Yes.

Q2. Can the clamps be customized ?

Yes.
