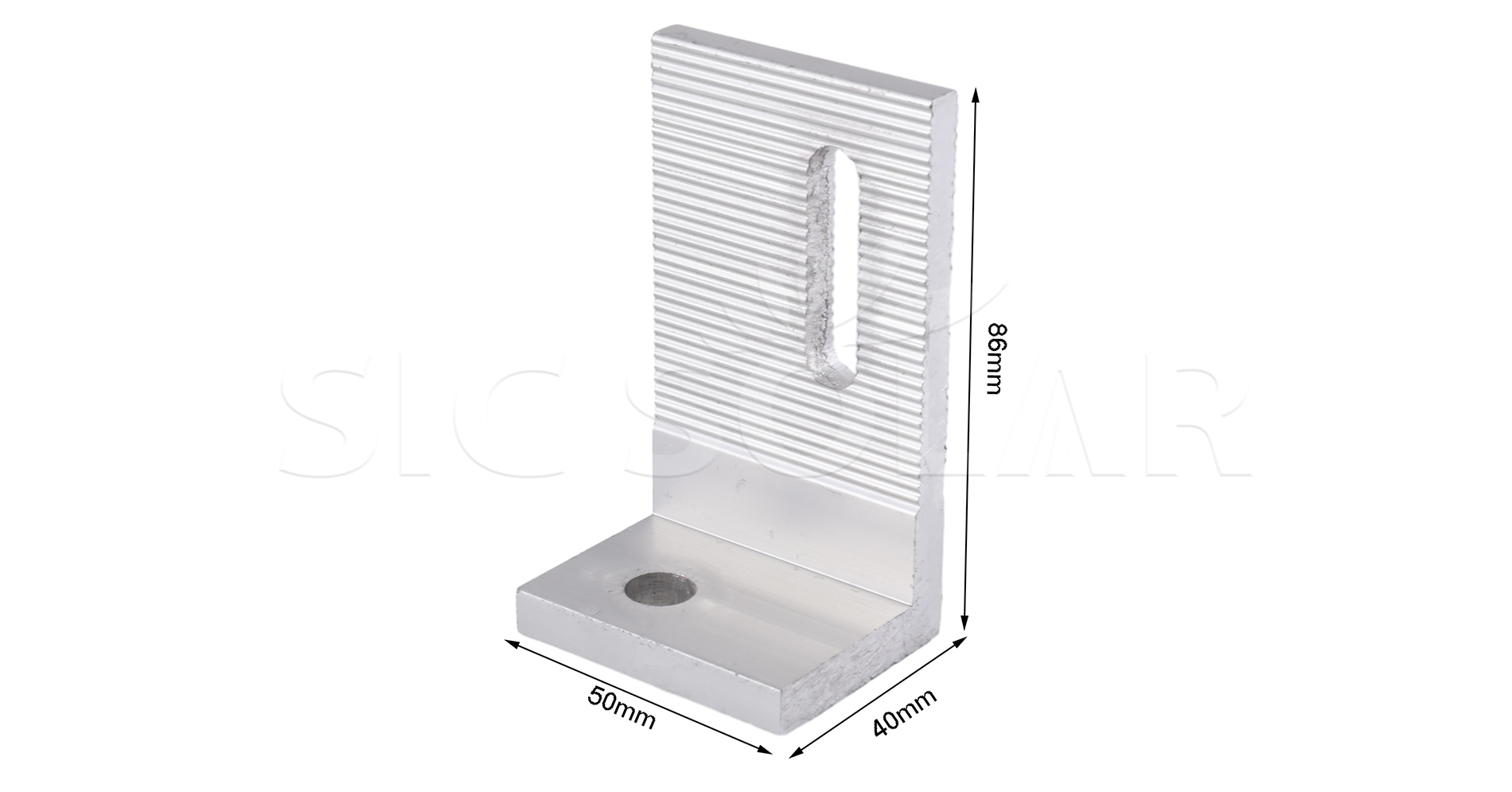

Solar Panel Thickened L Feet For Roof Mount

Click here to learn more L feet

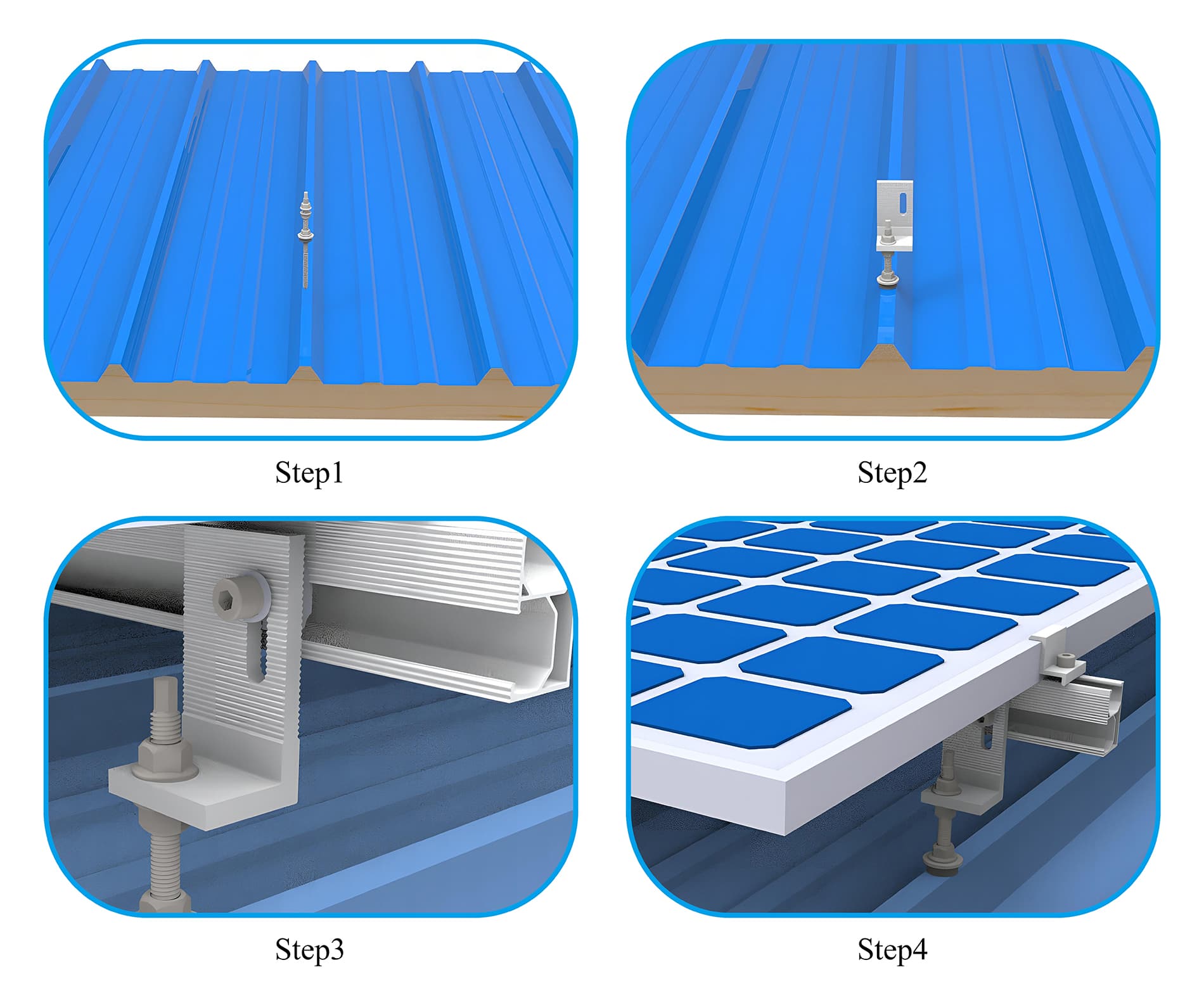

1️⃣ Inspect the Roof
Check the roof material, structural condition, and available installation area to confirm its suitability for the planned solar system.

2️⃣ Mark the Mounting Positions
Mark the L-foot locations according to the system layout, rail spacing, and installation requirements.

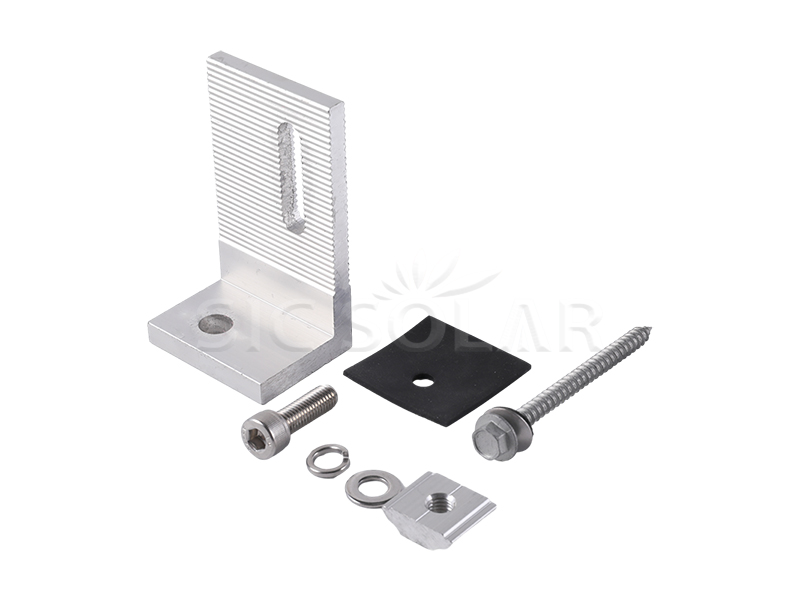

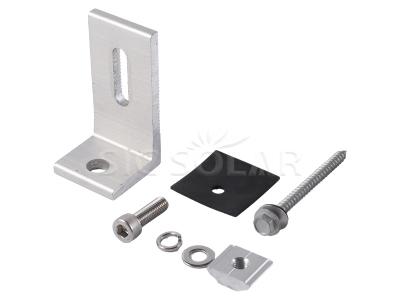

3️⃣ Select Suitable Fasteners
Choose screws or bolts compatible with the roof structure and the L-foot design.

4️⃣ Install the L Feet
Position each bracket correctly and secure it to the roof structure using the specified fasteners.

5️⃣ Seal Roof Penetrations
Where the installation requires roof penetrations, apply a compatible sealing method recommended for the roof material to help prevent water ingress.

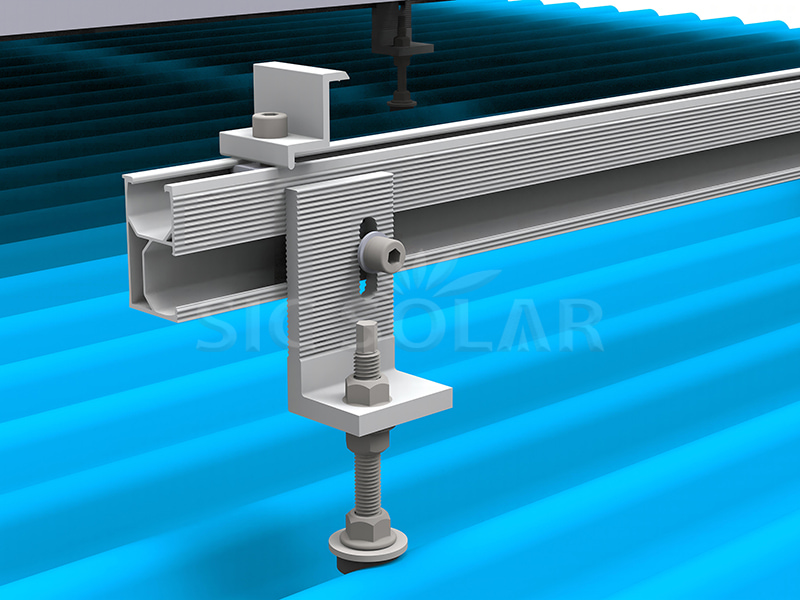

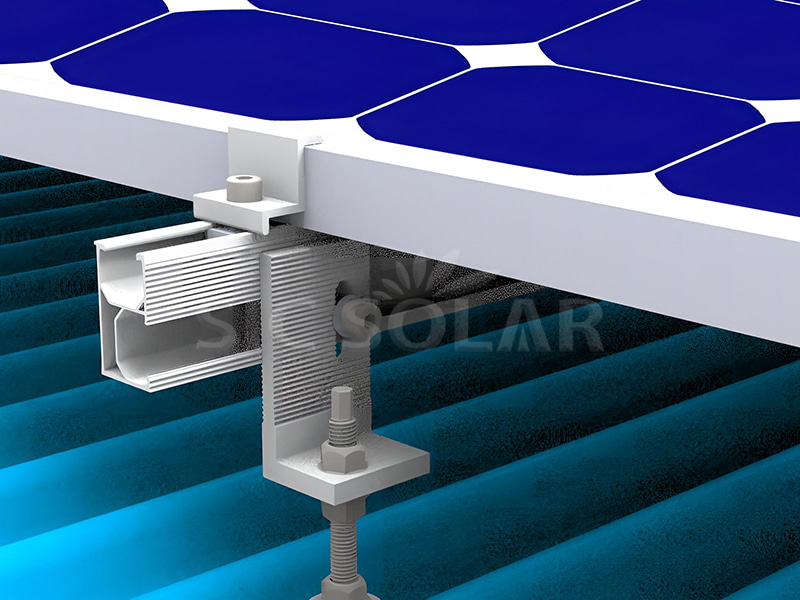

6️⃣ Attach the Solar Rails
Connect the rails to the L feet using compatible bolts and hardware. Align the rails properly before tightening the fasteners to the specified torque.

7️⃣ Inspect the Installation
Check the fasteners, bracket positions, rail alignment, and waterproof sealing to ensure everything is installed correctly.

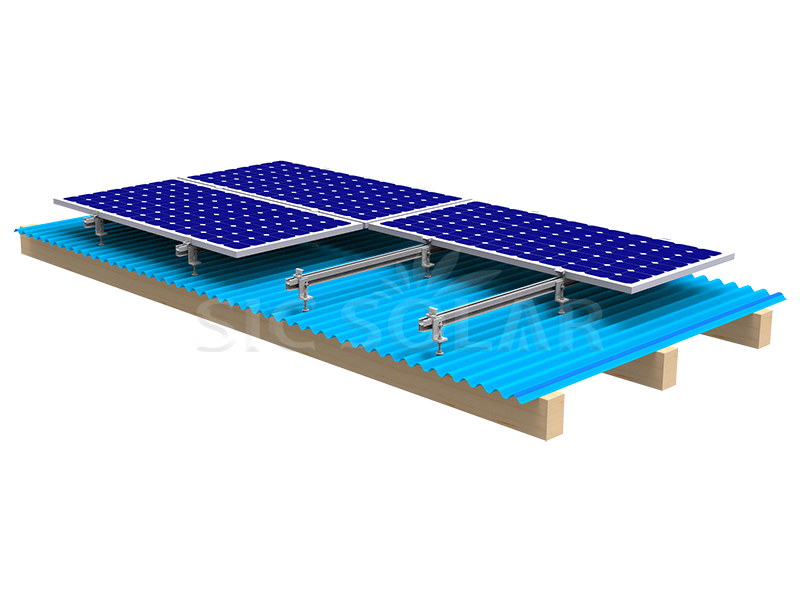

☆ Strong Support: Designed to connect solar mounting rails securely to suitable steel or wooden roof structures.

☆ Reinforced Design: The thicker profile provides added rigidity and helps reduce the risk of bracket deformation.

☆ Straightforward Installation: A practical L-shaped design makes it easier to connect mounting rails to the roof structure.

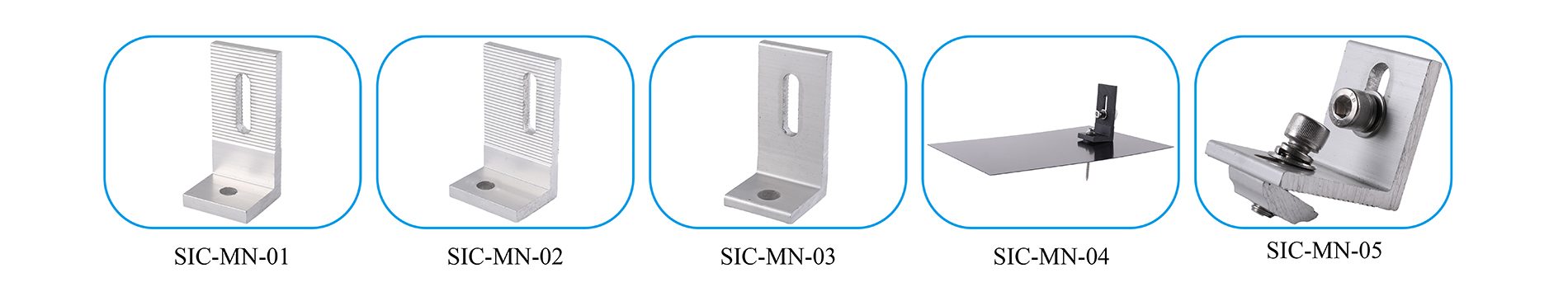

☆ Multiple Configuration Options: Different dimensions, thicknesses, and hole arrangements are available to meet various project requirements.

☆ Outdoor Durability: Suitable materials and surface treatments can help improve corrosion resistance in outdoor environments.

Related Certificates

☆ Aluminum Quality Certificate — AL6005-T5 material documentation.

Q1: What are the benefits of thickened L feet?
The thicker profile can improve bracket rigidity and resistance to deformation. Actual performance depends on the material, dimensions, and overall design.

Q2: How can I prevent roof leaks during installation?
Use fasteners and sealing materials suitable for the roof type, and follow the roof manufacturer's installation guidelines. All roof penetrations must be properly sealed.

Q3: Are thickened L feet compatible with all solar mounting rails?
No. Compatibility depends on the bracket dimensions, mounting holes, rail profile, and fastener specifications. Check these details before installation.

Q4: Can the dimensions and thickness be customized?
Depending on the manufacturer, dimensions, thickness, hole positions, and surface treatments may be customized to meet specific project requirements.

Q5: What should I consider when choosing L feet for a rooftop solar system?
Consider the roof material and structural strength, bracket dimensions, fastener compatibility, corrosion protection, waterproofing requirements, and project-specific wind and snow loads.
