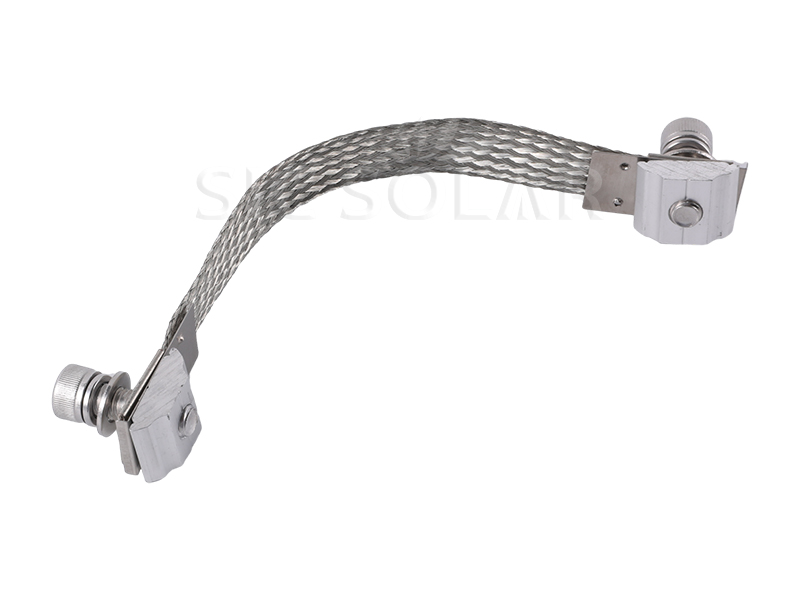

Solar bonding jumper for grounding system

You use a Solar bonding jumper for grounding system to make an electrical connection between two parts, like anodized aluminum, galvanized steel, or really any metal that conducts electricity and has been mechanically put together.

Brand:

SIC SOLAR

Item NO.:

SIC-BJ-01

Shipping Port:

Xiamen

Installation Site:

Ground or roof

Color:

Nature

Warranty:

10 years warranty and 25 years service time

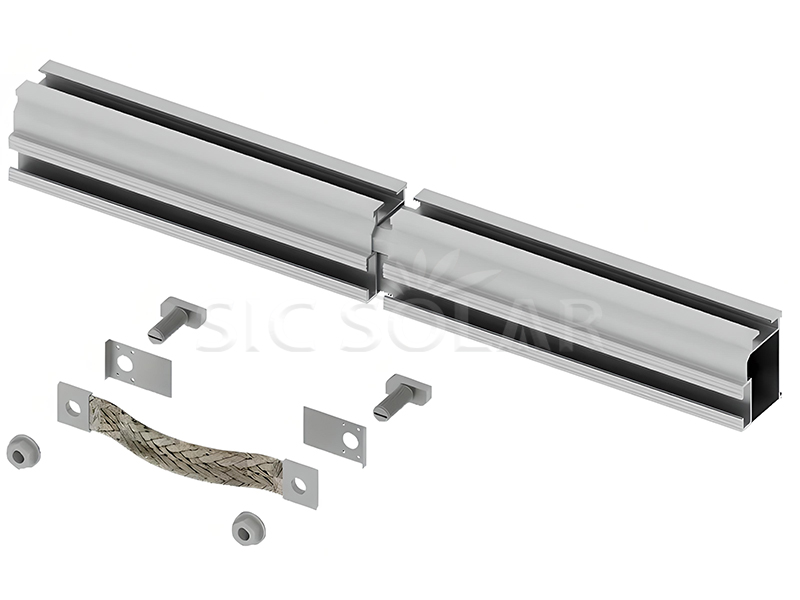

Components Technical Details Installation Guide Package Advantage

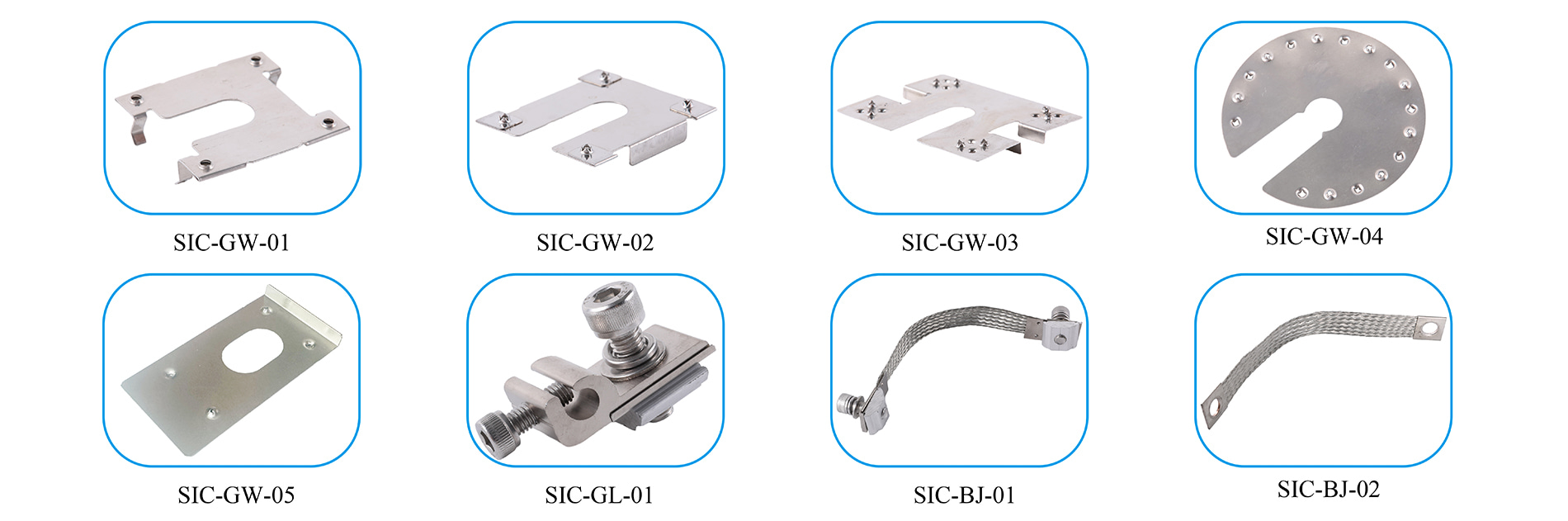

Click here to learn more ground products

Installation Site	Ground or roof
Wind Load	<60M/S
Snow Load	<1.4KN/M2
MaterialC	Copper
Color	Natural or Customized
Surface	Nickel surface
Warranty	10 years and 25 years service time

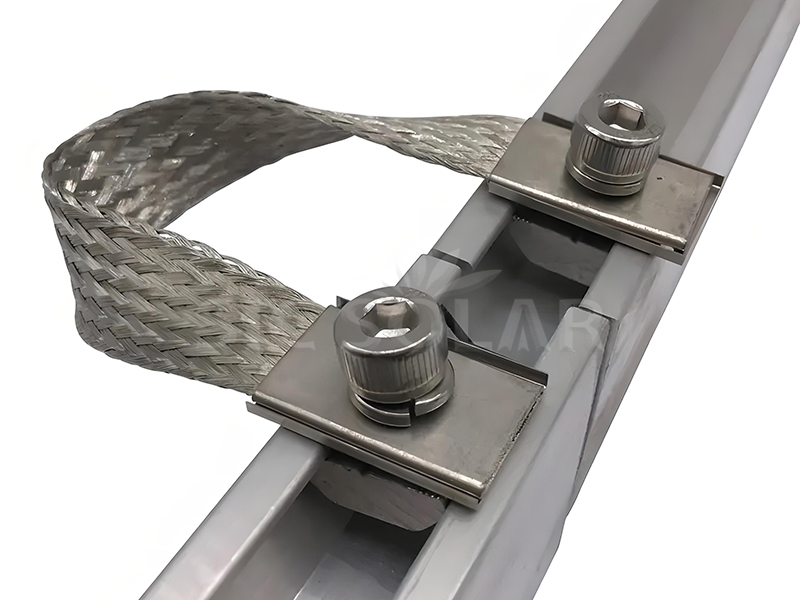

1️⃣ First, find where you need to connect: Look for the rail, frame, or part that needs grounding.

2️⃣ Then, put on the jumper ends: Attach the lugs or clips where they're supposed to go.

3️⃣ Tighten things up: Make sure it's tight for good mechanical and electrical contact.

4️⃣ Check if it's connected: Use a tester to confirm it's grounded properly.

5️⃣ Do this everywhere else: Put jumpers on all other conductive parts that are isolated.

Solar bracket package

☆ Its simple design makes it easy to use and helps protect your solar system.
☆ It's very durable, made from the best AL6005-T5 aluminum, which means it comes with a 10-year warranty and should last 25 years.
☆ It connects the solar system to the ground, so any stray electricity can safely go into the earth.
