Home Products Solar Components Mid clamp Solar Bracket Component Mid Clamp Quick Fixture
Solar Rapid Fixing Clamp
Solar Rapid Fixing Clamp

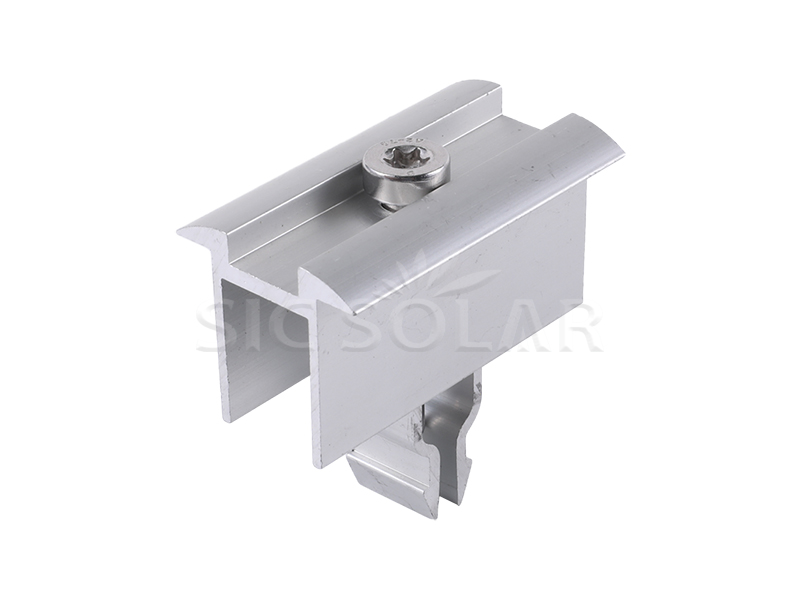

Solar Bracket Component Mid Clamp Quick Fixture

Solar Bracket Component Mid Clamp Quick Fixture is made to securely hold solar panels in place. It fits between panels to keep them aligned, stable, and easy to install, which suits many solar projects.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-IC-A

  • Shipping Port:

    Xiamen, China

  • Installation Site:

    Rail

  • Color:

    Customized

  • Material:

    AL 6005-T5

  • Warranty:

    10 years and 25 years service times

  • Function:

    Fixing solar panel
Inquire Now
Download



Solar Quick Mounting Clamp

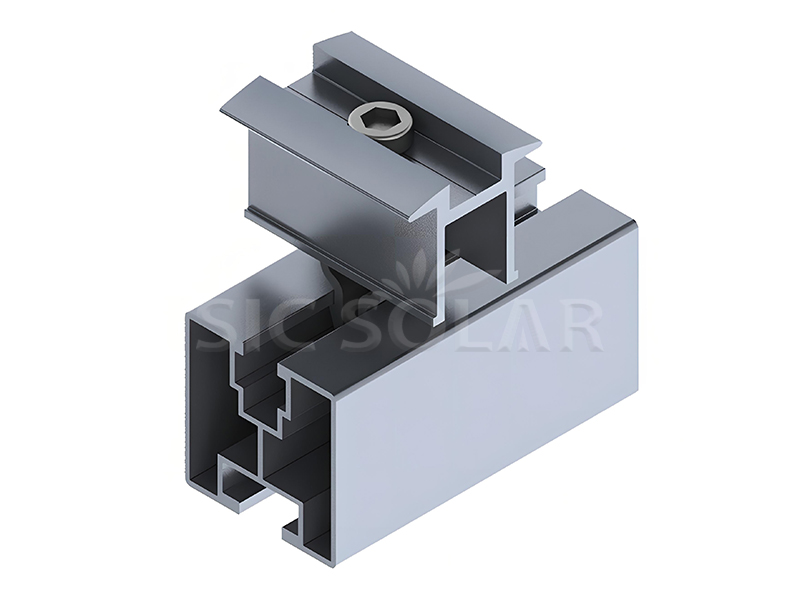

You simply push the Solar Bracket Component Mid Clamp Quick Fixture into the guide rail to install it, and you can adjust its height to fit different panels.



Solar Rapid Fixing Mid Clamp

Solar Bracket Component Mid Clamp Quick Fixture comes in sizes matching common panel thicknesses like 30mm, 35mm, and 40mm, so it works with various setups.

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more mid clamps

PV panels mid/end clamp

Rapid Fixing Mid Clamp

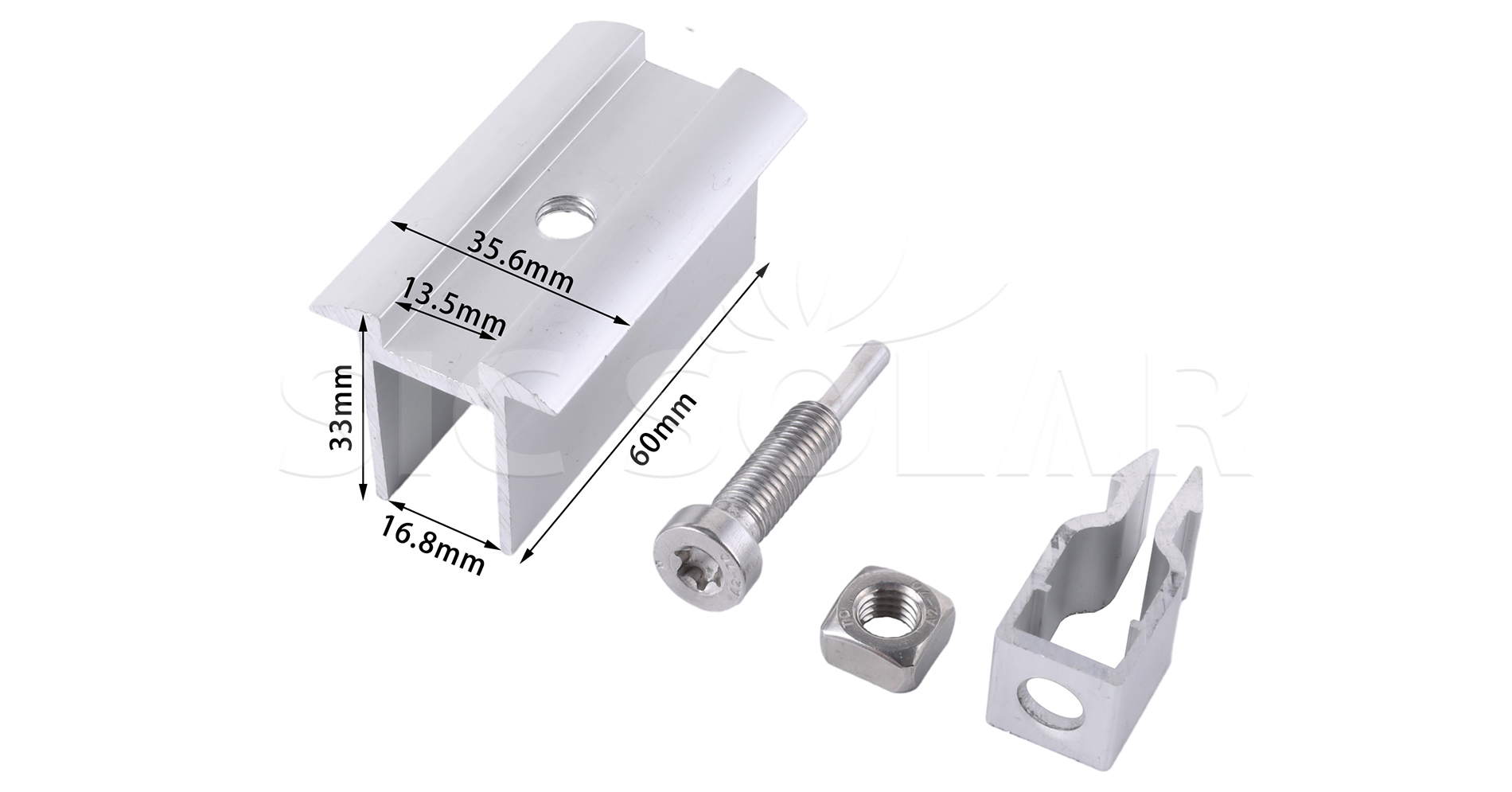

Name Solar Bracket Component Mid Clamp Quick Fixture

Material

AL 6005-T5

Oxide film

≧10um

Warranty

25YRS

Applicable panel height

30-40mm

Range of Bolt Torque

10-12N*m

Value of Pullout resistance

5KN

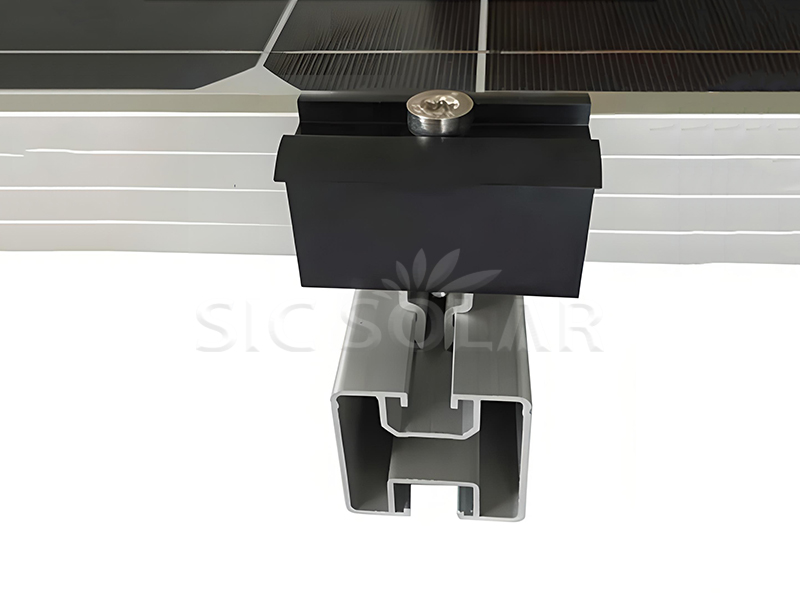

1️⃣ Place two panels side by side on the rail.

2️⃣ Put the quick-release clip between them, lining it up with the panel frame.

3️⃣ Insert the bolt through the clip and into the rail groove.

4️⃣ Tighten it with a wrench or screwdriver to secure the panels.

5️⃣ Repeat for each row, using center and end clips to hold everything.

Solar bracket package

☆ Installation is simple—just press it firmly into the rail.

☆ Made from AL6005-T5 aluminum, it offers about 10 years warranty and can last up to 25 years.

☆ It’s corrosion-resistant.



Related certificate

☆ Aluminum quality certificate showing AL6005-T5 composition.

☆ SGS certificate for screws made from SUS304 stainless steel.

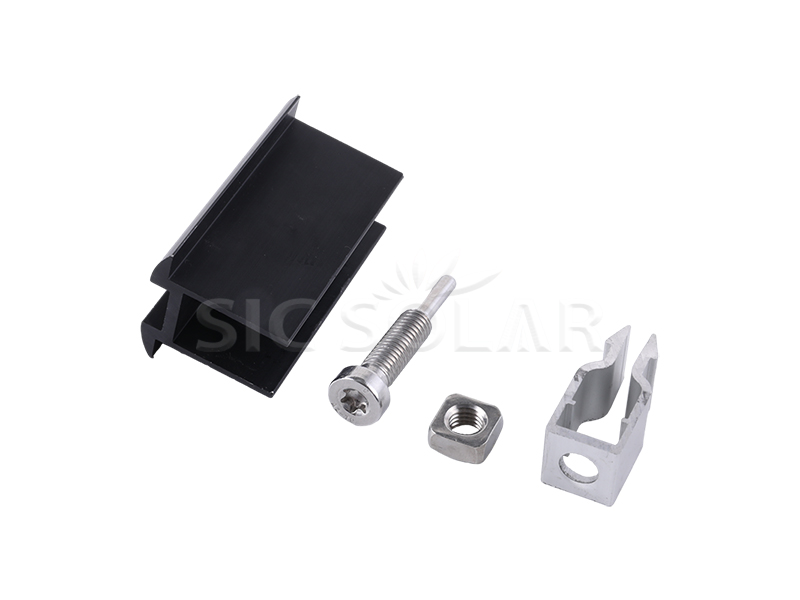

Q1. Can the bolts also be made black ?

Yes.



Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.



Q3. Can the clamps be customized ?

Yes.
