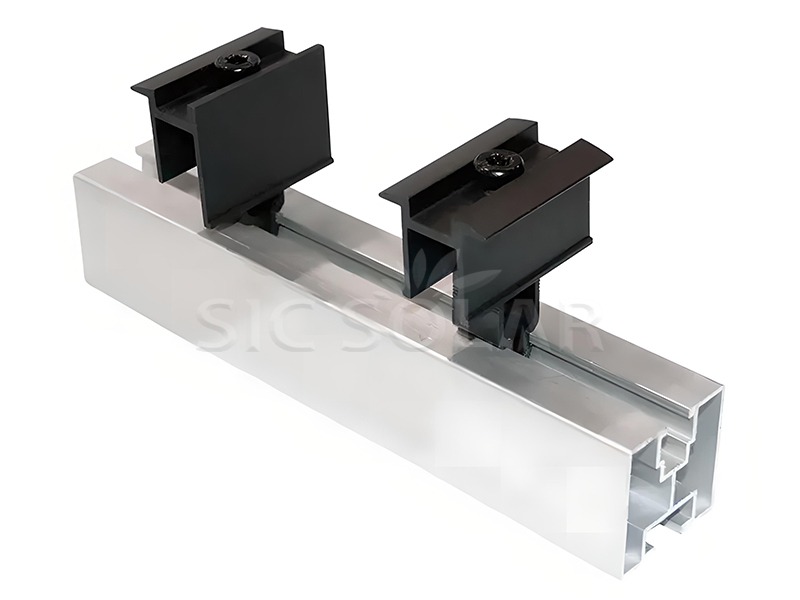

Aluminum Solar Rapid Mid Clamp
Aluminum Solar Rapid Mid Clamp

Aluminum Solar Panel Quick Mid Clamps

Aluminum Solar Panel Quick Mid Clamps are a key part of photovoltaic systems, designed to hold the sides of solar panels to aluminum guide rails. They sit between panels, keeping the right spacing and alignment while making installation easier.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-IC-HM

  • Shipping Port:

    Xiamen, China

  • Installation Site:

    Rail

  • Color:

    Customized

  • Material:

    AL 6005-T5

  • Warranty:

    10 years and 25 years service times

  • Function:

    Fixing solar panel
Inquire Now
Download



Easy Install Solar Mid Clamp

Aluminum Solar Panel Quick Mid Clamps simply push into the guide rail and can be adjusted in height to fit different solar panels.

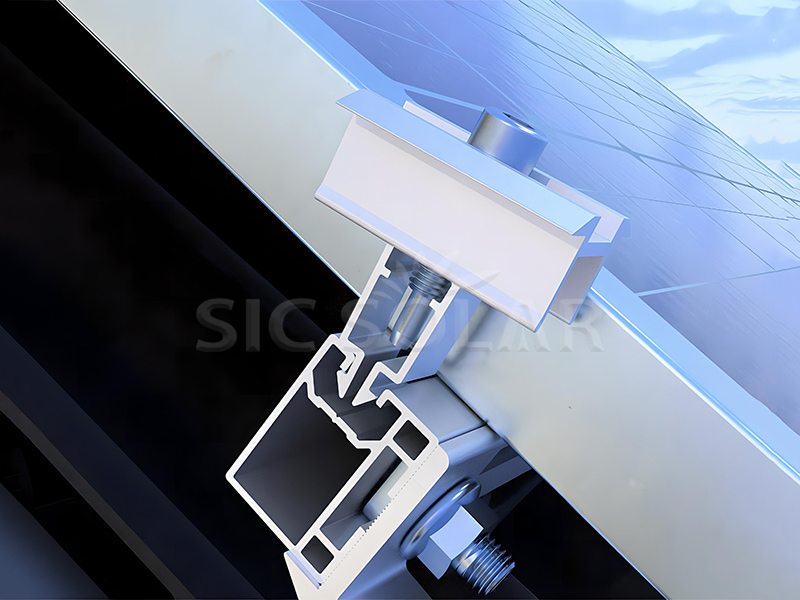

Mid Clamp For Solar Panel Mounting

Aluminum Solar Panel Quick Mid Clamps can also be made to fit the thickness of your panels, so you don’t have to worry about compatibility.



Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more mid clamps

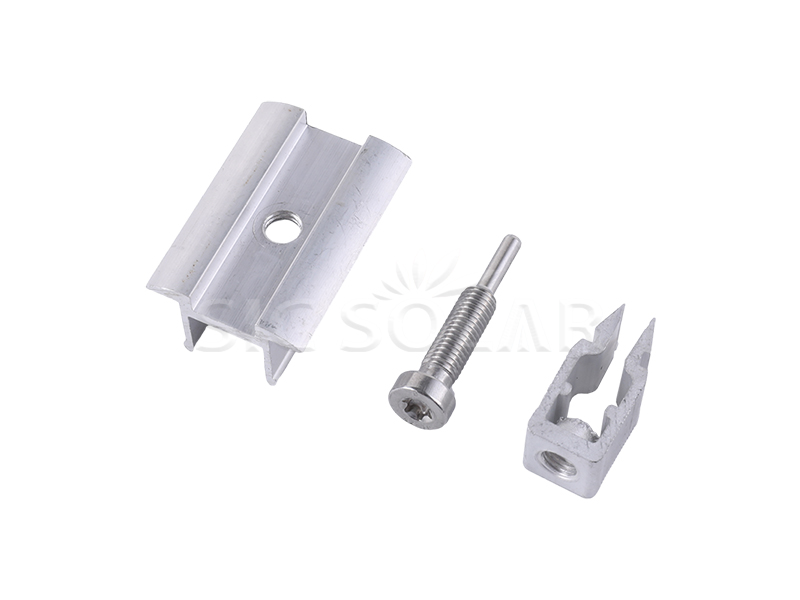

PV panels mid/end clamp

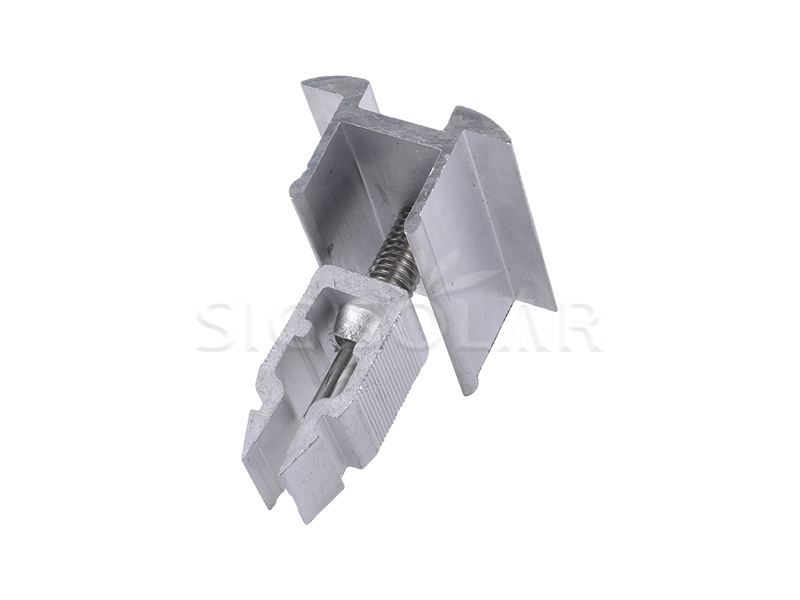

Rapid Fixing Mid Clamp

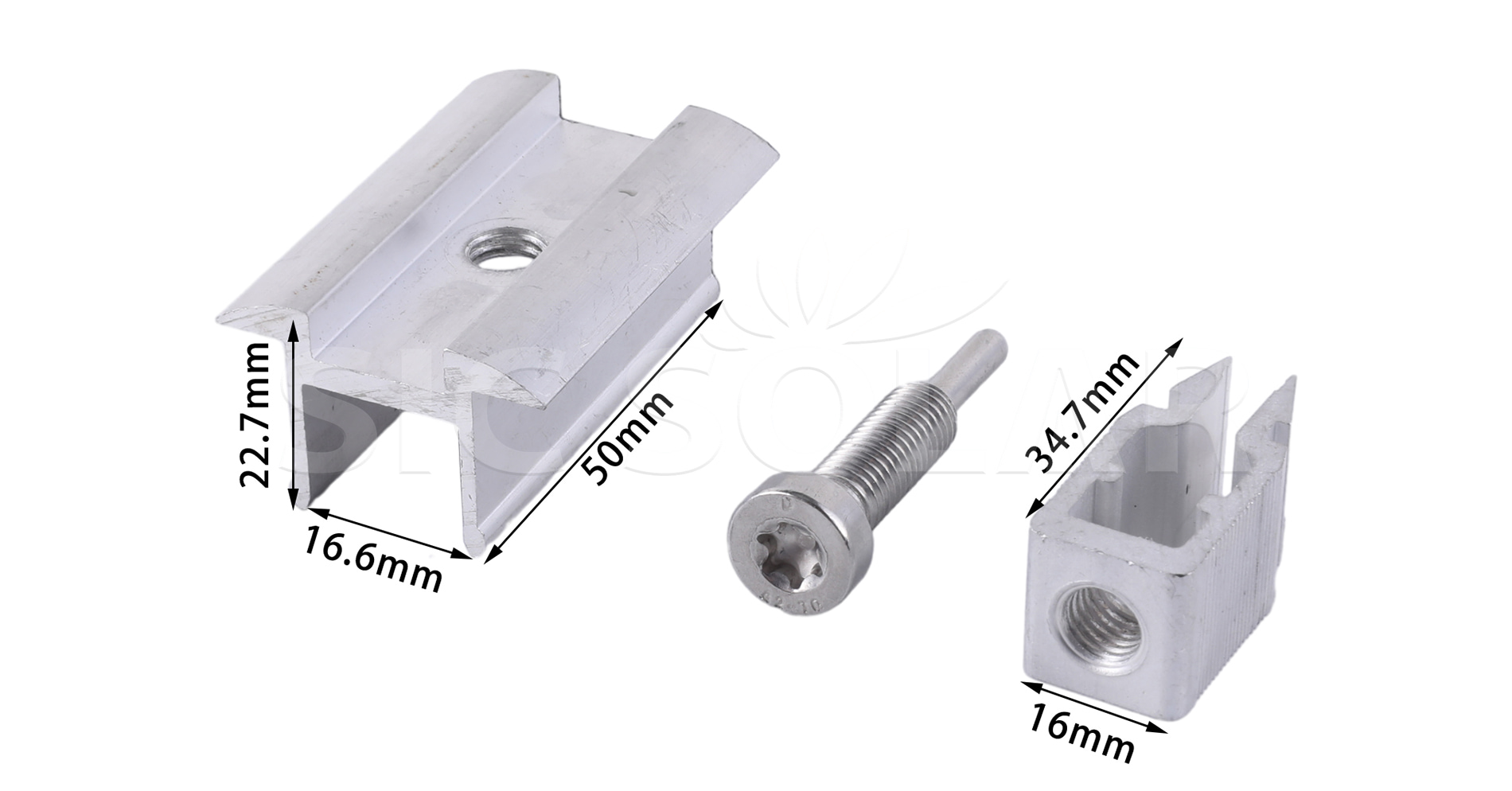

Name Aluminum Solar Panel Quick Mid Clamps

Material

AL 6005-T5

Oxide film

≧10um

Warranty

25YRS

Applicable panel height

30-40mm

Range of Bolt Torque

10-12N*m

Value of Pullout resistance

5KN

1️⃣ Place the first panel on the mounting rail.

2️⃣ Put the quick-release center clamp between the first and second panels.

3️⃣ Slide the bolts through the clamp into the rail grooves.

4️⃣ Tighten the clamp evenly with a torque wrench or screwdriver.

5️⃣ Repeat for all panels and add end clamps at both ends.

Solar bracket package

☆ Installation is fast—you just press the clamps into the rail.

☆ Made from AL6005-T5 aluminum, these clamps offer durability with a 10-year warranty and up to 25 years of service.

☆ They resist corrosion well.



Related certificate

☆ Aluminum quality certificate – AL6005-T5 composition list.

☆ SGS certificate for screw material – SUS304.

Q1. Can the bolts also be made black ?

Yes.



Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.



Q3. Can the clamps be customized ?

Yes.
