Solar Clamps Mid/End Clamp Quick Mount

With special Clip design, Clamps could push into rails quickly.
  • Item No.:

    SIC-IC-P
  • Brand:

    SIC SOLAR
  • MOQ:

    1 sample order is ok
  • Installation Site:

    Roof or Ground
  • Color:

    Silver & Black
  • Material:

    AL6005-T5
  • Warranty:

    10 years and 25 years service time
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2
  • product details

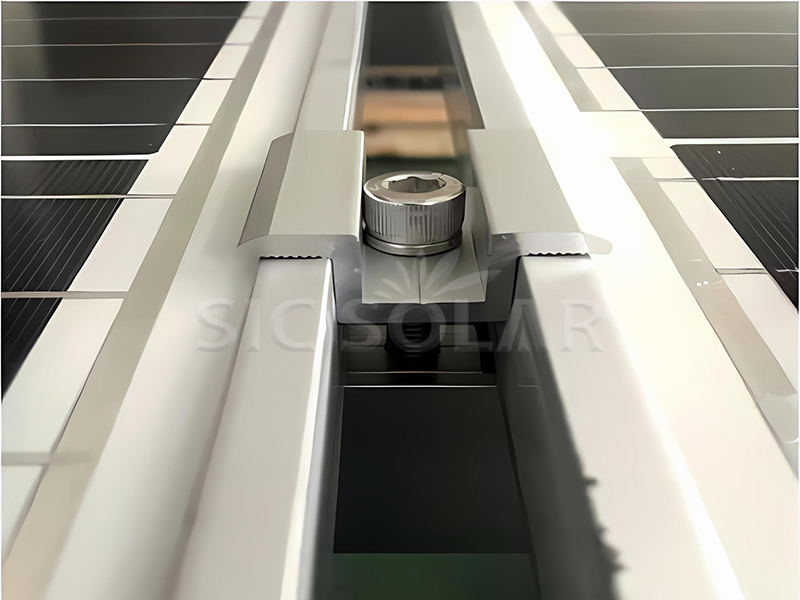

Pre-assembled solar panel clamps

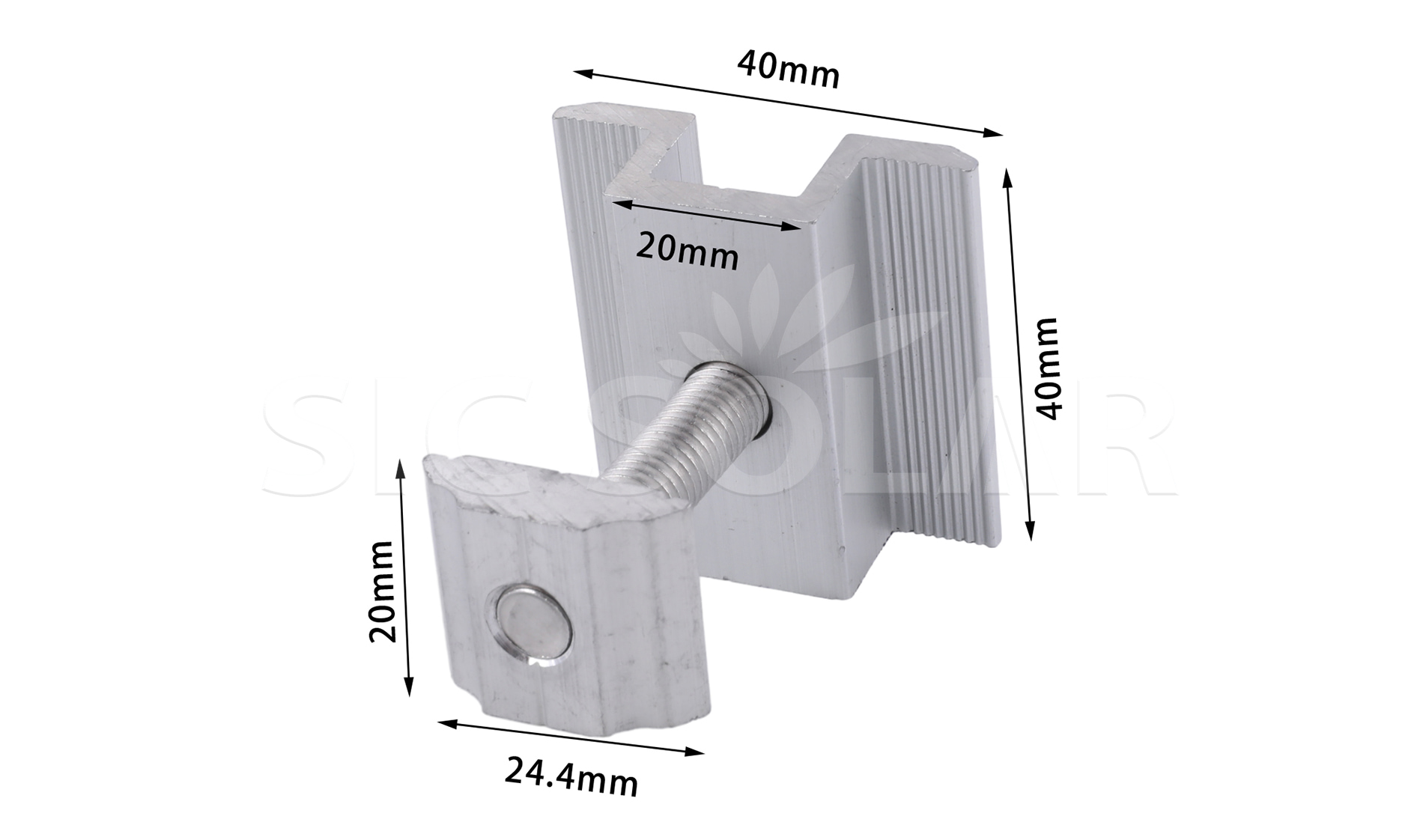

Solar power clamps with quick mount design could push into the rails directly. Special Clip design could offer 14mm adjustable height. With long and short bolt, the clamp could meet solar panel thickness from 29mm to 53mm. Both aluminum clamp and bolt could offer silver and black color.

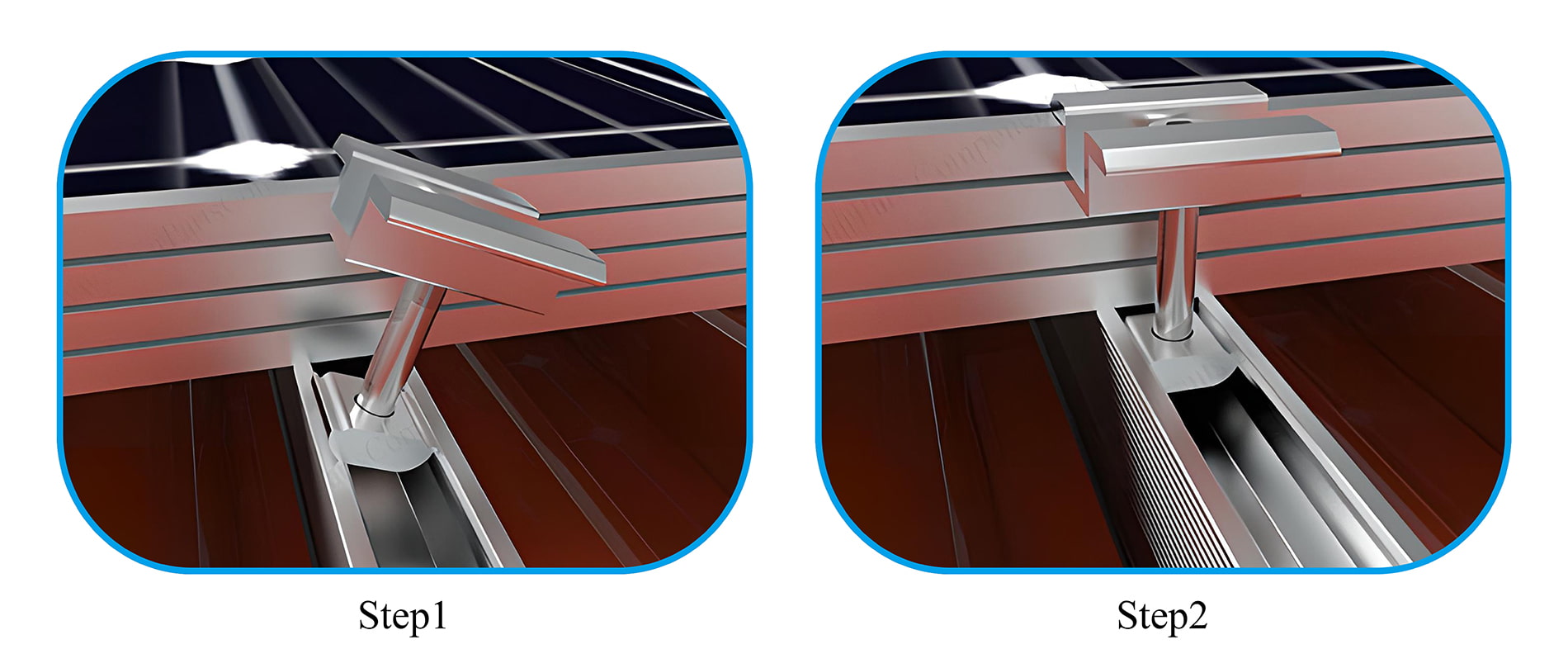

solar panel clamps installation



Category: Solar components


Installation Site

Roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Aluminum 6005-T5 & Stainless Steel 304

Color

Natural or Customized

Anticorrosive

Anodized aluminum & stainless steel

Warranty

10 years and 25 years service time

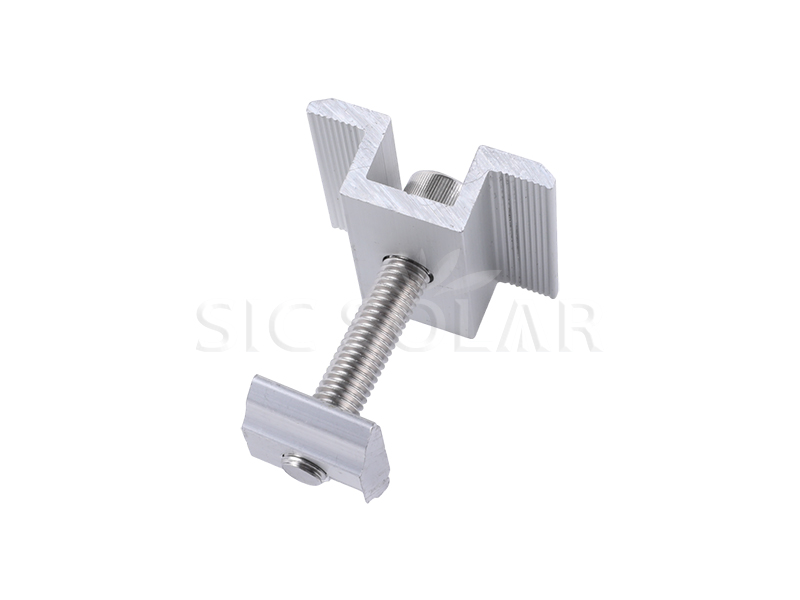

solar panel clamps pre-assembled

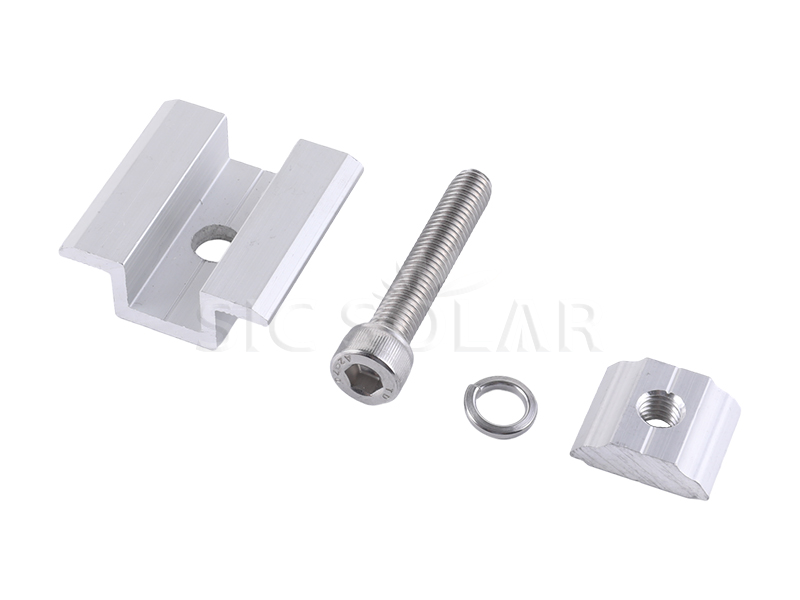

Customized bolt and clip for solar clamps


Advantages as follow:

☆ Pre-assembled clamps with special clip design could push into the rail quickly.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Flexible panel thickness - 24mm adjustable height with the short and long bolt.


Related certificate

Aluminum quality certificate -- AL6005-T5 composition list

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for screw material -- SUS304
