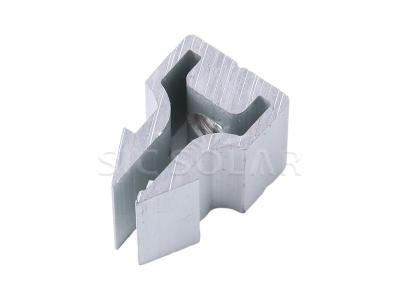

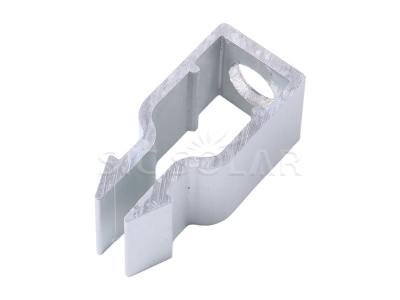

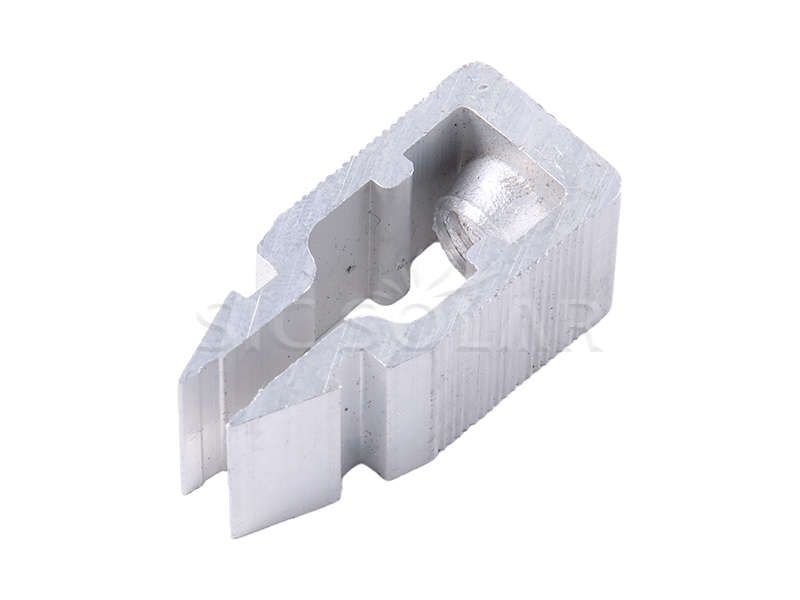

Solar Fast Clip Rail Fastening

Solar Fast Clip Rail Fastening help you attach solar panels to mounting rails quickly and safely. This makes installing solar panels faster, more reliable, and easier.

Brand:

SIC SOLAR

Item NO.:

SIC-AC-35

Shipping Port:

Xiamen, China

Installation Site:

Rail

Color:

Customized

Material:

AL 6005-T5

Warranty:

10 years warranty

Function:

Fixing solar panel

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more clip

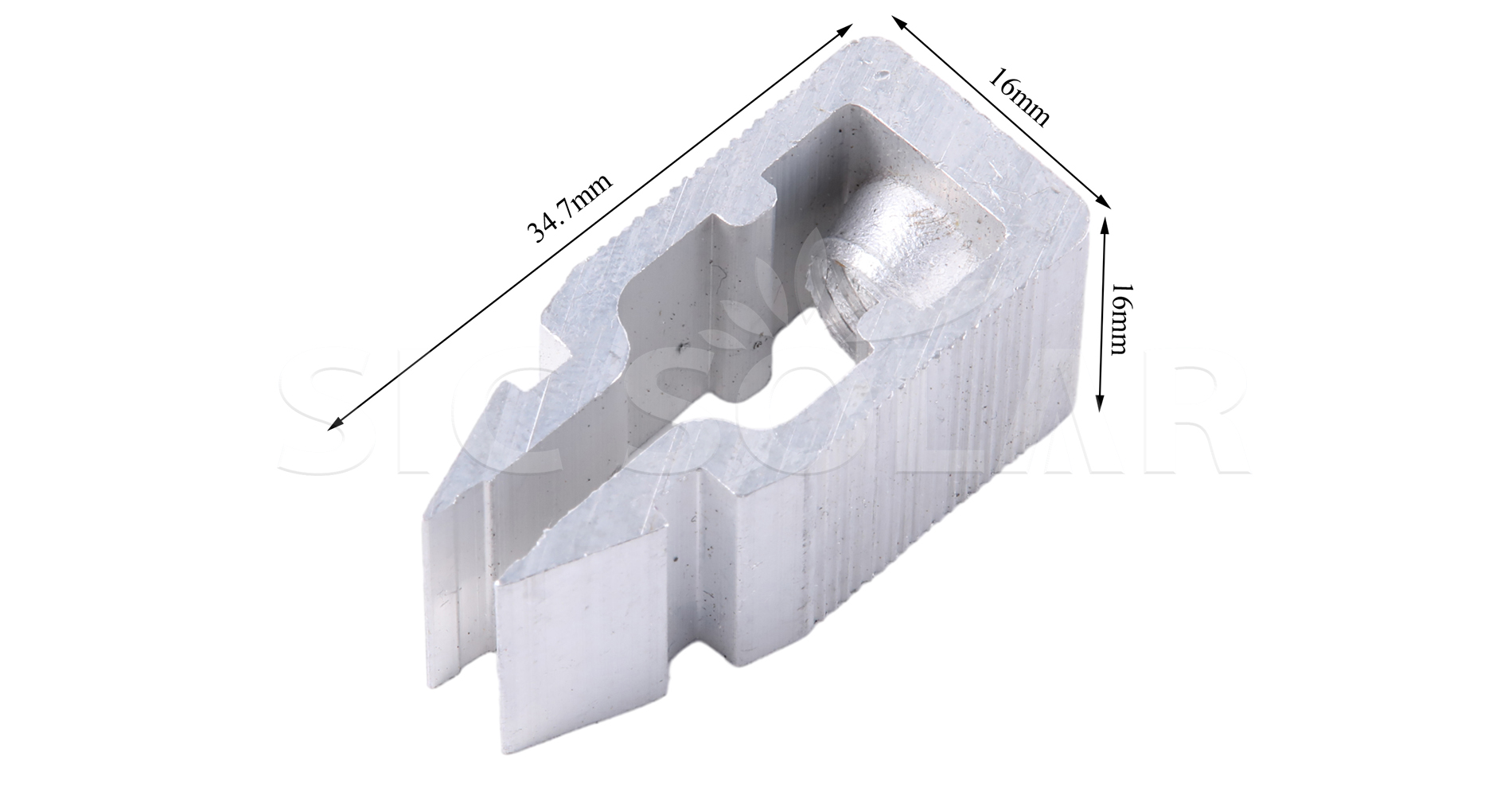

Solar Rail Clip Size

Name	Solar Fast Clip Rail Fastening
Material	AL 6005-T5
Oxide film	≧10um
Warranty	25YRS
Applicable panel height	30-40mm
Range of Bolt Torque	10-12N*m
Value of Pullout resistance	5KN

1️⃣ Put in the C-connector: Slide the C-connector halfway into the groove inside the first rail.

2️⃣ Line up the second rail: Match the second rail with the connector and slide it into the open half.

3️⃣ Fasten: Put bolts and nuts through the holes on both rails and the connector.

4️⃣ Tighten and double-check: Tighten everything to be sure it's secure, even, and lined up right.

Solar bracket package

☆ Installs fast — Just press it firmly into the rail.

☆ Very Durable – Good AL6005-T5 gives you a 10-year guarantee and 25 years of use.

☆ Resists rust

Related certificate

☆ Aluminum quality paper -- AL6005-T5 ingredients list.

☆ SGS paper for screw stuff -- SUS304.

Q1. Can the bolts also be made black ?

Yes.

Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.

Q3. Can the clamps be customized ?

Yes.
