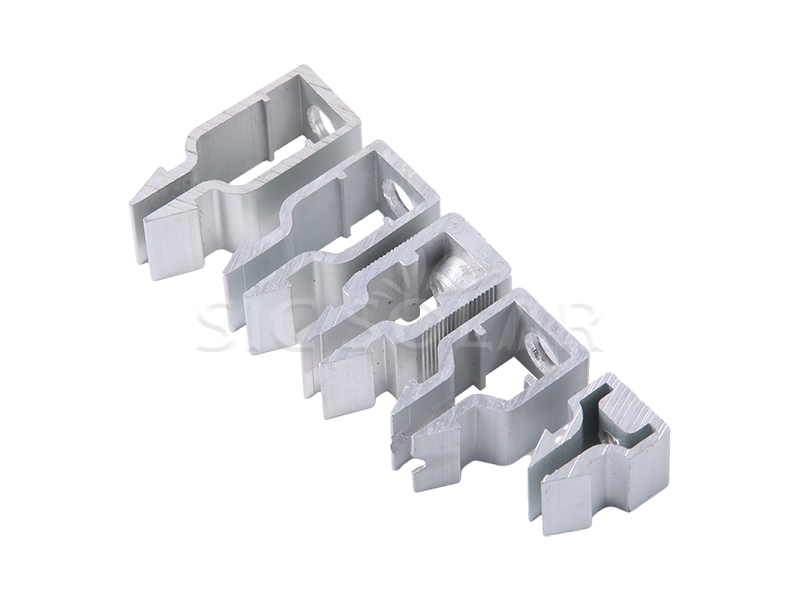

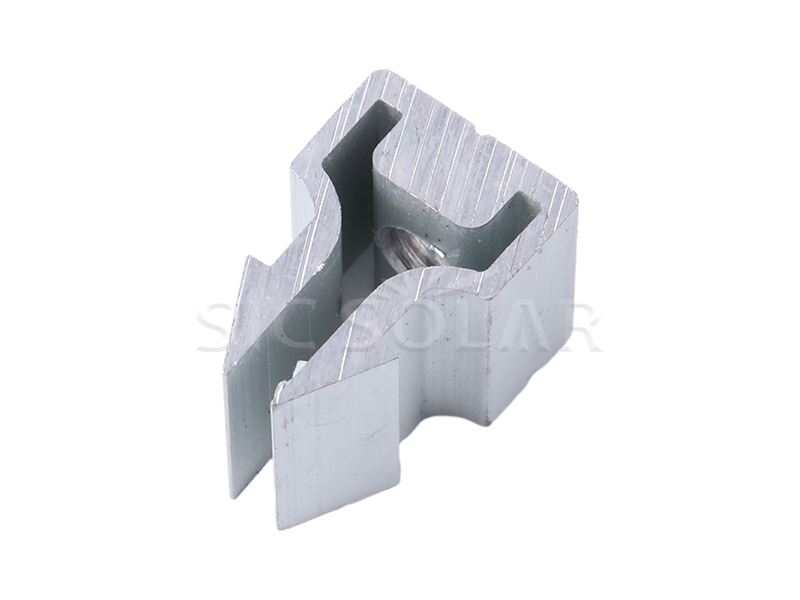

Solar Panel Quick Fastening Clip

Solar Panel Quick Fastening Clip allow for faster, tool-free assembly, making the entire process much more efficient, saving time and labor costs for installers.

Brand:

SIC SOLAR

Item NO.:

SIC-AC-23

Shipping Port:

Xiamen, China

Installation Site:

Rail

Color:

Customized

Material:

AL 6005-T5

Warranty:

10 years warranty

Function:

Fixing solar panel

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more clip

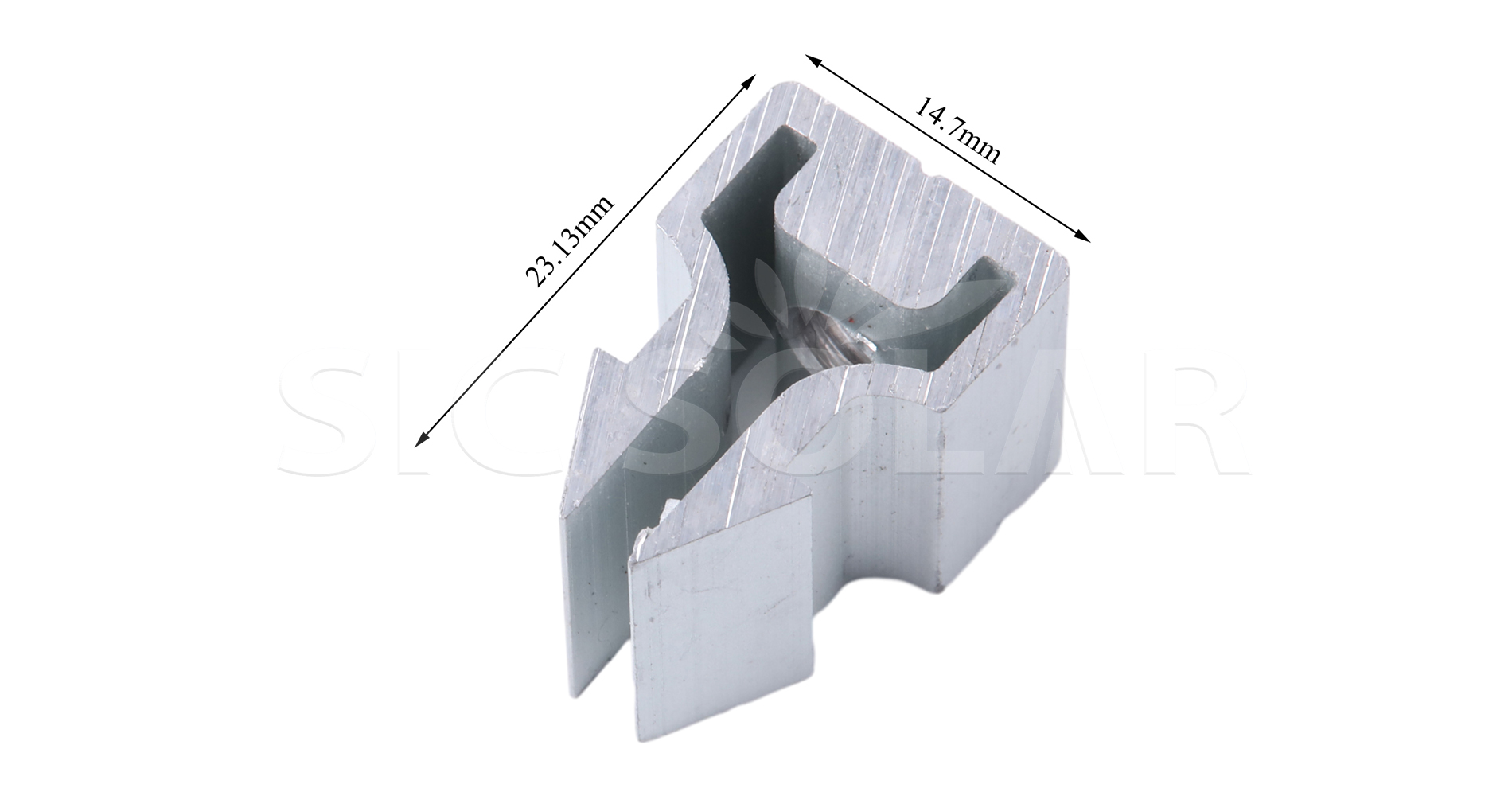

Solar Quick Clip Size

Name	Solar Panel Quick Fastening Clip
Material	AL 6005-T5
Oxide film	≧10um
Warranty	25YRS
Applicable panel height	30-40mm
Range of Bolt Torque	10-12N*m
Value of Pullout resistance	5KN

1️⃣ Align the clips with the mounting rail: Place the clips at the desired location on the aluminum rail.

2️⃣ Install the solar panel frame: Place the panel edges into the clips’ retaining grooves.

3️⃣ Press or tighten to secure: Snap into place or tighten with a wrench (depending on the design).

4️⃣ Repeat this step for all mounting points: Ensure even clamping force across the array.

Solar bracket package

Advantages as follow:

☆ Quick installation — Only need to be pressed hard into the rail.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Anticorrossion

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list

SGS Certificate for screw material -- SUS304

Q1. Can the bolts also be made black ?

Yes.

Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.

Q3. Can the clamps be customized ?

Yes.
