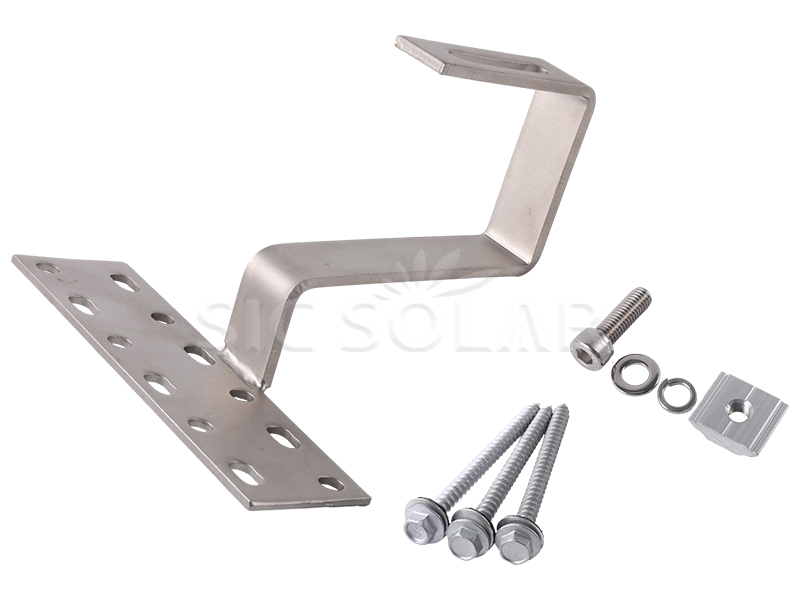

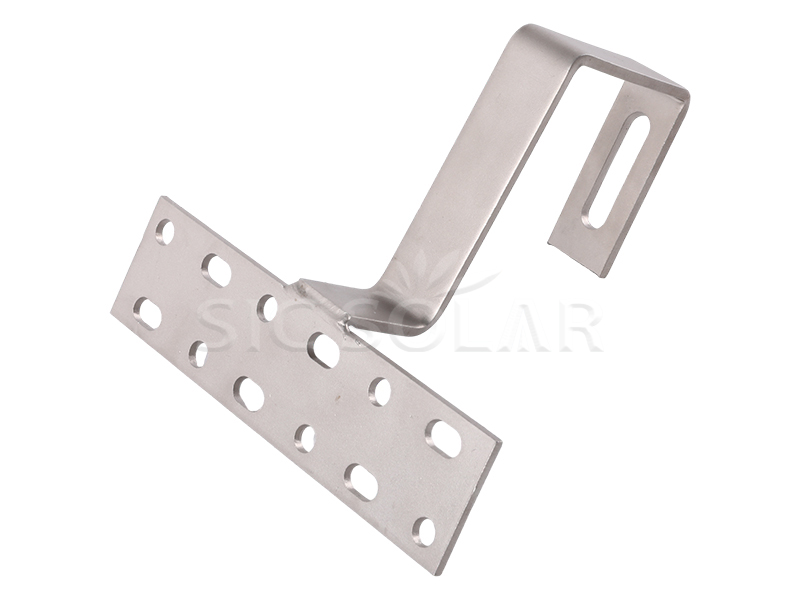

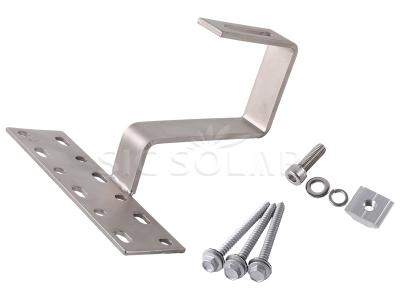

Shingle Solar Tile Roof Hook

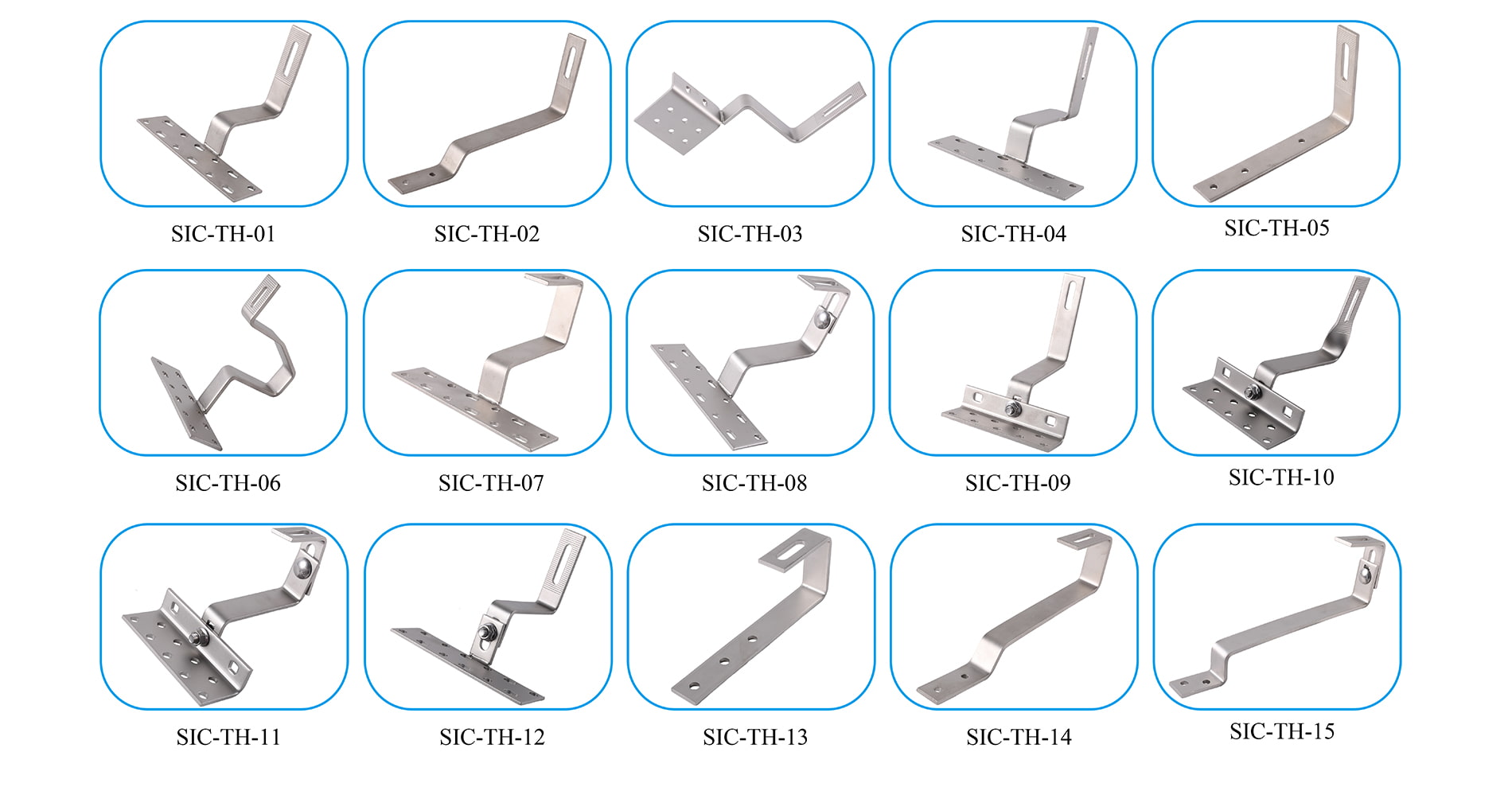

Click here to learn more hooks

1️⃣ Find the Rafter – Use a stud finder to locate the rafter and mark the hook position.

2️⃣ Lift the Tile – Carefully lift the shingle above the marked fixing point.

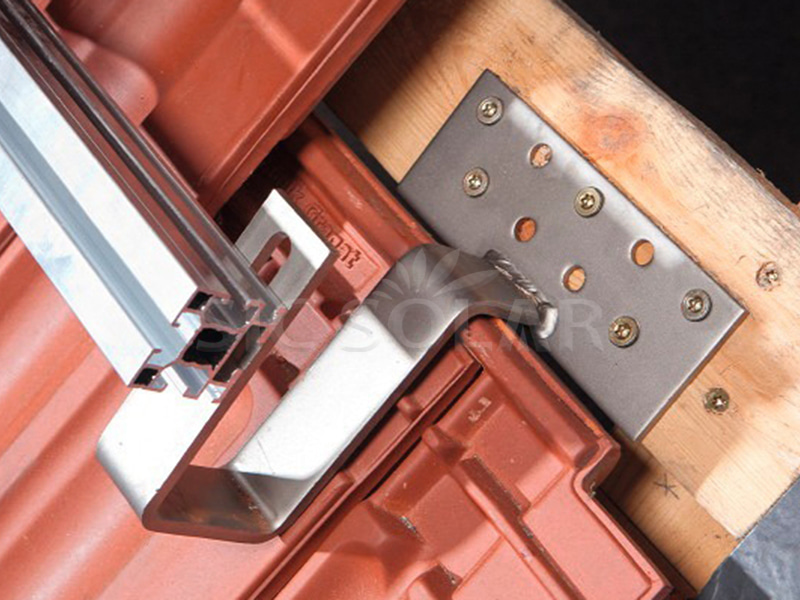

3️⃣ Position the Hook – Slide the hook under the tile and align it with the supporting rafter.

4️⃣ Secure the Hook – Drill pilot holes if needed, then fasten the hook to the rafter with suitable stainless steel screws.

5️⃣ Replace the Tile – Check that the hook is correctly positioned, then put the tile back in place.

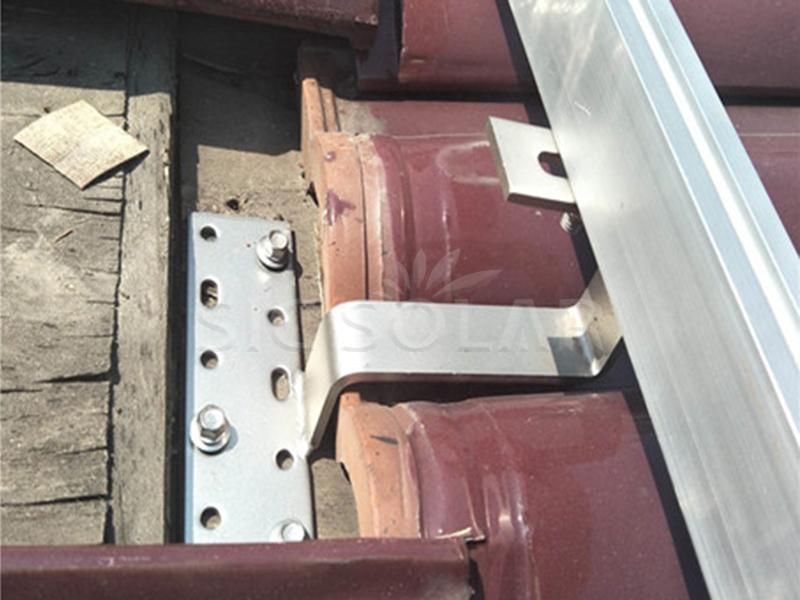

6️⃣ Install the Rail – Attach the mounting rail to the hook and check that it is properly aligned and level.

☆ Durable Construction
Suitable metal materials provide strength and reliable outdoor performance when properly selected.

☆ Easy Installation
The practical hook design helps installers complete roof mounting work efficiently with compatible fasteners and rails.

☆ Adjustable Options Available
Selected models may offer adjustable height or positioning to suit different roof profiles and mounting requirements.

☆ Flexible Panel Layouts
The system allows panels to be positioned according to the available roof area and project design.

Q1: What type of roof is this hook suitable for?
It is designed for compatible shingle tile roofs. Compatibility depends on the roof profile, hook dimensions, and mounting system specifications.

Q2: Does installation require removing the shingle tiles?
Some tiles usually need to be lifted or temporarily removed to access the fixing points. The exact method depends on the roof structure and hook design.

Q3: Can I request a customized Shingle Solar Tile Roof Hook?
Customization may be available depending on the project requirements. Roof profile, hook dimensions, material, and mounting details can be provided for evaluation.
