Solar Quick Mid End Clamp Fastening Clip

Solar Quick Mid End Clamp Fastening Clip is a versatile and efficient mounting accessory for securing framed solar panels to mounting rails. Designed for use in mid- and end-position locations on PV arrays, the fastener installs quickly while ensuring a secure, weather-resistant grip.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-AC-364
  • Shipping Port:

    Xiamen, China
  • Installation Site:

    Rail
  • Color:

    Customized
  • Material:

    AL 6005-T5
  • Warranty:

    10 years warranty
  • Function:

    Fixing solar panel

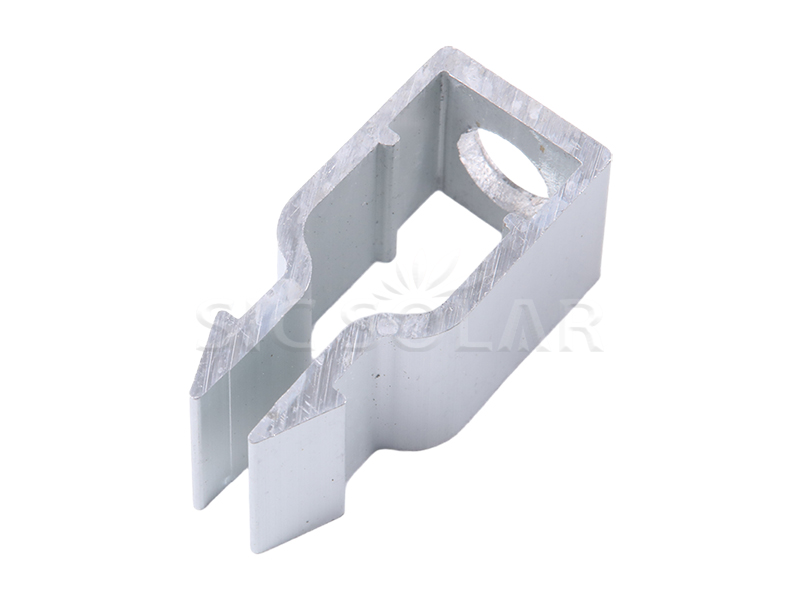

Solar Panel Clip

Solar Quick Mid End Clamp Fastening Clip are designed for easy and efficient installation. They usually have a simple and intuitive design that allows them to be easily attached or detached from the rail.

Fast Clip Rail Fastening

Solar Quick Mid End Clamp Fastening Clip come in various sizes and designs to accommodate different types and sizes of solar panels. It is important to choose clips that are compatible with your specific panel model and mounting system.

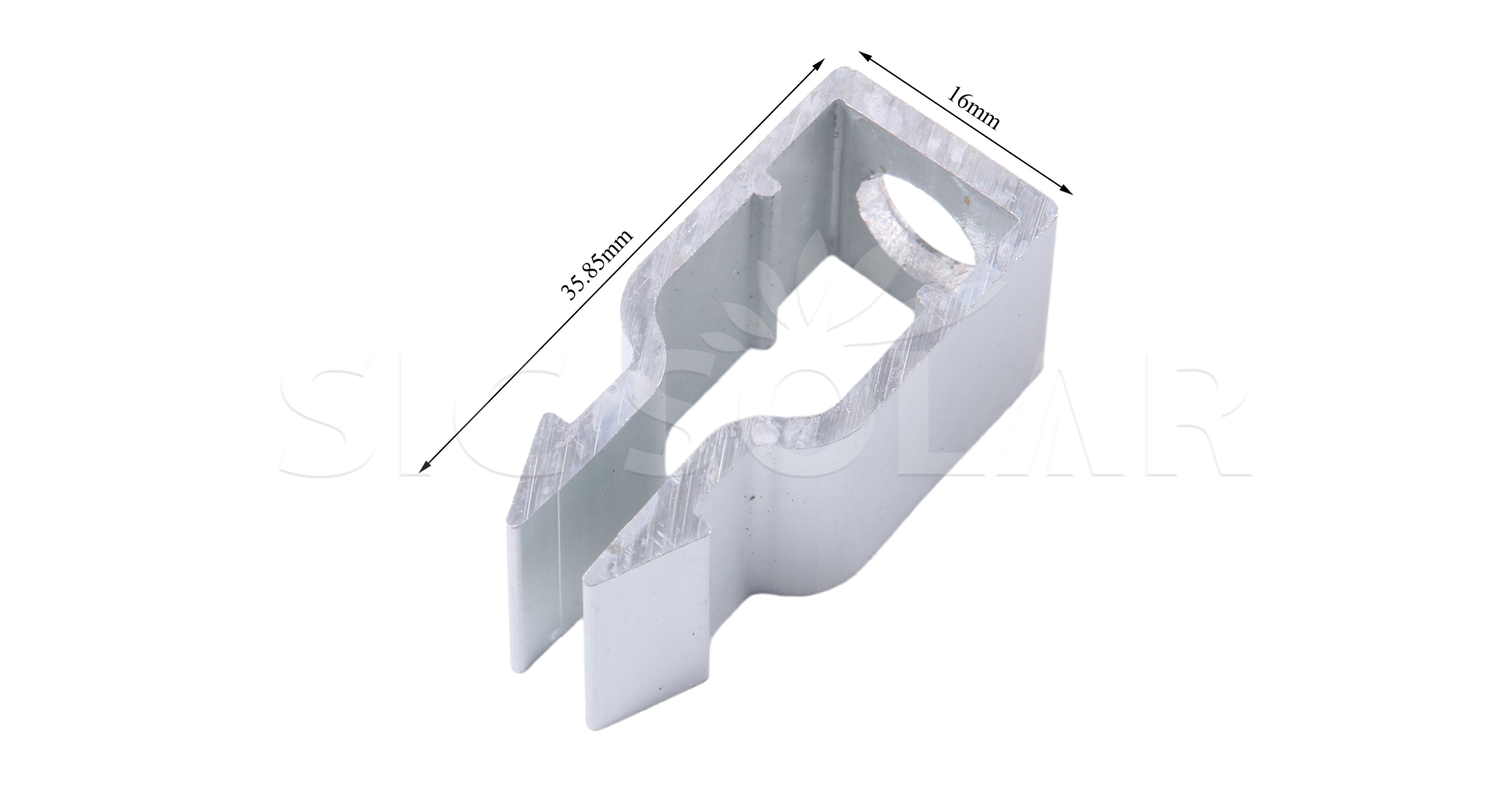

Solar Quick Clip Size

Name Solar Quick Mid End Clamp Fastening Clip

Material

AL 6005-T5

Oxide film

≧10um

Warranty

25YRS

Applicable panel height

30-40mm

Range of Bolt Torque

10-12N*m

Value of Pullout resistance

5KN

1️⃣ Insert the clip into the mounting rail: Align the clip with the solar panel frame and the rail groove.

2️⃣ Correct installation position (middle or end): When using the middle clip, place it between two adjacent solar panels; when using the end clip, place it at the end of the solar panel array.

3️⃣ Tighten the bolts: Use a wrench to firmly fix the clip in place.

4️⃣ Repeat this step as needed: Continue through the solar panel array to complete the assembly fixation.

Solar bracket package

Advantages as follow:

☆ Quick installation — Only need to be pressed hard into the rail.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Anticorrossion



Related certificate

Aluminum quality certificate -- AL6005-T5 composition list

SGS Certificate for screw material -- SUS304

Q1. Can the bolts also be made black ?

Yes.



Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.



Q3. Can the clamps be customized ?

Yes.

Leave A Message
With 10 years solar experience professional team,SIC SOLAR insist in a management theory of
Related products
Solar Rapid Fixing Clamp Accessories
Solar Panel Quick Fastening Clip

Solar Panel Quick Fastening Clip allow for faster, tool-free assembly, making the entire process muc...

Read More
Solar Racking Rapid Fixing Clamp Accessories
Aluminum Clip for Quick Installation Solar Clamp

Aluminum Clip for Quick Installation Solar Clamp is a key component in the mounting system for solar...

Read More
Solar Structure Accessories
Solar Rail Fastening Clip

Solar Rail Fastening Clip are a small but essential component of a solar panel mounting system used ...

Read More
Solar Rail Fastening Clip
Solar Fast Clip Rail Fastening

Solar Fast Clip Rail Fastening is designed to quickly and safely secure solar panels to mounting rai...

Read More
SUS304 fasteners T-bolt
Stainless steel T bolt for solar mounting structure

Stainless steel T bolt for solar mounting structure are a versatile and robust fastening component, ...

Read More
Solar Grounding Clip Washer

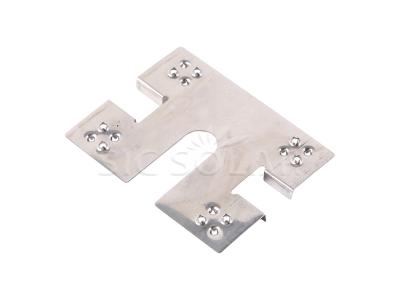

Grounding Washers For Solar Panels
