Solar Panel Quick Mid Clamps
Solar Panel Quick Mid Clamps

Aluminium Solar Panel Mounting Rapid Mid Clamp

Aluminium Solar Panel Mounting Rapid Mid Clamp is what keeps your solar panels securely attached to the mounting rails. You'll find it sitting between two panels in your solar setup, making sure everything stays perfectly aligned and stable.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-IC-B

  • Shipping Port:

    Xiamen, China

  • Installation Site:

    Rail

  • Color:

    Customized

  • Material:

    AL 6005-T5

  • Warranty:

    10 years and 25 years service times

  • Function:

    Fixing solar panel
Inquire Now
Download

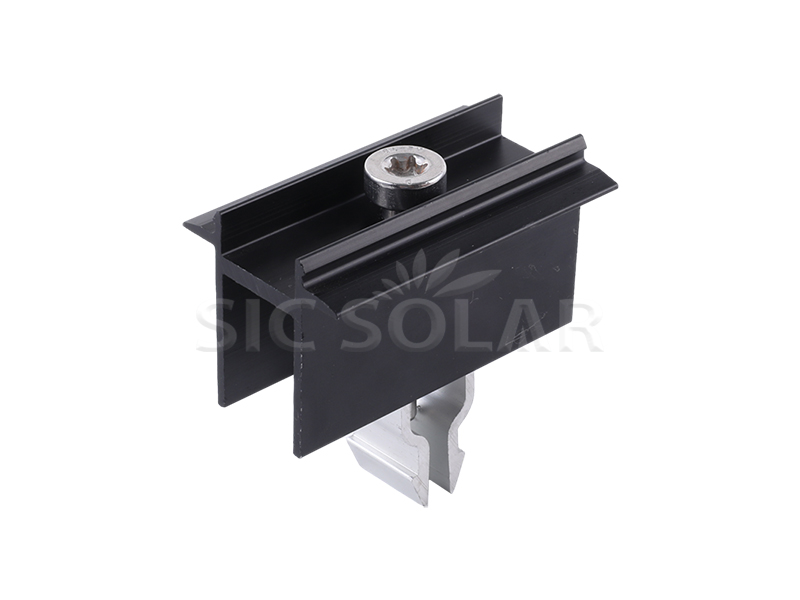

Solar Rapid Mid Clamp

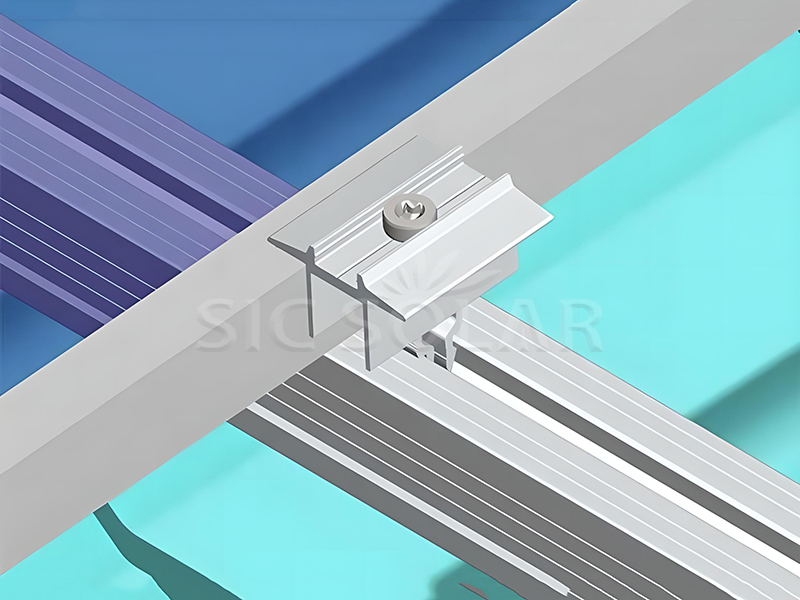

SIC Solar Aluminium Solar Panel Mounting Rapid Mid Clamp super easy to install. You just press it into place between the rail and your solar panel. That's it.



Easy Install Solar Mid Clamp

Aluminium Solar Panel Mounting Rapid Mid Clamp  is designed to grip the sides of your solar panels firmly. It keeps them from shifting around and makes sure they're spaced evenly. That helps your whole system stay stable and work better.

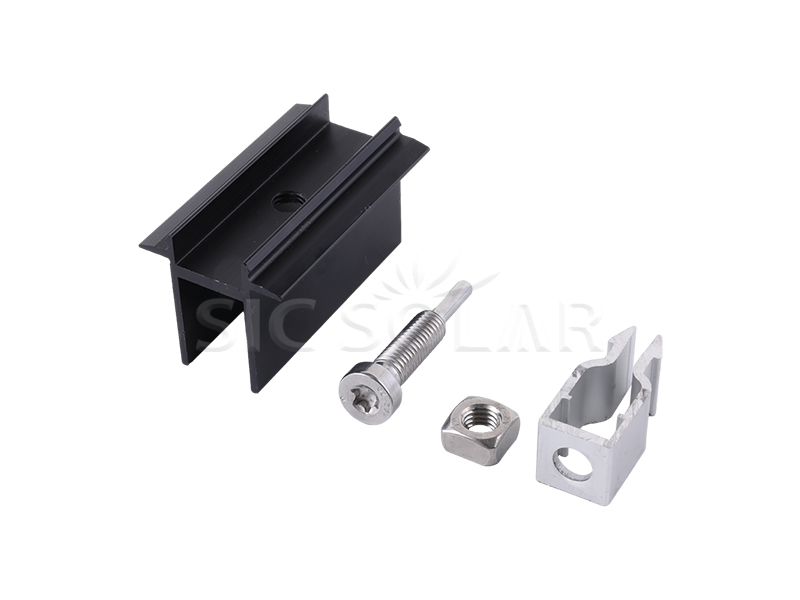

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more mid clamps

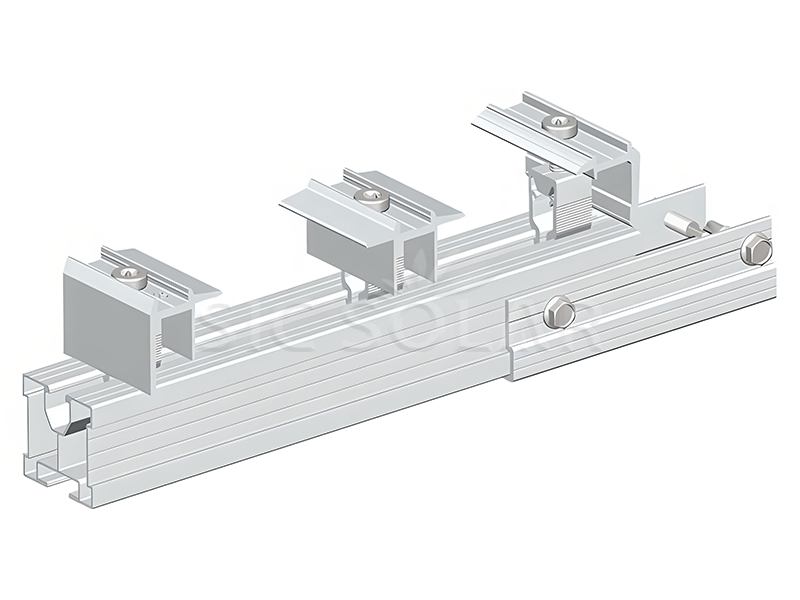

PV panels mid/end clamp

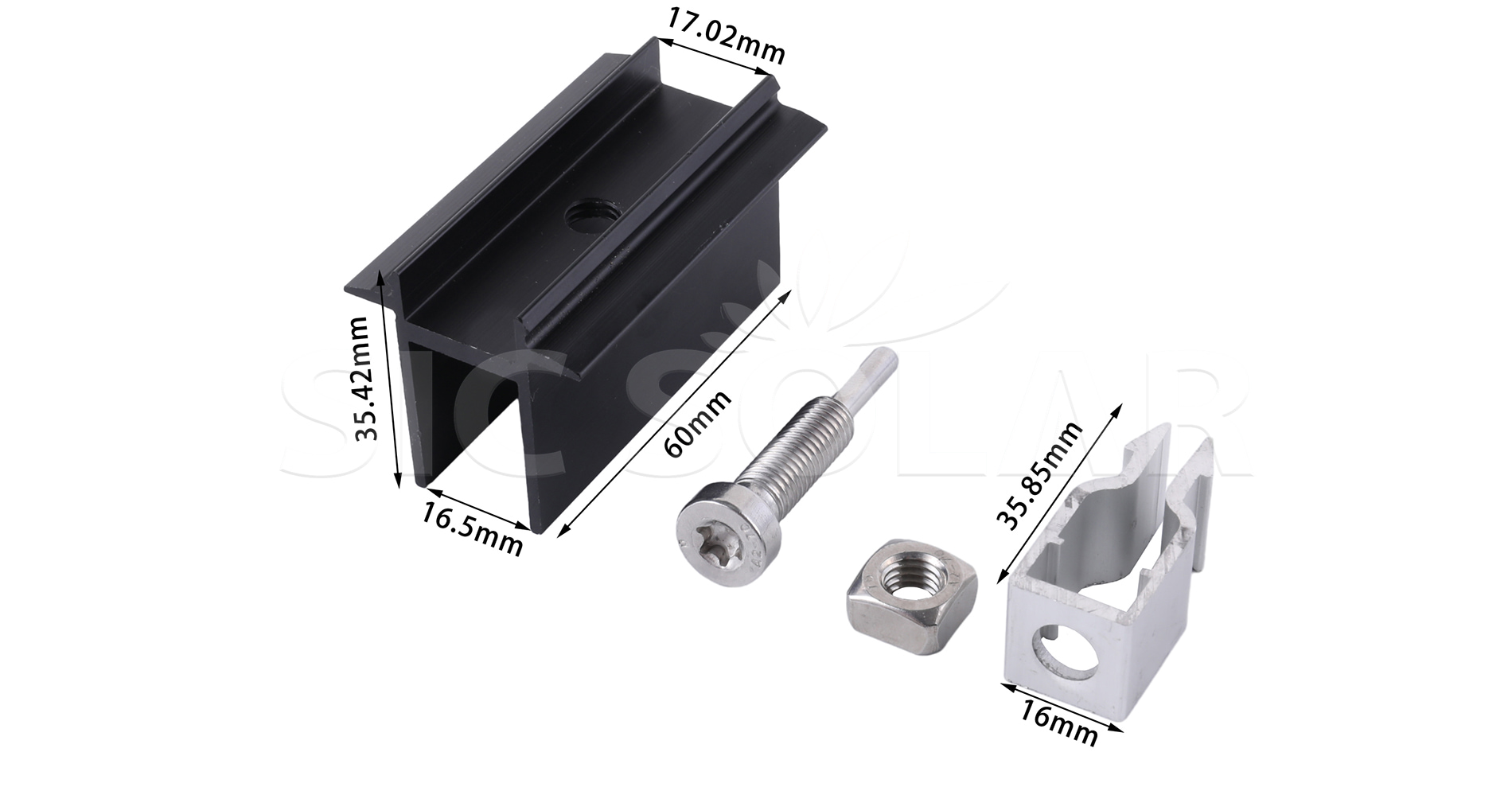

Solar Mid Clamp Dimensions

Name Aluminium Solar Panel Mounting Rapid Mid Clamp

Material

AL 6005-T5

Oxide film

≧10um

Warranty

25YRS

Applicable panel height

30-40mm

Range of Bolt Torque

10-12N*m

Value of Pullout resistance

5KN

1️⃣ First, put your first solar panel onto the mounting rail.

2️⃣ Next, take the center clamp and place it between two panels. Line it up with the edge of the panel frame.

3️⃣ Then, insert the bolts through the center clamp and into the rail slots.

4️⃣ Now, use a wrench or power tool to tighten the center clamp evenly.

5️⃣ Repeat these steps for each panel. When you're done, install the end clamps on both sides.

Solar bracket package

☆ Quick installation — Only need to be pressed hard into the rail.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Anticorrossion.



Related certificate

☆ Aluminum quality certificate -- AL6005-T5 composition list.

☆ SGS Certificate for screw material -- SUS304.

Q1. Can the bolts also be made black ?

Yes.



Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.



Q3. Can the clamps be customized ?

Yes.
