Mid Clamp Solar Panels
Mid Clamp Solar Panels

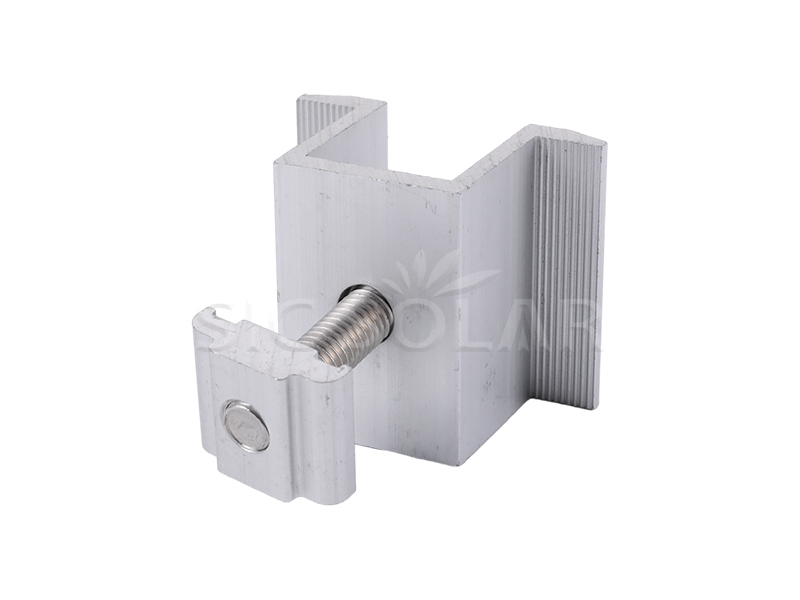

Solar Ground Bracket Mounting Mid Clamp

Solar Ground Bracket Mounting Mid Clamp is super important for sticking solar panels to the ground. It keeps the panels lined up and tight, which is what you want for ground-mounted setups, like big solar farms or even the stuff you'd put in your yard.

  • Brand:

    SIC SOLAR

  • Item NO.:

    SIC-IC-G-40

  • Shipping Port:

    Xiamen, China

  • Installation Site:

    Rail

  • Color:

    Customized

  • Material:

    AL 6005-T5

  • Warranty:

    10 years and 25 years service times

  • Function:

    Fixing solar panel
Inquire Now
Download

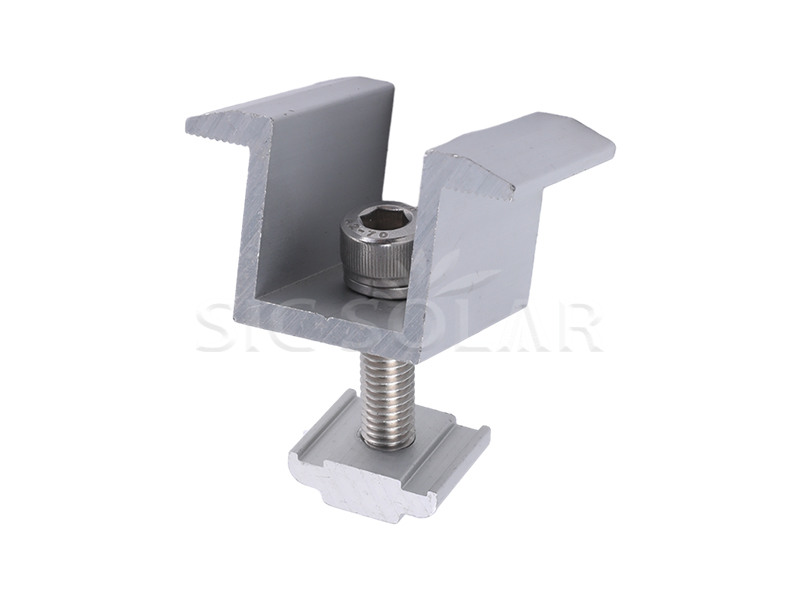

Solar Mid Clamp

Solar Ground Bracket Mounting Mid Clamp makes sure the panels are snug on the ground thingy, staying put and spaced right, so your solar setup lasts a long time and works great.



Solar Mounting Component Mid Clamp

Solar Ground Bracket Mounting Mid Clamp can handle crazy wind and snow, so your panels won't go anywhere, even if you live where the weather gets wild.

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more mid clamps

PV panels mid/end clamp

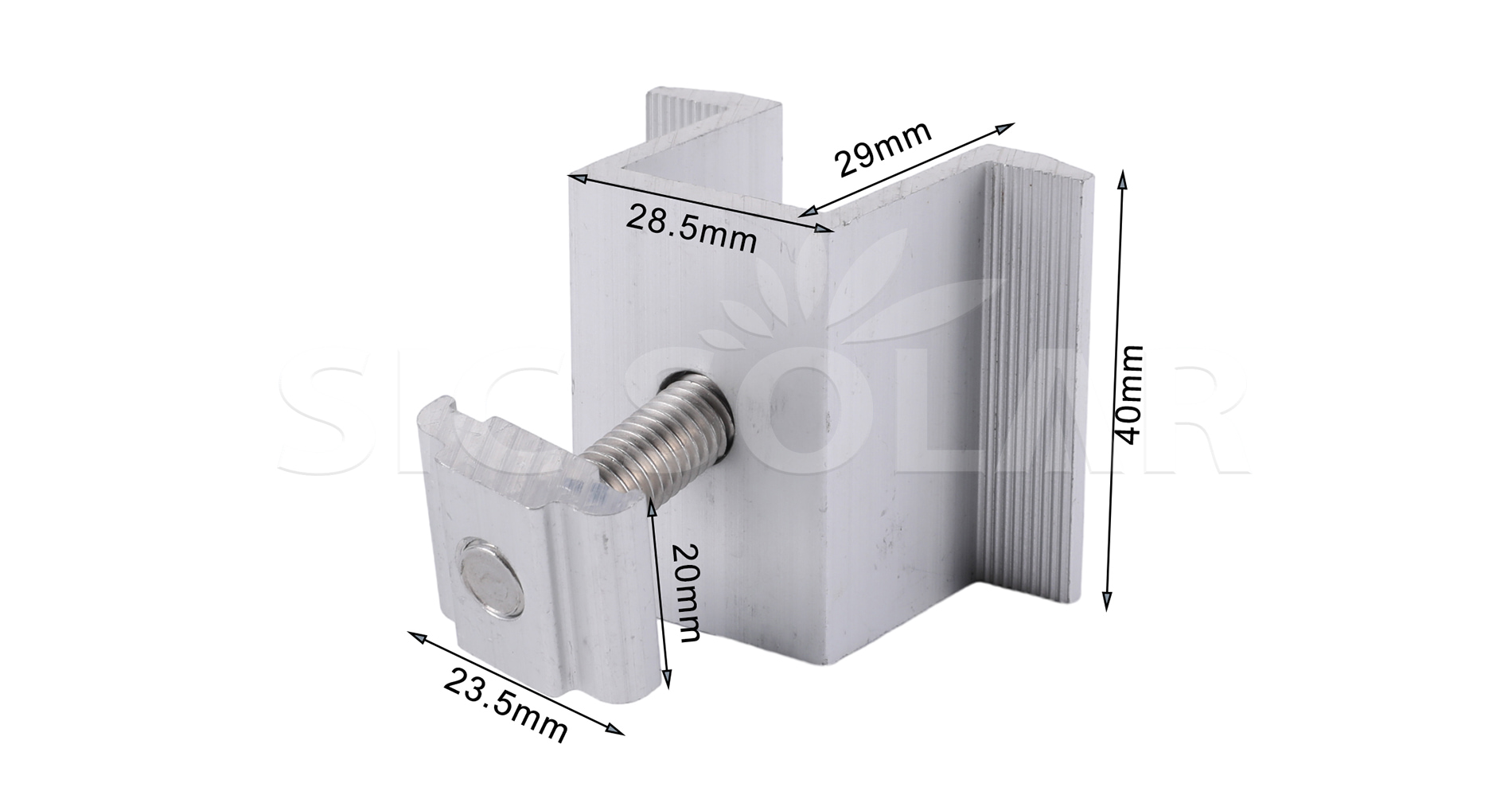

Solar Mid Clamp Dimensions

Name Solar Ground Bracket Mounting Mid Clamp

Material

AL 6005-T5

Oxide film

≧10um

Warranty

25YRS

Applicable panel height

30-40mm

Range of Bolt Torque

10-12N*m

Value of Pullout resistance

5KN

1️⃣ Stick the clamp between the panels on the rail.

2️⃣ Line up the panels so they’re even against the clamp.

3️⃣ Put in the bolts and tighten them down to the rail.

4️⃣ Do that for all the panels.

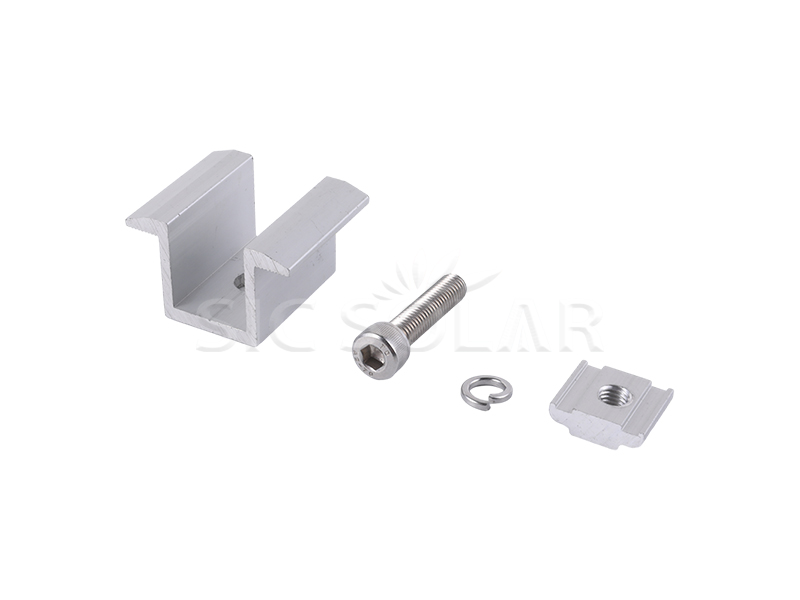

Solar bracket package

☆ Fast install – just press it on the rail.

☆ Tough stuff – made of good aluminum, so it lasts 10 years, easy, and should be good for 25.

☆ No rust.



Related certificate

☆ Aluminum cert – shows what’s in the metal.

☆ SGS cert for the screws – says it’s good stainless steel.

Q1. Can the bolts also be made black ?

Yes.



Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.



Q3. Can the clamps be customized ?

Yes.
