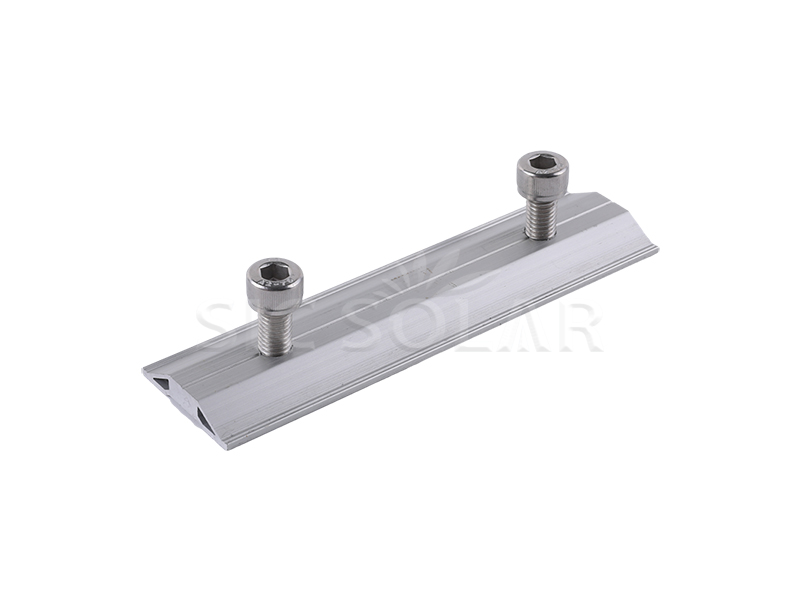

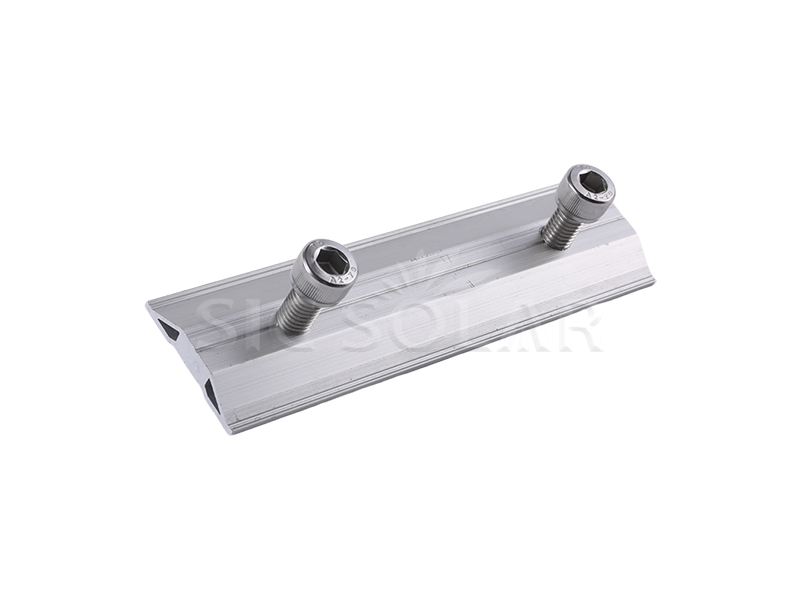

Aluminum rail pv brackets rail connector

Aluminum Rail PV Brackets Rail Connector is a strong but light part that connects pieces of PV mounting rails to keep solar panel setups lined up and steady. It works great for systems on roofs or the ground, making the whole structure stronger.

Brand:
SIC SOLAR
Item NO.:
SIC-RS-03
Color:
NATURE
Installation Site:
Solar Rail
Material:
AL6005-T5
Warranty:
10 years and 25 years service time
Wind Load:
<60M/S
Snow Load:
<1.4KN/M2

Inquire Now

Download

Putting in the Aluminum Rail PV Brackets Rail Connector is pretty easy. You just bolt it on and quickly attach it to the solar support track. It’s made to get the job done faster, saving time and money on labor.

Aluminum Rail PV Brackets Rail Connector is super strong and doesn't bend easily, so it can handle the weight of the solar bracket system and anything else that comes its way. This strength keeps the whole thing safe and stable.

Components Technical Details Installation Guide Package Advantage

Click here to learn more splices

Photovoltaic rail splice bracket

Solar Rail Connector

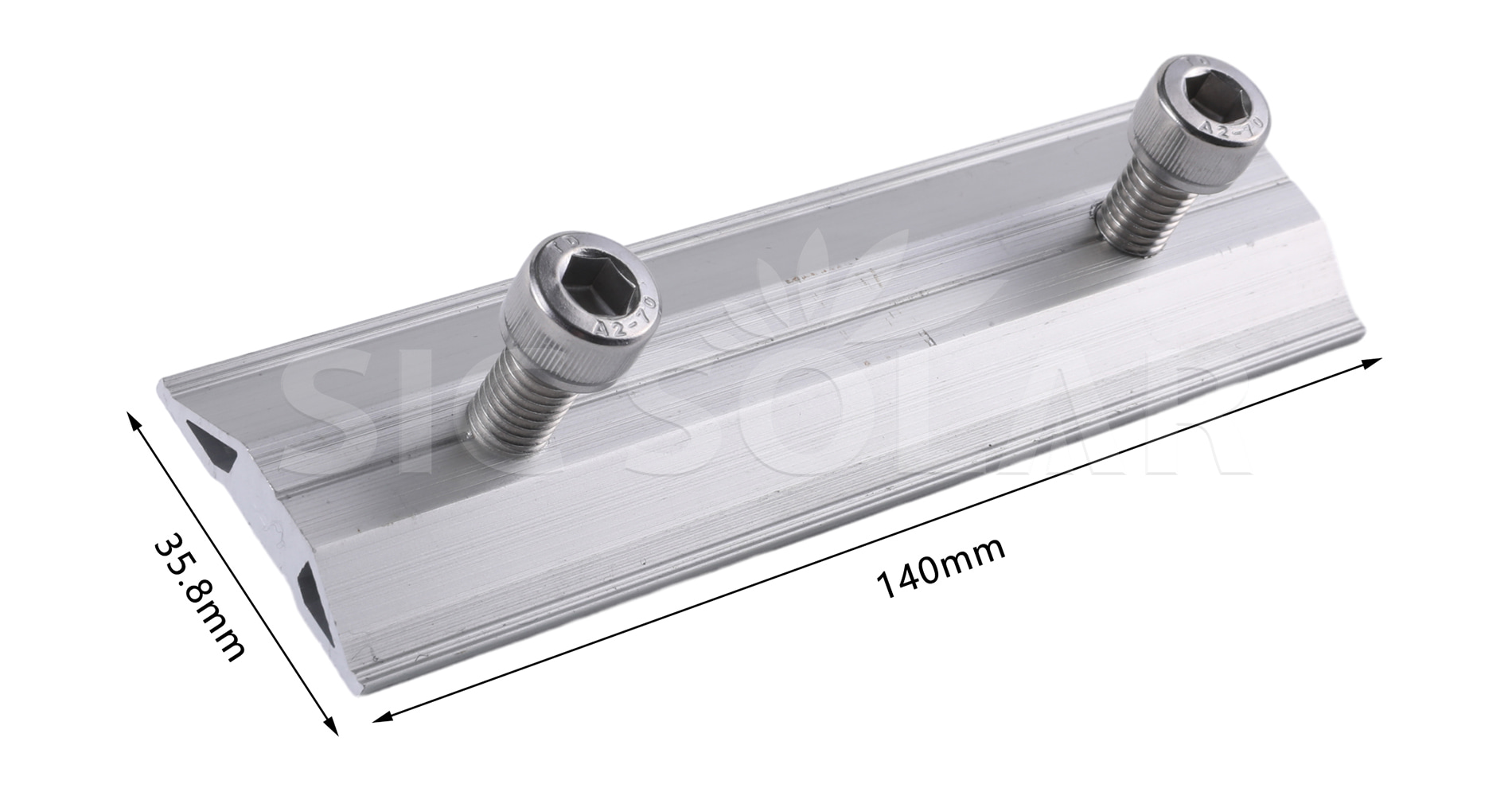

Installation Site	Solar Rail
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Line up the rail ends: Make sure the aluminum rail ends are clean and ready.

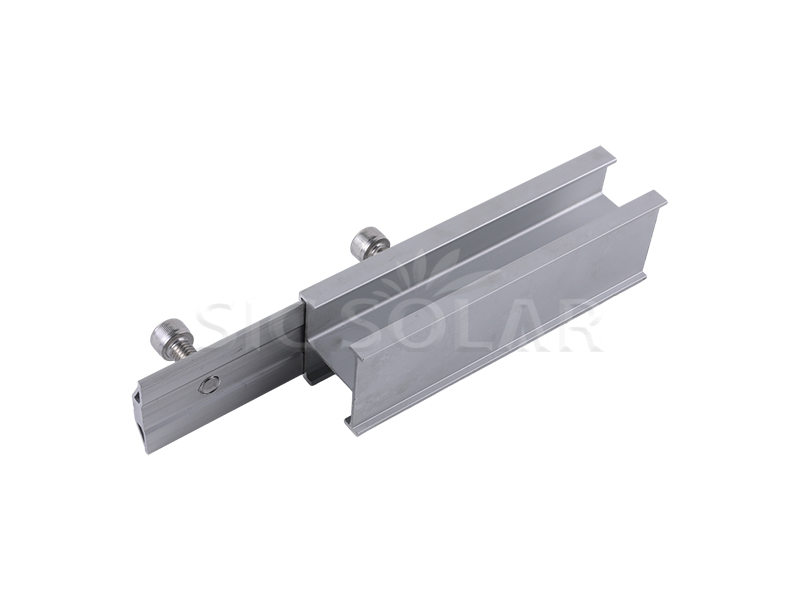

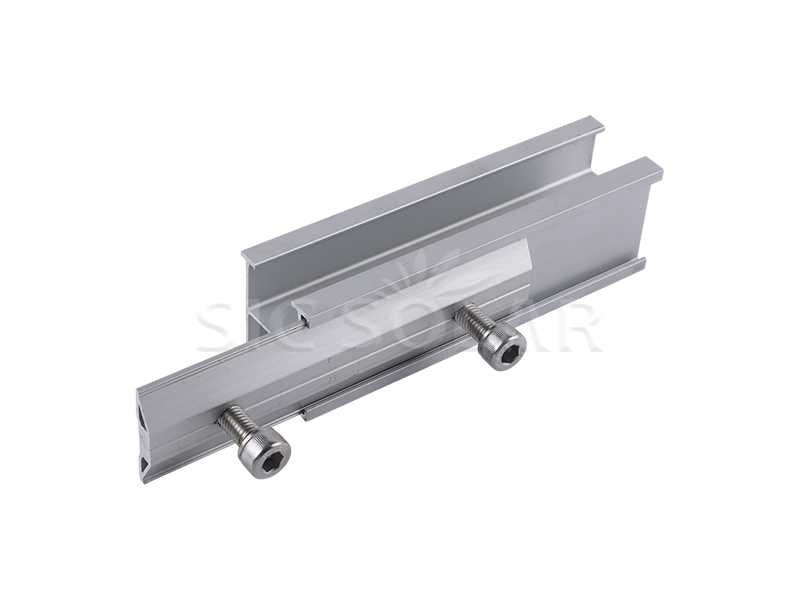

2️⃣ Put in the connector: Slide the connector into one rail and then into the other until it’s all the way in.

3️⃣ Bolt it: Tighten the screws or bolts to make sure the pieces are secure and won’t vibrate loose.

Aluminium profile connector

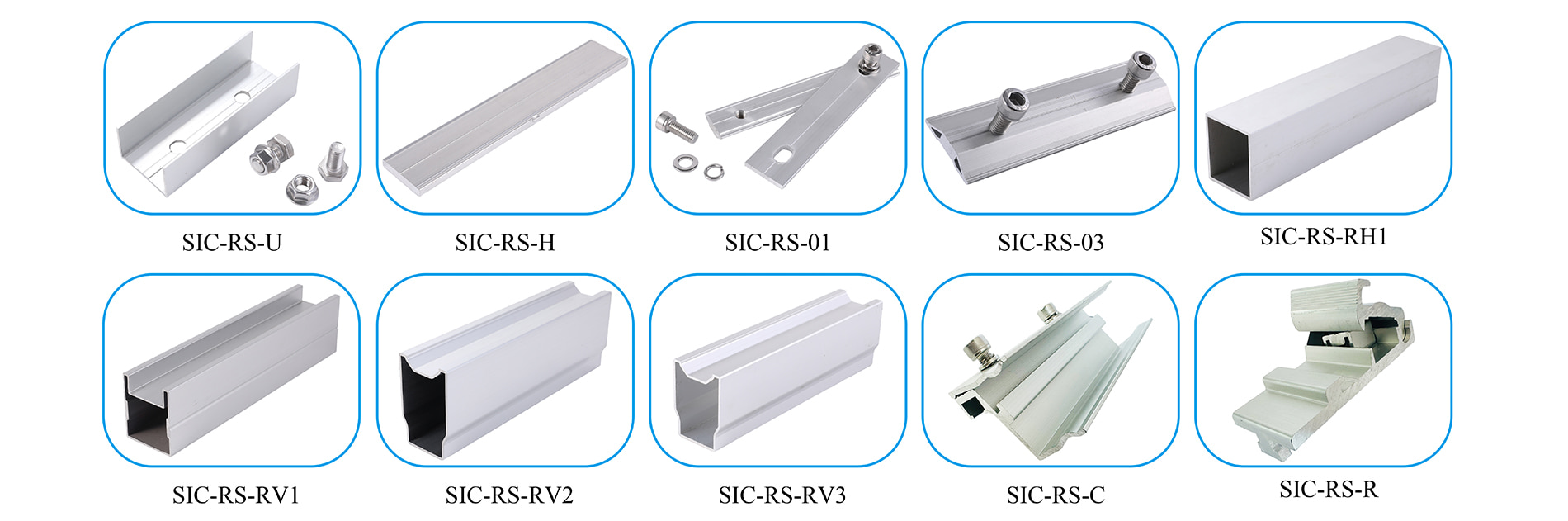

☆ You can get different rail splices to make the rail longer.

☆ Really Tough – Top-notch AL6005-T5, so it comes with a 10-year and should last for 25 years.

☆ Rail splices come pre-assembled – saves a lot of work when you're installing them.

Related certificate

☆ Certificate showing the aluminum quality -- list of what's in AL6005-T5.
