Rail connector for solar ground bracket rail

Rail Connector for Solar Ground Bracket Rail is a key component designed to join two sections of ground-mounted solar rails, providing stability and structural continuity in solar mounting systems. This connector ensures the integrity of solar arrays, making it suitable for various ground-mounted applications, including commercial solar farms and residential setups.

Brand:

SIC SOLAR

Item NO.:

SIC-RS-RV1

Color:

NATURE

Installation Site:

Solar Rail

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Components Technical Details Installation Guide Package Advantage

Click here to learn more splices.

Photovoltaic rail splice bracket

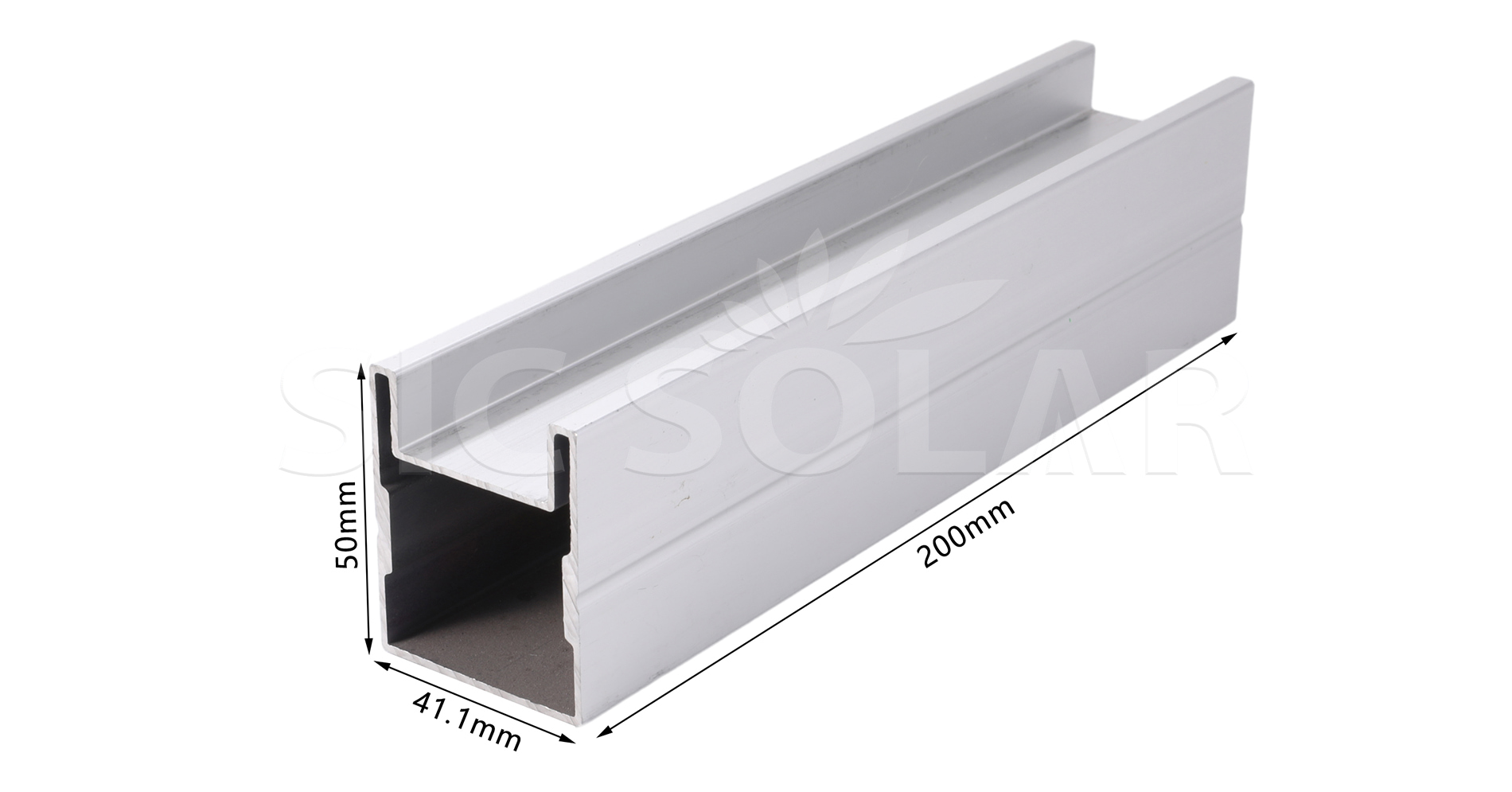

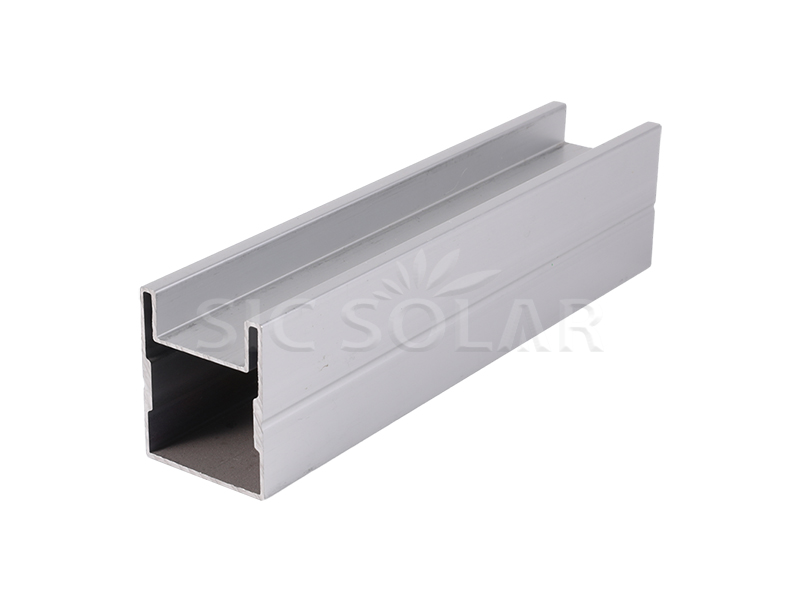

Solar Rail Connector

Installation Site	Solar Rail
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Prepare the rails: Cut both ends of the rails cleanly to ensure there is no debris.

2️⃣ Insert the connector: Slide the connector into the first half of the rail, align the second rail and slide it into the remaining half.

3️⃣ Secure with fasteners: Use appropriate bolts and tighten evenly to ensure a flat and secure connection.

Aluminium profile connector

Advantages as follow:

☆ Various rail splices could be offered for different rail to extend the whole rail length.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Pre-assembled rail splices – highly save the labor cost at your installation site.

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list
