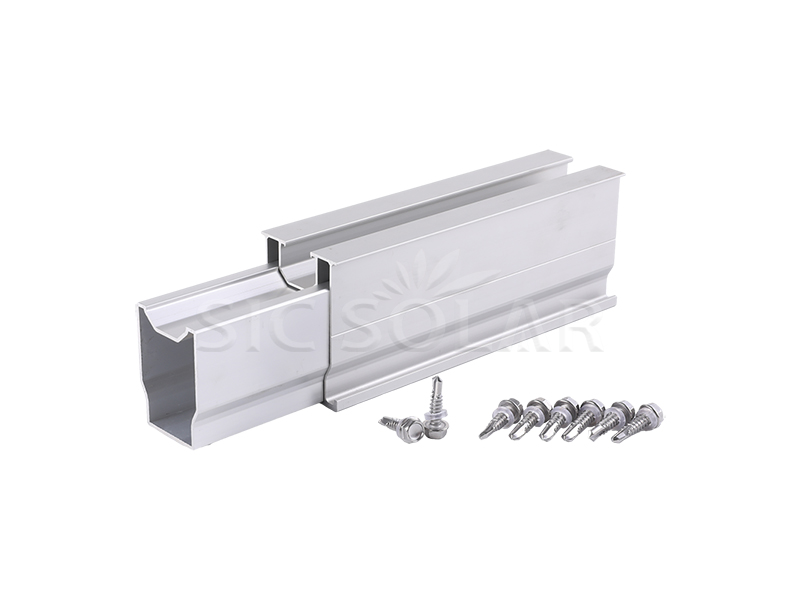

Rail connector for solar ground rail RV3

Rail Connector for Solar Ground Rail RV3 is an essential component designed to join two sections of ground-mounted solar rails, providing a seamless and sturdy connection. This connector ensures the structural integrity of the solar mounting system, supporting the stability and alignment of the solar array.

Brand:

SIC SOLAR

Item NO.:

SIC-RS-RV3

Color:

NATURE

Installation Site:

Solar Rail

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Components Technical Details Installation Guide Package Advantage

Click here to learn more splices.

Photovoltaic rail splice bracket

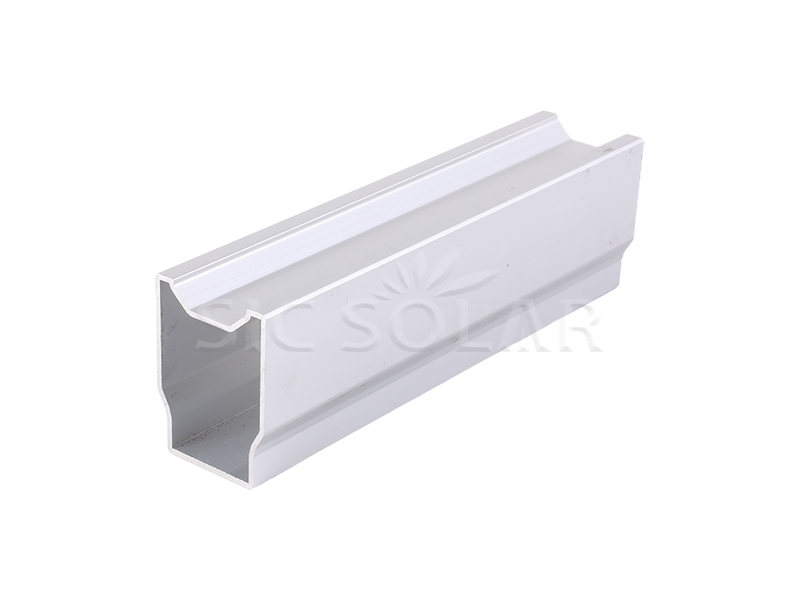

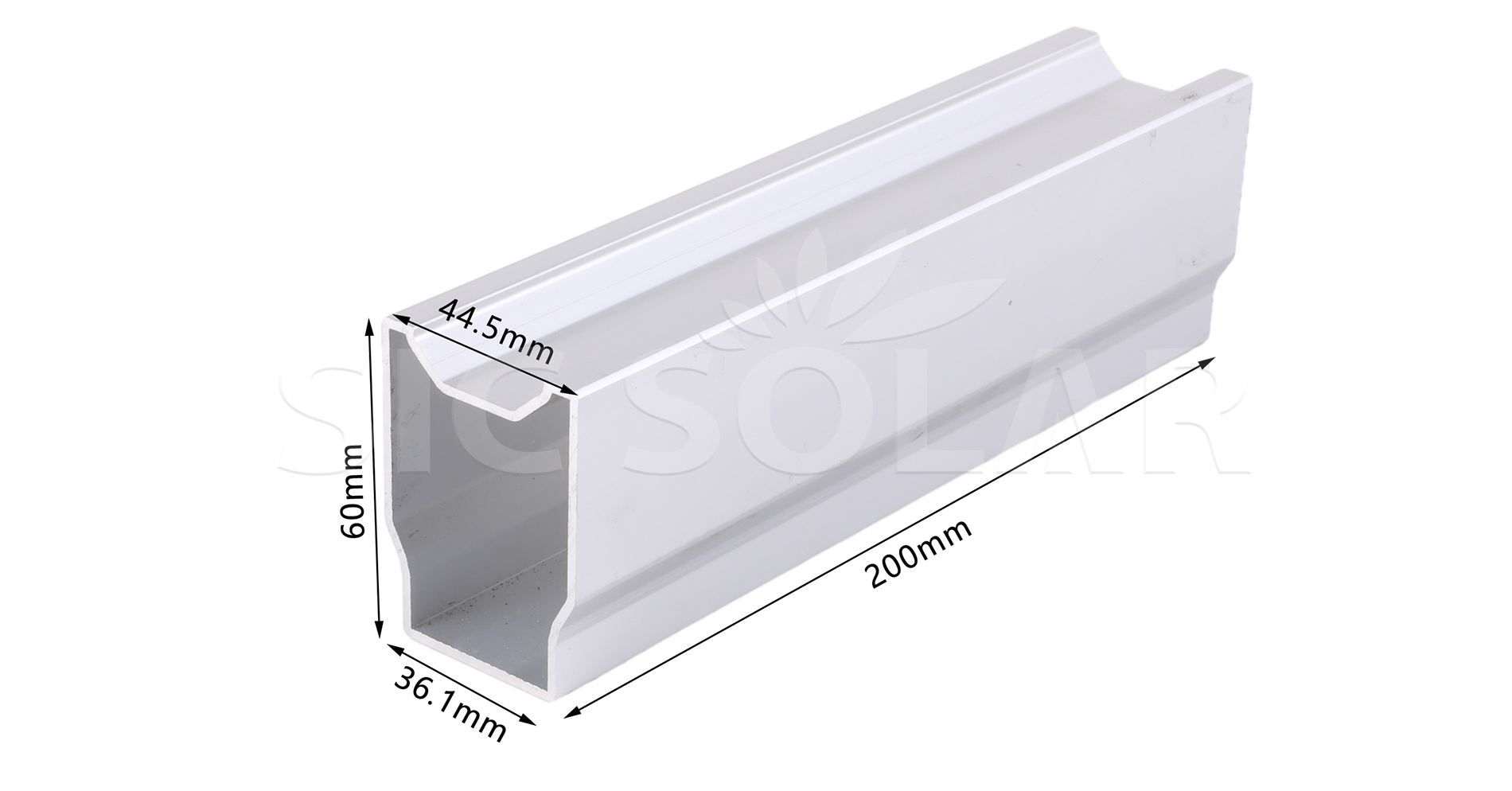

Solar Rail Connector

Installation Site	Solar Rail
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Align the connector with the end of the rail: Slide the connector halfway into the end of one RV3 rail and position the second rail until the connector meets the connector.

2️⃣ Insert and tighten the bolts: Secure both sides of the connector with the provided bolts and nuts, tighten to the level specified by the manufacturer using a torque wrench.

3️⃣ Check alignment: Make sure the connected rails are level and flush for smooth panel installation.

Aluminium profile connector

Advantages as follow:

☆ Various rail splices could be offered for different rail to extend the whole rail length.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Pre-assembled rail splices – highly save the labor cost at your installation site.

Related certificate

Aluminum quality certificate -- AL6005-T5 composition list
