Ground Solar Rail Splice for RH1 Rail

Ground Solar Rail Splice for RH1 Rail is super important for linking pieces of RH1 ground-mounted solar rails together safely. It keeps everything strong and steady, which helps your solar panels stay put and lined up on the ground.

Brand:

SIC SOLAR

Item NO.:

SIC-RS-RH1

Color:

NATURE

Installation Site:

Solar Rail

Material:

AL6005-T5

Warranty:

10 years and 25 years service time

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

Components Technical Details Installation Guide Package Advantage

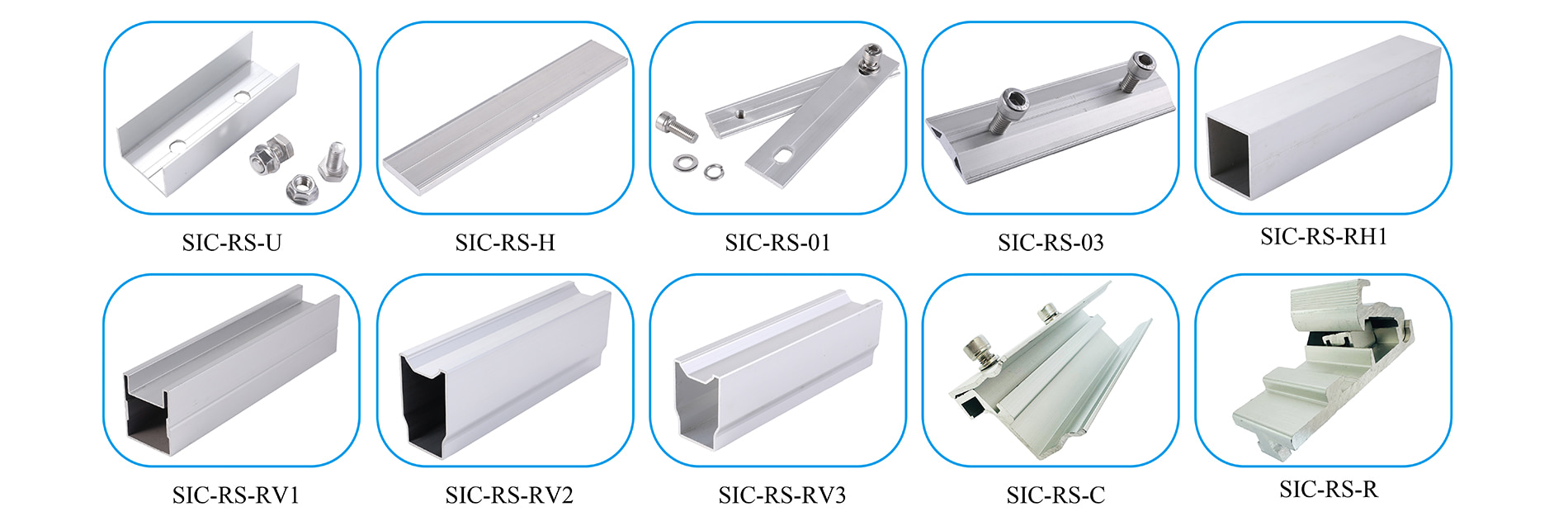

Click here to learn more splices.

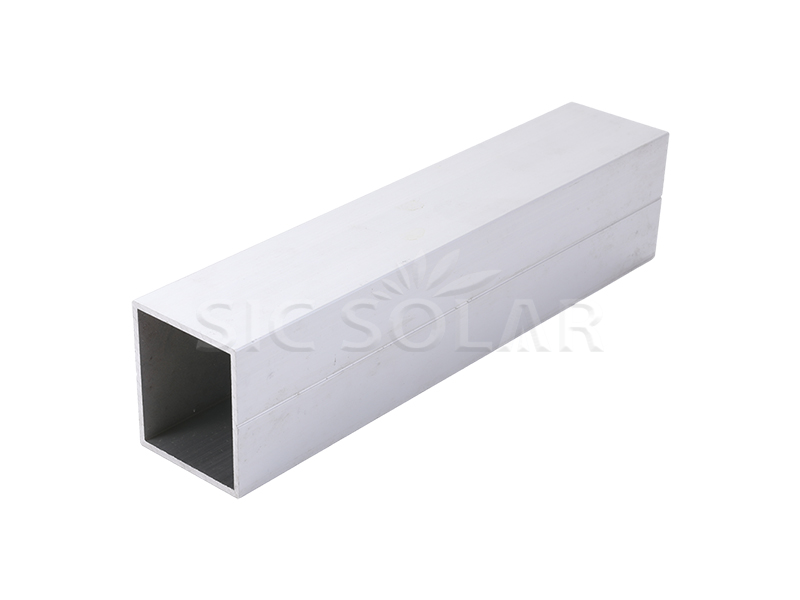

Photovoltaic rail splice bracket

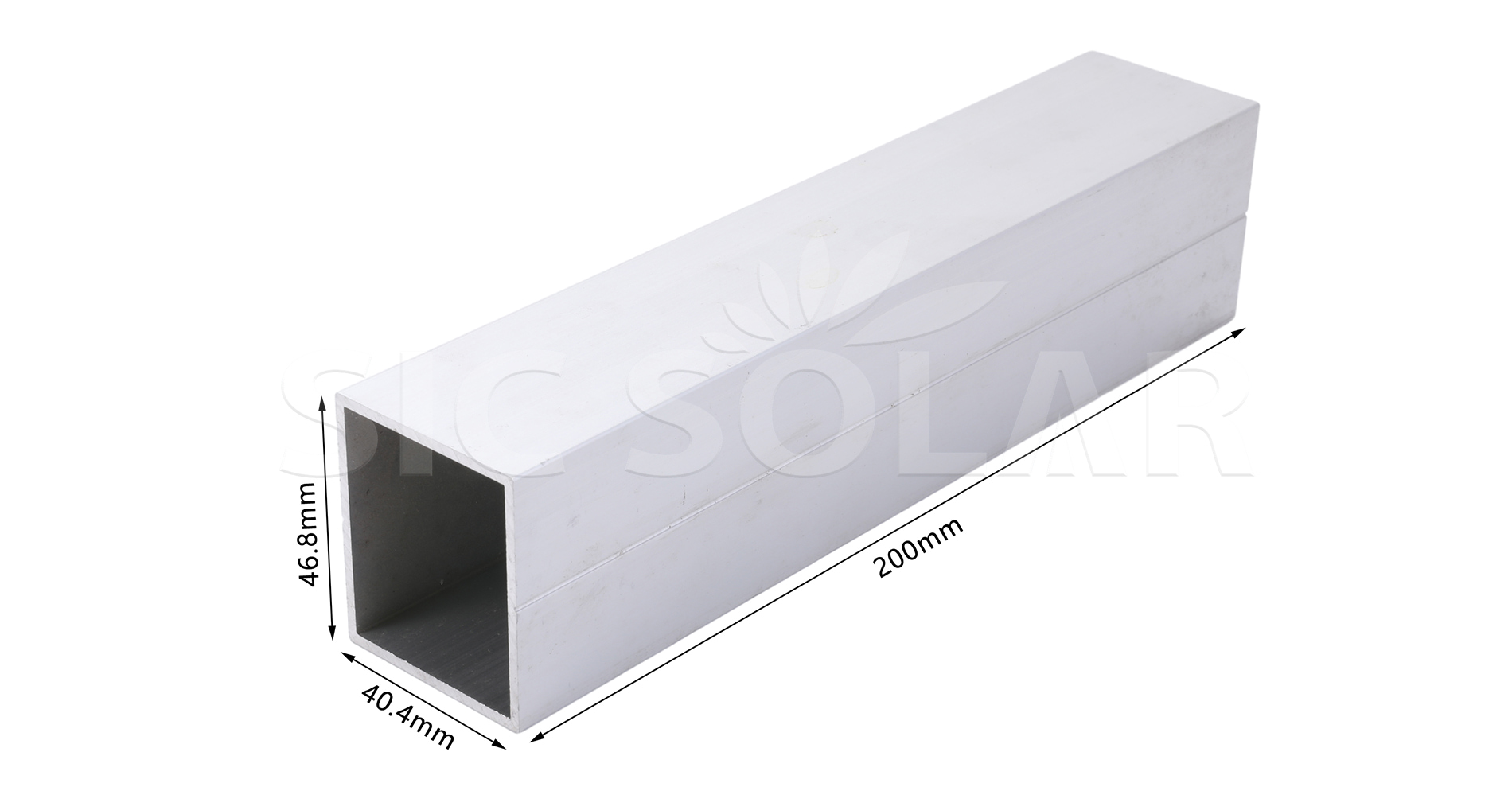

Aluminum Rail Connector

Installation Site	Solar Rail
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	AL6005-T5
Color	Natural or Customized
Anticorrosive	Anodized aluminum
Warranty	10 years and 25 years service time

1️⃣ Line up the rail ends: Make sure the RH1 rail ends are nice and clean and cut just right.

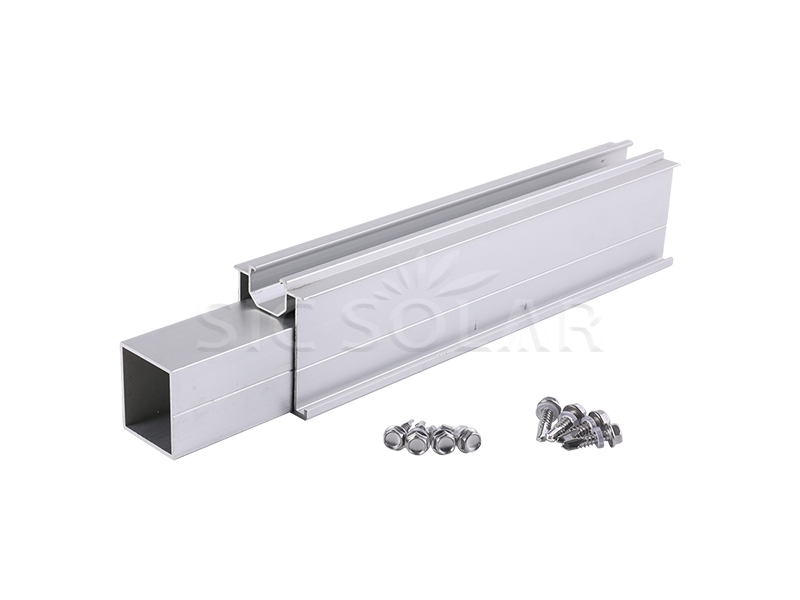

2️⃣ Stick in the connector: Slide the connector halfway into the first rail, then push in the second rail until it’s all lined up.

3️⃣ Tighten it down: Use bolts and nuts to lock both sides together. Tighten them evenly so it’s nice and snug.

Aluminium profile connector

☆ Different rail joiners are available if you need to make your rails longer.

☆ Really Tough – Good AL6005-T5 means it's guaranteed for 10 years and should last 25 years.

☆ These rail joiners come pre-assembled – which saves you money.

Related certificate

☆ Aluminum quality certificate -- AL6005-T5 ingredient list.
