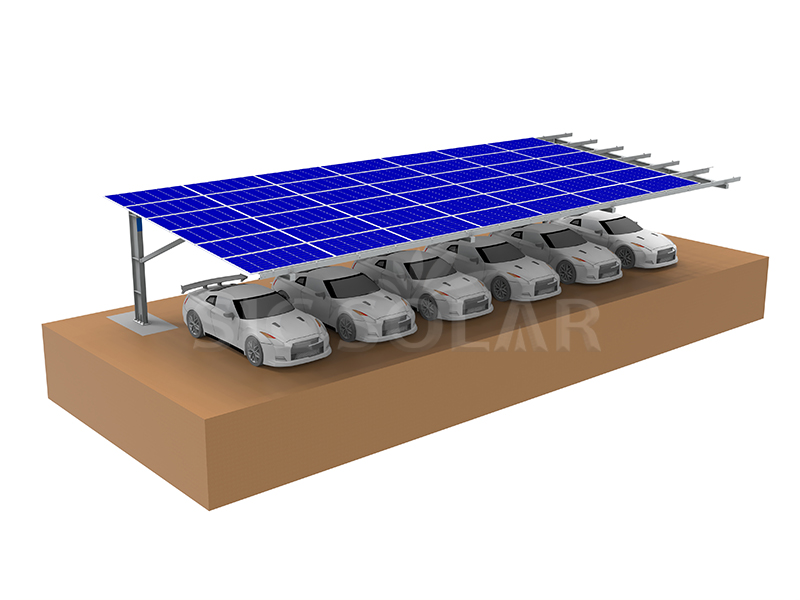

Carport Mounting System Pv Parking Structure Solar
Carport Mounting System Pv Parking Structure Solar

Carbon steel carport mounting system pv parking structure solar

Carbon steel carport mounting system pv parking structure solar is a robust system that utilizes high-strength steel construction for the installation of solar panels while providing shelter for vehicles.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-SC2
  • Installation Site:

    Ground or Openfiled
  • Tilt Angle:

    <60 degree
  • Material:

    Carbon steel
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2



Pv Carport Structures

Carbon steel carport mounting system pv parking structure solar are versatile and suitable for both commercial and residential uses, as well as larger-scale solar photovoltaic projects for businesses and utilities.

Carport Mounting System Pv Parking Structure Solar

Carbon steel carport mounting system pv parking structure solar is an innovative solution that combines solar power generation with a functional parking structure. Ideal for residential, commercial and industrial applications that can harness the power of the sun while providing shelter for vehicles.

Carport Mounting

Product Name

Carbon steel carport mounting system pv parking structure solar

Installation Site

Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Carbon steel

Color

Natural or Customized

Anticorrosive

Carbon steel

Warranty

10 years and 25 years service time

1️⃣ Site Assessment and Design

Survey parking layout, soil bearing capacity and structural clearance; determine single or double arm design options.

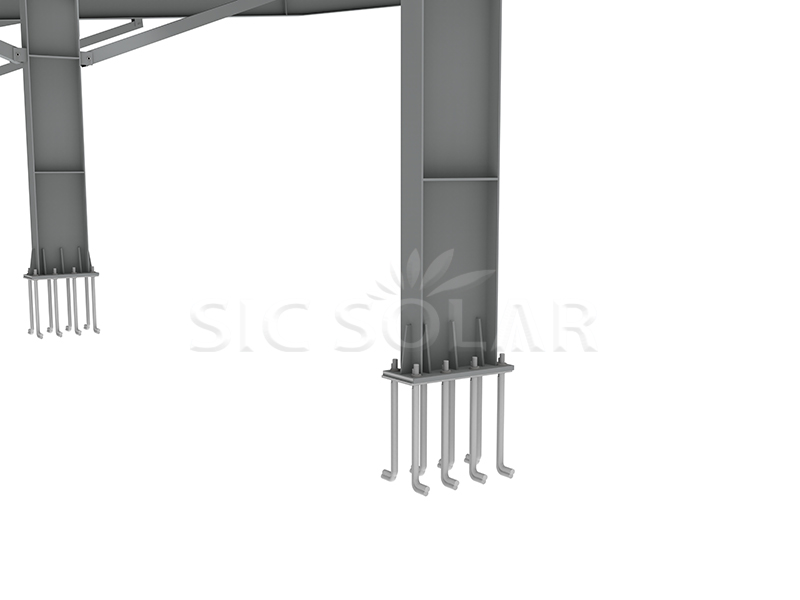

2️⃣ Foundation Installation

Install anchor screws or concrete piers according to engineering specifications; ensure verticality within ±10 mm.

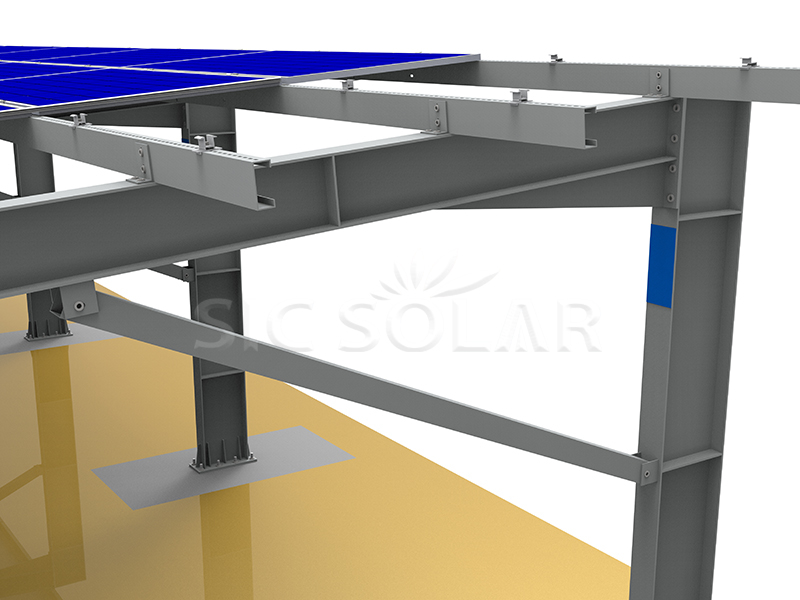

3️⃣ Frame Assembly

Erect support arms and brackets; bolt beams/purlins, loosely fixed at first to facilitate alignment.

4️⃣ Tilt Bracket and Track Connection

Fix tilt brackets to support arms at designed angles; slide track into brackets and hand tighten fasteners.

5️⃣ Module Installation

Place module on track, insert stainless steel clamps and tighten to 15-20 Nm torque using a calibrated wrench.

6️⃣ Grounding

Connect module frame and track to grounding system using dedicated lugs; verify continuity according to local specifications.

7️⃣ Final Inspection

Torque audit all bolts, inspect for coating damage, and verify tilt angles and clearances.

Our standard package is steel pallet for long aluminum profile, while small aluminum components will be packed into cartons with plywood pallet.



package for solar carport mount

Advantages as follow:

☆ Solar carport could be customized according to your ground size.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Aluminum profile is very light and easy for installation. It is also anti-corrosion.

☆ Pre-assembled main frame  – highly save the labor cost at your installation site.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
