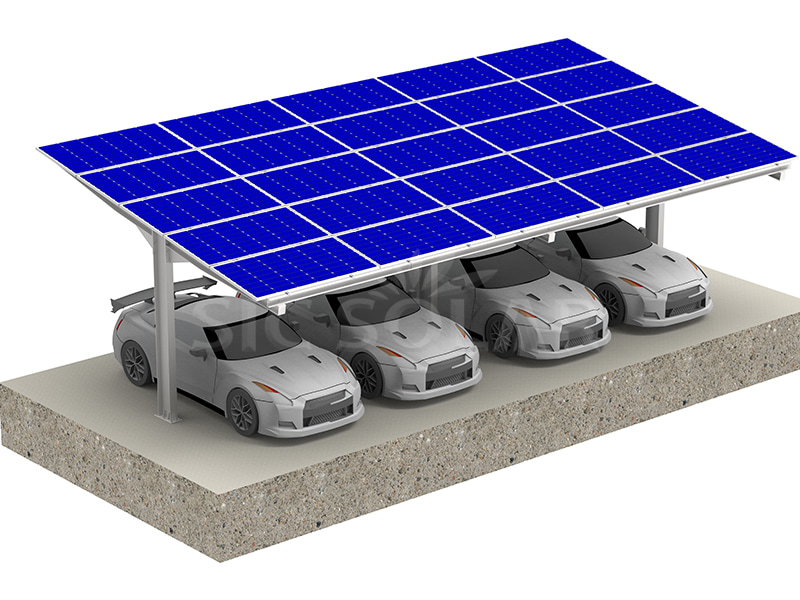

Carport Steel Structures Solar System

Carport Steel Structures Solar System integrates with solar energy systems to provide an innovative and versatile solution for harnessing the sun's energy. They can be used as a carport while generating renewable electricity, making them ideal for residential, commercial and industrial applications.

Brand:

SIC SOLAR

Item NO.:

SIC-SC4

Installation Site:

Ground or Openfiled

Tilt Angle:

<60 degree

Material:

Carbon steel

Wind Load:

<60M/S

Snow Load:

<1.4KN/M2

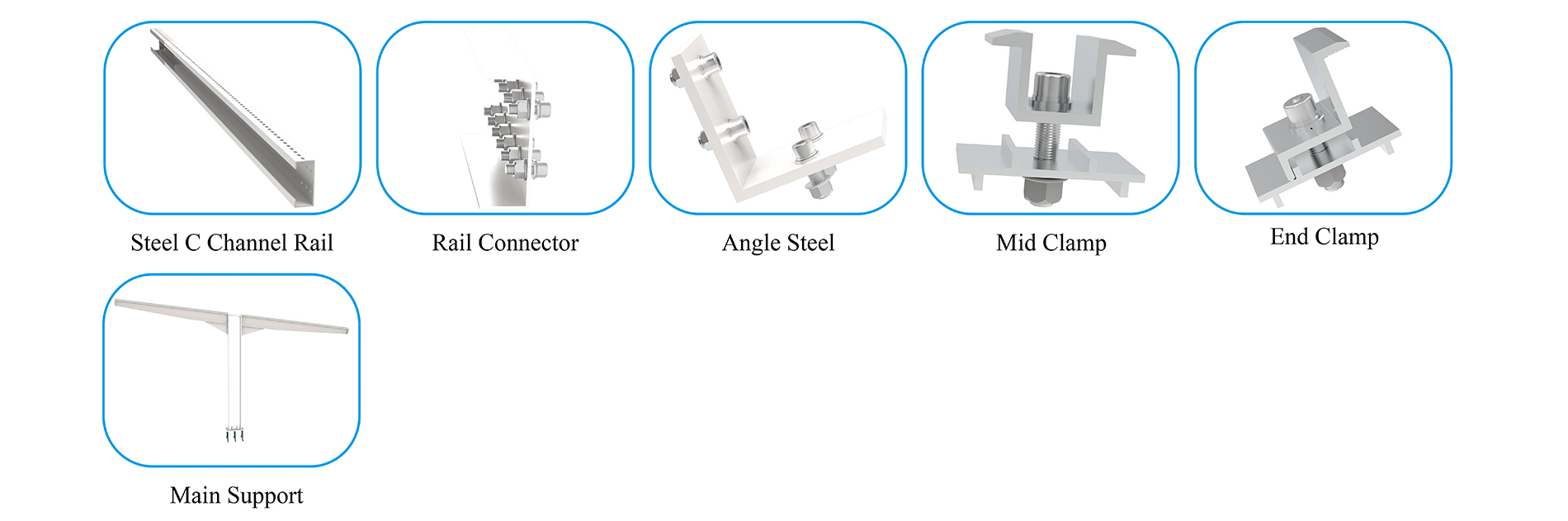

Components Technical Details Installation Guide Package Advantage

Click to view more Carport Mounting

Product Name	Carport Steel Structures Solar System
Installation Site	Ground
Wind Load	<60M/S
Snow Load	<1.4KN/M2
Material	Carbon steel
Color	Natural or Customized
Anticorrosive	Carbon steel
Warranty	10 years and 25 years service time

1️⃣ Site Investigation and Design

Perform geotechnical and structural clearance assessments; select single or double column layout.

2️⃣ Foundation Engineering

Install anchor screws or concrete piers as per engineering specifications; ensure verticality within ±10 mm.

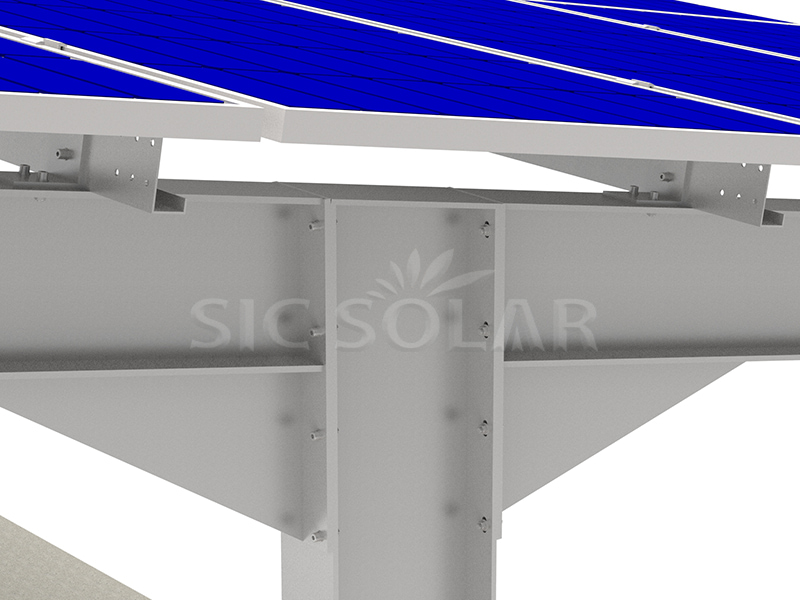

3️⃣ Frame Installation

Bolt support columns and beams together using pre-drilled holes; tighten loosely at the end for final alignment.

4️⃣ Tilt Bracket and Track Connection

Fix the tilt bracket to the beam at the designed angle; slide the track into the notch and tighten the fasteners by hand.

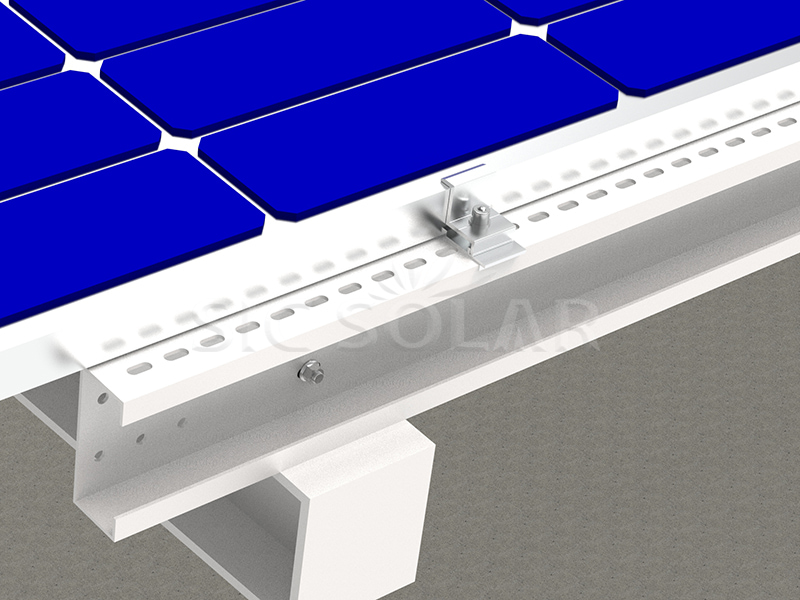

5️⃣ Module Installation

Position the PV modules, insert the clamps into the track, and tighten the bolts to 15-20 Nm using a calibrated wrench.

6️⃣ Grounding and Grounding Wires

Connect the module frame and steel structure to the grounding system using grounding lugs; perform continuity tests as per local standards.

7️⃣ Final inspection and commissioning

Perform torque check, coating inspection, tilt angle verification and record as-built drawings; schedule regular inspections.

Our standard package is steel pallet for long aluminum profile, while small aluminum components will be packed into cartons with plywood pallet.

package for solar carport mount

Advantages as follow:

☆ Solar carport could be customized according to your ground size.

☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.

☆ Aluminum profile is very light and easy for installation. It is also anti-corrosion.

☆ Pre-assembled main frame – highly save the labor cost at your installation site.

Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
