Quick Solar Pv Module Fastening Clip End Clamp
Quick Solar Pv Module Fastening Clip End Clamp

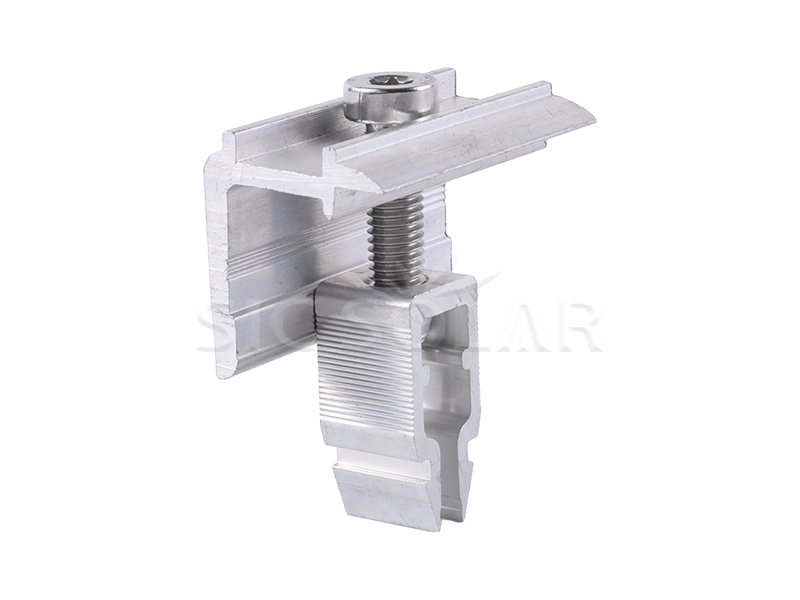

Aluminum Rail Solar Pv Rapid End Clamp

Aluminum Rail Solar Pv Rapid End Clamp is a key part for attaching the edges of solar panels to the rail in your setup. It's made for fast and firm installs, so it works great for homes, businesses, and big solar farms.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-EC-HM
  • Shipping Port:

    Xiamen, China
  • Installation Site:

    Rail
  • Color:

    Customized
  • Material:

    AL 6005-T5
  • Warranty:

    10 years warranty and 25 years service times
  • Function:

    Fixing solar panel



Solar Rapid Fixing End Clamp

Aluminum Rail Solar Pv Rapid End Clamp is designed to connect to the rail quickly. This saves time and makes installing easier, which really helps on those bigger jobs.



Clamp For Solar Panel

Aluminum Rail Solar Pv Rapid End Clamp come in sizes that fit most solar panel frame heights (like 30mm, 35mm, 40mm). This means they'll work with different kinds of panels.

Name Aluminum Rail Solar Pv Rapid End Clamp

Material

AL 6005-T5

Oxide film

≧10um

Warranty

25YRS

Applicable panel height

30-40mm

Range of Bolt Torque

10-12N*m

Value of Pullout resistance

5KN

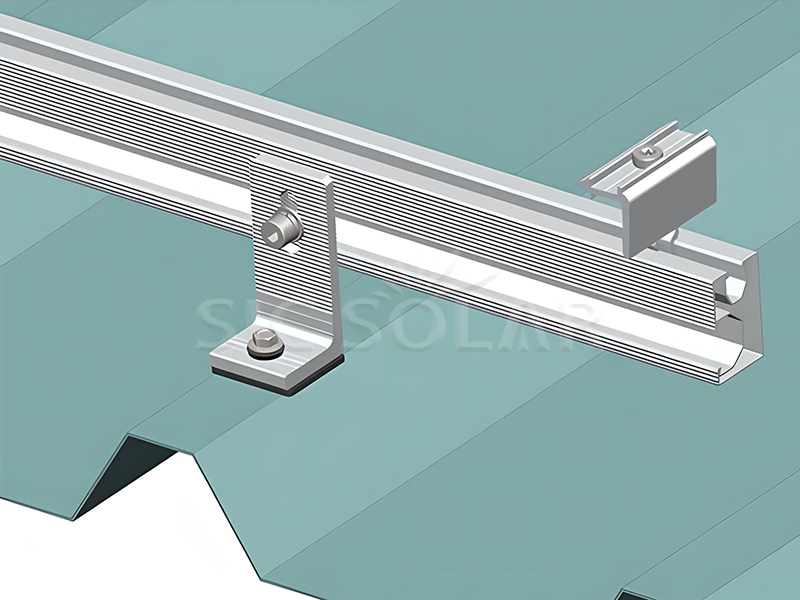

1️⃣ Put the solar panel on the aluminum rail and hold it in place.

2️⃣ Line up the end clamps with the edges of the panel and slide them into the rail slots.

3️⃣ Use a wrench or drill to tighten the bolts and lock the panel down.

Solar bracket package

☆ Fast install — Just press it onto the rail.

☆ Lasts Long – Made with strong AL6005-T5, so it comes with a 10-year and should last you 25 years.

☆ Anticorrossion.



Related certificate

☆ Aluminum quality certificate -- Shows the AL6005-T5 makeup.

☆ SGS Certificate for screw material -- Says the screws are SUS304.

Q1. Can the bolts also be made black ?

Yes.



Q2. What’s the adjustable range of rapid mid/end clamp ?

We have 2 type. One is 30-35mm, the other is 30-40mm.



Q3. Can the clamps be customized ?

Yes.
