Ballasted roof mount solar racking
Ballasted roof mount solar racking

Solar ballast mounting systems

Solar Ballast Mounting Systems are a type of solar panel mounting solution that utilizes ballast as a means of anchoring the solar panels to a surface, such as a flat roof. Ballast refers to any heavy material, typically concrete blocks or sandbags, that is used to provide stability and prevent the mounting system from being blown away by wind or other environmental factors.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-BM-02
  • Installation Site:

    Flat roof or ground
  • Color:

    Nature
  • Material:

    Hot dipped Galvanized steel Q235B
  • Warranty:

    10 years and 25 years service time
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2

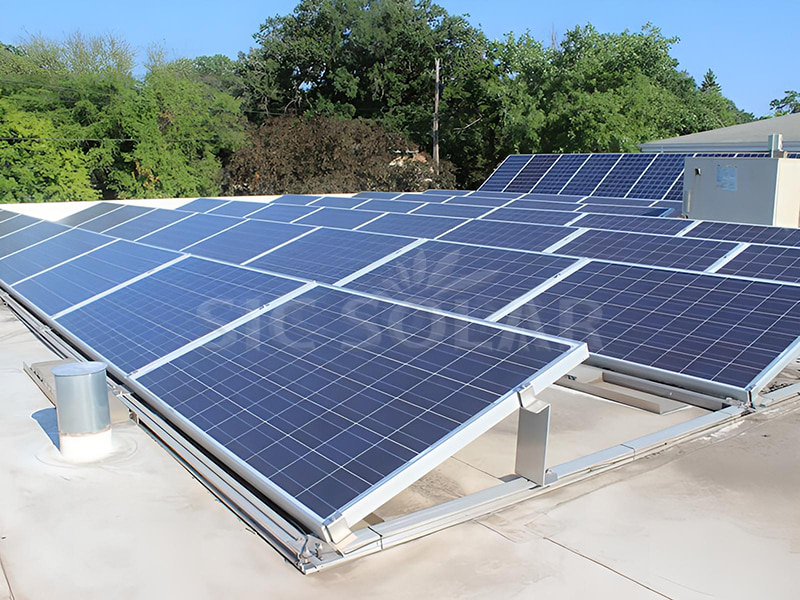

flat roof ballasted rooftop structure

Solar ballast mounting systems is simple and can be completed without complicated roof penetrations or additional structural support. Once installed, there is virtually no maintenance required. The ballast provides a stable foundation for the solar panel, ensuring its long-term performance and reliability.

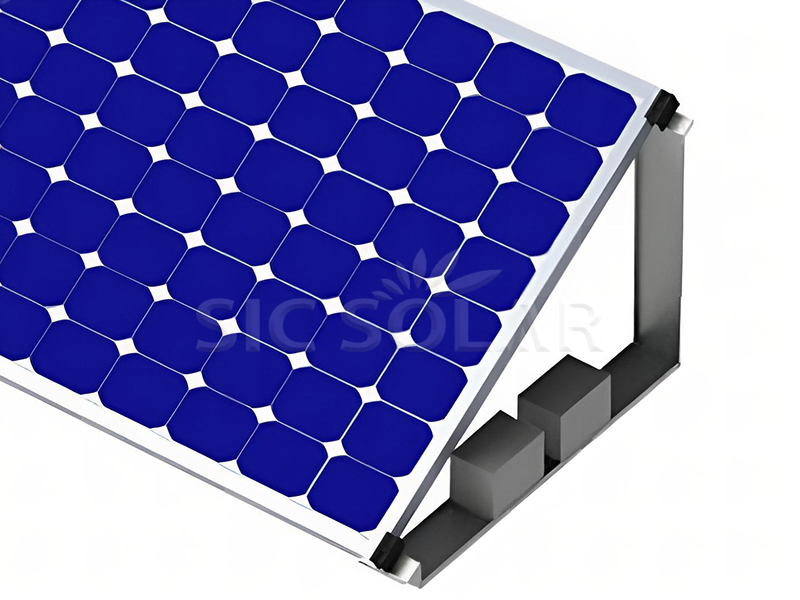

Flat roof ballasted rooftop racking

Solar Ballast Mounting Systems offers a cost-effective and scalable solution for long-term solar energy production due to its ease of installation, non-penetrating design, and ability to maximize roof space without compromising roof integrity.

Installation Site

Flat roof or Ground

Wind Load

<60M/S

Snow Load

<1.4KN/M2

Material

Hot dipped Galvanized steel Q235B, Aluminum 6005-T5 & Stainless Steel 304

Color

Natural or Customized

Anticorrosive

Hot dipped Galvanized steel & stainless steel

Warranty

10 years and 25 years service time

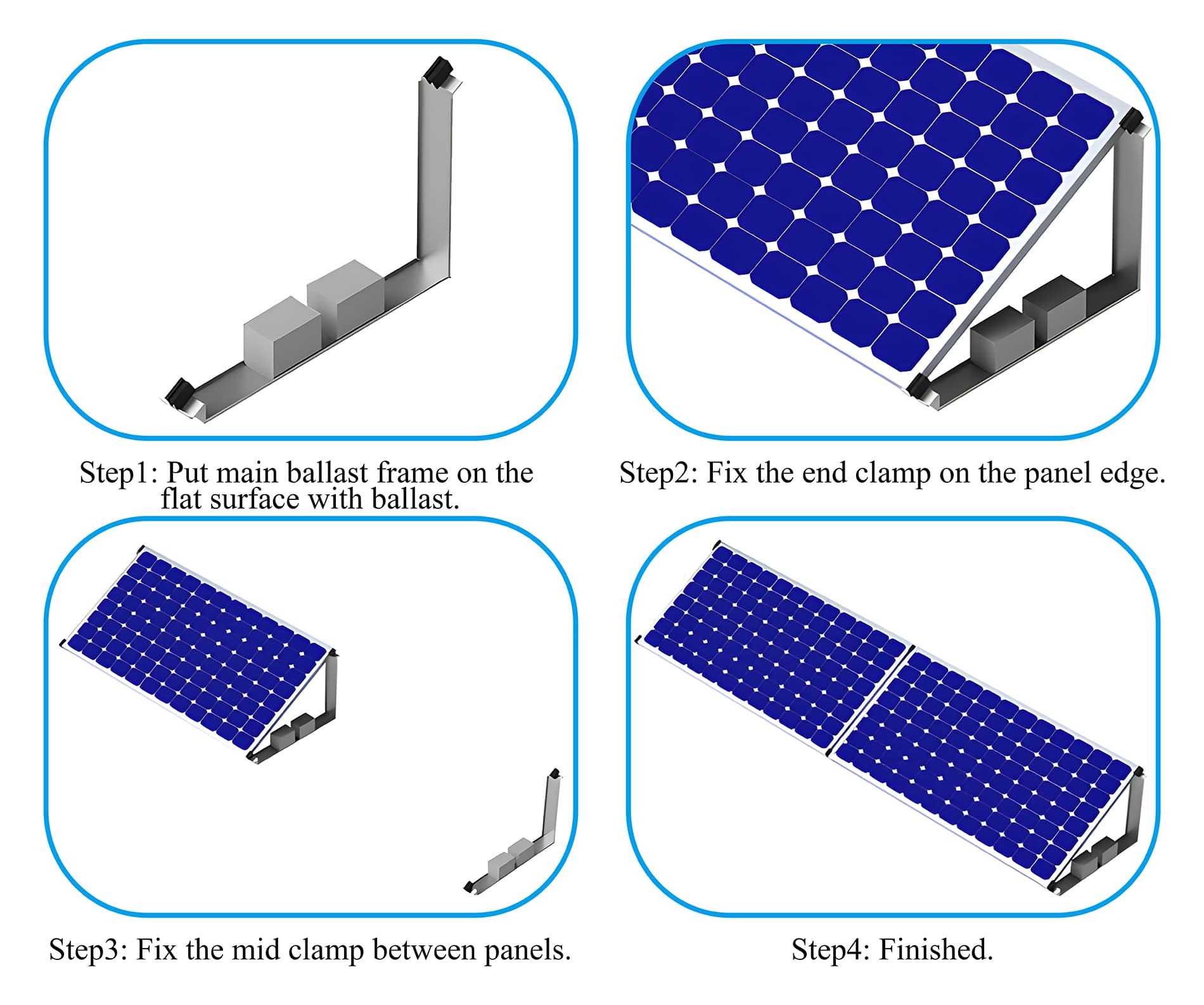

1️⃣ Layout and Assessment: Draw array footprint, verify roof capacity, and plan ballast placement.

2️⃣ Frame Placement: Position brackets according to design drawings.

3️⃣ Ballast Loading: Place concrete blocks into pallets until the specified weight is reached.

4️⃣ Rail and Panel Installation: Install rails (if applicable) and secure modules with mid/end clamps.

5️⃣ Electrical Completion: Run wires, install ground lugs, and test the system.

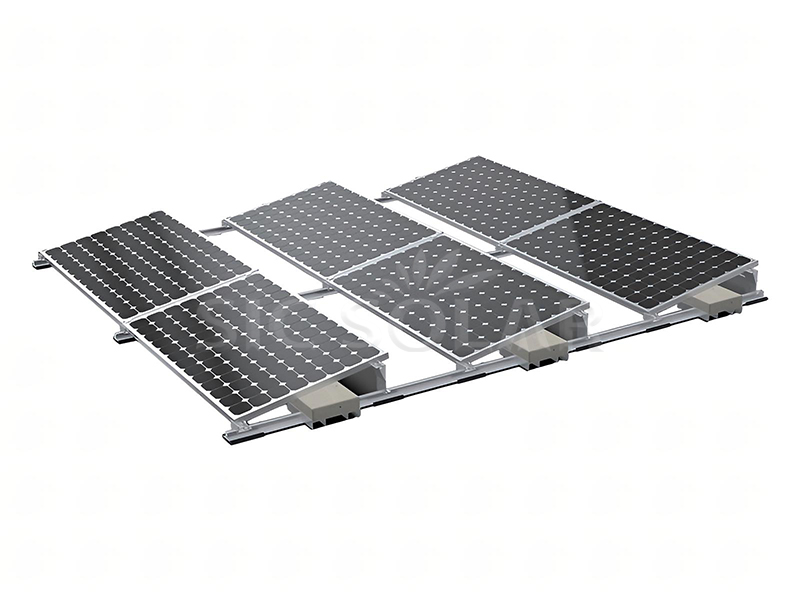

Low ballasted aluminum pv mounting system

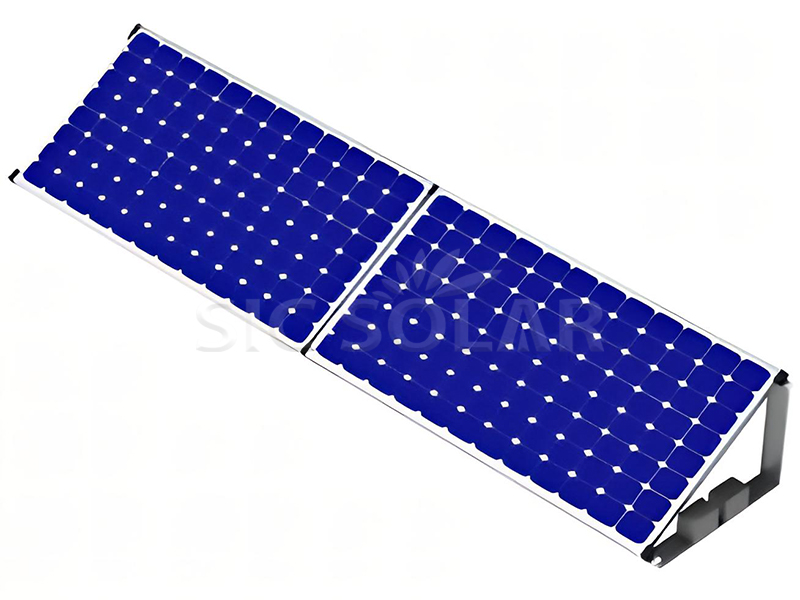

Solar bracket package

Advantages as follow:

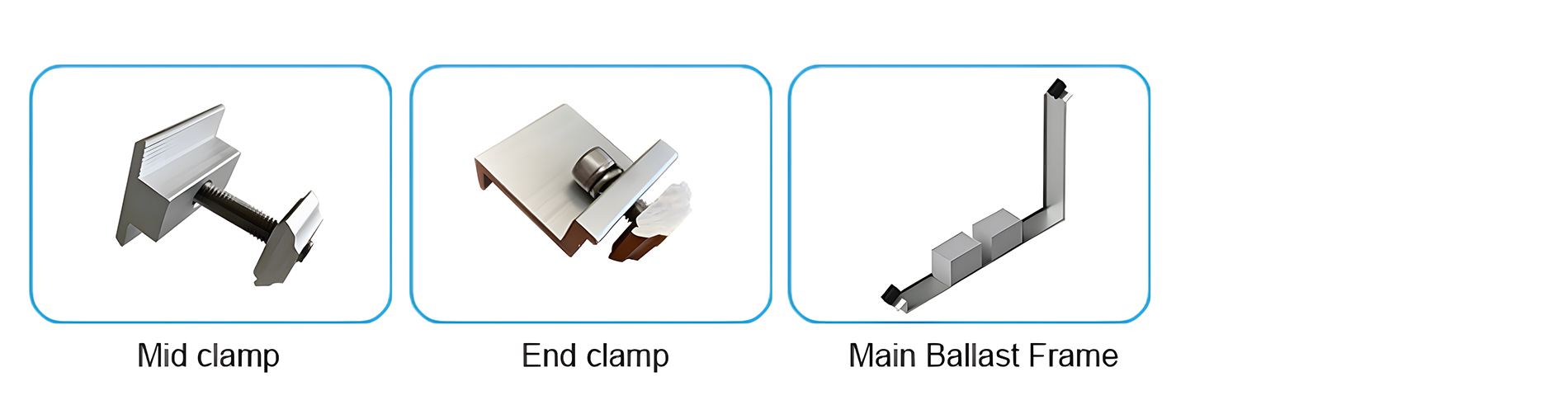

☆ Easy to use - Only 3 components: mid clamps, end clamps and Main Ballast Frame.

☆ High Durability – Best steel Ensure 10 years warranty and 25 years service time.

☆ Hot dipped galvanized Steel Q235B could meet high strength request, which is also anti-corrosion.

☆ Customized Mid clamps and end clamps could be pushed into the main ballast frame easily.

☆ 10-30 degree available.



Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.



Q1. Can you provide East-West Ballasted Mount?

Yes.



Q2. What’s the weight of Ballasted Object?

This will need customers local wind speed and snow load.
