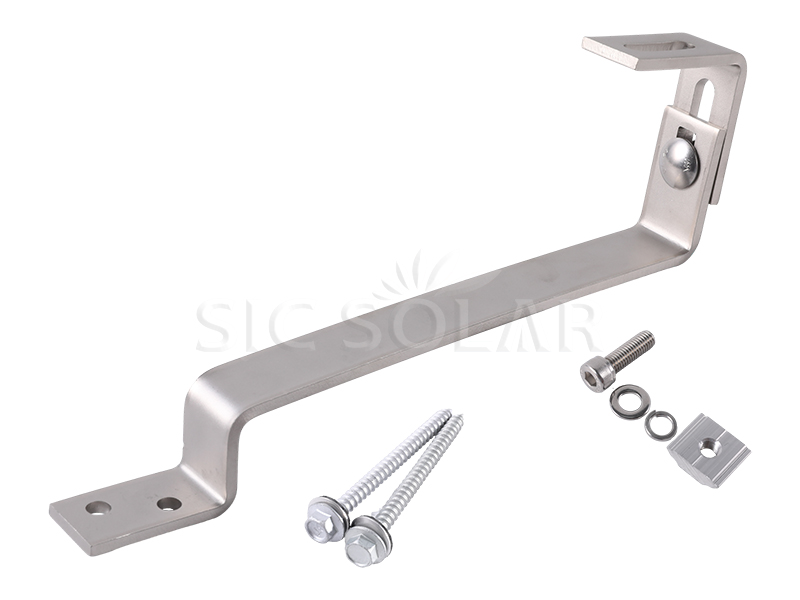

Stainless steel solar panel mounting hook
Stainless steel solar panel mounting hook
Stainless steel solar panel mounting hook

Adjustable Slate Roof Tile Solar Hook

Adjustable Slate Roof Tile Solar Hook is a specialized mounting accessory designed to securely mount solar panels on slate tile roofs. Its adjustable design allows for precise positioning, making it a versatile solution for different tile thicknesses and roof structures.

  • Brand:

    SIC SOLAR
  • Item NO.:

    SIC-TH-15
  • Shipping Port:

    Xiamen,China
  • Installation Site:

    Tile Roof
  • Material:

    SUS 304
  • Warranty:

    10 years warranty and 25 years service time
  • Function:

    Connecting roof to rail
  • Wind Load:

    <60M/S
  • Snow Load:

    <1.4KN/M2



Tile Roof Hooks

Adjustable Slate Roof Tile Solar Hook is made of stainless steel and will not corrode quickly. By the way, the height of the hook is adjustable, once the roof is thicker than ever, you can heighten the hook and find the right place to connect with the popular European rails.

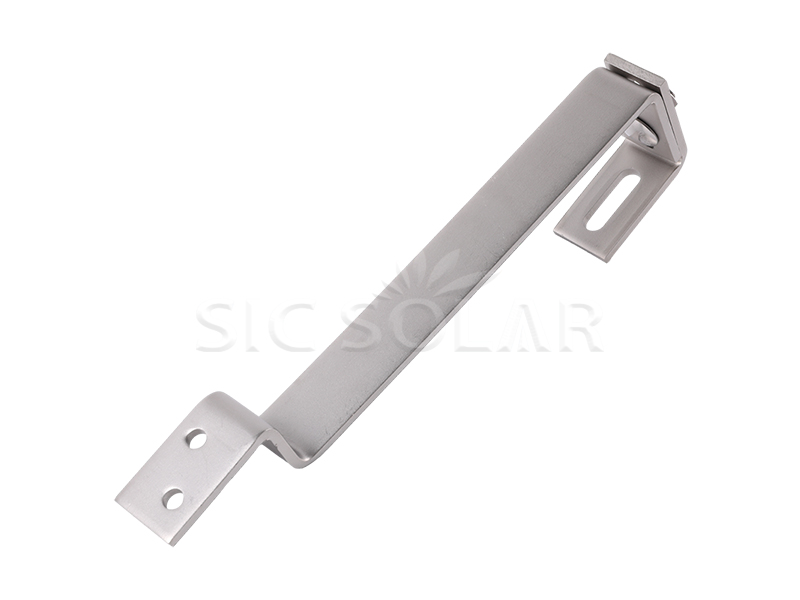

SUS304 Roof Hook

SIC Solar Adjustable Flat Roof Solar Hook will be pre-assembled before shipment. On the other hand, if you have any requirements on the product and its packaging, please feel free to contact us.

Slate Roof Tile Solar Hook

Name Adjustable Slate Roof Tile Solar Hook

Material

SUS304

Metal sheet thickness

≧4mm

Warranty

25YRS

Applicable site

Tile Roof

Range of bolt torque

25-28N*m

Value of pullout resistance

5KN

Value of pressure resistance

5KN

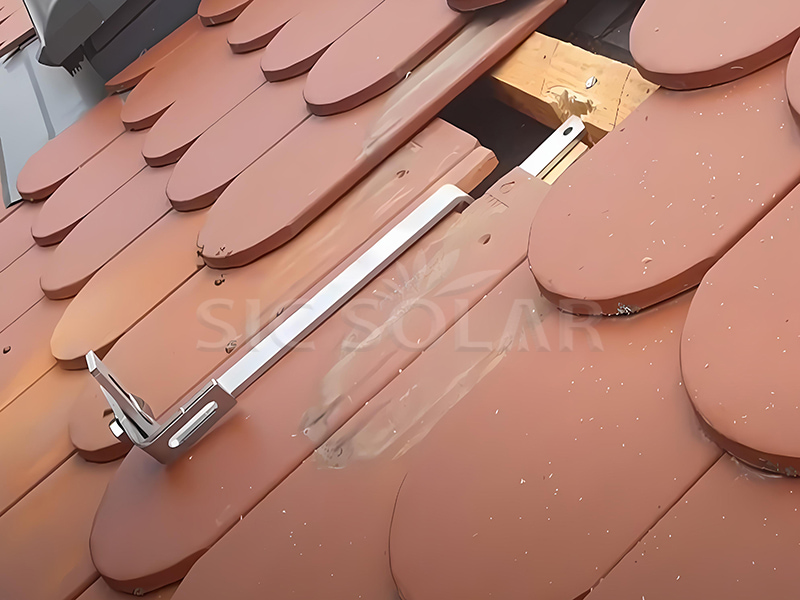

1️⃣ Mark the mounting point – determine the correct location on the roof rafters for the best support.

2️⃣ Remove the slate tile – carefully lift the slate without breaking it to access the underlying structure.

3️⃣ Attach the solar hook to the rafter – securely fasten the bracket to the wooden rafter using stainless steel screws.

4️⃣ Reposition the tile – place the slate tile back to its original position, making sure it is flush and undamaged.

5️⃣ Install the solar mounting rail – secure the mounting rail to the solar hook using T-bolts or hex bolts.

6️⃣ Install the solar panel – secure the solar panel to the rail using the mid and end clamps.

7️⃣ Final check and tightening – double check all connections and alignment before completing the installation.

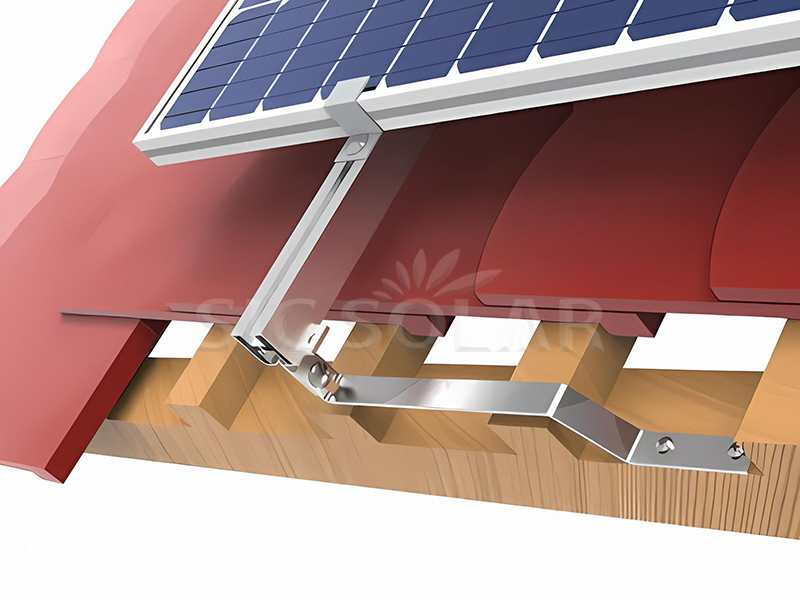

Roof hooks for PV Panels

Solar bracket package

Advantages as follow:
☆ Long service time.
☆ Pre-assembled - Save labor cost at the installation site.



Related Certificate

Our CE Certificate for solar tile hook roof mount system

Our SGS Certificate for hook material -- SUS304

Q1. What's the material of solar roof hook?

It is stainless steel 304, which is named A2 or stainless steel 1.4301 in Europe.



Q2. What's the thickness of your tile roof hooks?

As usual, the bottom plate thickness of hooks is 4/5mm, and the Arm thickness is 5/6mm.

For sure, other thickness or spec. can be customized.



Q3. What's the Surface treatment of your A2 roof hooks?

Sandblasted, not Sandblasted, and Passivation are available.



Q4. Are these hooks pre-assembled before shippment?

Yes, All solar roof hooks will be pre-mounted before shippment.



Q5. Is it include wooden screw and nut?



Yes.



Q6. Can the solar hooks be customized?



Yes.
