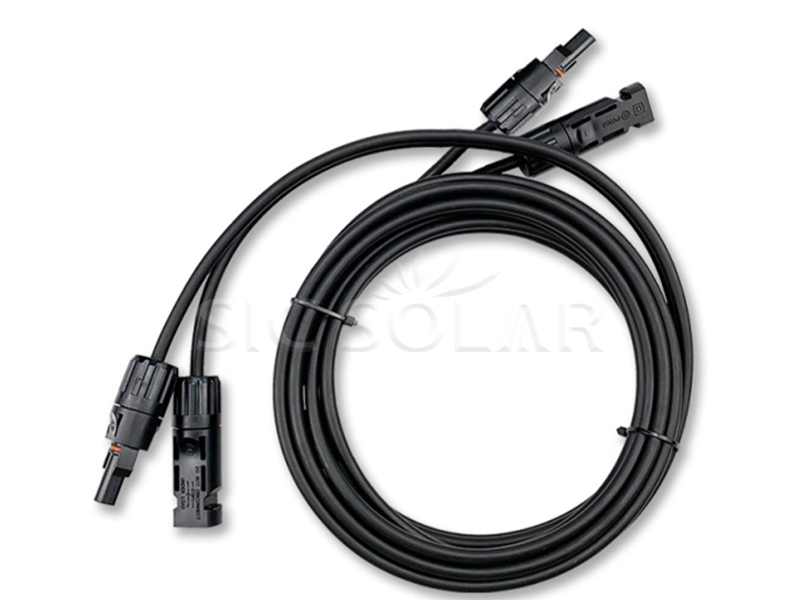

Solar Mc4 Connector

1️⃣ Strip the Cable – Remove about 6–7 mm of insulation from the cable using a wire stripper.

2️⃣ Crimp the Contact – Insert the bare wire into the metal contact and secure it with a suitable crimping tool.

3️⃣ Assemble the Connector – Insert the crimped contact into the connector housing until it clicks into place.

4️⃣ Tighten the Cable Gland – Slide the nut onto the cable and tighten it to help keep the connection sealed and protected from moisture.

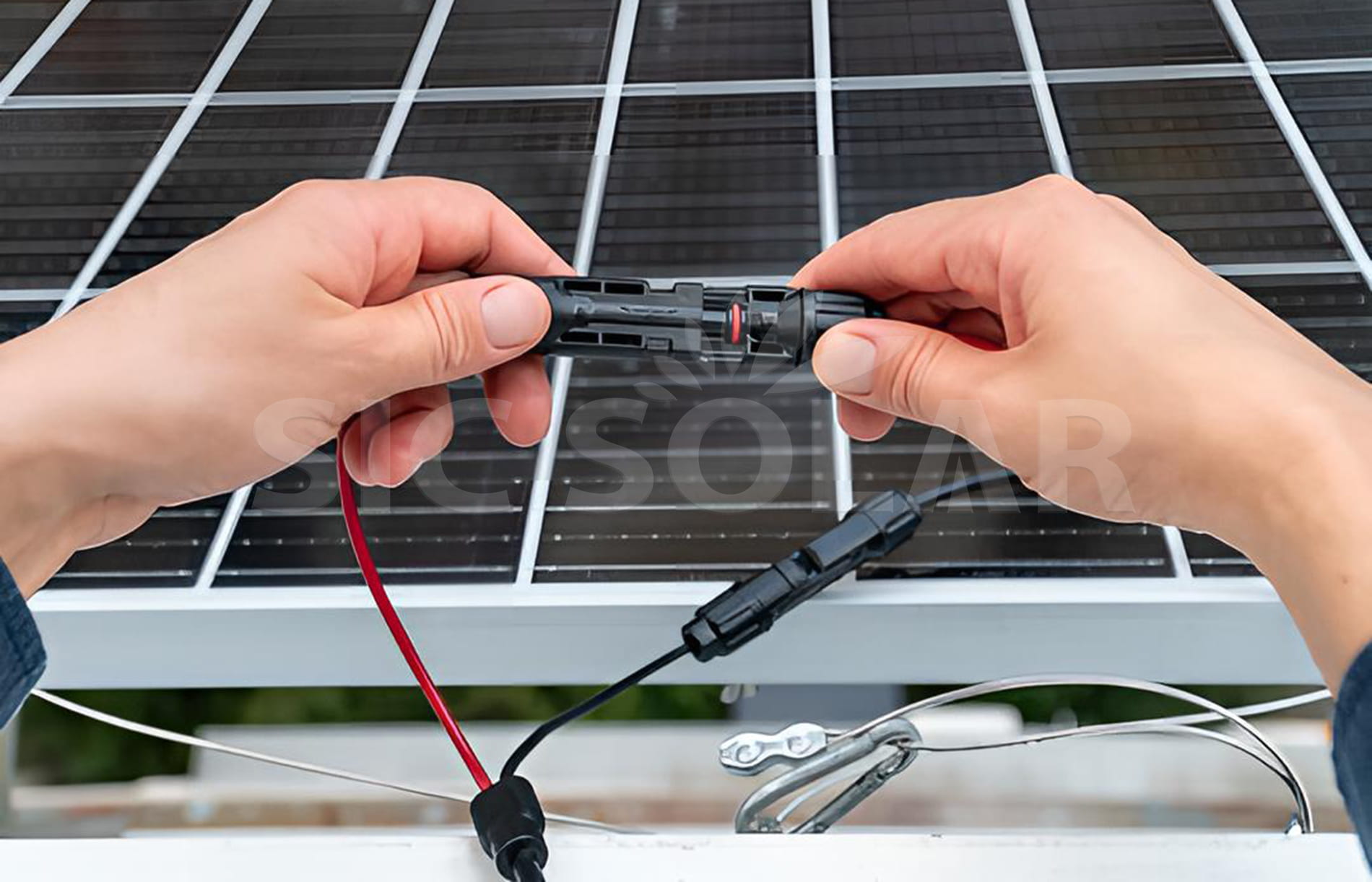

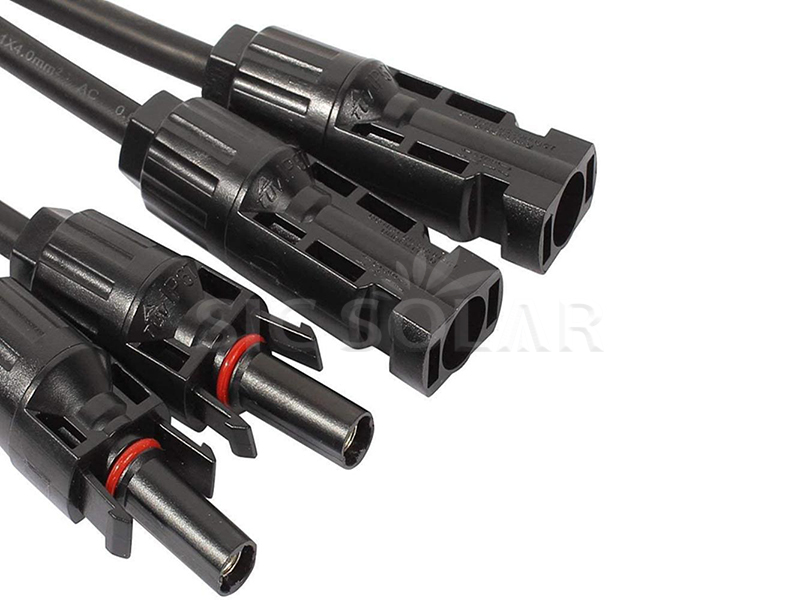

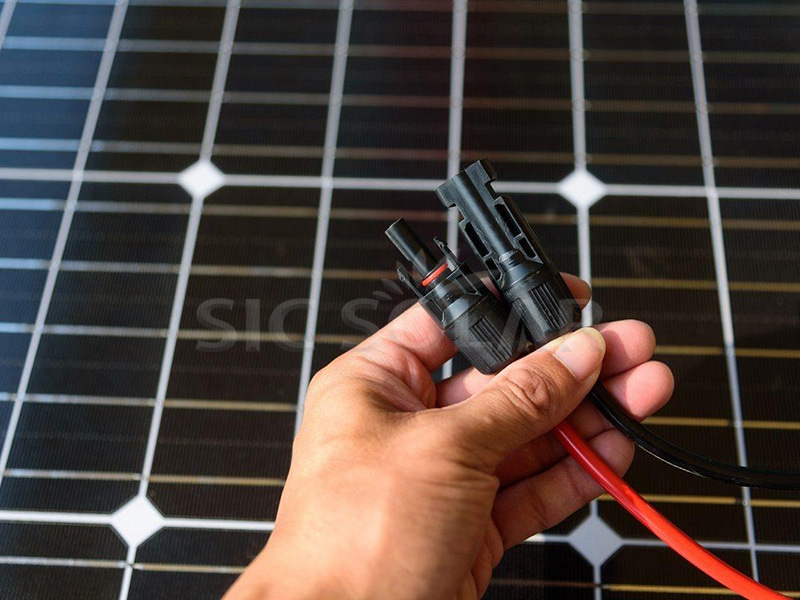

5️⃣ Connect the Panels – Match the male and female connectors and push them together until they lock. Use a proper MC4 disconnection tool when separating them.

☆ Secure Connection: The locking design helps keep the cable connection stable.

☆ Easy Installation: The plug-and-lock structure makes assembly quick and simple.

☆ Reliable Power Transmission: Designed for use with compatible PV cables and solar equipment.

☆ Compact Design: Easy to install around solar panels and mounting structures.

☆ Wide Application: Suitable for residential, commercial, rooftop, and ground-mounted PV systems.

Q1: What is a Solar MC4 Connector used for?
It is used to connect solar cables and other compatible components in a photovoltaic system.

Q2: Can it be used with any solar cable?
No. It should be used only with compatible PV cables that match the connector’s specifications, including cable size and electrical rating.

Q3: How can I tell if the connector is installed correctly?
Make sure the metal contact is fully inserted, the cable gland is tightened, and the male and female connectors lock securely together.

Q4: Can the connector be reused?
Reuse depends on the product design and its condition. Damaged, deformed, or incorrectly assembled connectors should be replaced.

Q5: Can the Solar MC4 Connector be customized?
Yes. Connector type, cable compatibility, and other specifications can be selected according to project requirements.
