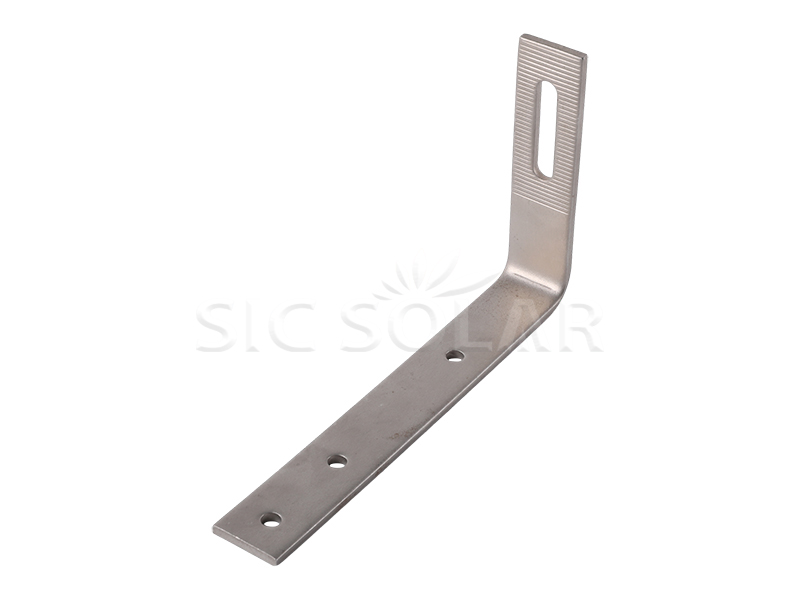

Solar Panel Slate Tile Roof Hook

Solar Panel Slate Tile Roof Hook is designed for installing solar panels on slate roofs. Since slate can be fragile, the hook provides a secure fixing point while helping reduce the risk of damage during installation.

Brand:

SIC SOLAR

Item NO.:

SIC-TH-05

Product Origin:

Fujian, China

Shipping Port:

Xiamen port

Installation Site:

Tile Roof

Color:

Customized

Material:

SUS304

Warranty:

10 years and 25 years service time

Length:

Can be customized

Thickness:

Can be customized

Wind Load:

<60M/S

Snow Load:

<1.4KN/M²

Components Technical Details Installation Guide Package Advantage FAQ

Click here to learn more hooks

Pv Slate Tile Roof Hook

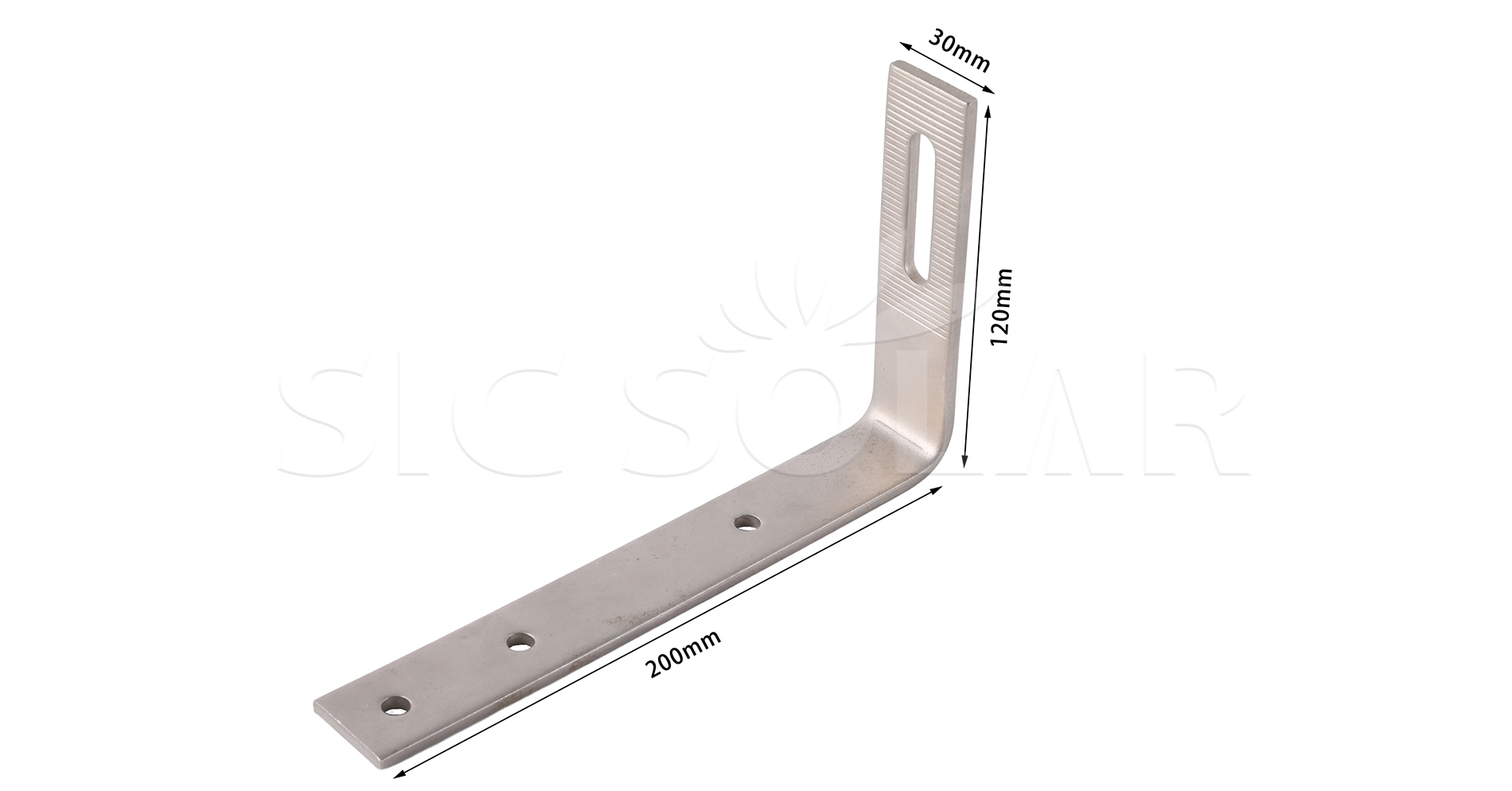

Name	Solar Panel Slate Tile Roof Hook
Material	SUS304
Metal sheet thickness	≧4mm
Warranty	10 Years warranty and 25 Years lifetime
Applicable site	Tile Roof
Range of bolt torque	25-28N*m
Value of pullout resistance	5KN
Value of pressure resistance	5KN

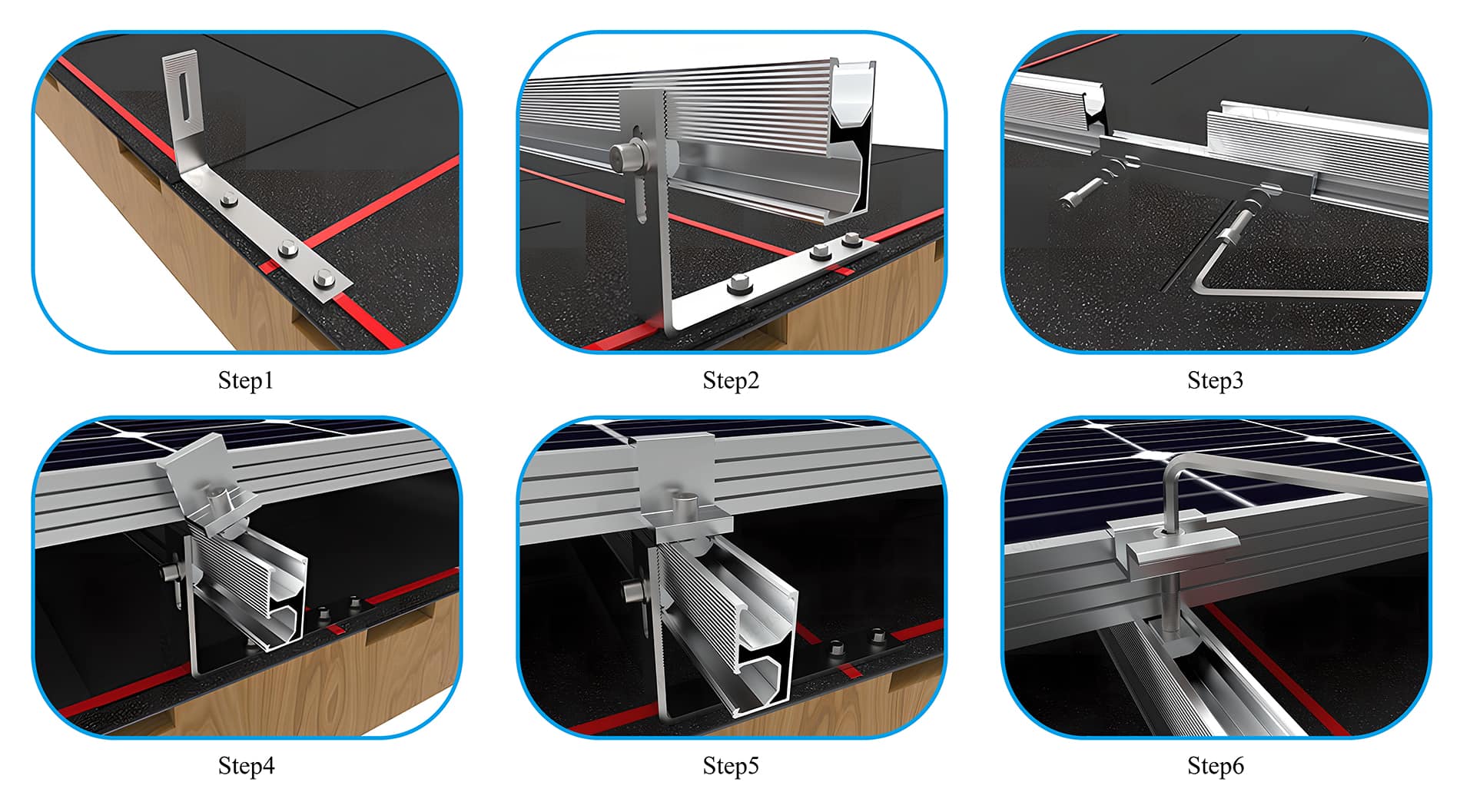

1️⃣ Locate the Rafter – Find the supporting rafter beneath the slate where the hook will be installed.

2️⃣ Lift the Slate – Carefully lift the slate tile to access the rafter without damaging it.

3️⃣ Install the Hook – Position the hook and secure it to the rafter with suitable stainless steel screws.

4️⃣ Replace the Slate – Put the slate back into position. If necessary, carefully trim the tile to fit around the hook.

5️⃣ Install the Rail – Attach the solar mounting rail to the hook and check that the connection is secure and properly aligned.

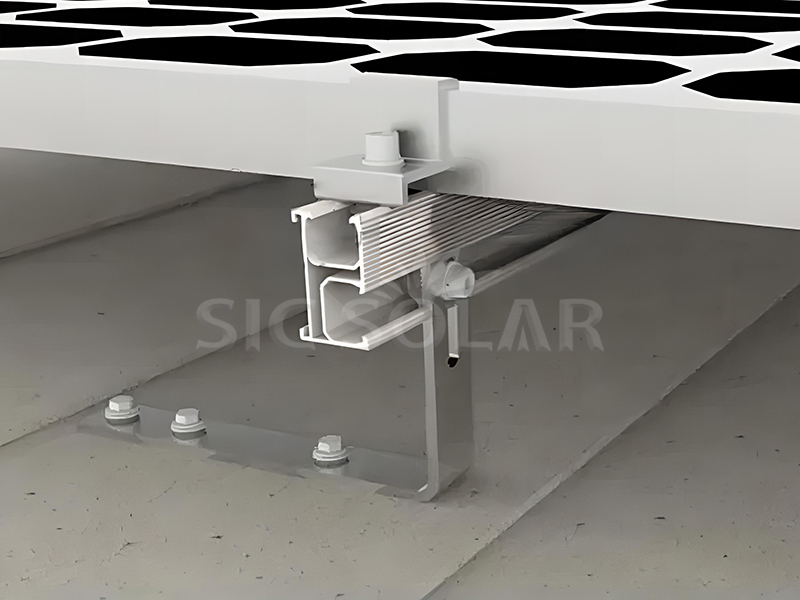

Roof Solar Tile Roof Hook

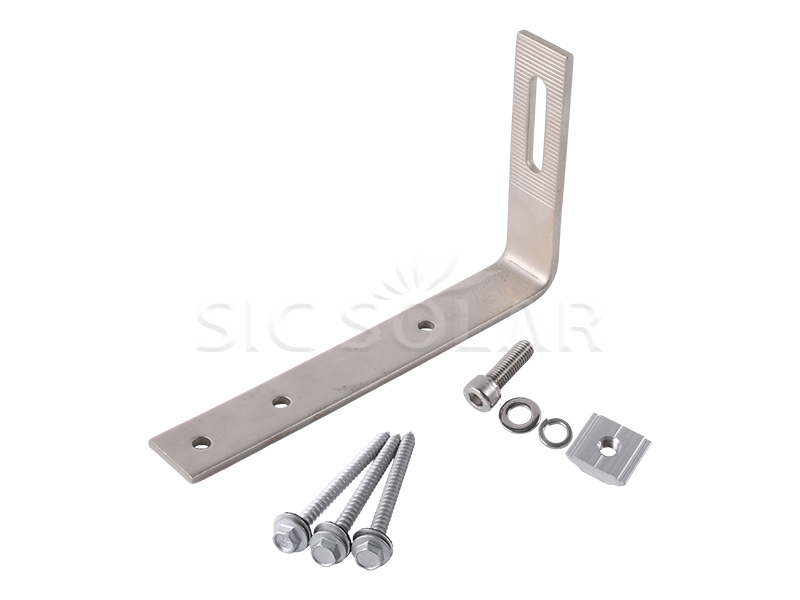

Solar bracket package

☆ Secure Structural Connection: Provides a stable connection between the roof structure and solar mounting rails.

☆ Roof-Friendly Installation: Can be integrated with the existing roof structure when properly installed.

☆ Durable Construction: Suitable metal materials and protective finishes support reliable outdoor performance.

☆ Easy Rail Integration: Compatible with suitable solar mounting rails and related accessories.

Related Certificates

☆ CE Certificate: Available for the solar tile hook roof mounting system.

☆ SGS Certificate: Available for the SUS304 hook material.

Q1: What material is the solar roof hook made of?
It is made from SUS304 stainless steel, also known as A2 or 1.4301 stainless steel in Europe.

Q2: What is the thickness of the tile roof hooks?
The bottom plate is normally 4–5 mm thick, while the arm is 5–6 mm. Other thicknesses and specifications can be customized.

Q3: What surface treatments are available for the A2 roof hooks?
Sandblasted, non-sandblasted, and passivated finishes are available.

Q4: Are the hooks pre-assembled before shipment?
Yes. The solar roof hooks are pre-assembled before shipment to help simplify installation.

Q5: Are wooden screws and nuts included?
Yes. Wooden screws and nuts are included with the standard set.

Q6: Can the solar hooks be customized?
Yes. The dimensions, thickness, shape, hole position, and other specifications can be customized according to project requirements.
